1pzh

T.gondii LDH1 ternary complex with NAD and oxalate

Method: X-RAY DIFFRACTION D_max: 93.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

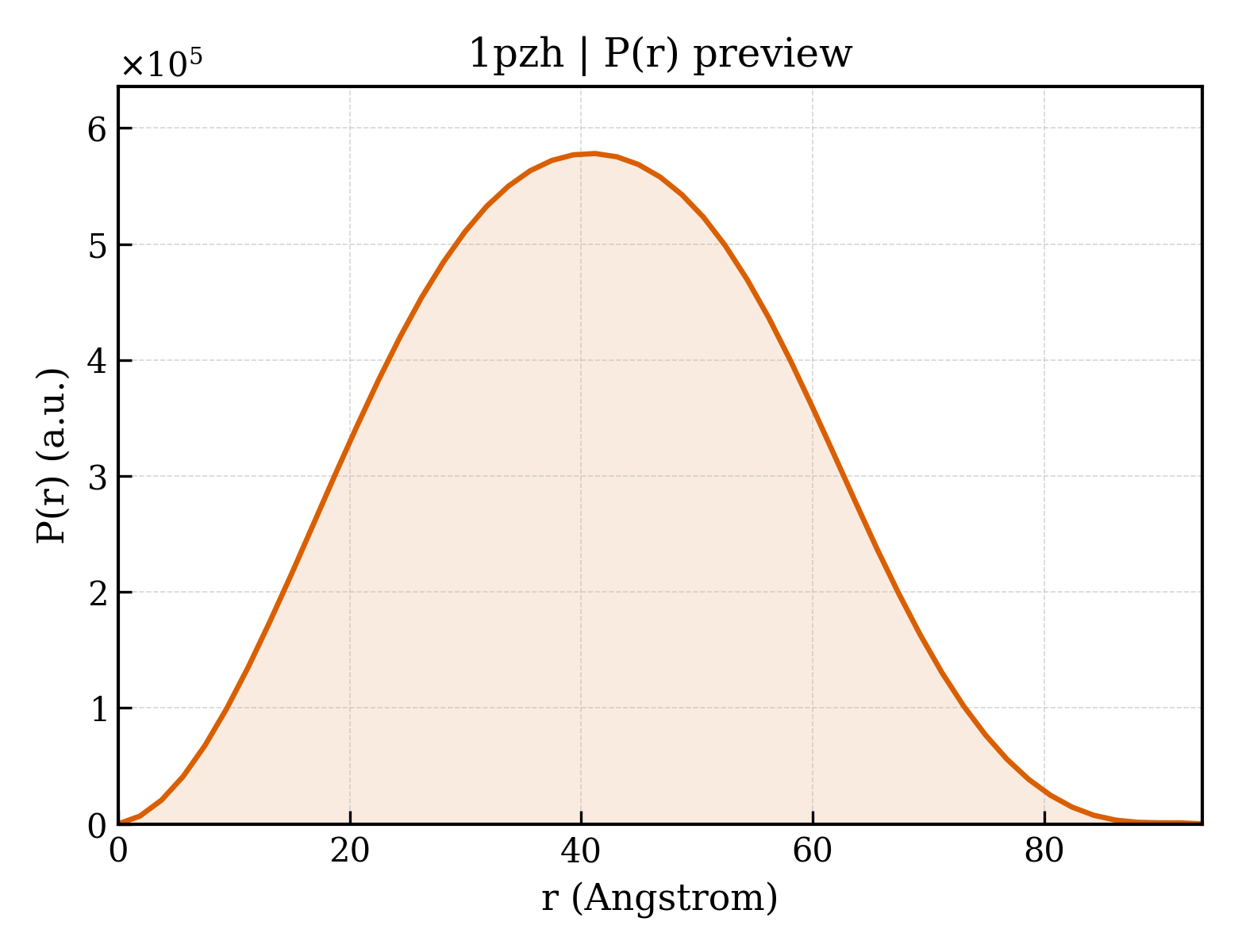

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1pzh
沉积日期 deposition_date	2003-07-10
结构标题 title	T.gondii LDH1 ternary complex with NAD and oxalate
关键词 keywords	NADH-dependent dehydrogenase, tetramer, Rossmann fold, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	31.47 Å
回转半径 Rg (电子) rg_electron	30.63 Å
零角强度 I(0) i0	326491000.00
分子量 molecular_weight	144480.0 kDa
排除体积 excluded_volume	180830 Å³
包络体积 envelope_volume	211000 Å³
水化壳体积 shell_volume	53721 Å³
包络直径 envelope_diameter	97.5 Å
壳层 Rg shell_rg	40.28 Å
包络 Rg envelope_rg	30.86 Å
形状 Rg shape_rg	30.64 Å
总 Rg total_rg	31.35 Å
总原子数 total_atoms	10080
残基数 n_residues	1250
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	93.7 Å
Rg (实空间) rg_real	31.22 Å
Rg 误差 (实空间) rg_real_error	0.35 Å
I(0) (实空间) i0_real	3.2650e+08
I(0) 误差 (实空间) i0_real_error	4.1870e+06
Rg (倒空间) rg_reciprocal	31.33 Å
I(0) (倒空间) i0_reciprocal	326500000.0000
解质量估计 total_estimate	0.7151
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	41.2 Å
偏度 Skewness skewness	0.070
峰度 Kurtosis kurtosis	-0.589
角度范围 angular_range	— – 0.2500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	188300000.0000
实空间数据点数 n_real_points	51
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.953; Stabil: 1.000; Sysdev: 0.169; Positv: 1.000; Valcen: 0.975; Smooth: 0.952

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	lactate dehydrogenase
分子量 formula_weight	35740.5 kDa
EC 编号 ec_number	1.1.1.27
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	10668

MAPALVQRRKKVAMIGSGMIGGTMGYLCALRELADVVLYDVVKGMPEGKALDLSHVTSVVDTNVSVRAEYSYEAALTGADCVIVTAGLTKVPGKPDSEWSRNDLLPFNSKIIREIGQNIKKYCPKTFIIVVTNPLDCMVKVMCEASGVPTNMICGMACMLDSGRFRRYVADALSVSPRDVQATVIGTHGDCMVPLVRYITVNGYPIQKFIKDGVVTEKQLEEIAEHTKVSGGEIVRFLGQGSAYYAPAASAVAMATSFLNDEKRVIPCSVYCNGEYGLKDMFIGLPAVIGGAGIERVIELELNEEEKKQFQKSVDDVMALNKAVAALQAPG

来源 Source

来源生物 organism	Toxoplasma gondii
NCBI 分类编号 ncbi_taxonomy_id	508771
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	OXALATE ION
分子量 formula_weight	88.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	588

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1pzha1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1pzha2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

结构域编号 domain_id	d1pzha3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1pzhb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1pzhb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

结构域编号 domain_id	d1pzhb3
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1pzhc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1pzhc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

结构域编号 domain_id	d1pzhd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1pzhd2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.1 — Lactate & malate dehydrogenases, C-terminal domain

CATH v4.4 (8 domains)

结构域编号 domain_id	1pzhA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1pzhA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

结构域编号 domain_id	1pzhB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1pzhB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

结构域编号 domain_id	1pzhC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1pzhC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

结构域编号 domain_id	1pzhD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1pzhD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	68.068 Å
晶胞边长 b length_b	125.121 Å
晶胞边长 c length_c	86.597 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	106.08 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.1640
R_work r_work	0.1640
R_free r_free	0.2000
