1q5r

The Rhodococcus 20S proteasome with unprocessed pro-peptides

Method: X-RAY DIFFRACTION D_max: 134.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

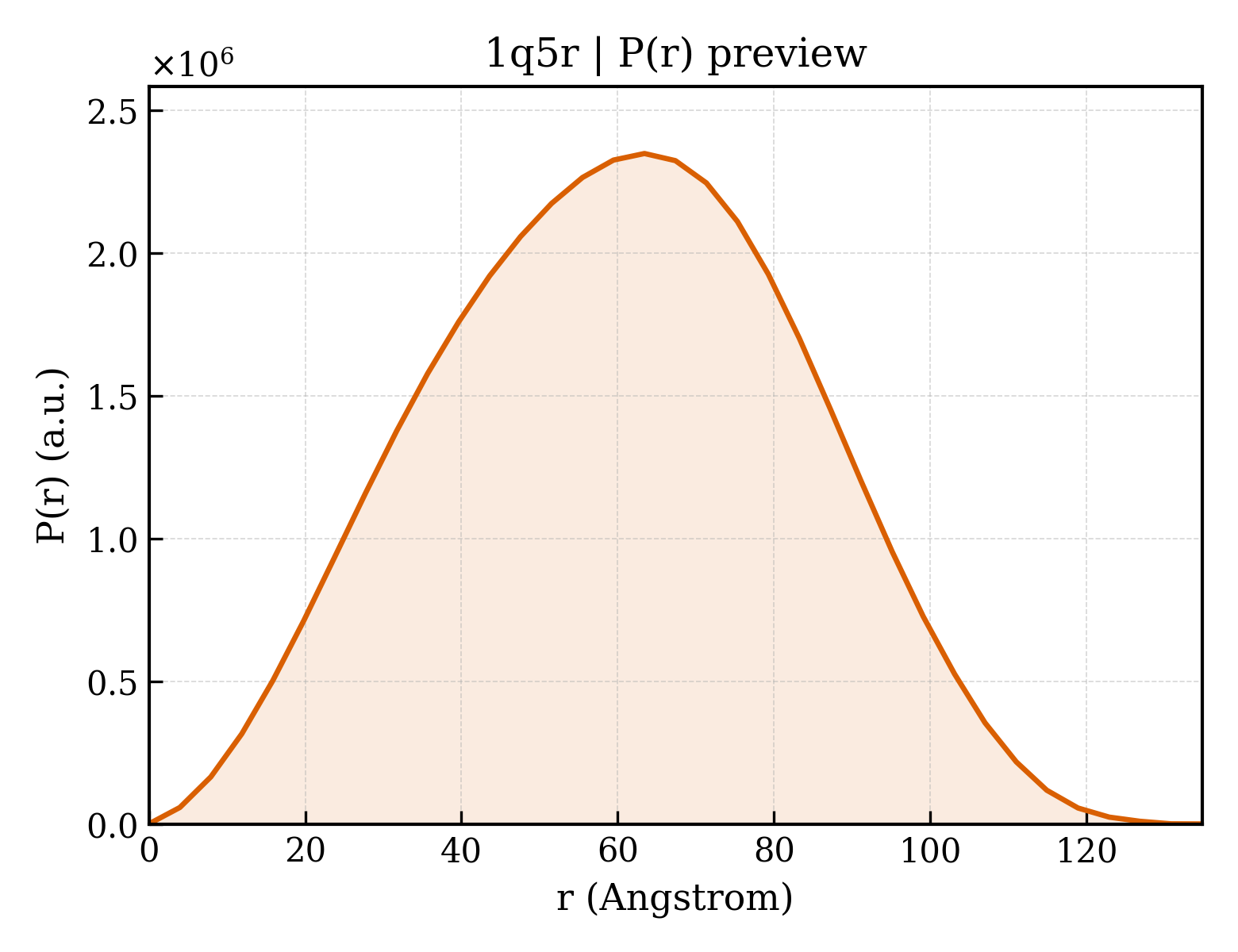

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1q5r
沉积日期 deposition_date	2003-08-08
结构标题 title	The Rhodococcus 20S proteasome with unprocessed pro-peptides
关键词 keywords	proteasome assembly, pro-peptide, inter-subunit contacts, Rhodococcus erythropolis, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.02 Å
回转半径 Rg (电子) rg_electron	45.15 Å
零角强度 I(0) i0	1872780000.00
分子量 molecular_weight	353440.0 kDa
排除体积 excluded_volume	439890 Å³
包络体积 envelope_volume	597710 Å³
水化壳体积 shell_volume	103160 Å³
包络直径 envelope_diameter	137.2 Å
壳层 Rg shell_rg	55.39 Å
包络 Rg envelope_rg	44.21 Å
形状 Rg shape_rg	45.15 Å
总 Rg total_rg	45.53 Å
总原子数 total_atoms	24913
残基数 n_residues	3290
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	134.8 Å
Rg (实空间) rg_real	45.63 Å
Rg 误差 (实空间) rg_real_error	0.54 Å
I(0) (实空间) i0_real	1.8730e+09
I(0) 误差 (实空间) i0_real_error	3.0400e+07
Rg (倒空间) rg_reciprocal	46.02 Å
I(0) (倒空间) i0_reciprocal	1874000000.0000
解质量估计 total_estimate	0.8815
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	63.4 Å
偏度 Skewness skewness	0.005
峰度 Kurtosis kurtosis	-0.577
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	368200000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.953; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.630

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	proteasome alpha-type subunit 1
分子量 formula_weight	28448.9 kDa
EC 编号 ec_number	3.4.25.1
来源方法 src_method	man
拷贝数 entity_count	7

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G
原子数 atom_count	25013

MHHHHHHSAEQIMRDRSELARKGIARGRSVVVLTFRDGVLFVAENPSTALHKVSELYDRLGFAAVGKYNEFENLRRAGIVHADMRGYSYDRRDVTGRSLANAYAQTLGTIFTEQPKPYEVEICVAEVGRVGSPKAPQLYRITYDGSIVDEQHFVVMGGTTEPIATAMRESYRADLDLEAAVGIAVNALRQGGAGEGEKRNVDVASLEVAVLDQSRPRRAFRRIAGTALEQLVPAEPAAASESAPEPKPDTETKPADTQD

来源 Source

来源生物 organism	Rhodococcus erythropolis
NCBI 分类编号 ncbi_taxonomy_id	1833
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	proteasome beta-type subunit 1
分子量 formula_weight	31140.5 kDa
突变 mutation	K33A
来源方法 src_method	man
拷贝数 entity_count	7

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I,J,K,L,M,N

MTADRPALRTGDRDTRLSFGSNLSSFTDYLRGHAPELLPENRIGHRSHSTRGGDGMESGDLAPHGTTIVALTYKGGVLLAGDRRATQGNLIASRDVEAVYVTDEYSAAGIAGTAGIAIELVRLFAVELEHYEKIEGVPLTFDGKANRLASMVRGNLGAAMQGLAVVPLLVGYDLDADDESRAGRIVSYDVVGGRYEERAGYHAVGSGSLFAKSALKKIYSPDSDEETALRAAIESLYDAADDDSATGGPDLTRGIYPTAVTITQAGAVHVSEETTSELARRIVAERTEQGGSAR

来源 Source

来源生物 organism	Rhodococcus erythropolis
NCBI 分类编号 ncbi_taxonomy_id	1833
宿主生物 host_organism	Escherichia coli

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	100

▼

6. 折叠分类 (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

结构域编号 domain_id	d1q5ra_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rc_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5re_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rf_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rg_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rh_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5ri_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rj_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rk_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rl_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rm_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

结构域编号 domain_id	d1q5rn_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.153 — Ntn hydrolase-like
超家族 Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
家族 Family family	d.153.1.4 — Proteasome subunits

CATH v4.4 (14 domains)

结构域编号 domain_id	1q5rA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rF00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rH00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rI00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rJ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rK00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rL00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rM00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

结构域编号 domain_id	1q5rN00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	152.094 Å
晶胞边长 b length_b	212.365 Å
晶胞边长 c length_c	250.213 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	56

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	19.960 Å
R 因子 r_factor	0.2290
R_work r_work	0.2290
R_free r_free	0.2460

fit	/app/data/saxs_computation/q5/1q5r/1q5r.fit
pddf	/app/data/pr_computation/q5/1q5r/1q5r.pr.out
profile	/app/data/saxs_computation/q5/1q5r/1q5r.dat
