2h6j

Crystal Structure of the Beta F145A Rhodococcus Proteasome

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proteasome alpha-type subunit 1

Rhodococcus erythropolis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 28	Proteasome beta-type subunit 1 × 14 （Q53079） water × 28	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q53080_RHOER
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–259； UniProt 1–259 Author chain B； PDBConstruct 1–259； UniProt 1–259 Author chain C； PDBConstruct 1–259； UniProt 1–259 Author chain D； PDBConstruct 1–259； UniProt 1–259 Author chain E； PDBConstruct 1–259； UniProt 1–259 Author chain F； PDBConstruct 1–259； UniProt 1–259 Author chain G； PDBConstruct 1–259； UniProt 1–259

Proteasome beta-type subunit 1

Rhodococcus erythropolis

UniProt Q53079

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 28	Proteasome alpha-type subunit 1 × 14 （Q53080） water × 28	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q53079_RHOER
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain H； PDBConstruct 1–292； UniProt 1–294 Author chain I； PDBConstruct 1–292； UniProt 1–294 Author chain J； PDBConstruct 1–292； UniProt 1–294 Author chain K； PDBConstruct 1–292； UniProt 1–294 Author chain L； PDBConstruct 1–292； UniProt 1–294 Author chain M； PDBConstruct 1–292； UniProt 1–294 Author chain N； PDBConstruct 1–292； UniProt 1–294

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2h6j
Deposition date deposition_date	2006-05-31
Structure title title	Crystal Structure of the Beta F145A Rhodococcus Proteasome
Keywords keywords	20S proteasome, half proteasome, assembly-dependent activation, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2h6j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2h6j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

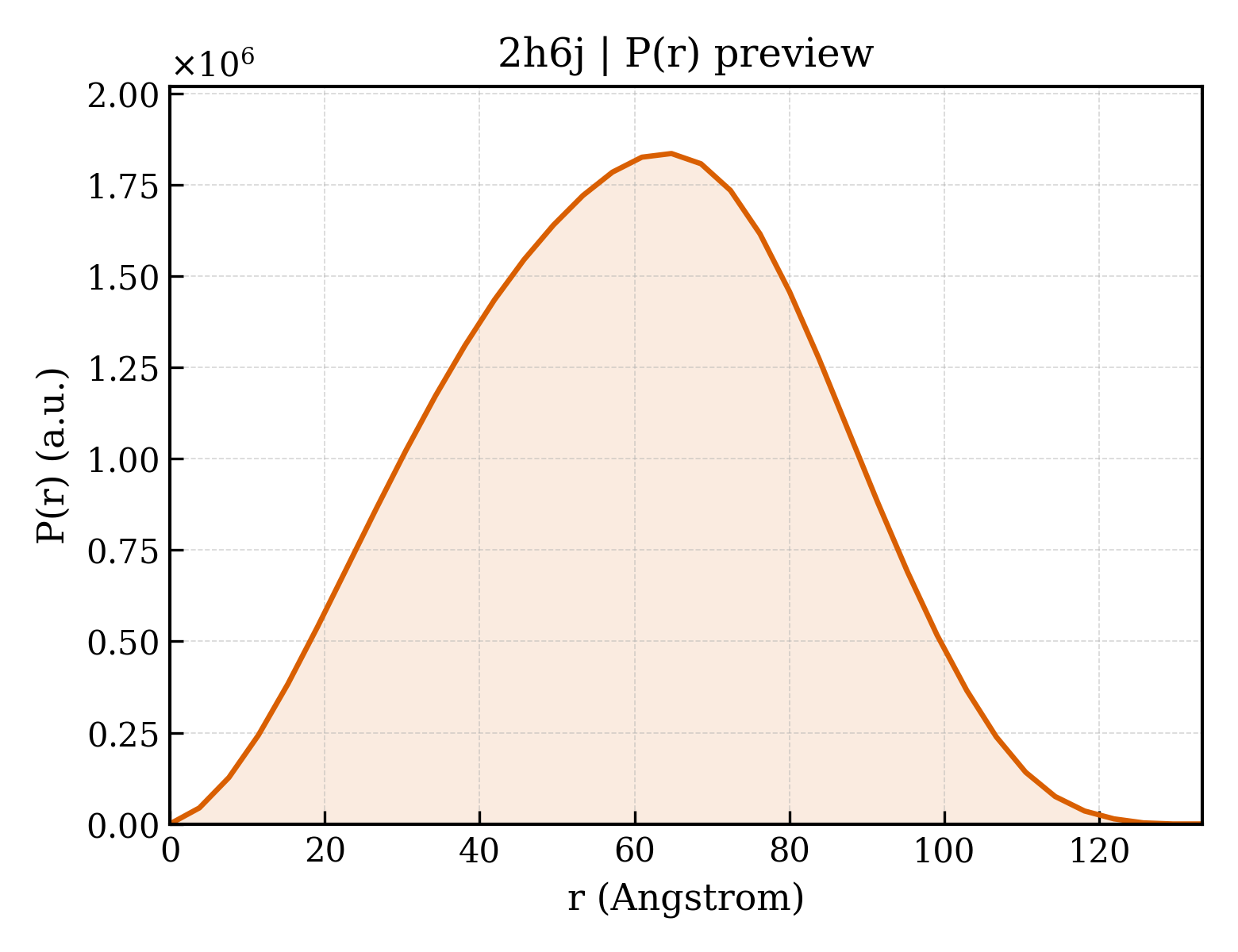

2h6j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	58.49 Å
Rg (electron density)	58.17 Å
Total Rg	58.36 Å
Atom count	43736
Residues	6454
Excluded volume	769450 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2h6j__assembly_1__model_1`	28-meric （28）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Proteasome alpha-type subunit 1
Molecular weight formula_weight	28346.8 kDa
EC 编号 ec_number	3.4.25.1
Source method src_method	man
Copy count entity_count	7

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G
Atom count atom_count	22218

MTMPYYASAEQIMRDRSELARKGIARGRSVVVLTFRDGVLFVAENPSTALHKVSELYDRLGFAAVGKYNEFENLRRAGIVHADMRGYSYDRRDVTGRSLANAYAQTLGTIFTEQPKPYEVEICVAEVGRVGSPKAPQLYRITYDGSIVDEQHFVVMGGTTEPIATAMRESYRADLDLEAAVGIAVNALRQGGAGEGEKRNVDVASLEVAVLDQSRPRRAFRRIAGTALEQLVPAEPAAASESAPEPKPDTETKPADTQD

Source Source

Source organism organism	Rhodococcus erythropolis
NCBI taxonomy ID ncbi_taxonomy_id	1833
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Proteasome beta-type subunit 1
Molecular weight formula_weight	31122.5 kDa
EC 编号 ec_number	3.4.25.1
Mutation mutation	F145A
Source method src_method	man
Copy count entity_count	7

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,I,J,K,L,M,N

MTADRPALRTGDRDTRLSFGSNLSSFTDYLRGHAPELLPENRIGHRSHSTRGGDGMESGDLAPHGTTIVALTYKGGVLLAGDRRATQGNLIASRDVEKVYVTDEYSAAGIAGTAGIAIELVRLFAVELEHYEKIEGVPLTFDGKANRLASMVRGNLGAAMQGLAVVPLLVGYDLDADDESRAGRIVSYDVVGGRYEERAGYHAVGSGSLAAKSALKKIYSPDSDEETALRAAIESLYDAADDDSATGGPDLTRGIYPTAVTITQAGAVHVSEETTSELARRIVAERTEQGGSAR

Source Source

Source organism organism	Rhodococcus erythropolis
NCBI taxonomy ID ncbi_taxonomy_id	1833
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	350

▼

6. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

Domain ID domain_id	d2h6ja1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jb1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jd1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6je1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jf1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jg1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jh1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6ji1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jj1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jk1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jl1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jm1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

Domain ID domain_id	d2h6jn1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.4 — Proteasome subunits

CATH v4.4 (14 domains)

Domain ID domain_id	2h6jA00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jB00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jC00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jD00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jE00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jF00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jG00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jH00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jI00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jJ00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jK00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jL00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jM00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	2h6jN00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

▶

Unit-cell length a length_a	149.437 Å
Unit-cell length b length_b	210.714 Å
Unit-cell length c length_c	248.126 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	56

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	19.980 Å
R factor r_factor	0.2620
R_work r_work	0.2620
R_free r_free	0.2900

Crystal Structure of the Beta F145A Rhodococcus Proteasome

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proteasome alpha-type subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Proteasome beta-type subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2h6j__assembly_1__model_1

2h6j__assembly_1__model_1 | I(q)

2h6j__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

CATH v4.4 (14 domains)

7. Citations (1)

Crystal Structure of the Beta F145A Rhodococcus Proteasome

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proteasome alpha-type subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Proteasome beta-type subunit 1

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

2h6j__assembly_1__model_1

2h6j__assembly_1__model_1 | I(q)

2h6j__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 water

6. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (14 domains)

CATH v4.4 (14 domains)

7. Citations (1)
