SAXSdb — 1qhg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATP-DEPENDENT HELICASE PCRA

Geobacillus stearothermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	MAGNESIUM ION × 1 ADENOSINE-5'-TRIPHOSPHATE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCRA_BACST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–724； UniProt 1–724

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qhg
Deposition date deposition_date	1999-05-14
Structure title title	STRUCTURE OF DNA HELICASE MUTANT WITH ADPNP
Keywords keywords	DNA REPAIR, DNA REPLICATION, SOS RESPONSE, HELICASE, ATP-BINDING, DNA-BINDING, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1qhg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1qhg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

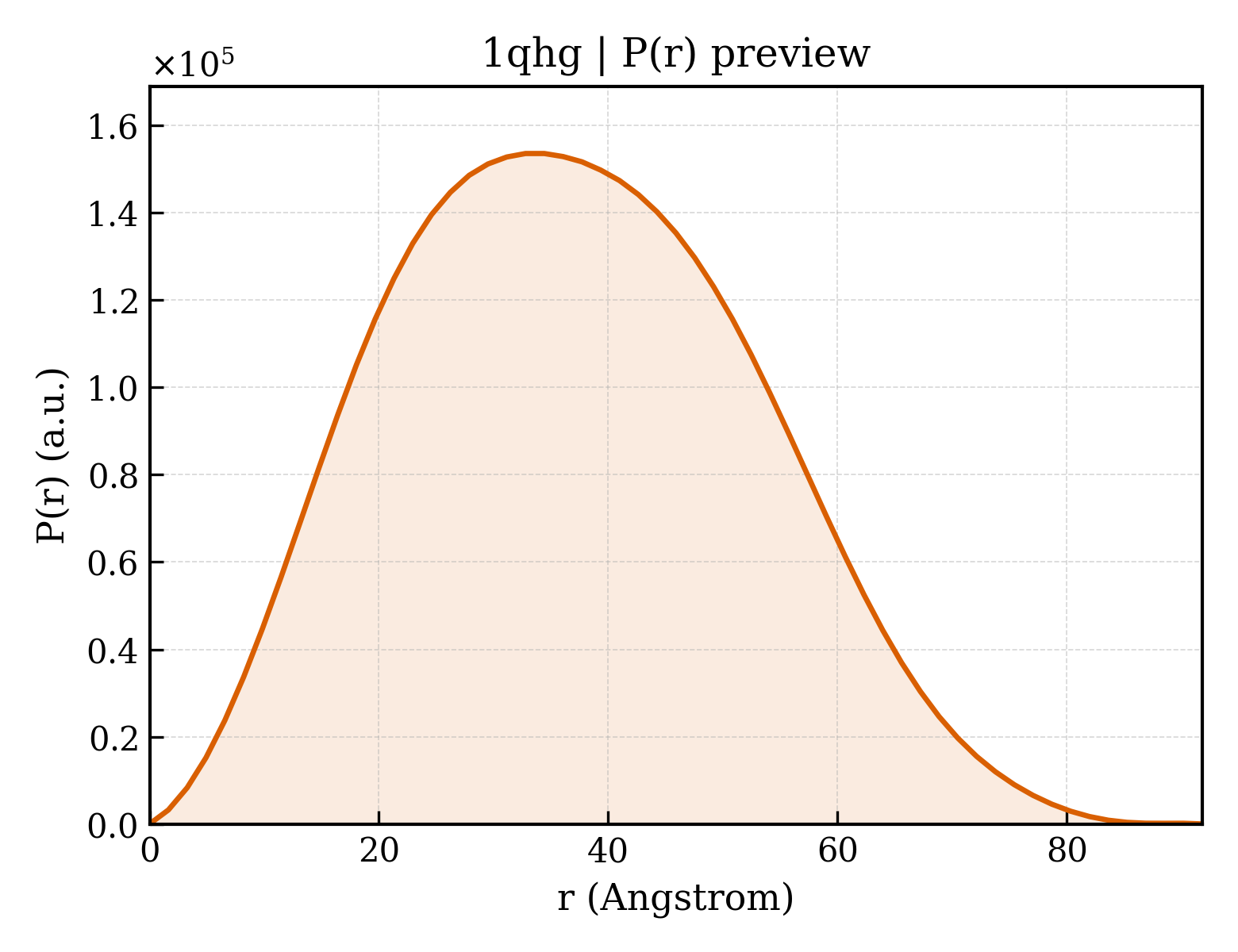

1qhg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.46 Å
Rg (electron density)	27.59 Å
Total Rg	28.32 Å
Atom count	5181
Residues	622
Excluded volume	90123 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1qhg__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ATP-DEPENDENT HELICASE PCRA
Molecular weight formula_weight	82595.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5306

MNFLSEQLLAHLNKEQQEAVRTTEGPLLIMAGAGSGKTRVLTHRIAYLMAEKHVAPWNILAITFTNKAAREMRERVQSLLGGAAEDVWISTFHSMCVRILRRDIDRIGINRNFSILDPTDQLSVMKTILKEKNIDPKKFEPRTILGTISAAKNELLPPEQFAKRASTYYEKVVSDVYQEYQQRLLRNHSLDFDDLIMTTIQLFDRVPDVLHYYQYKFQYIHIDEYQDTNRAQYTLVKKLAERFQNICAVGDADQSIYRWRGADIQNILSFERDYPNAKVILLEQNYRSTKRILQAANEVIEHNVNRKPKRIWTENPEGKPILYYEAMNEADEAQFVAGRIREAVERGERRYRDFAVLYRTNAQSRVMEEMLLKANIPYQIVGGLKFYDRKEIKDILAYLRVIANPDDDLSLLRIINVPKRGIGASTIDKLVRYAADHELSLFEALGELEMIGLGAKAAGALAAFRSQLEQWTQLQEYVSVTELVEEVLDKSGYREMLKAERTIEAQSRLENLDEFLSVTKHFENVSDDKSLIAFLTDLALISDLDELDGTEQAAEGDAVMLMTLHAAKGLEFPVVFLIGMEEGIFPHNRSLEDDDEMEEERRLAYVGITRAEEELVLTSAQMRTLFGNIQMDPPSRFLNEIPAHLLETASRRQAGASRPAVSRPQASGAVGSWKVGDRANHRKWGIGTVVSVRGGGDDQELDIAFPSPIGIKRLLAKFAPIEKV

Source Source

Source organism organism	Geobacillus stearothermophilus
NCBI taxonomy ID ncbi_taxonomy_id	1422
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	125

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1qhga1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

Domain ID domain_id	d1qhga2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.19 — Tandem AAA-ATPase domain

CATH v4.4 (4 domains)

Domain ID domain_id	1qhgA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1qhgA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	160 —

Domain ID domain_id	1qhgA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1qhgA04
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	486 — PCRA; domain 4
Homologous superfamily homologous superfamily	10 — PCRA; domain 4

▶

Unit-cell length a length_a	138.098 Å
Unit-cell length b length_b	138.098 Å
Unit-cell length c length_c	111.086 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2200
R_work r_work	0.2200
R_free r_free	0.2690
