1qrk

HUMAN FACTOR XIII WITH STRONTIUM BOUND IN THE ION SITE

Method: X-RAY DIFFRACTION D_max: 120.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1qrk
沉积日期 deposition_date	1999-06-14
结构标题 title	HUMAN FACTOR XIII WITH STRONTIUM BOUND IN THE ION SITE
关键词 keywords	TRANSGLUTAMINASE, BLOOD COAGULATION, CALCIUM, STRONTIUM, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.69 Å
回转半径 Rg (电子) rg_electron	36.28 Å
零角强度 I(0) i0	391169000.00
分子量 molecular_weight	159880.0 kDa
排除体积 excluded_volume	199490 Å³
包络体积 envelope_volume	250600 Å³
水化壳体积 shell_volume	56410 Å³
包络直径 envelope_diameter	123.0 Å
壳层 Rg shell_rg	43.25 Å
包络 Rg envelope_rg	36.45 Å
形状 Rg shape_rg	36.26 Å
总 Rg total_rg	36.76 Å
总原子数 total_atoms	11262
残基数 n_residues	1405
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

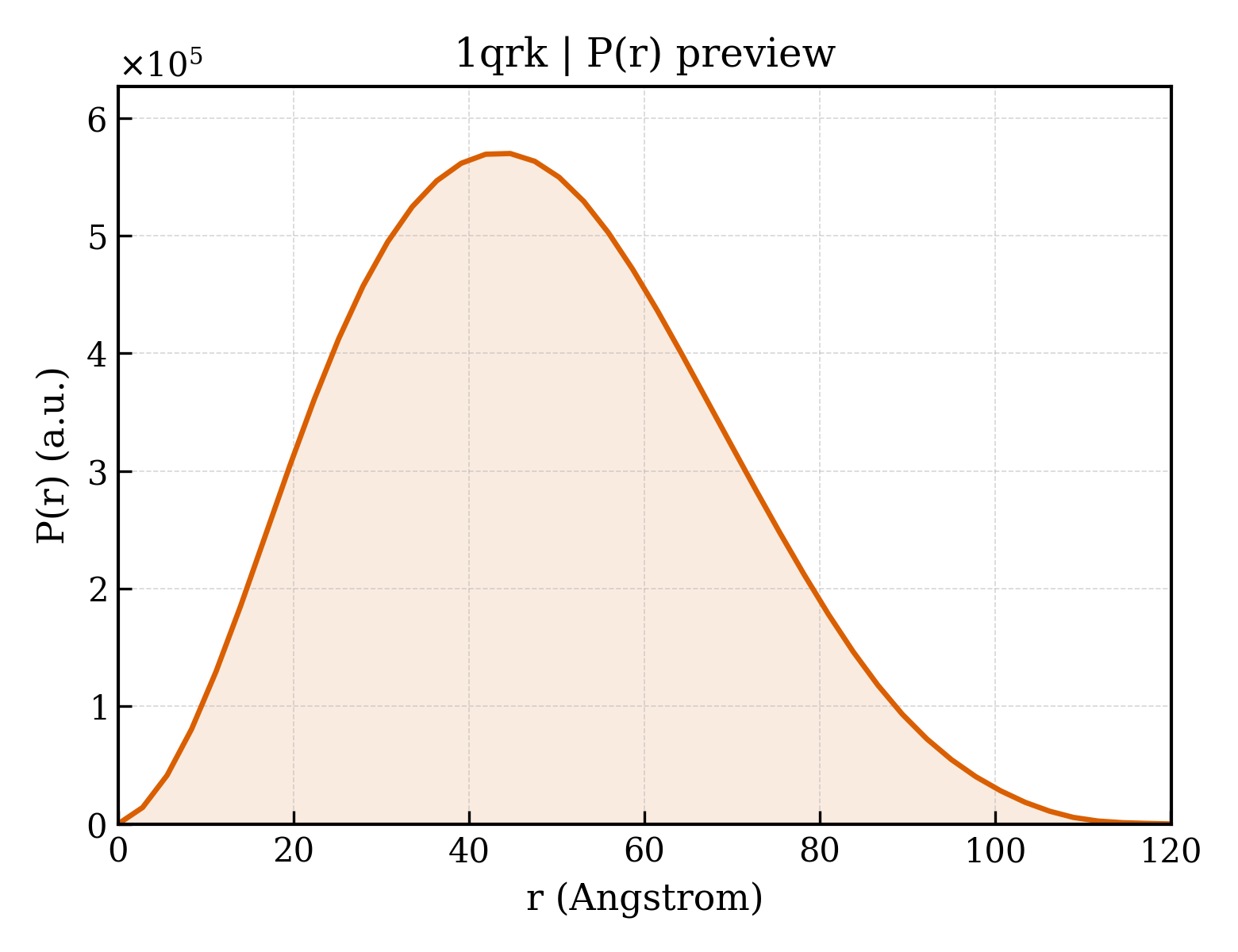

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	120.1 Å
Rg (实空间) rg_real	36.62 Å
Rg 误差 (实空间) rg_real_error	1.04 Å
I(0) (实空间) i0_real	3.9120e+08
I(0) 误差 (实空间) i0_real_error	7.2100e+06
Rg (倒空间) rg_reciprocal	36.67 Å
I(0) (倒空间) i0_reciprocal	391200000.0000
解质量估计 total_estimate	0.8912
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	44.7 Å
偏度 Skewness skewness	0.284
峰度 Kurtosis kurtosis	-0.424
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	104800000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.894; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.904

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	PROTEIN (COAGULATION FACTOR XIII)
分子量 formula_weight	83233.9 kDa
EC 编号 ec_number	2.3.2.13
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	11492

SETSRTAFGGRRAVPPNNSNAAEDDLPTVELQGVVPRGVNLQEFLNVTSVHLFKERWDTNKVDHHTDKYENNKLIVRRGQSFYVQIDFSRPYDPRRDLFRVEYVIGRYPQENKGTYIPVPIVSELQSGKWGAKIVMREDRSVRLSIQSSPKCIVGKFRMYVAVWTPYGVLRTSRNPETDTYILFNPWCEDDAVYLDNEKEREEYVLNDIGVIFYGEVNDIKTRSWSYGQFEDGILDTCLYVMDRAQMDLSGRGNPIKVSRVGSAMVNAKDDEGVLVGSWDNIYAYGVPPSAWTGSVDILLEYRSSENPVRYGQCWVFAGVFNTFLRCLGIPARIVTNYFSAHDNDANLQMDIFLEEDGNVNSKLTKDSVWNYHCWNEAWMTRPDLPVGFGGWQAVDSTPQENSDGMYRCGPASVQAIKHGHVCFQFDAPFVFAEVNSDLIYITAKKDGTHVVENVDATHIGKLIVTKQIGGDGMMDITDTYKFQEGQEEERLALETALMYGAKKPLNTEGVMKSRSNVDMDFEVENAVLGKDFKLSITFRNNSHNRYTITAYLSANITFYTGVPKAEFKKETFDVTLEPLSFKKEAVLIQAGEYMGQLLEQASLHFFVTARINETRDVLAKQKSTVLTIPEIIIKVRGTQVVGSDMTVTVEFTNPLKETLRNVWVHLDGPGVTRPMKKMFREIRPNSTVQWEEVCRPWVSGHRKLIASMSSDSLRHVYGELDVQIQRRPSM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 non-polymer

描述 description	STRONTIUM ION
分子量 formula_weight	87.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	230

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1qrka1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.18 — E set domains
家族 Family family	b.1.18.9 — Transglutaminase N-terminal domain

结构域编号 domain_id	d1qrka2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.5 — Transglutaminase, two C-terminal domains
家族 Family family	b.1.5.1 — Transglutaminase, two C-terminal domains

结构域编号 domain_id	d1qrka3
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.5 — Transglutaminase, two C-terminal domains
家族 Family family	b.1.5.1 — Transglutaminase, two C-terminal domains

结构域编号 domain_id	d1qrka4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.3 — Cysteine proteinases
超家族 Superfamily superfamily	d.3.1 — Cysteine proteinases
家族 Family family	d.3.1.4 — Transglutaminase core

结构域编号 domain_id	d1qrkb1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.18 — E set domains
家族 Family family	b.1.18.9 — Transglutaminase N-terminal domain

结构域编号 domain_id	d1qrkb2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.5 — Transglutaminase, two C-terminal domains
家族 Family family	b.1.5.1 — Transglutaminase, two C-terminal domains

结构域编号 domain_id	d1qrkb3
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.1 — Immunoglobulin-like beta-sandwich
超家族 Superfamily superfamily	b.1.5 — Transglutaminase, two C-terminal domains
家族 Family family	b.1.5.1 — Transglutaminase, two C-terminal domains

结构域编号 domain_id	d1qrkb4
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.3 — Cysteine proteinases
超家族 Superfamily superfamily	d.3.1 — Cysteine proteinases
家族 Family family	d.3.1.4 — Transglutaminase core

CATH v4.4 (8 domains)

结构域编号 domain_id	1qrkA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1qrkA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	260 — Coagulation Factor XIII; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Transglutaminase-like

结构域编号 domain_id	1qrkA03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1qrkA04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1qrkB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1qrkB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	260 — Coagulation Factor XIII; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Transglutaminase-like

结构域编号 domain_id	1qrkB03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	1qrkB04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	101.900 Å
晶胞边长 b length_b	72.320 Å
晶胞边长 c length_c	135.030 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	105.90 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	10.000 Å
R 因子 r_factor	0.1830
R_work r_work	0.1830
R_free r_free	0.2750
