SAXSdb — 1qsc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TNF RECEPTOR ASSOCIATED FACTOR 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 311–501 Chain B； UniProt 311–501 Chain C； UniProt 311–501	Fragment：TRAF DOMAIN Non-standard monomer：Yes (specific site not provided by mmCIF)	CD40 RECEPTOR × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；MME-PEG 2000, MAGNESIUM CHLORIDE, BISTRIS PROPANE, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 298.00K	Resolution 2.40 Å R-free 0.257

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1QSC	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CA4 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) Deposited 1999-02-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.20 Å R-free 0.251
1CA4 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) Deposited 1999-02-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.20 Å R-free 0.251
1CA9 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A PEPTIDE FROM TNF-R2 Deposited 1999-02-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 310–501（192 aa） Fragment：TRAF DOMAIN Chain B 310–501（192 aa） Fragment：TRAF DOMAIN Chain C 310–501（192 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.30 Å R-free 0.289
1CA9 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A PEPTIDE FROM TNF-R2 Deposited 1999-02-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 310–501（192 aa） Fragment：TRAF DOMAIN Chain E 310–501（192 aa） Fragment：TRAF DOMAIN Chain F 310–501（192 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.30 Å R-free 0.289
1CA9 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A PEPTIDE FROM TNF-R2 Deposited 1999-02-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 310–501（192 aa） Fragment：TRAF DOMAIN Chain B 310–501（192 aa） Fragment：TRAF DOMAIN Chain C 310–501（192 aa） Fragment：TRAF DOMAIN Chain D 310–501（192 aa） Fragment：TRAF DOMAIN Chain E 310–501（192 aa） Fragment：TRAF DOMAIN Chain F 310–501（192 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.30 Å R-free 0.289
1CZY CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN THE TRAF DOMAIN OF HUMAN TRAF2 AND AN LMP1 BINDING PEPTIDE Deposited 1999-09-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES BUFFER, pH 6.00, VAPOR DIFFUSION, temperature 20K	Resolution 2.00 Å R-free 0.245
1CZZ STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A 17-RESIDUE CD40 PEPTIDE Deposited 1999-09-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 315–501（187 aa） Fragment：TRAF DOMAIN Chain B 315–501（187 aa） Fragment：TRAF DOMAIN Chain C 315–501（187 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；293 K；PEG4K, MES, PH 5.6, VAPOR DIFFUSION, temperature 293K	Resolution 2.70 Å R-free 0.267
1D01 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A HUMAN CD30 PEPTIDE Deposited 1999-09-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 20K	Resolution 2.00 Å R-free 0.244
1D01 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A HUMAN CD30 PEPTIDE Deposited 1999-09-07	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 20K	Resolution 2.00 Å R-free 0.244
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1F3V Crystal structure of the complex between the N-terminal domain of TRADD and the TRAF domain of TRAF2 Deposited 2000-06-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 331–501（171 aa） Fragment：TRAF DOMAIN	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.261
3KNV Crystal structure of the RING and first zinc finger domains of TRAF2 Deposited 2009-11-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–133（133 aa） Fragment：RING and the first zinc finger domains: UNP residues 1-133	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；10% PEG 8000, 0.1 M HEPES pH 7.5, 8% Ethylene glycol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.239
3M06 Crystal Structure of TRAF2 Deposited 2010-03-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 266–329（64 aa） Fragment：Residues 266-329 Chain B 266–329（64 aa） Fragment：Residues 266-329 Chain C 266–329（64 aa） Fragment：Residues 266-329	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；8% PEG3350, 6% Tacsimate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.67 Å R-free 0.233
3M06 Crystal Structure of TRAF2 Deposited 2010-03-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 266–329（64 aa） Fragment：Residues 266-329 Chain E 266–329（64 aa） Fragment：Residues 266-329 Chain F 266–329（64 aa） Fragment：Residues 266-329	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；8% PEG3350, 6% Tacsimate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.67 Å R-free 0.233
3M0A Crystal structure of TRAF2:cIAP2 complex Deposited 2010-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 266–329（64 aa） Fragment：Residues 266-329 Chain B 266–329（64 aa） Fragment：Residues 266-329 Chain C 266–329（64 aa） Fragment：Residues 266-329	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；8% PEG 3350, 6% Tacsimate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.61 Å R-free 0.268
3M0D Crystal structure of the TRAF1:TRAF2:cIAP2 complex Deposited 2010-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 266–329（64 aa） Fragment：Residues 266-329 Chain B 266–329（64 aa） Fragment：Residues 266-329	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.15M AmSO4, 0.1M MES, 15% PEG 4000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.247
3M0D Crystal structure of the TRAF1:TRAF2:cIAP2 complex Deposited 2010-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 266–329（64 aa） Fragment：Residues 266-329 Chain B 266–329（64 aa） Fragment：Residues 266-329	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.15M AmSO4, 0.1M MES, 15% PEG 4000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.247
8T5Q SARS-CoV-2 ORF3a peptide in complex with TRAF2 TRAF domain Deposited 2023-06-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501) Chain B 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501) Chain C 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501)	Not recorded	PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277.15 K；0.1 M sodium citrate, pH 5.0, 20% w/v PEG8000	Resolution 1.90 Å R-free 0.240
8T5Q SARS-CoV-2 ORF3a peptide in complex with TRAF2 TRAF domain Deposited 2023-06-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501) Chain E 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501) Chain F 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501)	Not recorded	PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277.15 K；0.1 M sodium citrate, pH 5.0, 20% w/v PEG8000	Resolution 1.90 Å R-free 0.240

13 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TRAF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–191； UniProt 311–501 Author chain B； PDBConstruct 1–191； UniProt 311–501 Author chain C； PDBConstruct 1–191； UniProt 311–501

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1qsc
Deposition date deposition_date	1999-06-20
Structure title title	CRYSTAL STRUCTURE OF THE TRAF DOMAIN OF TRAF2 IN A COMPLEX WITH A PEPTIDE FROM THE CD40 RECEPTOR
Keywords keywords	TNF SIGNALING, TRAF, CD40 RECEPTOR, ADAPTER PROTEIN, CELL SURVIVAL, COILED COIL, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	27.21 Å
Radius of gyration Rg (electron density) rg_electron	26.06 Å
Forward intensity I(0) i0	65843900.00
Molecular weight molecular_weight	62371.0 kDa
Excluded volume excluded_volume	77347 Å³
Envelope volume envelope_volume	95004 Å³
Hydration-shell volume shell_volume	30200 Å³
Envelope diameter envelope_diameter	78.7 Å
Shell Rg shell_rg	33.53 Å
Envelope Rg envelope_rg	25.81 Å
Shape Rg shape_rg	26.12 Å
Total Rg total_rg	26.67 Å
Total atoms total_atoms	4316
Residues n_residues	534
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

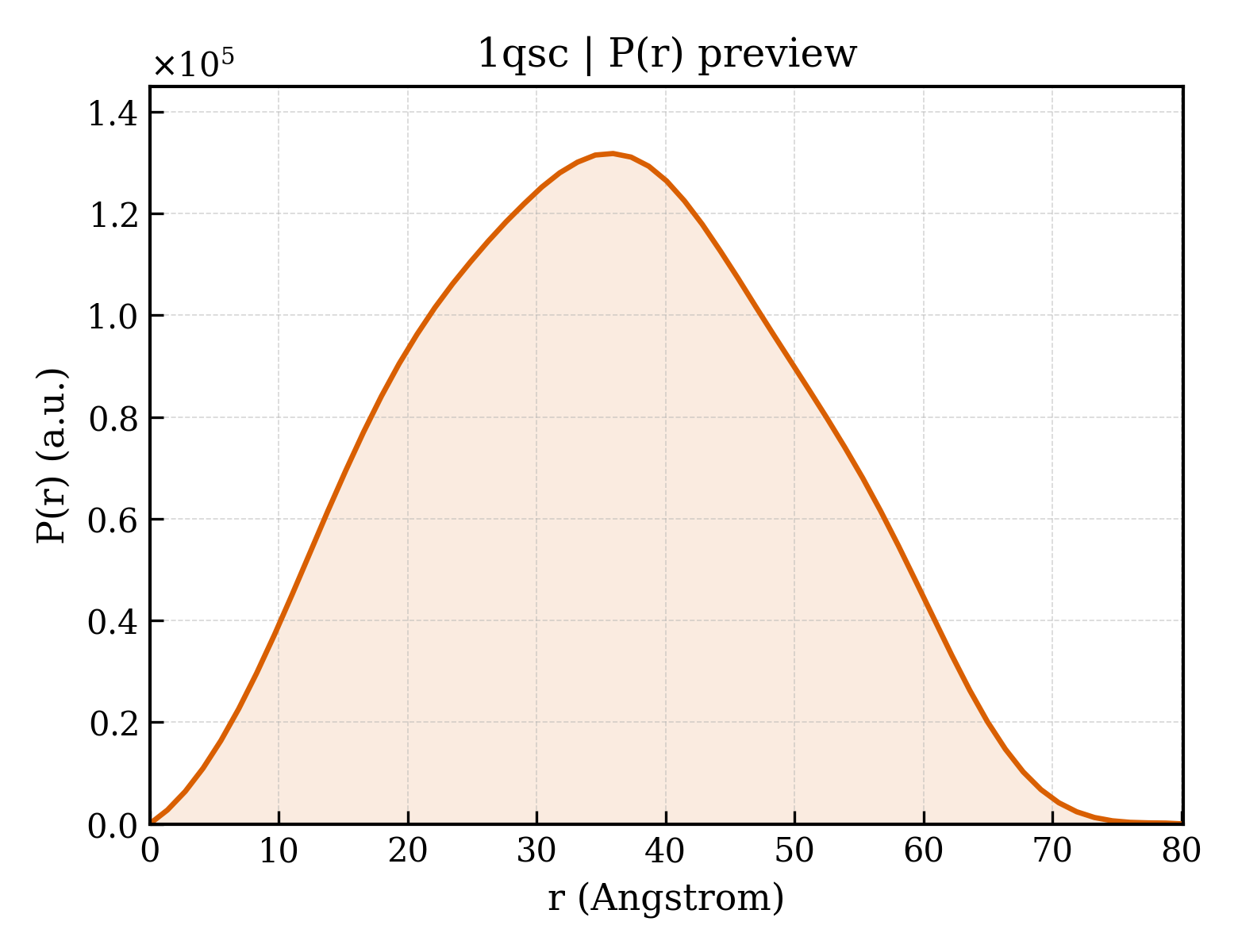

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	80.2 Å
Rg (real space) rg_real	27.03 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	6.5840e+07
I(0) uncertainty (real space) i0_real_error	8.9170e+05
Rg (reciprocal space) rg_reciprocal	27.09 Å
I(0) (reciprocal space) i0_reciprocal	65850000.0000
Solution quality estimate total_estimate	0.9167
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	35.9 Å
Skewness Skewness skewness	0.059
Kurtosis Kurtosis kurtosis	-0.660
Angular range angular_range	— – 0.2900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6947000.0000
Real-space data points n_real_points	59
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.984; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.965

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TNF RECEPTOR ASSOCIATED FACTOR 2
Molecular weight formula_weight	21920.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	4589

QDKIEALSSKVQQLERSIGLKDLAMADLEQKVLEMEASTYDGVFIWKISDFARKRQEAVAGRIPAIFSPAFYTSRYGYKMCLRIYLNGDGTGRGTHLSLFFVVMKGPNDALLRWPFNQKVTLMLLDQNNREHVIDAFRPDVTSSSFQRPVNDMNIASGCPLFCPVSKMEAKNSYVRDDAIFIKAIVDLTGL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	CD40 RECEPTOR
Molecular weight formula_weight	775.8 kDa
Mutation mutation	V251I
Source method src_method	syn
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E,F

XYPIQET

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	273

▼

7. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1qsca1
Class class	b — All beta proteins
Fold Fold fold	b.8 — TRAF domain-like
Superfamily Superfamily superfamily	b.8.1 — TRAF domain-like
Family Family family	b.8.1.1 — MATH domain

Domain ID domain_id	d1qsca2
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.2 — Trimerization domain of TRAF
Family Family family	h.1.2.1 — Trimerization domain of TRAF

Domain ID domain_id	d1qscb1
Class class	b — All beta proteins
Fold Fold fold	b.8 — TRAF domain-like
Superfamily Superfamily superfamily	b.8.1 — TRAF domain-like
Family Family family	b.8.1.1 — MATH domain

Domain ID domain_id	d1qscb2
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.2 — Trimerization domain of TRAF
Family Family family	h.1.2.1 — Trimerization domain of TRAF

Domain ID domain_id	d1qscc1
Class class	b — All beta proteins
Fold Fold fold	b.8 — TRAF domain-like
Superfamily Superfamily superfamily	b.8.1 — TRAF domain-like
Family Family family	b.8.1.1 — MATH domain

Domain ID domain_id	d1qscc2
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.2 — Trimerization domain of TRAF
Family Family family	h.1.2.1 — Trimerization domain of TRAF

CATH v4.4 (3 domains)

Domain ID domain_id	1qscA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	210 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A
Homologous superfamily homologous superfamily	10 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A

Domain ID domain_id	1qscB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	210 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A
Homologous superfamily homologous superfamily	10 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A

Domain ID domain_id	1qscC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	210 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A
Homologous superfamily homologous superfamily	10 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A

▶

8. Citations (1)

▶

Unit-cell length a length_a	87.110 Å
Unit-cell length b length_b	90.090 Å
Unit-cell length c length_c	92.630 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2150
R_work r_work	0.2150
R_free r_free	0.2570

fit	/app/data/saxs_computation/qs/1qsc/1qsc.fit
pddf	/app/data/pr_computation/qs/1qsc/1qsc.pr.out
profile	/app/data/saxs_computation/qs/1qsc/1qsc.dat
