SAXSdb — 3m0d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TNF receptor-associated factor 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 266–329 Chain B； UniProt 266–329	Fragment：Residues 266-329	TNF receptor-associated factor 1 × 1 （Q13077） Baculoviral IAP repeat-containing protein 3 × 1 （Q13489） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.15M AmSO4, 0.1M MES, 15% PEG 4000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.247
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 266–329 Chain B； UniProt 266–329	Fragment：Residues 266-329	TNF receptor-associated factor 1 × 1 （Q13077） Baculoviral IAP repeat-containing protein 3 × 1 （Q13489） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.15M AmSO4, 0.1M MES, 15% PEG 4000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.247

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3M0D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CA4 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) Deposited 1999-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.20 Å R-free 0.251
1CA4 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) Deposited 1999-02-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.20 Å R-free 0.251
1CA9 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A PEPTIDE FROM TNF-R2 Deposited 1999-02-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 310–501（192 aa） Fragment：TRAF DOMAIN Chain B 310–501（192 aa） Fragment：TRAF DOMAIN Chain C 310–501（192 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.30 Å R-free 0.289
1CA9 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A PEPTIDE FROM TNF-R2 Deposited 1999-02-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 310–501（192 aa） Fragment：TRAF DOMAIN Chain E 310–501（192 aa） Fragment：TRAF DOMAIN Chain F 310–501（192 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.30 Å R-free 0.289
1CA9 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A PEPTIDE FROM TNF-R2 Deposited 1999-02-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 310–501（192 aa） Fragment：TRAF DOMAIN Chain B 310–501（192 aa） Fragment：TRAF DOMAIN Chain C 310–501（192 aa） Fragment：TRAF DOMAIN Chain D 310–501（192 aa） Fragment：TRAF DOMAIN Chain E 310–501（192 aa） Fragment：TRAF DOMAIN Chain F 310–501（192 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.30 Å R-free 0.289
1CZY CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN THE TRAF DOMAIN OF HUMAN TRAF2 AND AN LMP1 BINDING PEPTIDE Deposited 1999-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES BUFFER, pH 6.00, VAPOR DIFFUSION, temperature 20K	Resolution 2.00 Å R-free 0.245
1CZZ STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A 17-RESIDUE CD40 PEPTIDE Deposited 1999-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 315–501（187 aa） Fragment：TRAF DOMAIN Chain B 315–501（187 aa） Fragment：TRAF DOMAIN Chain C 315–501（187 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；293 K；PEG4K, MES, PH 5.6, VAPOR DIFFUSION, temperature 293K	Resolution 2.70 Å R-free 0.267
1D01 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A HUMAN CD30 PEPTIDE Deposited 1999-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 20K	Resolution 2.00 Å R-free 0.244
1D01 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A HUMAN CD30 PEPTIDE Deposited 1999-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 20K	Resolution 2.00 Å R-free 0.244
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1F3V Crystal structure of the complex between the N-terminal domain of TRADD and the TRAF domain of TRAF2 Deposited 2000-06-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 331–501（171 aa） Fragment：TRAF DOMAIN	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.261
1QSC CRYSTAL STRUCTURE OF THE TRAF DOMAIN OF TRAF2 IN A COMPLEX WITH A PEPTIDE FROM THE CD40 RECEPTOR Deposited 1999-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 311–501（191 aa） Fragment：TRAF DOMAIN Chain B 311–501（191 aa） Fragment：TRAF DOMAIN Chain C 311–501（191 aa） Fragment：TRAF DOMAIN	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；MME-PEG 2000, MAGNESIUM CHLORIDE, BISTRIS PROPANE, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 298.00K	Resolution 2.40 Å R-free 0.257
3KNV Crystal structure of the RING and first zinc finger domains of TRAF2 Deposited 2009-11-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–133（133 aa） Fragment：RING and the first zinc finger domains: UNP residues 1-133	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；10% PEG 8000, 0.1 M HEPES pH 7.5, 8% Ethylene glycol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.239
3M06 Crystal Structure of TRAF2 Deposited 2010-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 266–329（64 aa） Fragment：Residues 266-329 Chain B 266–329（64 aa） Fragment：Residues 266-329 Chain C 266–329（64 aa） Fragment：Residues 266-329	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；8% PEG3350, 6% Tacsimate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.67 Å R-free 0.233
3M06 Crystal Structure of TRAF2 Deposited 2010-03-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 266–329（64 aa） Fragment：Residues 266-329 Chain E 266–329（64 aa） Fragment：Residues 266-329 Chain F 266–329（64 aa） Fragment：Residues 266-329	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；8% PEG3350, 6% Tacsimate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.67 Å R-free 0.233
3M0A Crystal structure of TRAF2:cIAP2 complex Deposited 2010-03-02	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 266–329（64 aa） Fragment：Residues 266-329 Chain B 266–329（64 aa） Fragment：Residues 266-329 Chain C 266–329（64 aa） Fragment：Residues 266-329	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；8% PEG 3350, 6% Tacsimate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.61 Å R-free 0.268
8T5Q SARS-CoV-2 ORF3a peptide in complex with TRAF2 TRAF domain Deposited 2023-06-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501) Chain B 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501) Chain C 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501)	Not recorded	PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277.15 K；0.1 M sodium citrate, pH 5.0, 20% w/v PEG8000	Resolution 1.90 Å R-free 0.240
8T5Q SARS-CoV-2 ORF3a peptide in complex with TRAF2 TRAF domain Deposited 2023-06-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501) Chain E 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501) Chain F 315–501（187 aa） Fragment：TRAF domain (UNP residues 315-501)	Not recorded	PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277.15 K；0.1 M sodium citrate, pH 5.0, 20% w/v PEG8000	Resolution 1.90 Å R-free 0.240

13 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TRAF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–64； UniProt 266–329 Author chain B； PDBConstruct 1–64； UniProt 266–329

TNF receptor-associated factor 1

Homo sapiens

UniProt Q13077

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 181–244	Fragment：Residues 266-329	TNF receptor-associated factor 2 × 2 （Q12933） Baculoviral IAP repeat-containing protein 3 × 1 （Q13489） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.15M AmSO4, 0.1M MES, 15% PEG 4000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.247
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 181–244	Fragment：Residues 266-329	TNF receptor-associated factor 2 × 2 （Q12933） Baculoviral IAP repeat-containing protein 3 × 1 （Q13489） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.15M AmSO4, 0.1M MES, 15% PEG 4000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.247

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3M0D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5E1T Crystal structure of TRAF1 TRAF domain Deposited 2015-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 220–416（197 aa） Fragment：UNP residues 220-416 Chain B 220–416（197 aa） Fragment：UNP residues 220-416 Chain C 220–416（197 aa） Fragment：UNP residues 220-416	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；(NH4)2SO4, NaCl	Resolution 2.80 Å R-free 0.262
5H10 TRAF1-TANk complex Deposited 2016-10-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 220–416（197 aa） Chain B 220–416（197 aa） Chain C 220–416（197 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；1.38M Ammonium sulfate, 0.1M CHES pH 9.3, 200mM NaCl	Resolution 3.21 Å R-free 0.270

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TRAF1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 2–65； UniProt 181–244

Baculoviral IAP repeat-containing protein 3

Homo sapiens

UniProt Q13489

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 26–99	Fragment：Residues 26-99	TNF receptor-associated factor 2 × 2 （Q12933） TNF receptor-associated factor 1 × 1 （Q13077） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.15M AmSO4, 0.1M MES, 15% PEG 4000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.247
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 26–99	Fragment：Residues 26-99	TNF receptor-associated factor 2 × 2 （Q12933） TNF receptor-associated factor 1 × 1 （Q13077） ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.15M AmSO4, 0.1M MES, 15% PEG 4000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.247

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3M0D	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2UVL Human BIR3 domain of Baculoviral Inhibitor of Apoptosis Repeat- Containing 3 (BIRC3) Deposited 2007-03-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 244–337（94 aa） Fragment：BIR3 DOMAIN, RESIDUES 244-337 Chain B 244–337（94 aa） Fragment：BIR3 DOMAIN, RESIDUES 244-337	Not recorded	ZN ZINC ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions 16% PEG 8000 40MM KPO4 20% GLYCEROL	Resolution 1.91 Å R-free 0.240
3EB5 Structure of the cIAP2 RING domain Deposited 2008-08-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 536–604（69 aa） Fragment：RING domain (UNP residues 536 to 604)	Not recorded	ZN ZINC ION × 4 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；291 K；0.4 M NH4(SO4)2, 1 M LiSO4, 0.1 M Na Citrate, pH 6.2, vapor diffusion, hanging drop, temperature 291K	Resolution 2.00 Å R-free 0.275
3EB6 Structure of the cIAP2 RING domain bound to UbcH5b Deposited 2008-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 536–604（69 aa） Fragment：RING domain (RESIDUES 536 TO 604)	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.3；291 K；3.3 M NaCl, 0.1 M HEPES, pH 7.3, vapor diffusion, hanging drop, temperature 291K	Resolution 3.40 Å R-free 0.320
3M0A Crystal structure of TRAF2:cIAP2 complex Deposited 2010-03-02	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 26–99（74 aa） Fragment：Residues 26-99	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；8% PEG 3350, 6% Tacsimate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.61 Å R-free 0.268
7NK0 Structure of the BIR1 domain of cIAP2 Deposited 2021-02-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 26–102（77 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；12 % w/v Polyethylene glycol 8,000, 10 % w/v Glycerol, 500 mM Potassium chloride	Resolution 3.30 Å R-free 0.356
7NK0 Structure of the BIR1 domain of cIAP2 Deposited 2021-02-17	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain E 26–102（77 aa）	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；12 % w/v Polyethylene glycol 8,000, 10 % w/v Glycerol, 500 mM Potassium chloride	Resolution 3.30 Å R-free 0.356

5 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BIRC3_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 2–75； UniProt 26–99

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3m0d
Deposition date deposition_date	2010-03-02
Structure title title	Crystal structure of the TRAF1:TRAF2:cIAP2 complex
Keywords keywords	;trimeric helix coiled coiled, acetylation, alternative splicing, apoptosis, coiled coil, cytoplasm, metal-binding, ubl conjugation, polymorphism, chromosomal rearrangement, SIGNALING PROTEIN ;; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.13 Å
Radius of gyration Rg (electron density) rg_electron	26.51 Å
Forward intensity I(0) i0	15618200.00
Molecular weight molecular_weight	29359.0 kDa
Excluded volume excluded_volume	36522 Å³
Envelope volume envelope_volume	47212 Å³
Hydration-shell volume shell_volume	17204 Å³
Envelope diameter envelope_diameter	97.5 Å
Shell Rg shell_rg	29.25 Å
Envelope Rg envelope_rg	27.13 Å
Shape Rg shape_rg	26.48 Å
Total Rg total_rg	26.94 Å
Total atoms total_atoms	2047
Residues n_residues	264
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

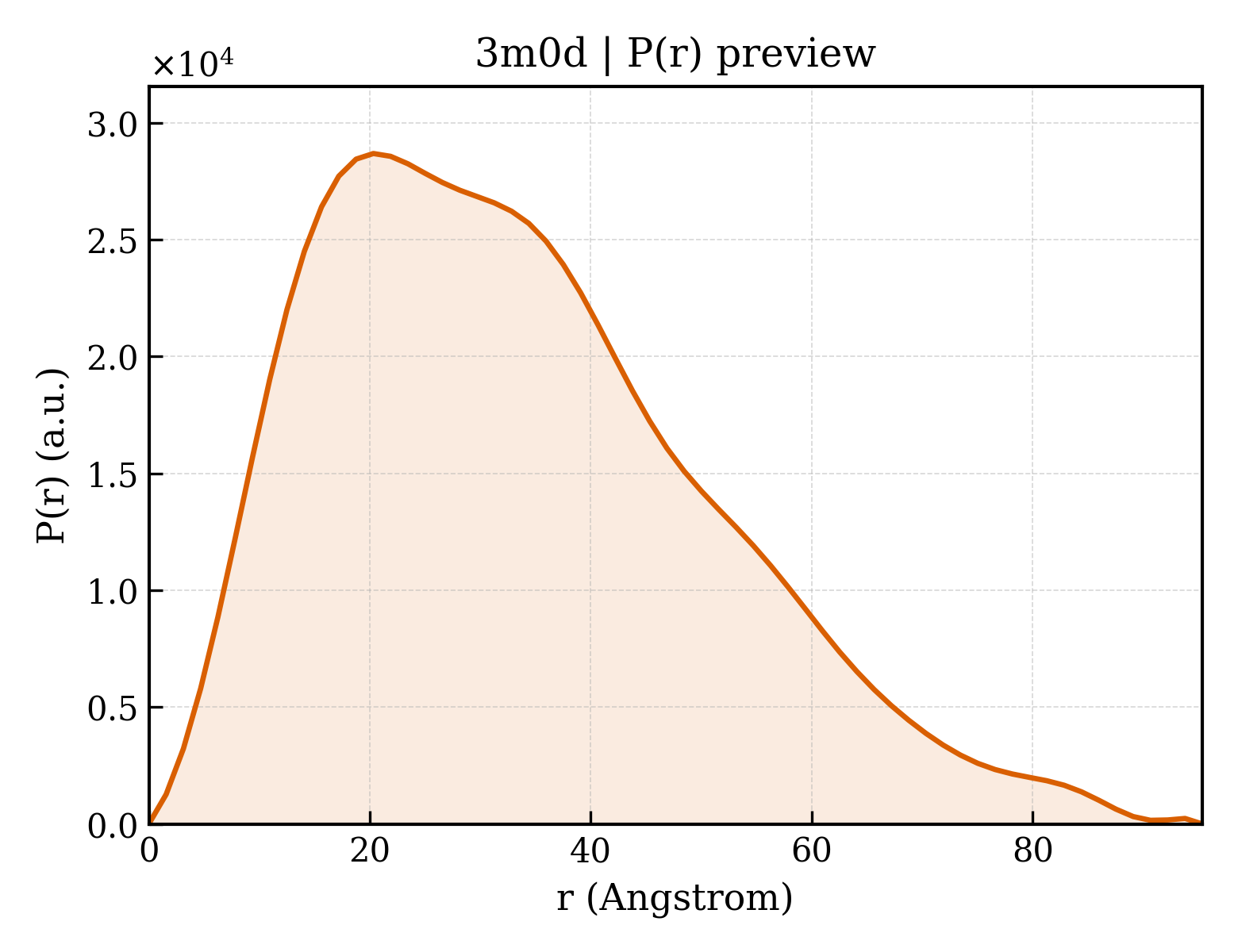

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	95.3 Å
Rg (real space) rg_real	26.51 Å
Rg uncertainty (real space) rg_real_error	1.20 Å
I(0) (real space) i0_real	1.5620e+07
I(0) uncertainty (real space) i0_real_error	2.6990e+05
Rg (reciprocal space) rg_reciprocal	26.39 Å
I(0) (reciprocal space) i0_reciprocal	15620000.0000
Solution quality estimate total_estimate	0.7811
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.3 Å
Skewness Skewness skewness	0.622
Kurtosis Kurtosis kurtosis	-0.081
Angular range angular_range	— – 0.3050 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2376000.0000
Real-space data points n_real_points	62
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.624; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.384; Smooth: 0.894

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	TNF receptor-associated factor 2
Molecular weight formula_weight	7572.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2089

SELLQRCESLEKKTATFENIVCVLNREVERVAMTAEACSRQHRLDQDKIEALSSKVQQLERSIGLE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	TNF receptor-associated factor 1
Molecular weight formula_weight	7468.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MFMKEKLLAELEGKLRVFENIVAVLNKEVEASHLALATSIHQSQLDRERILSLEQRVVELQQTLA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Baculoviral IAP repeat-containing protein 3
Molecular weight formula_weight	8582.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MLSCELYRMSTYSTFPAGVPVSERSLARAGFYYTGVNDKVKCFCCGLMLDNWKRGDSPTEKHKKLYPSCRFVQSL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	42

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	3m0dA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3m0dB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	170 —

Domain ID domain_id	3m0dC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	3m0dD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
Homologous superfamily homologous superfamily	10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A

▶

8. Citations (1)

▶

Unit-cell length a length_a	91.867 Å
Unit-cell length b length_b	91.867 Å
Unit-cell length c length_c	88.702 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 41
Space-group number int_tables_number	80
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	32.500 Å
R factor r_factor	0.2040
R_work r_work	0.1970
R_free r_free	0.2470

fit	/app/data/saxs_computation/m0/3m0d/3m0d.fit
pddf	/app/data/pr_computation/m0/3m0d/3m0d.pr.out
profile	/app/data/saxs_computation/m0/3m0d/3m0d.dat

Crystal structure of the TRAF1:TRAF2:cIAP2 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

TNF receptor-associated factor 2

State in the Current Structure

Other States of the Same Protein in the Database

TNF receptor-associated factor 1

State in the Current Structure

Other States of the Same Protein in the Database

Baculoviral IAP repeat-containing protein 3

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
