SAXSdb — 8t5q

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TNF receptor-associated factor 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 315–501 Chain B； UniProt 315–501 Chain C； UniProt 315–501	Fragment：TRAF domain (UNP residues 315-501)	ORF3a protein × 2 （P0DTC3） PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5；277.15 K；0.1 M sodium citrate, pH 5.0, 20% w/v PEG8000	Resolution 1.90 Å R-free 0.240
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 315–501 Chain E； UniProt 315–501 Chain F； UniProt 315–501	Fragment：TRAF domain (UNP residues 315-501)	ORF3a protein × 1 （P0DTC3） PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5；277.15 K；0.1 M sodium citrate, pH 5.0, 20% w/v PEG8000	Resolution 1.90 Å R-free 0.240

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8T5Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CA4 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) Deposited 1999-02-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.20 Å R-free 0.251
1CA4 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) Deposited 1999-02-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.20 Å R-free 0.251
1CA9 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A PEPTIDE FROM TNF-R2 Deposited 1999-02-25	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 310–501（192 aa） Fragment：TRAF DOMAIN Chain B 310–501（192 aa） Fragment：TRAF DOMAIN Chain C 310–501（192 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.30 Å R-free 0.289
1CA9 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A PEPTIDE FROM TNF-R2 Deposited 1999-02-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 310–501（192 aa） Fragment：TRAF DOMAIN Chain E 310–501（192 aa） Fragment：TRAF DOMAIN Chain F 310–501（192 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.30 Å R-free 0.289
1CA9 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A PEPTIDE FROM TNF-R2 Deposited 1999-02-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 310–501（192 aa） Fragment：TRAF DOMAIN Chain B 310–501（192 aa） Fragment：TRAF DOMAIN Chain C 310–501（192 aa） Fragment：TRAF DOMAIN Chain D 310–501（192 aa） Fragment：TRAF DOMAIN Chain E 310–501（192 aa） Fragment：TRAF DOMAIN Chain F 310–501（192 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；pH 5.6	Resolution 2.30 Å R-free 0.289
1CZY CRYSTAL STRUCTURE OF THE COMPLEX BETWEEN THE TRAF DOMAIN OF HUMAN TRAF2 AND AN LMP1 BINDING PEPTIDE Deposited 1999-09-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES BUFFER, pH 6.00, VAPOR DIFFUSION, temperature 20K	Resolution 2.00 Å R-free 0.245
1CZZ STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A 17-RESIDUE CD40 PEPTIDE Deposited 1999-09-07	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 315–501（187 aa） Fragment：TRAF DOMAIN Chain B 315–501（187 aa） Fragment：TRAF DOMAIN Chain C 315–501（187 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；293 K；PEG4K, MES, PH 5.6, VAPOR DIFFUSION, temperature 293K	Resolution 2.70 Å R-free 0.267
1D01 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A HUMAN CD30 PEPTIDE Deposited 1999-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 20K	Resolution 2.00 Å R-free 0.244
1D01 STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A HUMAN CD30 PEPTIDE Deposited 1999-09-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 20K	Resolution 2.00 Å R-free 0.244
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0A STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 (TRAF2) IN COMPLEX WITH A HUMAN OX40 PEPTIDE Deposited 1999-09-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES, PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.251
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1D0J STRUCTURE OF TNF RECEPTOR ASSOCIATED FACTOR 2 IN COMPLEX WITH A M4-1BB PEPTIDE Deposited 1999-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 334–501（168 aa） Fragment：TRAF DOMAIN Chain B 334–501（168 aa） Fragment：TRAF DOMAIN Chain C 334–501（168 aa） Fragment：TRAF DOMAIN Chain D 334–501（168 aa） Fragment：TRAF DOMAIN Chain E 334–501（168 aa） Fragment：TRAF DOMAIN Chain F 334–501（168 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；293 K；PEG4K, MES PH 6.0, VAPOR DIFFUSION, temperature 293K	Resolution 2.50 Å R-free 0.270
1F3V Crystal structure of the complex between the N-terminal domain of TRADD and the TRAF domain of TRAF2 Deposited 2000-06-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 331–501（171 aa） Fragment：TRAF DOMAIN	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；VAPOR DIFFUSION, temperature 293K	Resolution 2.00 Å R-free 0.261
1QSC CRYSTAL STRUCTURE OF THE TRAF DOMAIN OF TRAF2 IN A COMPLEX WITH A PEPTIDE FROM THE CD40 RECEPTOR Deposited 1999-06-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 311–501（191 aa） Fragment：TRAF DOMAIN Chain B 311–501（191 aa） Fragment：TRAF DOMAIN Chain C 311–501（191 aa） Fragment：TRAF DOMAIN	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；MME-PEG 2000, MAGNESIUM CHLORIDE, BISTRIS PROPANE, pH 7.00, VAPOR DIFFUSION, HANGING DROP, temperature 298.00K	Resolution 2.40 Å R-free 0.257
3KNV Crystal structure of the RING and first zinc finger domains of TRAF2 Deposited 2009-11-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–133（133 aa） Fragment：RING and the first zinc finger domains: UNP residues 1-133	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；10% PEG 8000, 0.1 M HEPES pH 7.5, 8% Ethylene glycol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.90 Å R-free 0.239
3M06 Crystal Structure of TRAF2 Deposited 2010-03-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 266–329（64 aa） Fragment：Residues 266-329 Chain B 266–329（64 aa） Fragment：Residues 266-329 Chain C 266–329（64 aa） Fragment：Residues 266-329	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；8% PEG3350, 6% Tacsimate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.67 Å R-free 0.233
3M06 Crystal Structure of TRAF2 Deposited 2010-03-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain D 266–329（64 aa） Fragment：Residues 266-329 Chain E 266–329（64 aa） Fragment：Residues 266-329 Chain F 266–329（64 aa） Fragment：Residues 266-329	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；8% PEG3350, 6% Tacsimate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.67 Å R-free 0.233
3M0A Crystal structure of TRAF2:cIAP2 complex Deposited 2010-03-02	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 266–329（64 aa） Fragment：Residues 266-329 Chain B 266–329（64 aa） Fragment：Residues 266-329 Chain C 266–329（64 aa） Fragment：Residues 266-329	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；8% PEG 3350, 6% Tacsimate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.61 Å R-free 0.268
3M0D Crystal structure of the TRAF1:TRAF2:cIAP2 complex Deposited 2010-03-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 266–329（64 aa） Fragment：Residues 266-329 Chain B 266–329（64 aa） Fragment：Residues 266-329	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.15M AmSO4, 0.1M MES, 15% PEG 4000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.247
3M0D Crystal structure of the TRAF1:TRAF2:cIAP2 complex Deposited 2010-03-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 266–329（64 aa） Fragment：Residues 266-329 Chain B 266–329（64 aa） Fragment：Residues 266-329	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；277 K；0.15M AmSO4, 0.1M MES, 15% PEG 4000, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.247

13 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TRAF2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–188； UniProt 315–501 Author chain B； PDBConstruct 2–188； UniProt 315–501 Author chain C； PDBConstruct 2–188； UniProt 315–501 Author chain D； PDBConstruct 2–188； UniProt 315–501 Author chain E； PDBConstruct 2–188； UniProt 315–501 Author chain F； PDBConstruct 2–188； UniProt 315–501

ORF3a protein

OrganismNot specified

UniProt P0DTC3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain G； UniProt 36–40 Chain H； UniProt 36–40	Fragment：UNP residues 36-40	TNF receptor-associated factor 2 × 3 （Q12933） PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5；277.15 K；0.1 M sodium citrate, pH 5.0, 20% w/v PEG8000	Resolution 1.90 Å R-free 0.240
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain I； UniProt 36–40	Fragment：UNP residues 36-40	TNF receptor-associated factor 2 × 3 （Q12933） PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5；277.15 K；0.1 M sodium citrate, pH 5.0, 20% w/v PEG8000	Resolution 1.90 Å R-free 0.240

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8T5Q	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6XDC Cryo-EM structure of SARS-CoV-2 ORF3a Deposited 2020-06-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–275（275 aa） Chain B 1–275（275 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；1 blot force, 5 second wait time, 3 second blot time	Resolution 2.90 Å
7KJR Cryo-EM structure of SARS-CoV-2 ORF3a Deposited 2020-10-26	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–275（275 aa） Chain B 1–275（275 aa）	Not recorded	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；1 blot force 5 second wait time 3 second blot time	Resolution 2.08 Å
8EQJ Structure of SARS-CoV-2 Orf3a in late endosome/lysosome-like membrane environment, MSP1D1 nanodisc Deposited 2022-10-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–275（275 aa） Chain B 1–275（275 aa）	Not recorded	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8EQT Structure of SARS-CoV-2 Orf3a in plasma membrane-like environment, MSP1D1 nanodisc Deposited 2022-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–275（275 aa） Chain B 1–275（275 aa）	Not recorded	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8EQU Structure of SARS-CoV-2 Orf3a in late endosome/lysosome-like environment, Saposin A nanodisc Deposited 2022-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–275（275 aa） Chain B 1–275（275 aa）	Not recorded	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8T5P SARS-CoV-2 ORF3a peptide in complex with TRAF3 TRAF domain Deposited 2023-06-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 36–40（5 aa） Fragment：UNP residues 36-40 Chain H 36–40（5 aa） Fragment：UNP residues 36-40	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293.15 K；13% PEG3350, 0.1 M Tris, pH 8.0, 0.25 M ammonium sulfate	Resolution 2.50 Å R-free 0.242
8T5P SARS-CoV-2 ORF3a peptide in complex with TRAF3 TRAF domain Deposited 2023-06-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain I 36–40（5 aa） Fragment：UNP residues 36-40	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293.15 K；13% PEG3350, 0.1 M Tris, pH 8.0, 0.25 M ammonium sulfate	Resolution 2.50 Å R-free 0.242
9RU5 Cryo-EM structure of TCRpub/pMHC Deposited 2025-07-03	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain P 207–215（9 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；30 mM HEPES pH 7.4, 150 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.26 Å

7 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP3A_SARS2
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–5； UniProt 36–40 Author chain H； PDBConstruct 1–5； UniProt 36–40 Author chain I； PDBConstruct 1–5； UniProt 36–40

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8t5q
Deposition date deposition_date	2023-06-14
Structure title title	SARS-CoV-2 ORF3a peptide in complex with TRAF2 TRAF domain
Keywords keywords	signaling protein-viral protein complex; SIGNALING PROTEIN/VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	37.80 Å
Radius of gyration Rg (electron density) rg_electron	37.41 Å
Forward intensity I(0) i0	201250000.00
Molecular weight molecular_weight	116620.0 kDa
Excluded volume excluded_volume	146790 Å³
Envelope volume envelope_volume	194540 Å³
Hydration-shell volume shell_volume	45442 Å³
Envelope diameter envelope_diameter	123.0 Å
Shell Rg shell_rg	41.34 Å
Envelope Rg envelope_rg	36.96 Å
Shape Rg shape_rg	37.39 Å
Total Rg total_rg	37.73 Å
Total atoms total_atoms	8189
Residues n_residues	1023
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

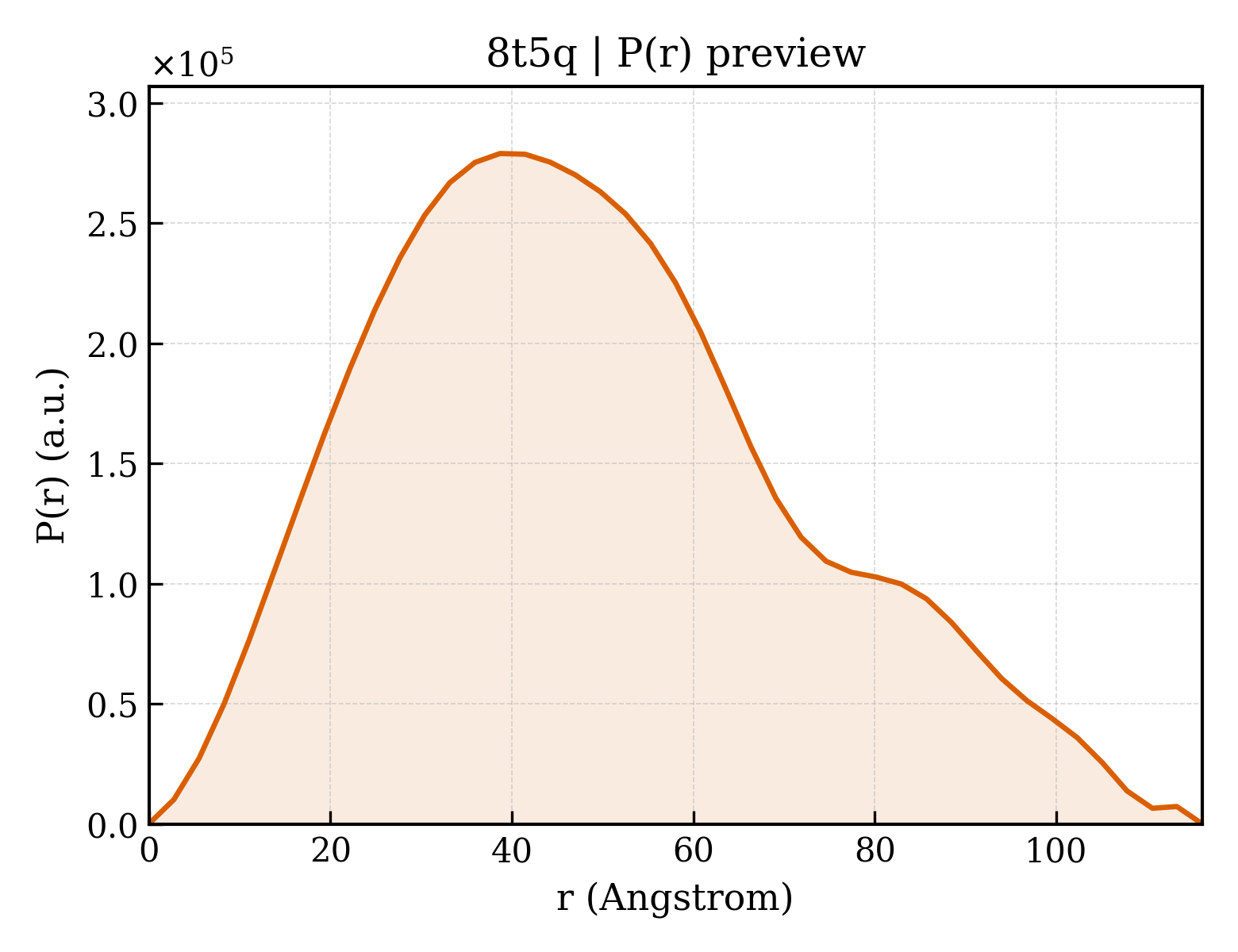

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	116.1 Å
Rg (real space) rg_real	37.97 Å
Rg uncertainty (real space) rg_real_error	0.95 Å
I(0) (real space) i0_real	2.0120e+08
I(0) uncertainty (real space) i0_real_error	3.3510e+06
Rg (reciprocal space) rg_reciprocal	37.87 Å
I(0) (reciprocal space) i0_reciprocal	201200000.0000
Solution quality estimate total_estimate	0.8308
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	38.7 Å
Skewness Skewness skewness	0.441
Kurtosis Kurtosis kurtosis	-0.390
Angular range angular_range	— – 0.2100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	28690000.0000
Real-space data points n_real_points	43
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.928; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.025

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	TNF receptor-associated factor 2
Molecular weight formula_weight	21193.4 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	8505

SEALSSKVQQLERSIGLKDLAMADLEQKVLEMEASTYDGVFIWKISDFARKRQEAVAGRIPAIFSPAFYTSRYGYKMCLRIYLNGDGTGRGTHLSLFFVVMKGPNDALLRWPFNQKVTLMLLDQNNREHVIDAFRPDVTSSSFQRPVNDMNIASGCPLFCPVSKMEAKNSYVRDDAIFIKAIVDLTGL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	ORF3a protein
Molecular weight formula_weight	514.6 kDa
Source method src_method	syn
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I

PIQAS

Entity 3 Entity 3 non-polymer

Description description	TETRAETHYLENE GLYCOL
Molecular weight formula_weight	194.2 kDa
Source method src_method	nat
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	316

▶

8. Citations (1)

▶

Unit-cell length a length_a	135.200 Å
Unit-cell length b length_b	84.220 Å
Unit-cell length c length_c	124.390 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	118.82 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	29.610 Å
R factor r_factor	0.2086
R_work r_work	0.2070
R_free r_free	0.2396

fit	/app/data/saxs_computation/t5/8t5q/8t5q.fit
pddf	/app/data/pr_computation/t5/8t5q/8t5q.pr.out
profile	/app/data/saxs_computation/t5/8t5q/8t5q.dat
