SAXSdb — 8t5p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TNF receptor-associated factor 3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain A； UniProt 377–568 Chain B； UniProt 377–568 Chain C； UniProt 377–568	Fragment：TRAF domain (UNP residues 377-568)	ORF3a protein × 2 （P0DTC3）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；293.15 K；13% PEG3350, 0.1 M Tris, pH 8.0, 0.25 M ammonium sulfate	Resolution 2.50 Å R-free 0.242
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 377–568 Chain E； UniProt 377–568 Chain F； UniProt 377–568	Fragment：TRAF domain (UNP residues 377-568)	ORF3a protein × 1 （P0DTC3）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；293.15 K；13% PEG3350, 0.1 M Tris, pH 8.0, 0.25 M ammonium sulfate	Resolution 2.50 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8T5P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FLK MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3 Deposited 2000-08-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 341–568（228 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；METHANOL, SODIUM CHLORIDE, TRIS BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.80 Å R-free 0.286
1FLK MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3 Deposited 2000-08-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 341–568（228 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；METHANOL, SODIUM CHLORIDE, TRIS BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.80 Å R-free 0.286
1FLL MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3 Deposited 2000-08-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 341–568（228 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；METHANOL, SODIUM CHLORIDE, TRIS BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.50 Å R-free 0.312
1FLL MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3 Deposited 2000-08-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 341–568（228 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；METHANOL, SODIUM CHLORIDE, TRIS BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.50 Å R-free 0.312
1FLL MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3 Deposited 2000-08-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 341–568（228 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；METHANOL, SODIUM CHLORIDE, TRIS BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.50 Å R-free 0.312
1KZZ DOWNSTREAM REGULATOR TANK BINDS TO THE CD40 RECOGNITION SITE ON TRAF3 Deposited 2002-02-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 377–568（192 aa） Fragment：Residues 377-568	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；298 K；100mM MES, 15% PEG1000, pH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 3.50 Å R-free 0.307
1KZZ DOWNSTREAM REGULATOR TANK BINDS TO THE CD40 RECOGNITION SITE ON TRAF3 Deposited 2002-02-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 377–568（192 aa） Fragment：Residues 377-568	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；298 K；100mM MES, 15% PEG1000, pH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 3.50 Å R-free 0.307
1L0A DOWNSTREAM REGULATOR TANK BINDS TO THE CD40 RECOGNITION SITE ON TRAF3 Deposited 2002-02-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 377–568（192 aa） Fragment：Residues 377-568	Mutation：T195K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；100mM MES, 15% PEG1000, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.295
1L0A DOWNSTREAM REGULATOR TANK BINDS TO THE CD40 RECOGNITION SITE ON TRAF3 Deposited 2002-02-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 377–568（192 aa） Fragment：Residues 377-568	Mutation：T195K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；100mM MES, 15% PEG1000, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.295
1RF3 Structurally Distinct Recognition Motifs in Lymphotoxin-B Receptor and CD40 for TRAF-mediated Signaling Deposited 2003-11-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 377–568（192 aa） Fragment：Recognition motif (residues 377-568)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；15% PEG4000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.50 Å R-free 0.315
1ZMS LMP1 Protein binds to TRAF3 as a structural CD40 Deposited 2005-05-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 377–568（192 aa） Fragment：Sequence database residues 377-568	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；15% PEG 4000, 0.1 M MES, pH 6.5, temperature 298K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.80 Å R-free 0.255
1ZMS LMP1 Protein binds to TRAF3 as a structural CD40 Deposited 2005-05-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 377–568（192 aa） Fragment：Sequence database residues 377-568	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；15% PEG 4000, 0.1 M MES, pH 6.5, temperature 298K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.80 Å R-free 0.255
2ECY Solution structure of the Zinc finger, C3HC4 type (RING finger)" domain of TNF receptor-associated factor 3 Deposited 2007-02-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 43–101（59 aa） Fragment：RING-type, residues 8-66	Not recorded	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.10mM Protein; 20mM d-Tris-HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 50uM Zncl2+1mM IDA; 10% D2O, 90% H2O \| 90% H2O/10% D2O	Resolution not provided
2GKW Key contacts promote recongnito of BAFF-R by TRAF3 Deposited 2006-04-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 377–568（192 aa） Fragment：TRAF domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；15% PEG 4000, 0.1 M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.260
8ZUK Cluster structure of the BAFF-BAFFR-TRAF3 complex Deposited 2024-06-09	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 42 PDB declaration: 42-meric	Chain A 267–568（302 aa） Chain B 267–568（302 aa） Chain C 267–568（302 aa） Chain G 267–568（302 aa） Chain H 267–568（302 aa） Chain I 267–568（302 aa） Chain M 267–568（302 aa） Chain N 267–568（302 aa） Chain O 267–568（302 aa） Chain S 267–568（302 aa） Chain T 267–568（302 aa） Chain U 267–568（302 aa） Chain Y 267–568（302 aa） Chain Z 267–568（302 aa） Chain a 267–568（302 aa） Chain e 267–568（302 aa） Chain f 267–568（302 aa） Chain g 267–568（302 aa） Chain k 267–568（302 aa） Chain l 267–568（302 aa） Chain m 267–568（302 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å

9 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TRAF3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–192； UniProt 377–568 Author chain B； PDBConstruct 1–192； UniProt 377–568 Author chain C； PDBConstruct 1–192； UniProt 377–568 Author chain D； PDBConstruct 1–192； UniProt 377–568 Author chain E； PDBConstruct 1–192； UniProt 377–568 Author chain F； PDBConstruct 1–192； UniProt 377–568

ORF3a protein

OrganismNot specified

UniProt P0DTC3

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain G； UniProt 36–40 Chain H； UniProt 36–40	Fragment：UNP residues 36-40	TNF receptor-associated factor 3 × 3 （Q13114）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；293.15 K；13% PEG3350, 0.1 M Tris, pH 8.0, 0.25 M ammonium sulfate	Resolution 2.50 Å R-free 0.242
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain I； UniProt 36–40	Fragment：UNP residues 36-40	TNF receptor-associated factor 3 × 3 （Q13114）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；293.15 K；13% PEG3350, 0.1 M Tris, pH 8.0, 0.25 M ammonium sulfate	Resolution 2.50 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8T5P	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6XDC Cryo-EM structure of SARS-CoV-2 ORF3a Deposited 2020-06-10	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–275（275 aa） Chain B 1–275（275 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；1 blot force, 5 second wait time, 3 second blot time	Resolution 2.90 Å
7KJR Cryo-EM structure of SARS-CoV-2 ORF3a Deposited 2020-10-26	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–275（275 aa） Chain B 1–275（275 aa）	Not recorded	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；1 blot force 5 second wait time 3 second blot time	Resolution 2.08 Å
8EQJ Structure of SARS-CoV-2 Orf3a in late endosome/lysosome-like membrane environment, MSP1D1 nanodisc Deposited 2022-10-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–275（275 aa） Chain B 1–275（275 aa）	Not recorded	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
8EQT Structure of SARS-CoV-2 Orf3a in plasma membrane-like environment, MSP1D1 nanodisc Deposited 2022-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–275（275 aa） Chain B 1–275（275 aa）	Not recorded	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8EQU Structure of SARS-CoV-2 Orf3a in late endosome/lysosome-like environment, Saposin A nanodisc Deposited 2022-10-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–275（275 aa） Chain B 1–275（275 aa）	Not recorded	PEE 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
8T5Q SARS-CoV-2 ORF3a peptide in complex with TRAF2 TRAF domain Deposited 2023-06-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 36–40（5 aa） Fragment：UNP residues 36-40 Chain H 36–40（5 aa） Fragment：UNP residues 36-40	Not recorded	PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277.15 K；0.1 M sodium citrate, pH 5.0, 20% w/v PEG8000	Resolution 1.90 Å R-free 0.240
8T5Q SARS-CoV-2 ORF3a peptide in complex with TRAF2 TRAF domain Deposited 2023-06-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain I 36–40（5 aa） Fragment：UNP residues 36-40	Not recorded	PG4 TETRAETHYLENE GLYCOL × 2 PEG DI(HYDROXYETHYL)ETHER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；277.15 K；0.1 M sodium citrate, pH 5.0, 20% w/v PEG8000	Resolution 1.90 Å R-free 0.240
9RU5 Cryo-EM structure of TCRpub/pMHC Deposited 2025-07-03	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain P 207–215（9 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；30 mM HEPES pH 7.4, 150 mM NaCl cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.26 Å

7 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AP3A_SARS2
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–5； UniProt 36–40 Author chain H； PDBConstruct 1–5； UniProt 36–40 Author chain I； PDBConstruct 1–5； UniProt 36–40

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8t5p
Deposition date deposition_date	2023-06-14
Structure title title	SARS-CoV-2 ORF3a peptide in complex with TRAF3 TRAF domain
Keywords keywords	signaling protein-viral protein complex; SIGNALING PROTEIN/VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	39.46 Å
Radius of gyration Rg (electron density) rg_electron	38.99 Å
Forward intensity I(0) i0	252542000.00
Molecular weight molecular_weight	130970.0 kDa
Excluded volume excluded_volume	164910 Å³
Envelope volume envelope_volume	224640 Å³
Hydration-shell volume shell_volume	49922 Å³
Envelope diameter envelope_diameter	152.6 Å
Shell Rg shell_rg	42.68 Å
Envelope Rg envelope_rg	38.58 Å
Shape Rg shape_rg	38.91 Å
Total Rg total_rg	39.49 Å
Total atoms total_atoms	9201
Residues n_residues	1155
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

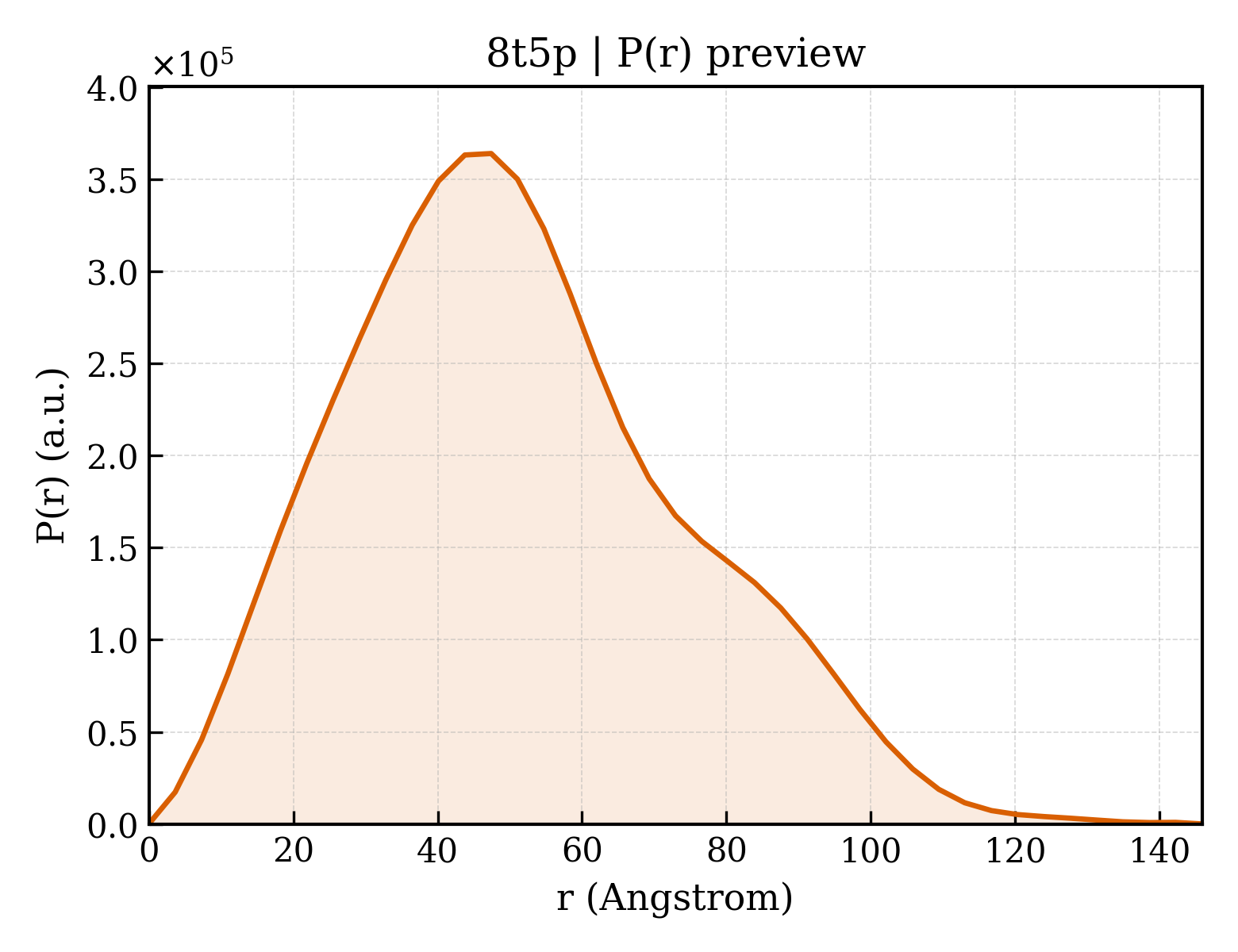

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	145.9 Å
Rg (real space) rg_real	39.60 Å
Rg uncertainty (real space) rg_real_error	1.46 Å
I(0) (real space) i0_real	2.5250e+08
I(0) uncertainty (real space) i0_real_error	4.8340e+06
Rg (reciprocal space) rg_reciprocal	39.51 Å
I(0) (reciprocal space) i0_reciprocal	252500000.0000
Solution quality estimate total_estimate	0.8214
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	47.4 Å
Skewness Skewness skewness	0.447
Kurtosis Kurtosis kurtosis	-0.181
Angular range angular_range	— – 0.2000 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	19970000.0000
Real-space data points n_real_points	41
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.582; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.939; Smooth: 0.989

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TNF receptor-associated factor 3
Molecular weight formula_weight	21833.1 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	9228

NTGLLESQLSRHDQMLSVHDIRLADMDLRFQVLETASYNGVLIWKIRDYKRRKQEAVMGKTLSLYSQPFYTGYFGYKMCARVYLNGDGMGKGTHLSLFFVIMRGEYDALLPWPFKQKVTLMLMDQGSSRRHLGDAFKPDPNSSSFKKPTGEMNIASGCPVFVAQTVLENGTYIKDDTIFIKVIVDTSDLPDP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	ORF3a protein
Molecular weight formula_weight	514.6 kDa
Source method src_method	syn
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I

PIQAS

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	27

▶

8. Citations (1)

▶

Unit-cell length a length_a	82.350 Å
Unit-cell length b length_b	83.750 Å
Unit-cell length c length_c	83.800 Å
Unit-cell angle α angle_alpha	60.03 °
Unit-cell angle β angle_beta	79.26 °
Unit-cell angle γ angle_gamma	83.80 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	41.770 Å
R factor r_factor	0.1991
R_work r_work	0.1969
R_free r_free	0.2424

fit	/app/data/saxs_computation/t5/8t5p/8t5p.fit
pddf	/app/data/pr_computation/t5/8t5p/8t5p.pr.out
profile	/app/data/saxs_computation/t5/8t5p/8t5p.dat
