SAXSdb — 2ecy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TNF receptor-associated factor 3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 43–101	Fragment：RING-type, residues 8-66	ZN ZINC ION × 2	SOLUTION NMR NMR measurement conditions：pH 7；296 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition：1.10mM Protein; 20mM d-Tris-HCl; 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 50uM Zncl2+1mM IDA; 10% D2O, 90% H2O \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2ECY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1FLK MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3 Deposited 2000-08-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 341–568（228 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；METHANOL, SODIUM CHLORIDE, TRIS BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.80 Å R-free 0.286
1FLK MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3 Deposited 2000-08-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain B 341–568（228 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；METHANOL, SODIUM CHLORIDE, TRIS BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.80 Å R-free 0.286
1FLL MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3 Deposited 2000-08-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 341–568（228 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；METHANOL, SODIUM CHLORIDE, TRIS BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.50 Å R-free 0.312
1FLL MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3 Deposited 2000-08-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 341–568（228 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；METHANOL, SODIUM CHLORIDE, TRIS BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.50 Å R-free 0.312
1FLL MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3 Deposited 2000-08-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 341–568（228 aa） Fragment：TRAF DOMAIN	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；294 K；METHANOL, SODIUM CHLORIDE, TRIS BUFFER, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.50 Å R-free 0.312
1KZZ DOWNSTREAM REGULATOR TANK BINDS TO THE CD40 RECOGNITION SITE ON TRAF3 Deposited 2002-02-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 377–568（192 aa） Fragment：Residues 377-568	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；298 K；100mM MES, 15% PEG1000, pH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 3.50 Å R-free 0.307
1KZZ DOWNSTREAM REGULATOR TANK BINDS TO THE CD40 RECOGNITION SITE ON TRAF3 Deposited 2002-02-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 377–568（192 aa） Fragment：Residues 377-568	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；298 K；100mM MES, 15% PEG1000, pH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 3.50 Å R-free 0.307
1L0A DOWNSTREAM REGULATOR TANK BINDS TO THE CD40 RECOGNITION SITE ON TRAF3 Deposited 2002-02-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 377–568（192 aa） Fragment：Residues 377-568	Mutation：T195K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；100mM MES, 15% PEG1000, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.295
1L0A DOWNSTREAM REGULATOR TANK BINDS TO THE CD40 RECOGNITION SITE ON TRAF3 Deposited 2002-02-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 377–568（192 aa） Fragment：Residues 377-568	Mutation：T195K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.8；298 K；100mM MES, 15% PEG1000, pH 6.8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.90 Å R-free 0.295
1RF3 Structurally Distinct Recognition Motifs in Lymphotoxin-B Receptor and CD40 for TRAF-mediated Signaling Deposited 2003-11-07	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 377–568（192 aa） Fragment：Recognition motif (residues 377-568)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；15% PEG4000, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 3.50 Å R-free 0.315
1ZMS LMP1 Protein binds to TRAF3 as a structural CD40 Deposited 2005-05-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 377–568（192 aa） Fragment：Sequence database residues 377-568	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；15% PEG 4000, 0.1 M MES, pH 6.5, temperature 298K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.80 Å R-free 0.255
1ZMS LMP1 Protein binds to TRAF3 as a structural CD40 Deposited 2005-05-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 377–568（192 aa） Fragment：Sequence database residues 377-568	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；15% PEG 4000, 0.1 M MES, pH 6.5, temperature 298K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.80 Å R-free 0.255
2GKW Key contacts promote recongnito of BAFF-R by TRAF3 Deposited 2006-04-03	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 377–568（192 aa） Fragment：TRAF domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；15% PEG 4000, 0.1 M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.260
8T5P SARS-CoV-2 ORF3a peptide in complex with TRAF3 TRAF domain Deposited 2023-06-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 377–568（192 aa） Fragment：TRAF domain (UNP residues 377-568) Chain B 377–568（192 aa） Fragment：TRAF domain (UNP residues 377-568) Chain C 377–568（192 aa） Fragment：TRAF domain (UNP residues 377-568)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293.15 K；13% PEG3350, 0.1 M Tris, pH 8.0, 0.25 M ammonium sulfate	Resolution 2.50 Å R-free 0.242
8T5P SARS-CoV-2 ORF3a peptide in complex with TRAF3 TRAF domain Deposited 2023-06-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 377–568（192 aa） Fragment：TRAF domain (UNP residues 377-568) Chain E 377–568（192 aa） Fragment：TRAF domain (UNP residues 377-568) Chain F 377–568（192 aa） Fragment：TRAF domain (UNP residues 377-568)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293.15 K；13% PEG3350, 0.1 M Tris, pH 8.0, 0.25 M ammonium sulfate	Resolution 2.50 Å R-free 0.242
8ZUK Cluster structure of the BAFF-BAFFR-TRAF3 complex Deposited 2024-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 42 PDB declaration: 42-meric	Chain A 267–568（302 aa） Chain B 267–568（302 aa） Chain C 267–568（302 aa） Chain G 267–568（302 aa） Chain H 267–568（302 aa） Chain I 267–568（302 aa） Chain M 267–568（302 aa） Chain N 267–568（302 aa） Chain O 267–568（302 aa） Chain S 267–568（302 aa） Chain T 267–568（302 aa） Chain U 267–568（302 aa） Chain Y 267–568（302 aa） Chain Z 267–568（302 aa） Chain a 267–568（302 aa） Chain e 267–568（302 aa） Chain f 267–568（302 aa） Chain g 267–568（302 aa） Chain k 267–568（302 aa） Chain l 267–568（302 aa） Chain m 267–568（302 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.83 Å

9 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TRAF3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 8–66； UniProt 43–101

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ecy
Deposition date deposition_date	2007-02-14
Structure title title	Solution structure of the Zinc finger, C3HC4 type (RING finger)" domain of TNF receptor-associated factor 3
Keywords keywords	;Metal Binding Protein, Structural Genomics, NPPSFA, National Project on Protein Structural and Functional Analyses, RIKEN Structural Genomics/Proteomics Initiative, RSGI, APOPTOSIS ;; APOPTOSIS
Experimental Method method	SOLUTION NMR

▼

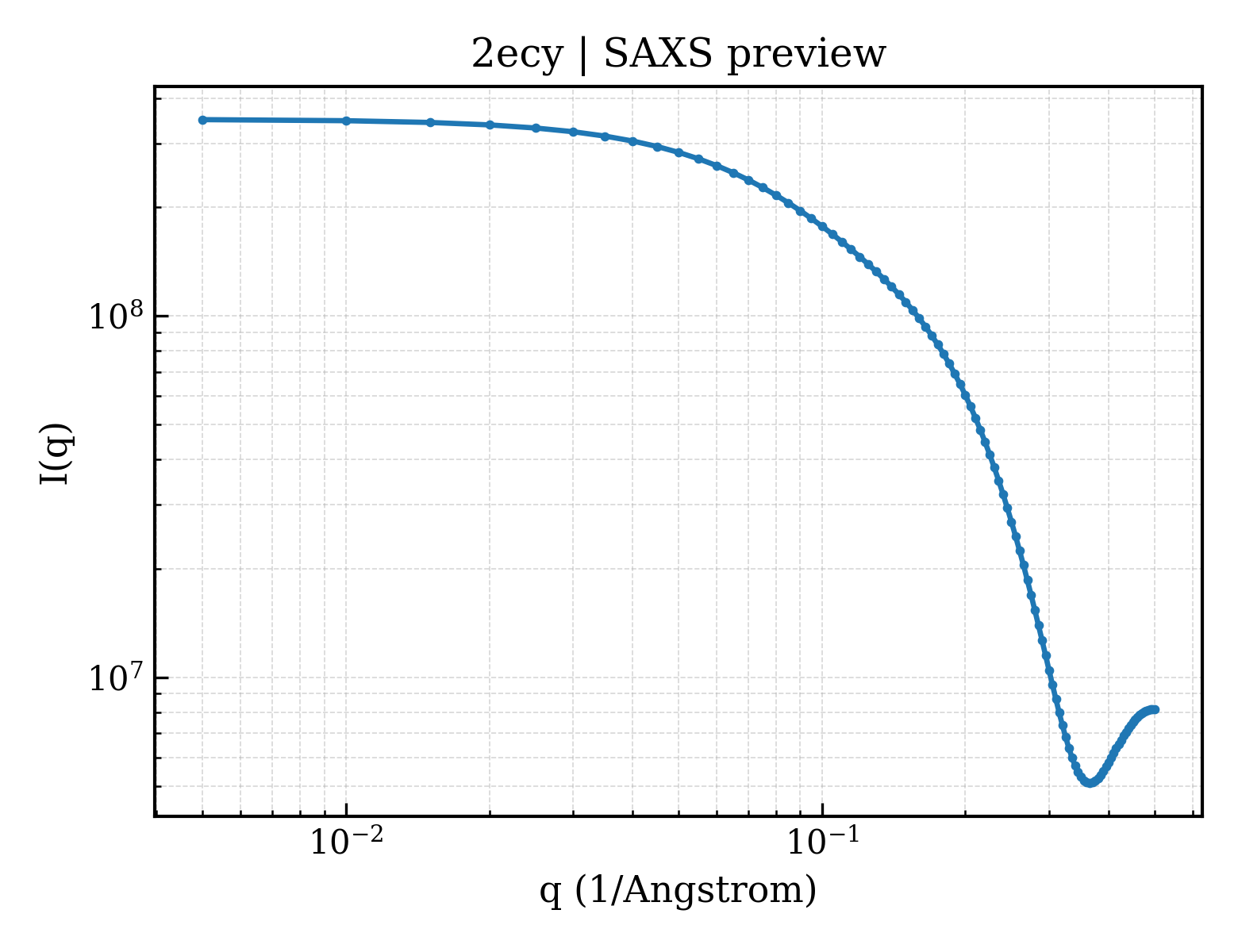

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.67 Å
Radius of gyration Rg (electron density) rg_electron	15.90 Å
Forward intensity I(0) i0	350002000.00
Molecular weight molecular_weight	144820.0 kDa
Excluded volume excluded_volume	175990 Å³
Envelope volume envelope_volume	40744 Å³
Hydration-shell volume shell_volume	15069 Å³
Envelope diameter envelope_diameter	75.1 Å
Shell Rg shell_rg	29.50 Å
Envelope Rg envelope_rg	27.66 Å
Shape Rg shape_rg	16.02 Å
Total Rg total_rg	15.95 Å
Total atoms total_atoms	17640
Residues n_residues	1320
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

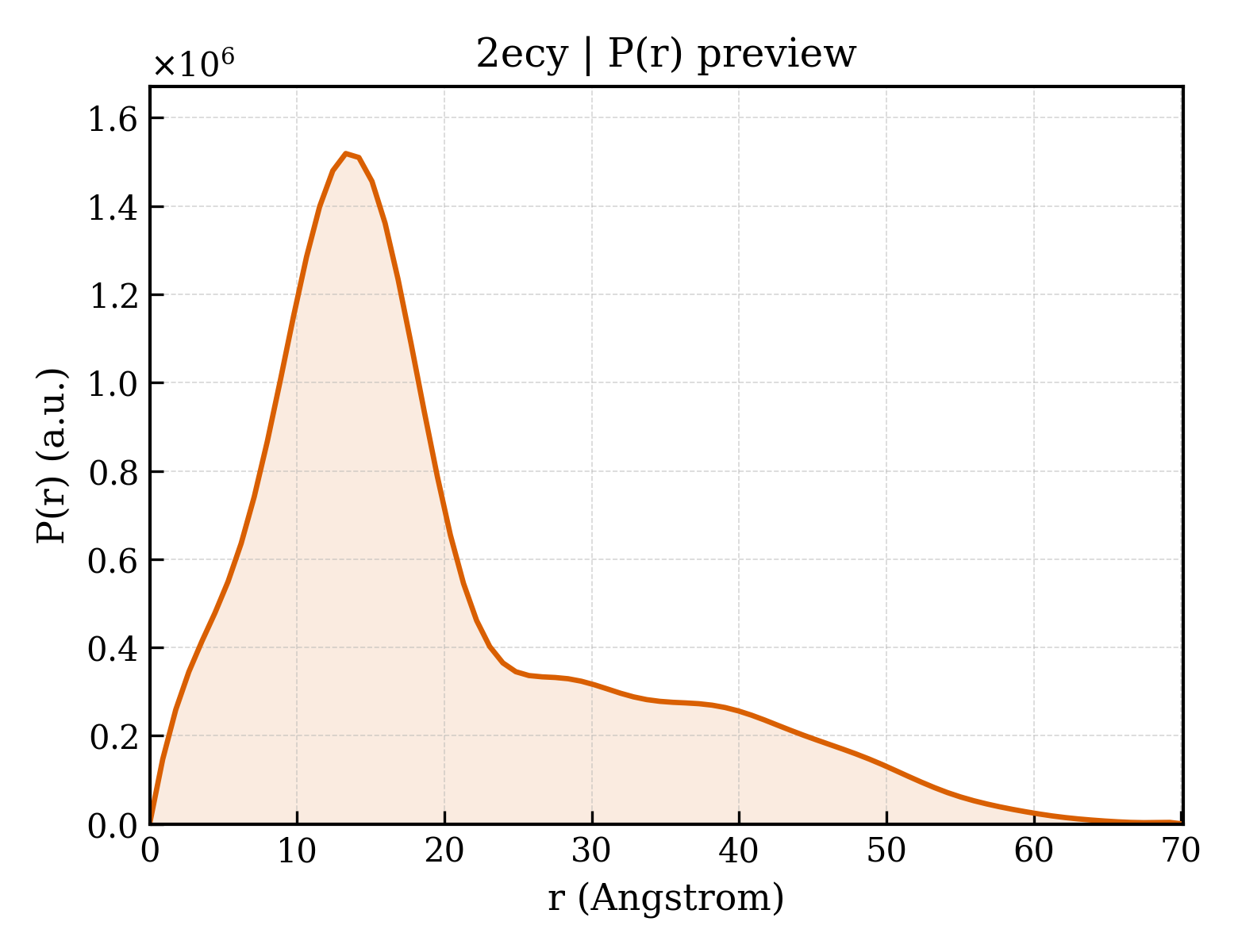

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.1 Å
Rg (real space) rg_real	16.46 Å
Rg uncertainty (real space) rg_real_error	0.89 Å
I(0) (real space) i0_real	3.5000e+08
I(0) uncertainty (real space) i0_real_error	4.6700e+06
Rg (reciprocal space) rg_reciprocal	16.37 Å
I(0) (reciprocal space) i0_reciprocal	350000000.0000
Solution quality estimate total_estimate	0.6158
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	13.3 Å
Skewness Skewness skewness	1.107
Kurtosis Kurtosis kurtosis	0.610
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	145600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.001; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.000; Smooth: 0.999

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (1)

▶

Description description	TNF receptor-associated factor 3
Molecular weight formula_weight	7136.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	17640

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

fit	/app/data/saxs_computation/ec/2ecy/2ecy.fit
pddf	/app/data/pr_computation/ec/2ecy/2ecy.pr.out
profile	/app/data/saxs_computation/ec/2ecy/2ecy.dat
