SAXSdb — 1fll

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TNF RECEPTOR ASSOCIATED FACTOR 3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	B-CELL SURFACE ANTIGEN CD40 × 1 （P25942）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	B-CELL SURFACE ANTIGEN CD40 × 1 （P25942）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 6	B-CELL SURFACE ANTIGEN CD40 × 3 （P25942）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TRAF3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–228； UniProt 341–568 Author chain B； PDBConstruct 1–228； UniProt 341–568

B-CELL SURFACE ANTIGEN CD40

OrganismNot specified

UniProt P25942

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	TNF RECEPTOR ASSOCIATED FACTOR 3 × 1 （Q13114）	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	TNF RECEPTOR ASSOCIATED FACTOR 3 × 1 （Q13114）	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 6	TNF RECEPTOR ASSOCIATED FACTOR 3 × 3 （Q13114）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TNR5_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain X； PDBConstruct 1–21； UniProt 246–266 Author chain Y； PDBConstruct 1–21； UniProt 246–266

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1fll
Deposition date deposition_date	2000-08-14
Structure title title	MOLECULAR BASIS FOR CD40 SIGNALING MEDIATED BY TRAF3
Keywords keywords	TRAF3 WITH CD40 PEPTIDE, TNF SIGNALING, APOPTOSIS; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1fll__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

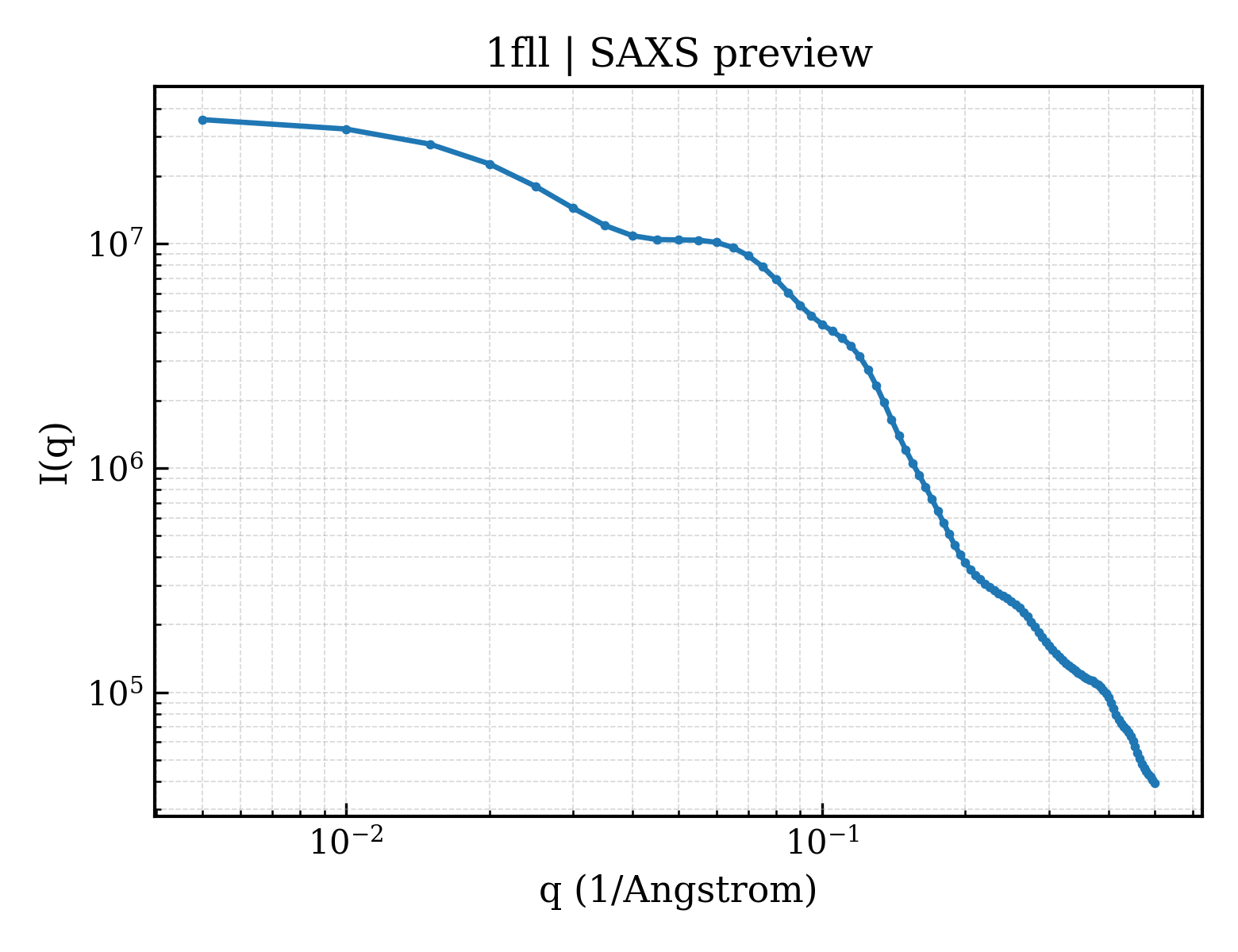

1fll__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1fll__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.37 Å
Rg (electron density)	24.74 Å
Total Rg	25.17 Å
Atom count	1779
Residues	226
Excluded volume	31720 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1fll__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1fll__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1fll__assembly_3__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	TNF RECEPTOR ASSOCIATED FACTOR 3
Molecular weight formula_weight	25885.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3558

RQNWEEADSMKSSVESLQNRVTELESVDKSAGQVARNTGLLESQLSRHDQMLSVHDIRLADMDLRFQVLETASYNGVLIWKIRDYKRRKQEAVMGKTLSLYSQPFYTGYFGYKMCARVYLNGDGMGKGTHLSLFFVIMRGEYDALLPWPFKQKVTLMLMDQGSSRRHLGDAFKPDPNSSSFKKPTGEMNIASGCPVFVAQTVLENGTYIKDDTIFIKVIVDTSDLPDP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	B-CELL SURFACE ANTIGEN CD40
Molecular weight formula_weight	2195.3 kDa
Mutation mutation	N246K, C258S
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y

KTAAPVQETLHGSQPVTQEDG

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1flla1
Class class	b — All beta proteins
Fold Fold fold	b.8 — TRAF domain-like
Superfamily Superfamily superfamily	b.8.1 — TRAF domain-like
Family Family family	b.8.1.1 — MATH domain

Domain ID domain_id	d1flla2
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.2 — Trimerization domain of TRAF
Family Family family	h.1.2.1 — Trimerization domain of TRAF

Domain ID domain_id	d1fllb1
Class class	b — All beta proteins
Fold Fold fold	b.8 — TRAF domain-like
Superfamily Superfamily superfamily	b.8.1 — TRAF domain-like
Family Family family	b.8.1.1 — MATH domain

Domain ID domain_id	d1fllb2
Class class	h — Coiled coil proteins
Fold Fold fold	h.1 — Parallel coiled-coil
Superfamily Superfamily superfamily	h.1.2 — Trimerization domain of TRAF
Family Family family	h.1.2.1 — Trimerization domain of TRAF

CATH v4.4 (2 domains)

Domain ID domain_id	1fllA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	210 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A
Homologous superfamily homologous superfamily	10 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A

Domain ID domain_id	1fllB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	210 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A
Homologous superfamily homologous superfamily	10 — Apoptosis, Tumor Necrosis Factor Receptor Associated Protein 2; Chain A

▶

Unit-cell length a length_a	83.760 Å
Unit-cell length b length_b	83.760 Å
Unit-cell length c length_c	212.570 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	—

Resolution resolution	3.500 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1730
R_work r_work	0.1730
R_free r_free	0.3120
