1qxm
Crystal structure of a hemagglutinin component (HA1) from type C Clostridium botulinum
SAXS 散射曲线 SAXS Profile

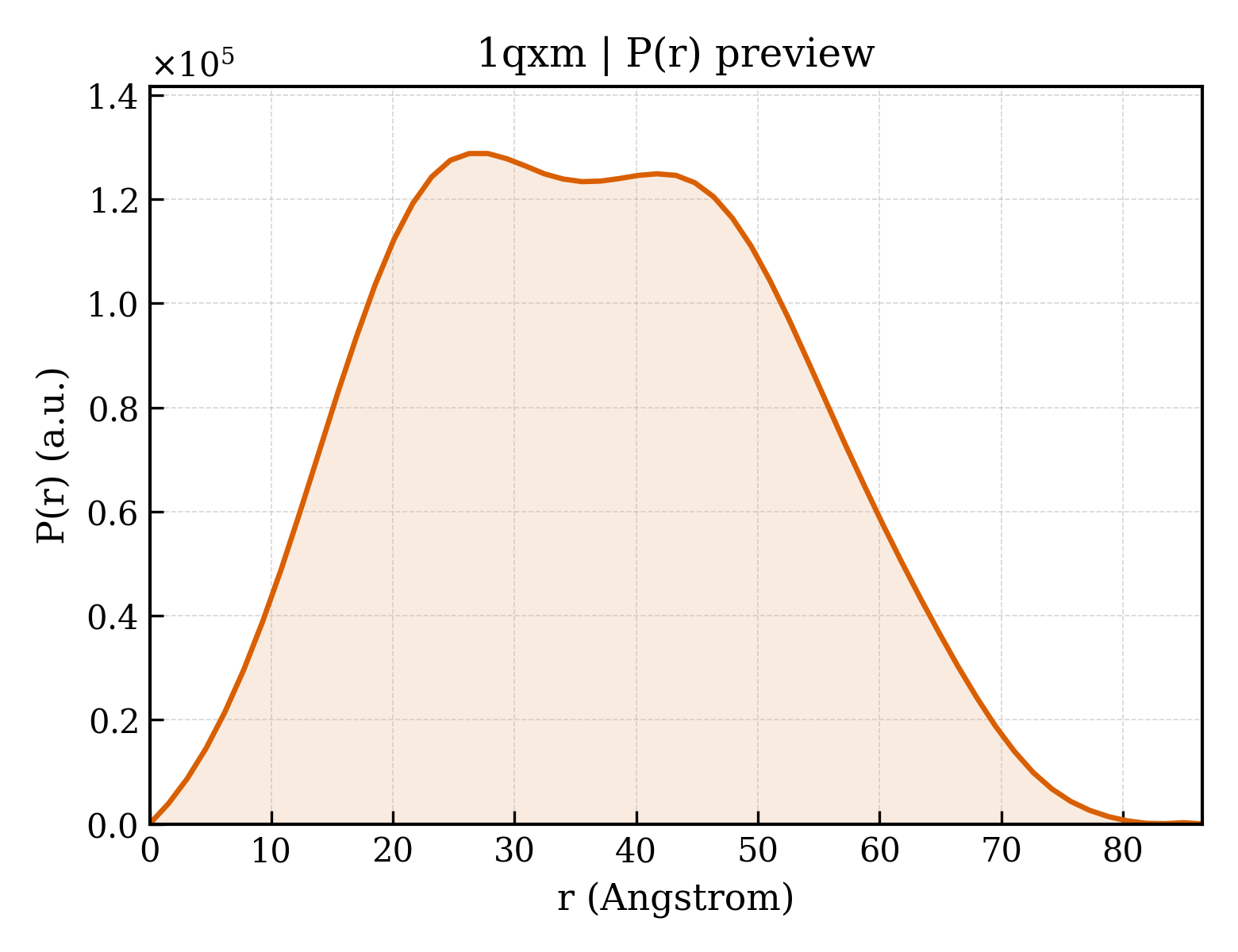

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1qxm |
| 沉积日期 deposition_date | 2003-09-08 |
| 结构标题 title | Crystal structure of a hemagglutinin component (HA1) from type C Clostridium botulinum |
| 关键词 keywords | Clostridium botulinum, hemagglutinin, HA1, trefoil, TOXIN; TOXIN |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 28.17 Å |
| 回转半径 Rg (电子) rg_electron | 27.25 Å |
| 零角强度 I(0) i0 | 74714200.00 |
| 分子量 molecular_weight | 67251.0 kDa |
| 排除体积 excluded_volume | 83758 ų |
| 包络体积 envelope_volume | 98047 ų |
| 水化壳体积 shell_volume | 29759 ų |
| 包络直径 envelope_diameter | 86.2 Å |
| 壳层 Rg shell_rg | 34.70 Å |
| 包络 Rg envelope_rg | 27.11 Å |
| 形状 Rg shape_rg | 27.22 Å |
| 总 Rg total_rg | 28.05 Å |
| 总原子数 total_atoms | 4748 |
| 残基数 n_residues | 566 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 86.5 Å |
| Rg (实空间) rg_real | 28.06 Å |
| Rg 误差 (实空间) rg_real_error | 0.55 Å |
| I(0) (实空间) i0_real | 7.4710e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.0290e+06 |
| Rg (倒空间) rg_reciprocal | 28.10 Å |
| I(0) (倒空间) i0_reciprocal | 74720000.0000 |
| 解质量估计 total_estimate | 0.9083 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 41.7 Å |
| 偏度 Skewness skewness | 0.139 |
| 峰度 Kurtosis kurtosis | -0.708 |
| 角度范围 angular_range | — – 0.2800 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 38690000.0000 |
| 实空间数据点数 n_real_points | 57 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.950; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.957 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 8 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1qxma1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.42 — beta-Trefoil |
| 超家族 Superfamily superfamily | b.42.2 — Ricin B-like lectins |
| 家族 Family family | b.42.2.1 — Ricin B-like |
| 结构域编号 domain_id | d1qxma2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.42 — beta-Trefoil |
| 超家族 Superfamily superfamily | b.42.2 — Ricin B-like lectins |
| 家族 Family family | b.42.2.1 — Ricin B-like |
| 结构域编号 domain_id | d1qxmb1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.42 — beta-Trefoil |
| 超家族 Superfamily superfamily | b.42.2 — Ricin B-like lectins |
| 家族 Family family | b.42.2.1 — Ricin B-like |
| 结构域编号 domain_id | d1qxmb2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.42 — beta-Trefoil |
| 超家族 Superfamily superfamily | b.42.2 — Ricin B-like lectins |
| 家族 Family family | b.42.2.1 — Ricin B-like |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1qxmA01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 80 — Trefoil |
| 拓扑 Topology topology | 10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1qxmA02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 80 — Trefoil |
| 拓扑 Topology topology | 10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1qxmB01 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 80 — Trefoil |
| 拓扑 Topology topology | 10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1qxmB02 |
| 类 Class class | 2 — Mainly Beta |
| 架构 Architecture architecture | 80 — Trefoil |
| 拓扑 Topology topology | 10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A) |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
