SAXSdb — 2e4m

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Main hemagglutinin component

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	HA-17 × 1 （Q9LBR4） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HA33_CLOBO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–286； UniProt 1–285 Author chain B； PDBConstruct 2–286； UniProt 1–285

HA-17

OrganismNot specified

UniProt Q9LBR4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Main hemagglutinin component × 2 （P46084） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9LBR4_CLOBO
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 2–146； UniProt 2–146

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2e4m
Deposition date deposition_date	2006-12-13
Structure title title	Crystal structure of hemagglutinin subcomponent complex (HA-33/HA-17) from Clostridium botulinum serotype D strain 4947
Keywords keywords	Clostridium botulinum, botulinum toxin, hemagglutinin subcomponent complex, TOXIN; TOXIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2e4m__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2e4m__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

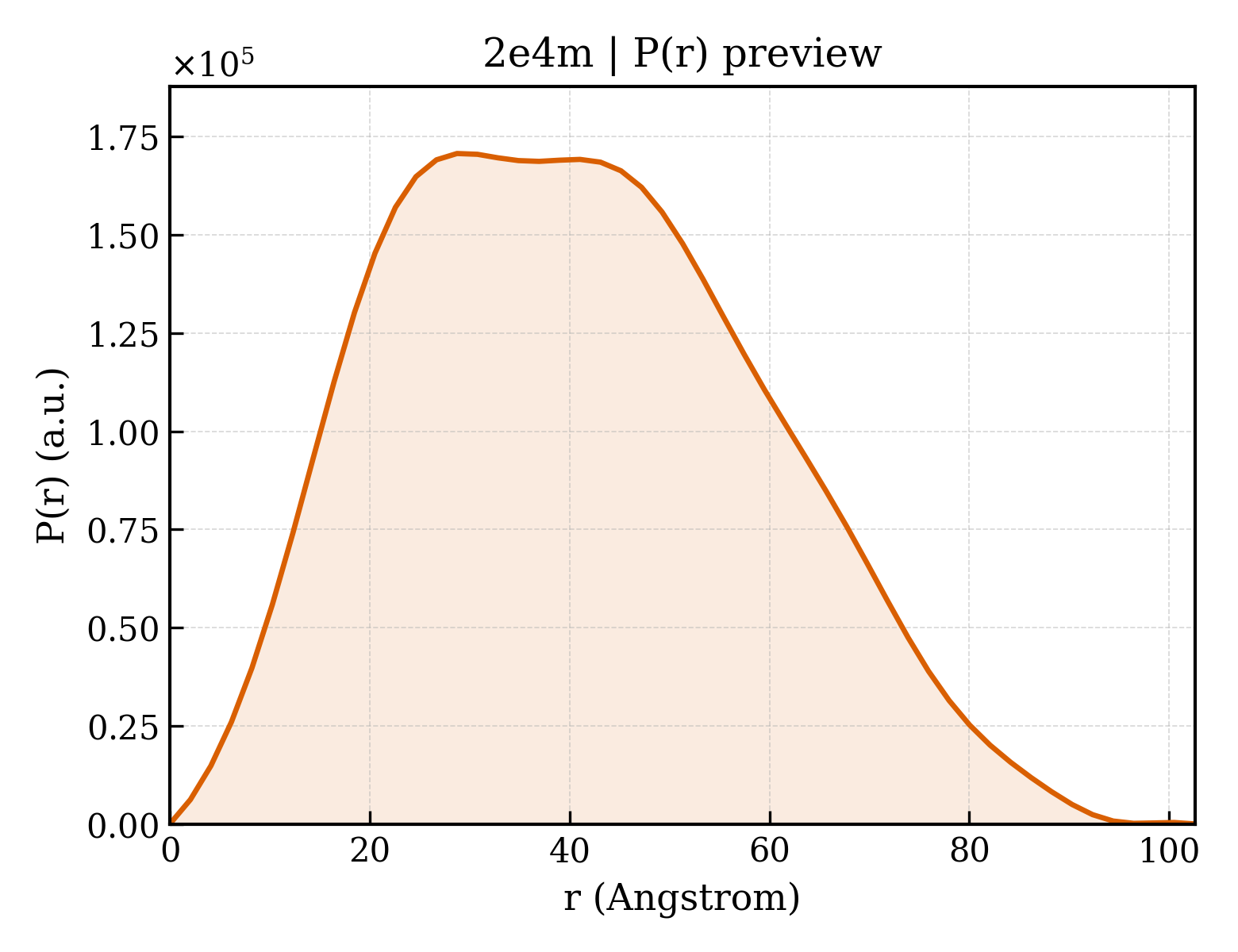

2e4m__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.57 Å
Rg (electron density)	31.09 Å
Total Rg	31.59 Å
Atom count	5913
Residues	713
Excluded volume	104150 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2e4m__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Main hemagglutinin component
Molecular weight formula_weight	33796.3 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6631

MSQTNANDLRNNEVFFISPSNNTNKVLDKISQSEVKLWNKLSGANQKWRLIYDTNKQAYTIKVMDNTSLILTWDAPLSSVSVKTDTNTNNQYWYLLQDYISRNVILRNYMNPNLVLQYNTDDTLIVSTQTNSNNQFFKFSNCIYEALNNRNCKLQTQLNSDRFLSKNLNSQIIVLWQWFDSSRQKWTIEYNETKSAYTLKCQENNRYLTWIQNSNNYVETYQSTDSLIQYWNINYLDNDASKYILYNLQDTNRVLDVYNSQTANGTHVIVDSYHGNTNQQWIINLI

Entity 2 Entity 2 polymer

Description description	HA-17
Molecular weight formula_weight	16714.6 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSSERTFLPNGNYKIKSLFSDSLYLTYSSGSLSFLNTSSLDNQKWKLEYISSSNGFRFSNVAEPNKYLAYNDYGFIYLSSSSNNSLWNPIKIAINSYIICTLSIVNVTDYAWTIYDNNNNITDQPILNLPNFDINNSNQILKLEKL

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	718

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2e4ma1
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.2 — Ricin B-like lectins
Family Family family	b.42.2.1 — Ricin B-like

Domain ID domain_id	d2e4ma2
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.2 — Ricin B-like lectins
Family Family family	b.42.2.1 — Ricin B-like

Domain ID domain_id	d2e4mb1
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.2 — Ricin B-like lectins
Family Family family	b.42.2.1 — Ricin B-like

Domain ID domain_id	d2e4mb2
Class class	b — All beta proteins
Fold Fold fold	b.42 — beta-Trefoil
Superfamily Superfamily superfamily	b.42.2 — Ricin B-like lectins
Family Family family	b.42.2.1 — Ricin B-like

CATH v4.4 (5 domains)

Domain ID domain_id	2e4mA01
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2e4mA02
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2e4mB01
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2e4mB02
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

Domain ID domain_id	2e4mC00
Class class	2 — Mainly Beta
Architecture architecture	80 — Trefoil
Topology topology	10 — Trefoil (Acidic Fibroblast Growth Factor, subunit A)
Homologous superfamily homologous superfamily	50 —

▶

Unit-cell length a length_a	239.132 Å
Unit-cell length b length_b	239.132 Å
Unit-cell length c length_c	100.024 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	49.810 Å
R factor r_factor	0.1955
R_work r_work	0.1937
R_free r_free	0.2288
