1r56

UNCOMPLEXED URATE OXIDASE FROM ASPERGILLUS FLAVUS

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uricase

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	DI(HYDROXYETHYL)ETHER × 2 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	URIC_ASPFL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–301； UniProt 1–301 Author chain B； PDBConstruct 1–301； UniProt 1–301 Author chain C； PDBConstruct 1–301； UniProt 1–301 Author chain D； PDBConstruct 1–301； UniProt 1–301 Author chain E； PDBConstruct 1–301； UniProt 1–301 Author chain F； PDBConstruct 1–301； UniProt 1–301 Author chain G； PDBConstruct 1–301； UniProt 1–301 Author chain H； PDBConstruct 1–301； UniProt 1–301

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1r56
Deposition date deposition_date	2003-10-09
Structure title title	UNCOMPLEXED URATE OXIDASE FROM ASPERGILLUS FLAVUS
Keywords keywords	OXIDOREDUCTASE, URIC ACID DEGRADATION, DIMERIC BARREL, TUNNEL-SHAPED PROTEIN; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1r56__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

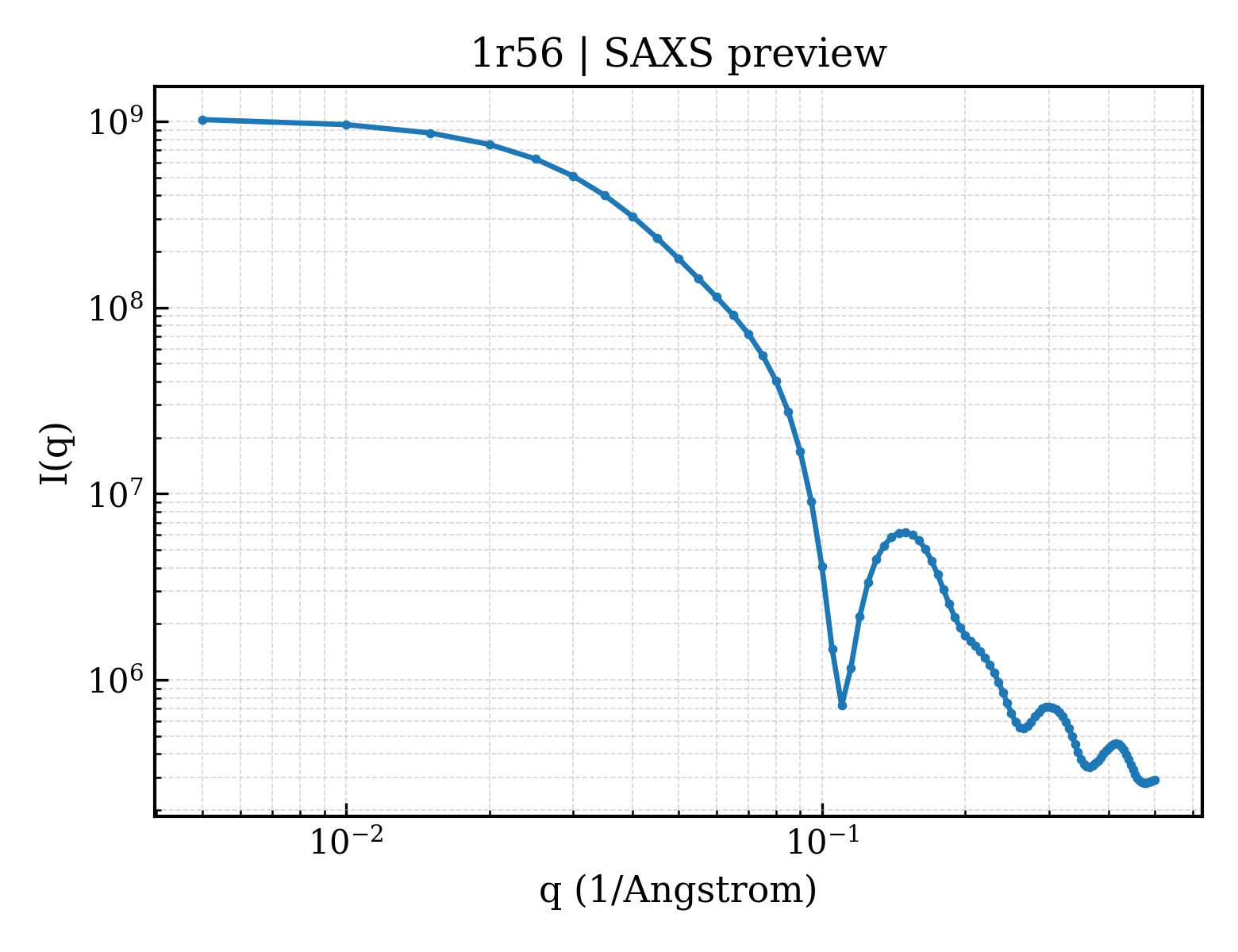

1r56__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

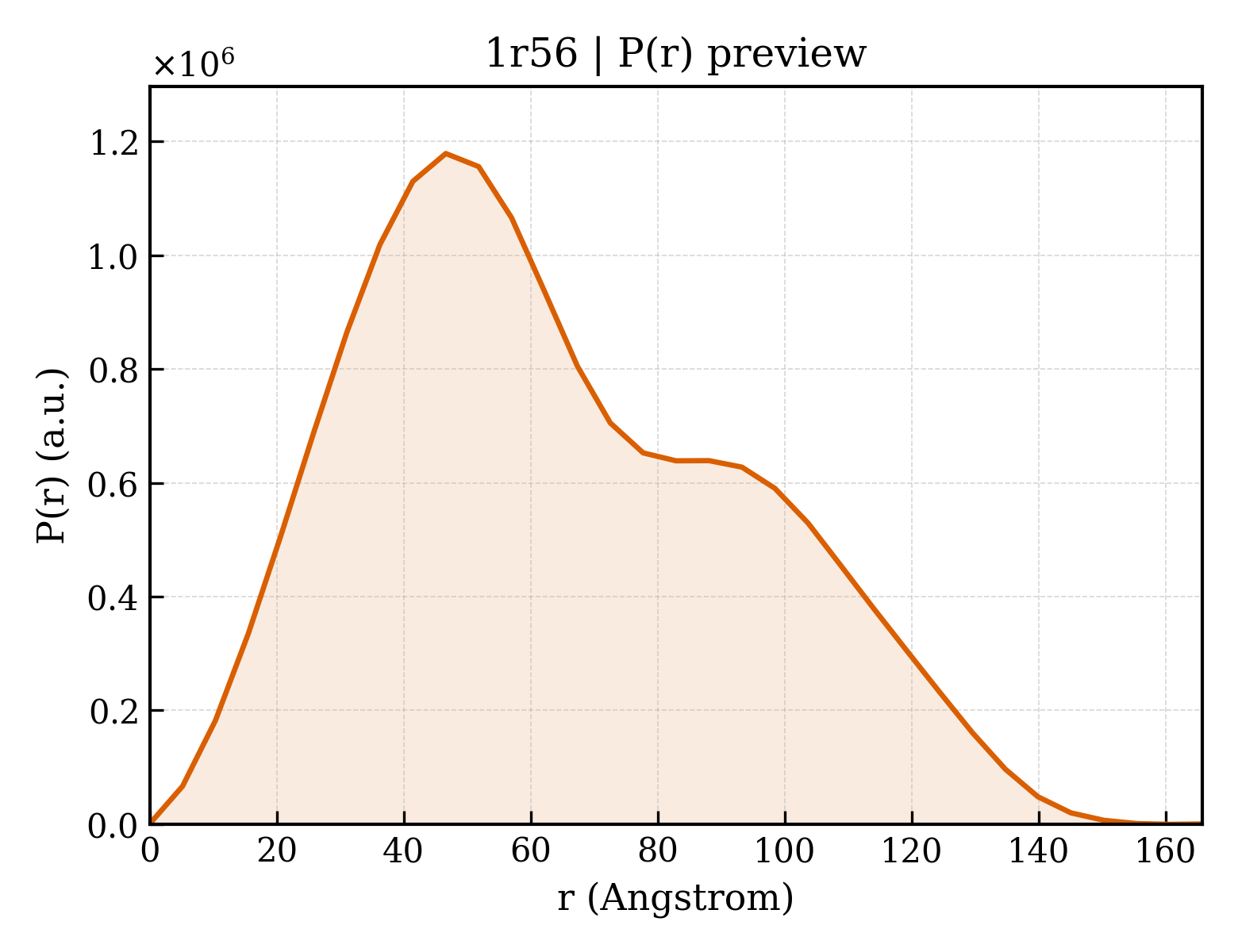

1r56__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.03 Å
Rg (electron density)	30.84 Å
Total Rg	31.65 Å
Atom count	9474
Residues	1180
Excluded volume	167850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1r56__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1r56__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Uricase
Molecular weight formula_weight	34199.6 kDa
EC 编号 ec_number	1.7.3.3
Source method src_method	nat
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	19240

SAVKAARYGKDNVRVYKVHKDEKTGVQTVYEMTVCVLLEGEIETSYTKADNSVIVATDSIKNTIYITAKQNPVTPPELFGSILGTHFIEKYNHIHAAHVNIVCHRWTRMDIDGKPHPHSFIRDSEEKRNVQVDVVEGKGIDIKSSLSGLTVLKSTNSQFWGFLRDEYTTLKETWDRILSTDVDATWQWKNFSGLQEVRSHVPKFDATWATAREVTLKTFAEDNSASVQATMYKMAEQILARQQLIETVEYSLPNKHYFEIDLSWHKGLQNTGKNAEVFAPQSDPNGLIKCTVGRSSLKSKL

Entity 2 Entity 2 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	334

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d1r56a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56b2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56c1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56d1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56d2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56e1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56e2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56f1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56f2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56g1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56g2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56h1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

Domain ID domain_id	d1r56h2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.96 — T-fold
Superfamily Superfamily superfamily	d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like
Family Family family	d.96.1.4 — Urate oxidase (uricase)

CATH v4.4 (8 domains)

Domain ID domain_id	1r56A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	270 — Urate Oxidase
Homologous superfamily homologous superfamily	10 — Urate Oxidase;

Domain ID domain_id	1r56B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	270 — Urate Oxidase
Homologous superfamily homologous superfamily	10 — Urate Oxidase;

Domain ID domain_id	1r56C00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	270 — Urate Oxidase
Homologous superfamily homologous superfamily	10 — Urate Oxidase;

Domain ID domain_id	1r56D00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	270 — Urate Oxidase
Homologous superfamily homologous superfamily	10 — Urate Oxidase;

Domain ID domain_id	1r56E00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	270 — Urate Oxidase
Homologous superfamily homologous superfamily	10 — Urate Oxidase;

Domain ID domain_id	1r56F00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	270 — Urate Oxidase
Homologous superfamily homologous superfamily	10 — Urate Oxidase;

Domain ID domain_id	1r56G00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	270 — Urate Oxidase
Homologous superfamily homologous superfamily	10 — Urate Oxidase;

Domain ID domain_id	1r56H00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	270 — Urate Oxidase
Homologous superfamily homologous superfamily	10 — Urate Oxidase;

▶

Unit-cell length a length_a	82.590 Å
Unit-cell length b length_b	141.843 Å
Unit-cell length c length_c	134.959 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.69 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	—
R_work r_work	0.1620
R_free r_free	0.2140
