1xxj
Urate oxidase from aspergillus flavus complexed with 5-amino 6-nitro uracil

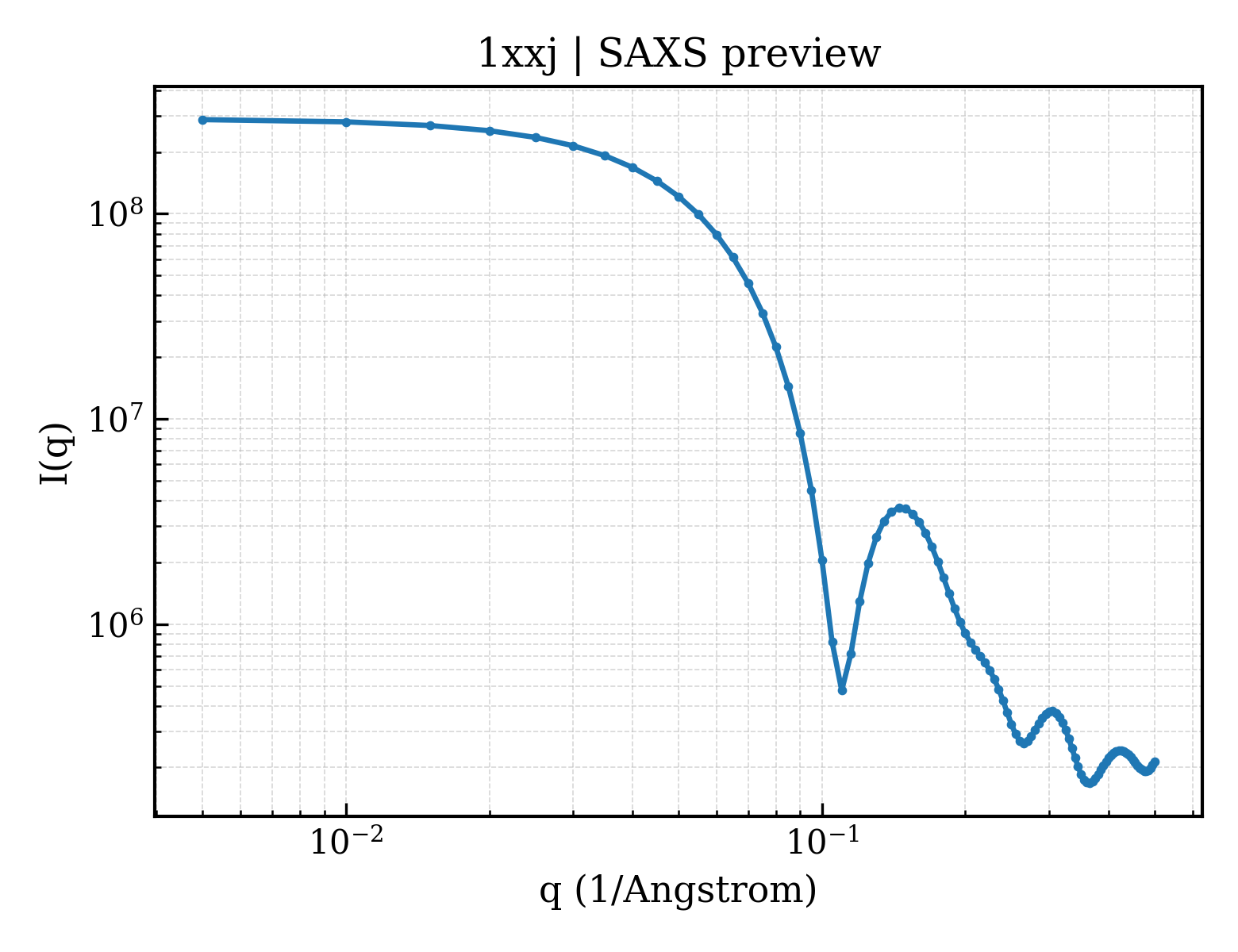

SAXS 散射曲线 SAXS Profile

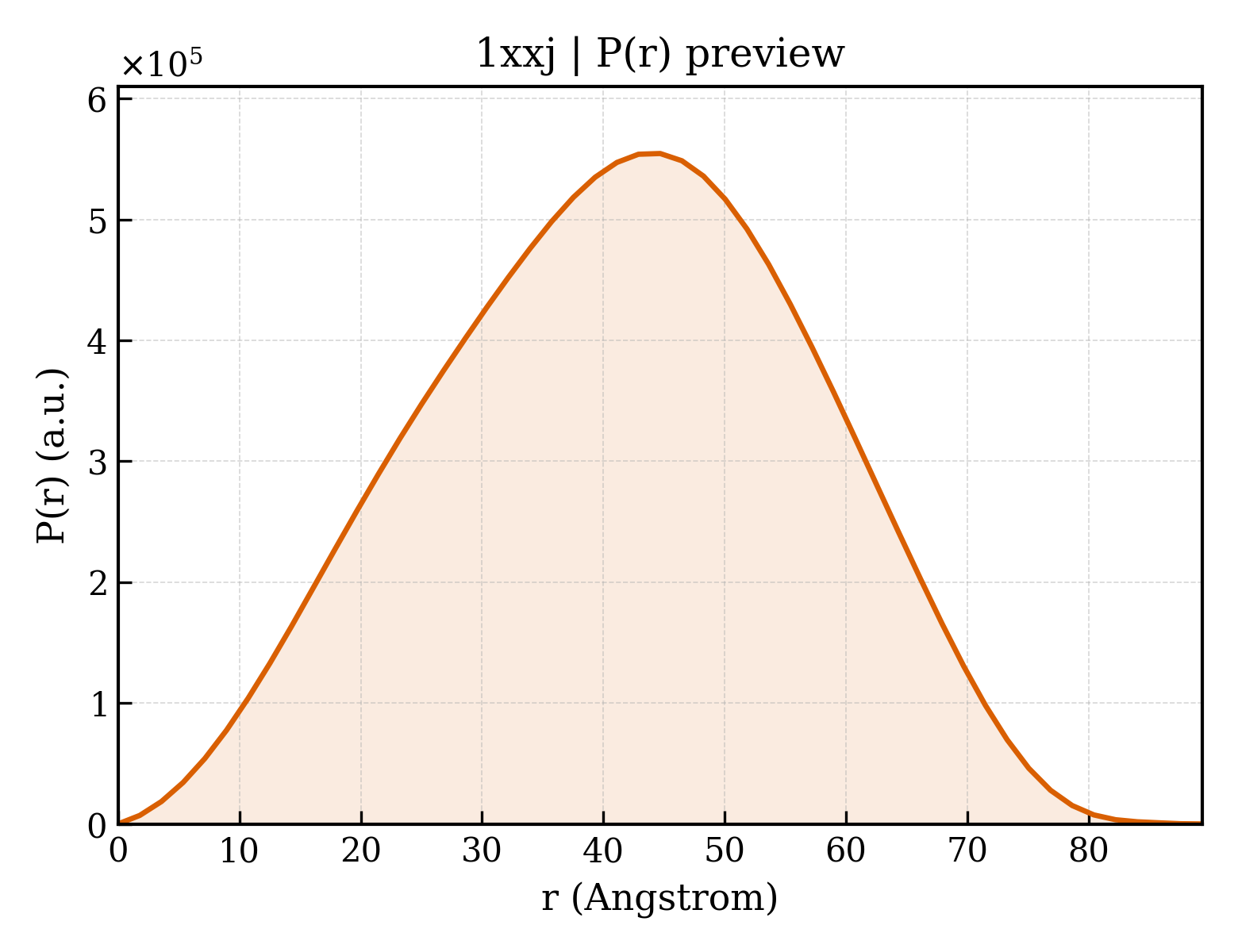

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1xxj |
| 沉积日期 deposition_date | 2004-11-05 |
| 结构标题 title | Urate oxidase from aspergillus flavus complexed with 5-amino 6-nitro uracil |
| 关键词 keywords | oxidoreductase, uric acid degradation, dimeric barrel, tunnel-shaped protein; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 31.67 Å |
| 回转半径 Rg (电子) rg_electron | 30.51 Å |
| 零角强度 I(0) i0 | 290054000.00 |
| 分子量 molecular_weight | 134270.0 kDa |
| 排除体积 excluded_volume | 167510 ų |
| 包络体积 envelope_volume | 206270 ų |
| 水化壳体积 shell_volume | 53242 ų |
| 包络直径 envelope_diameter | 94.8 Å |
| 壳层 Rg shell_rg | 40.00 Å |
| 包络 Rg envelope_rg | 29.79 Å |
| 形状 Rg shape_rg | 30.52 Å |
| 总 Rg total_rg | 31.30 Å |
| 总原子数 total_atoms | 9475 |
| 残基数 n_residues | 1176 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 89.4 Å |
| Rg (实空间) rg_real | 31.33 Å |
| Rg 误差 (实空间) rg_real_error | 0.30 Å |
| I(0) (实空间) i0_real | 2.9010e+08 |
| I(0) 误差 (实空间) i0_real_error | 3.7540e+06 |
| Rg (倒空间) rg_reciprocal | 31.47 Å |
| I(0) (倒空间) i0_reciprocal | 290100000.0000 |
| 解质量估计 total_estimate | 0.9061 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 44.7 Å |
| 偏度 Skewness skewness | -0.071 |
| 峰度 Kurtosis kurtosis | -0.584 |
| 角度范围 angular_range | — – 0.2500 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 77330000.0000 |
| 实空间数据点数 n_real_points | 51 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.955; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.974; Smooth: 0.936 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (8 domains)
| 结构域编号 domain_id | d1xxja1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.96 — T-fold |
| 超家族 Superfamily superfamily | d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like |
| 家族 Family family | d.96.1.4 — Urate oxidase (uricase) |
| 结构域编号 domain_id | d1xxja2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.96 — T-fold |
| 超家族 Superfamily superfamily | d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like |
| 家族 Family family | d.96.1.4 — Urate oxidase (uricase) |
| 结构域编号 domain_id | d1xxjb1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.96 — T-fold |
| 超家族 Superfamily superfamily | d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like |
| 家族 Family family | d.96.1.4 — Urate oxidase (uricase) |
| 结构域编号 domain_id | d1xxjb2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.96 — T-fold |
| 超家族 Superfamily superfamily | d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like |
| 家族 Family family | d.96.1.4 — Urate oxidase (uricase) |
| 结构域编号 domain_id | d1xxjc1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.96 — T-fold |
| 超家族 Superfamily superfamily | d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like |
| 家族 Family family | d.96.1.4 — Urate oxidase (uricase) |
| 结构域编号 domain_id | d1xxjc2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.96 — T-fold |
| 超家族 Superfamily superfamily | d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like |
| 家族 Family family | d.96.1.4 — Urate oxidase (uricase) |
| 结构域编号 domain_id | d1xxjd1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.96 — T-fold |
| 超家族 Superfamily superfamily | d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like |
| 家族 Family family | d.96.1.4 — Urate oxidase (uricase) |
| 结构域编号 domain_id | d1xxjd2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.96 — T-fold |
| 超家族 Superfamily superfamily | d.96.1 — Tetrahydrobiopterin biosynthesis enzymes-like |
| 家族 Family family | d.96.1.4 — Urate oxidase (uricase) |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1xxjA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 270 — Urate Oxidase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Urate Oxidase; |
| 结构域编号 domain_id | 1xxjB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 270 — Urate Oxidase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Urate Oxidase; |
| 结构域编号 domain_id | 1xxjC00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 270 — Urate Oxidase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Urate Oxidase; |
| 结构域编号 domain_id | 1xxjD00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 10 — Roll |
| 拓扑 Topology topology | 270 — Urate Oxidase |
| 同源超家族 H-superfamily homologous superfamily | 10 — Urate Oxidase; |
