SAXSdb — 1rhq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Caspase-3

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	5-S-benzyl-3-({N-[(5-bromo-2-methoxyphenyl)acetyl]-L-valyl}amino)-2,3-dideoxy-5-thio-D-erythro-pentonic acid × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ICE3_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–147； UniProt 29–175 Author chain D； PDBConstruct 1–147； UniProt 29–175 Author chain B； PDBConstruct 1–102； UniProt 176–277 Author chain E； PDBConstruct 1–102； UniProt 176–277

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rhq
Deposition date deposition_date	2003-11-14
Structure title title	CRYSTAL STRUCTURE OF THE COMPLEX OF CASPASE-3 WITH A BROMOMETHOXYPHENYL INHIBITOR
Keywords keywords	CYSTEINE PROTEASE, CASPASE-3, APOPAIN, CPP32, YAMA, HYDROLASE-hydrolase inhibitor complex; HYDROLASE/hydrolase inhibitor
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rhq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rhq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

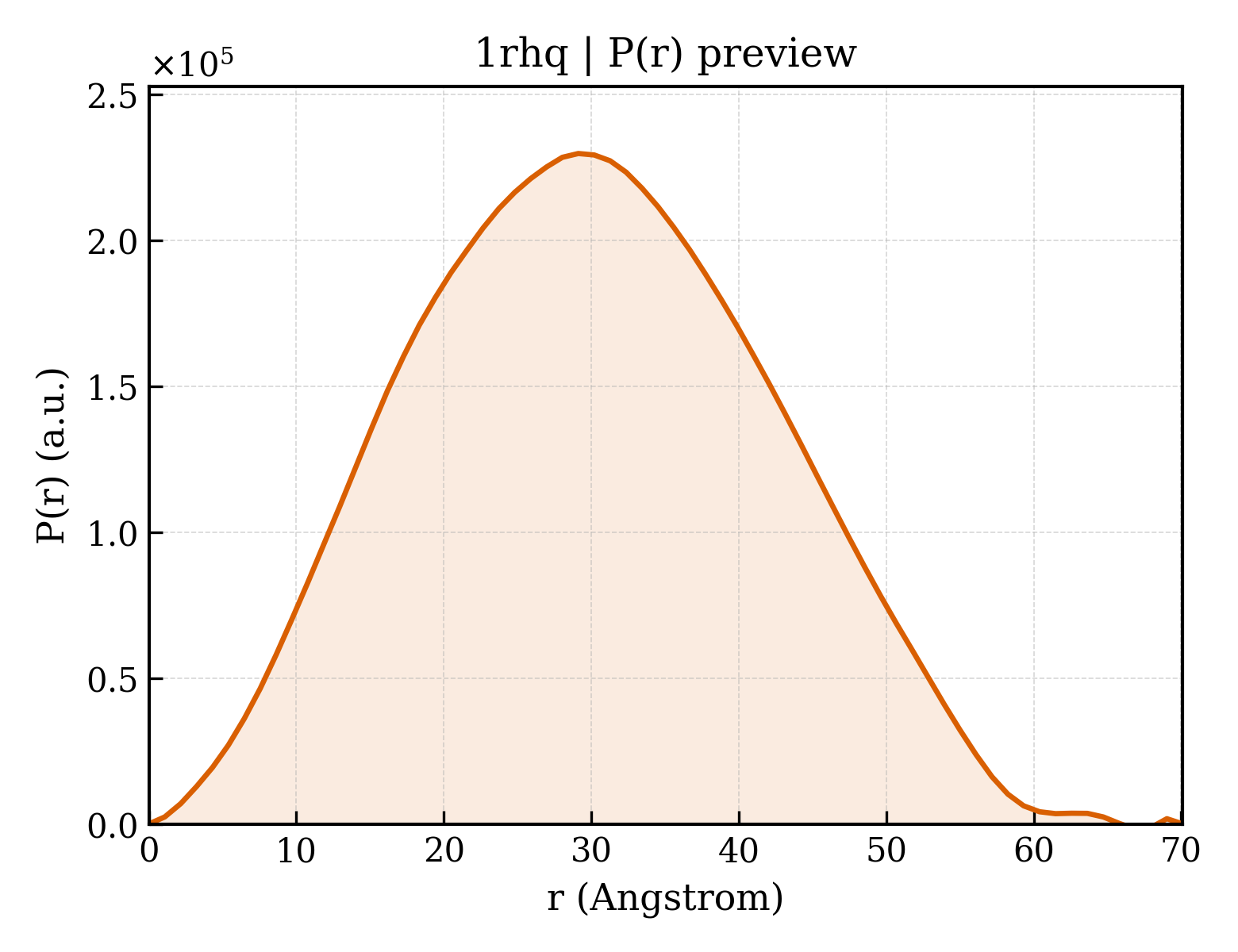

1rhq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.26 Å
Rg (electron density)	21.94 Å
Total Rg	22.78 Å
Atom count	3812
Residues	462
Excluded volume	67725 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rhq__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Caspase-3
Molecular weight formula_weight	16639.9 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	3812

SGISLDNSYKMDYPEMGLCIIINNKNFHKSTGMTSRSGTDVDAANLRETFRNLKYEVRNKNDLTREEIVELMRDVSKEDHSKRSSFVCVLLSHGEEGIIFGTNGPVDLKKITNFFRGDRCRSLTGKPKLFIIQACRGTELDCGIETD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Caspase-3
Molecular weight formula_weight	11910.6 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

SGVDDDMACHKIPVEADFLYAYSTAPGYYSWRNSKDGSWFIQSLCAMLKQYADKLEFMHILTRVNRKVATEFESFSFDATFHAKKQIPCIVSMLTKELYFYH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	5-S-benzyl-3-({N-[(5-bromo-2-methoxyphenyl)acetyl]-L-valyl}amino)-2,3-dideoxy-5-thio-D-erythro-pentonic acid
Molecular weight formula_weight	581.5 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1rhq.1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

Domain ID domain_id	d1rhq.2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

CATH v4.4 (4 domains)

Domain ID domain_id	1rhqA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	1rhqB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1470 — Caspase-like

Domain ID domain_id	1rhqD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	1rhqE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1470 — Caspase-like

▶

Unit-cell length a length_a	110.300 Å
Unit-cell length b length_b	96.900 Å
Unit-cell length c length_c	70.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	128.06 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2730
R_free r_free	0.3540
