SAXSdb — 1rnl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

NITRATE/NITRITE RESPONSE REGULATOR PROTEIN NARL

Escherichia coli str. K12 substr.

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–216	Fragment：RESIDUES 2 - 216 OF THE WILD TYPE NARL	PT PLATINUM (II) ION × 6 GOL GLYCEROL × 3	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.40 Å R-free 0.251
2	Protein homooligomer Homooligomer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 2–216	Fragment：RESIDUES 2 - 216 OF THE WILD TYPE NARL	PT PLATINUM (II) ION × 24 GOL GLYCEROL × 12	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.40 Å R-free 0.251
3	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–216	Fragment：RESIDUES 2 - 216 OF THE WILD TYPE NARL	PT PLATINUM (II) ION × 12 GOL GLYCEROL × 6	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.40 Å R-free 0.251

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1RNL	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A04 THE STRUCTURE OF THE NITRATE/NITRITE RESPONSE REGULATOR PROTEIN NARL IN THE MONOCLINIC C2 CRYSTAL FORM Deposited 1997-12-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–216（215 aa） Fragment：RESIDUES 2 - 216 OF THE WILD TYPE NARL	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；277 K；THE PROTEIN SOLUTION CONTAINING 23.3 MG/ML OF PURIFIED NARL, 20 MM TRIS.HCL (PH=7.6), 0.5 MM MGCL2, AND 10% GLYCEROL WAS MIXED WITH AN EQUAL VOLUME OF THE RESERVOIR SOLUTION CONTAINING 0.1 M TRIS.HCL (PH=8.5), 0.2 M SODIUM ACETATE, AND 30% POLYETHYLENE GLYCOL (PEG) 4000. SITTING DROPS CONTAINING 20 ML OF MIXTURE WERE EQUILIBRATED BY VAPOR DIFFUSION AT 4 DEGREES AGAINST 20 ML OF THE RESERVOIR SOLUTION. CRYSTALS BEGAN TO APPEAR AS CLUSTERS OF PLATES AFTER 11-15 DAYS., vapor diffusion - sitting drop, temperature 277K	Resolution 2.20 Å R-free 0.267
1A04 THE STRUCTURE OF THE NITRATE/NITRITE RESPONSE REGULATOR PROTEIN NARL IN THE MONOCLINIC C2 CRYSTAL FORM Deposited 1997-12-08	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–216（215 aa） Fragment：RESIDUES 2 - 216 OF THE WILD TYPE NARL	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.6；277 K；THE PROTEIN SOLUTION CONTAINING 23.3 MG/ML OF PURIFIED NARL, 20 MM TRIS.HCL (PH=7.6), 0.5 MM MGCL2, AND 10% GLYCEROL WAS MIXED WITH AN EQUAL VOLUME OF THE RESERVOIR SOLUTION CONTAINING 0.1 M TRIS.HCL (PH=8.5), 0.2 M SODIUM ACETATE, AND 30% POLYETHYLENE GLYCOL (PEG) 4000. SITTING DROPS CONTAINING 20 ML OF MIXTURE WERE EQUILIBRATED BY VAPOR DIFFUSION AT 4 DEGREES AGAINST 20 ML OF THE RESERVOIR SOLUTION. CRYSTALS BEGAN TO APPEAR AS CLUSTERS OF PLATES AFTER 11-15 DAYS., vapor diffusion - sitting drop, temperature 277K	Resolution 2.20 Å R-free 0.267
1JE8 Two-Component response regulator NarL/DNA Complex: DNA Bending Found in a High Affinity Site Deposited 2001-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 147–216（70 aa） Fragment：DNA Binding Domain (147-216) Chain B 147–216（70 aa） Fragment：DNA Binding Domain (147-216)	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；ammonium sulfate, TRIS, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.12 Å R-free 0.273
1JE8 Two-Component response regulator NarL/DNA Complex: DNA Bending Found in a High Affinity Site Deposited 2001-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain E 147–216（70 aa） Fragment：DNA Binding Domain (147-216) Chain F 147–216（70 aa） Fragment：DNA Binding Domain (147-216)	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；ammonium sulfate, TRIS, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.12 Å R-free 0.273

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NARL_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–215； UniProt 2–216

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rnl
Deposition date deposition_date	1996-04-17
Structure title title	THE NITRATE/NITRITE RESPONSE REGULATOR PROTEIN NARL FROM NARL
Keywords keywords	RESPONSE REGULATORS, TWO-COMPONENT SYSTEMS, SIGNAL TRANSDUCTION PROTEIN; SIGNAL TRANSDUCTION PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.87 Å
Radius of gyration Rg (electron density) rg_electron	16.56 Å
Forward intensity I(0) i0	11249500.00
Molecular weight molecular_weight	23506.0 kDa
Excluded volume excluded_volume	28502 Å³
Envelope volume envelope_volume	32369 Å³
Hydration-shell volume shell_volume	16454 Å³
Envelope diameter envelope_diameter	55.7 Å
Shell Rg shell_rg	22.50 Å
Envelope Rg envelope_rg	16.58 Å
Shape Rg shape_rg	16.42 Å
Total Rg total_rg	17.79 Å
Total atoms total_atoms	1568
Residues n_residues	200
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.6 Å
Rg (real space) rg_real	17.73 Å
Rg uncertainty (real space) rg_real_error	0.30 Å
I(0) (real space) i0_real	1.1250e+07
I(0) uncertainty (real space) i0_real_error	1.4100e+05
Rg (reciprocal space) rg_reciprocal	17.75 Å
I(0) (reciprocal space) i0_reciprocal	11250000.0000
Solution quality estimate total_estimate	0.9045
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.2 Å
Skewness Skewness skewness	0.043
Kurtosis Kurtosis kurtosis	-0.442
Angular range angular_range	— – 0.4450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	592700.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.986

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	NITRATE/NITRITE RESPONSE REGULATOR PROTEIN NARL
Molecular weight formula_weight	23828.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1638

SNQEPATILLIDDHPMLRTGVKQLISMAPDITVVGEASNGEQGIELAESLDPDLILLDLNMPGMNGLETLDKLREKSLSGRIVVFSVSNHEEDVVTALKRGADGYLLKDMEPEDLLKALHQAAAGEMVLSEALTPVLAASLRANRATTERDVNQLTPRERDILKLIAQGLPNKMIARRLDITESTVKVHVKHMLKKMKLKSRVEAAVWVHQERIF

来源 Source

来源生物 organism	Escherichia coli str. K12 substr.
NCBI Class编号 ncbi_taxonomy_id	316407
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PLATINUM (II) ION
Molecular weight formula_weight	195.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	70

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1rnla1
Class class	a — All alpha proteins
Fold Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
Superfamily Superfamily superfamily	a.4.6 — C-terminal effector domain of the bipartite response regulators
Family Family family	a.4.6.2 — GerE-like (LuxR/UhpA family of transcriptional regulators)

Domain ID domain_id	d1rnla2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.1 — CheY-related

CATH v4.4 (2 domains)

Domain ID domain_id	1rnlA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1rnlA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	61.037 Å
Unit-cell length b length_b	78.321 Å
Unit-cell length c length_c	115.720 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2070
R_work r_work	0.2070
R_free r_free	0.2510

fit	/app/data/saxs_computation/rn/1rnl/1rnl.fit
pddf	/app/data/pr_computation/rn/1rnl/1rnl.pr.out
profile	/app/data/saxs_computation/rn/1rnl/1rnl.dat

THE NITRATE/NITRITE RESPONSE REGULATOR PROTEIN NARL FROM NARL

1. Protein Identity and Related Structures Protein Identity & Related Structures

NITRATE/NITRITE RESPONSE REGULATOR PROTEIN NARL

State in the Current Structure

Other States of the Same Protein in the Database

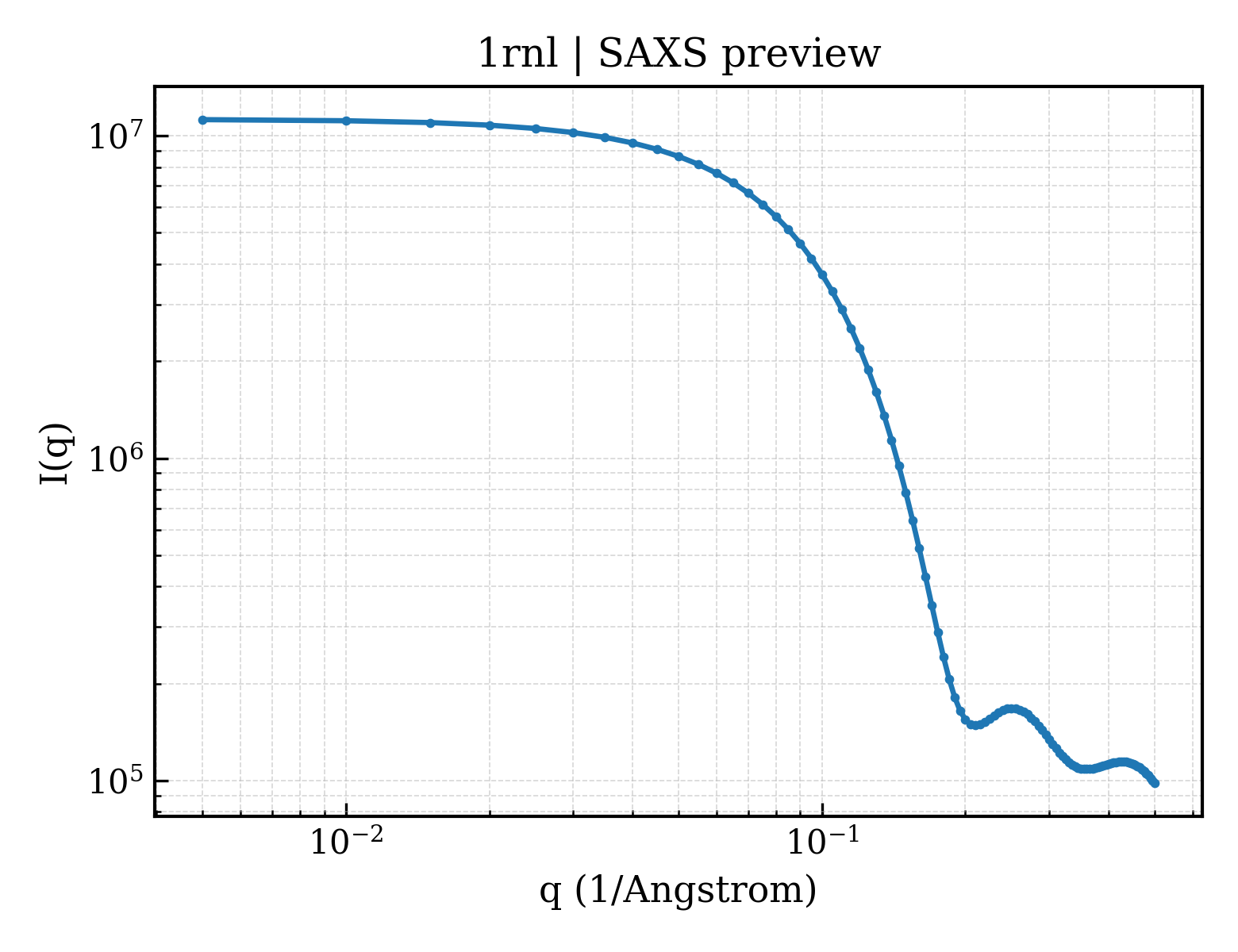

SAXS scattering curve SAXS Profile

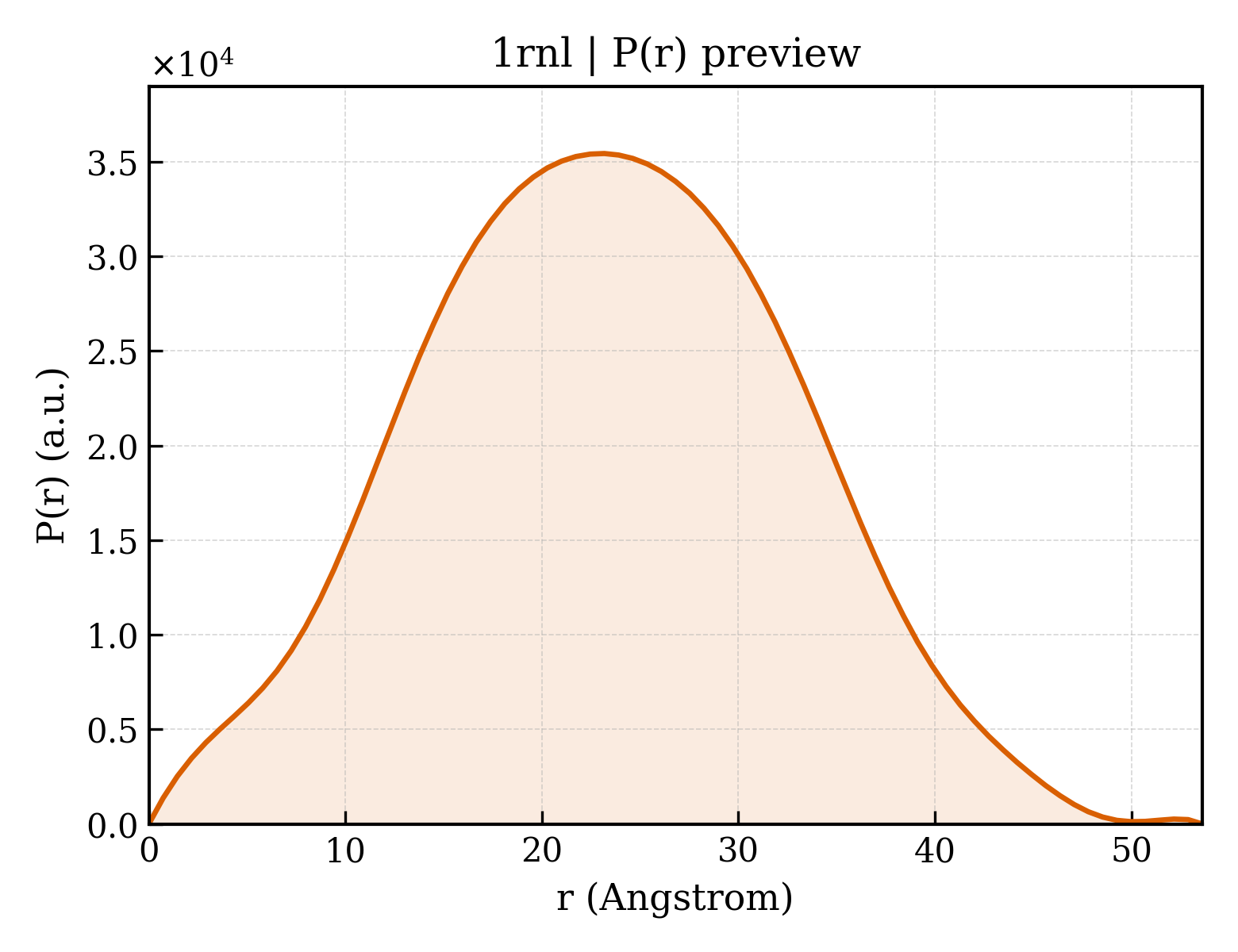

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction
