1rxc

E. COLI uridine phosphorylase: 5-fluorouracil ribose-1-phosphate complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uridine phosphorylase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	POTASSIUM ION × 3 1-O-phosphono-alpha-D-ribofuranose × 5 5-FLUOROURACIL × 5 water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	POTASSIUM ION × 2 1-O-phosphono-alpha-D-ribofuranose × 3 5-FLUOROURACIL × 3 PHOSPHATE ION × 1 5-FLUOROURIDINE × 1 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UDP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–253； UniProt 0–252 Author chain B； PDBConstruct 1–253； UniProt 0–252 Author chain C； PDBConstruct 1–253； UniProt 0–252 Author chain D； PDBConstruct 1–253； UniProt 0–252 Author chain E； PDBConstruct 1–253； UniProt 0–252 Author chain F； PDBConstruct 1–253； UniProt 0–252 Author chain G； PDBConstruct 1–253； UniProt 0–252 Author chain H； PDBConstruct 1–253； UniProt 0–252 Author chain I； PDBConstruct 1–253； UniProt 0–252 Author chain J； PDBConstruct 1–253； UniProt 0–252 Author chain K； PDBConstruct 1–253； UniProt 0–252 Author chain L； PDBConstruct 1–253； UniProt 0–252

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rxc
Deposition date deposition_date	2003-12-18
Structure title title	E. COLI uridine phosphorylase: 5-fluorouracil ribose-1-phosphate complex
Keywords keywords	pentosyltransferase, uridine phosphorylase, 5-fluorouracil, induced fit, specificity, potassium, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rxc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rxc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

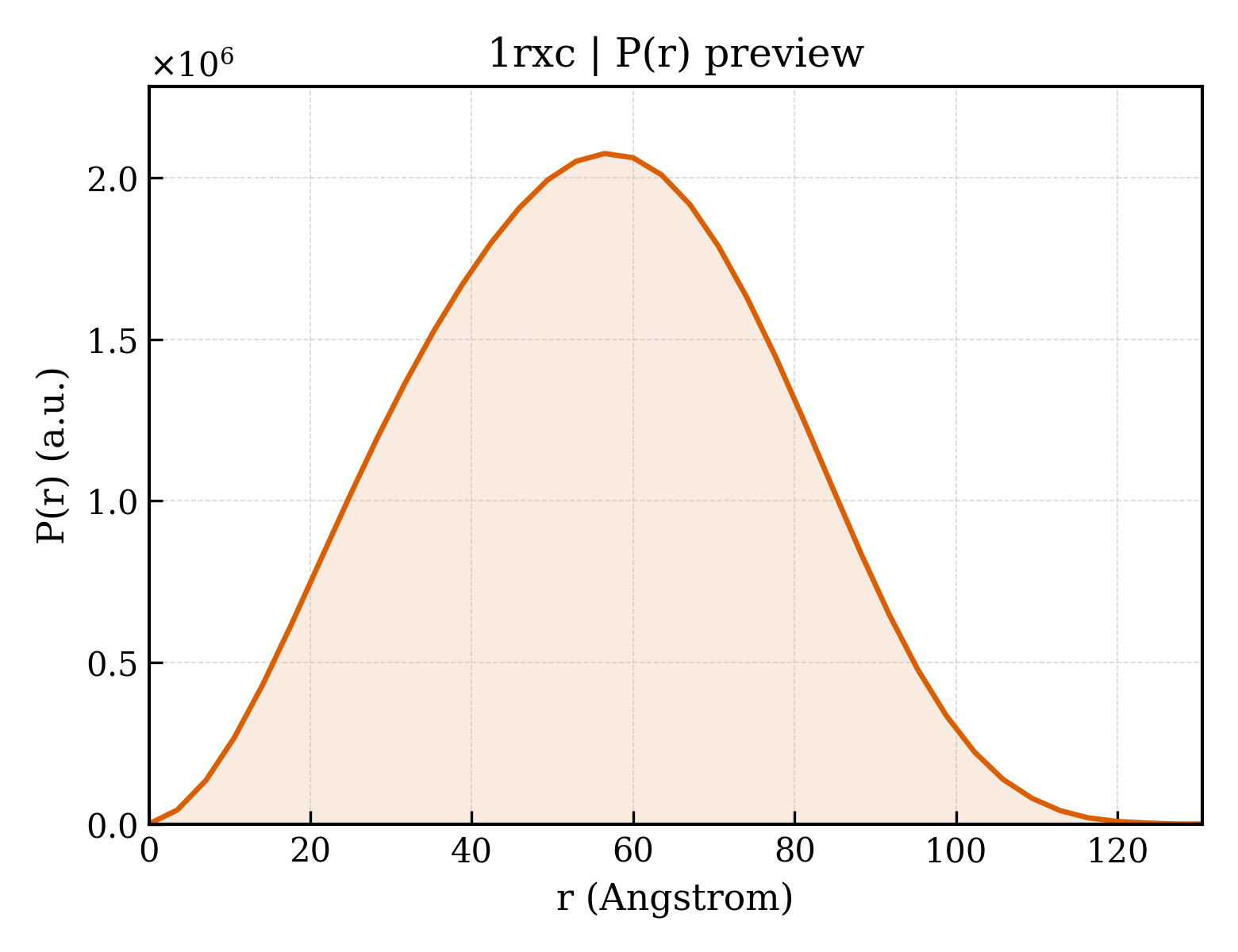

1rxc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.72 Å
Rg (electron density)	33.09 Å
Total Rg	33.76 Å
Atom count	11336
Residues	1492
Excluded volume	201690 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rxc__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1rxc__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Uridine phosphorylase
Molecular weight formula_weight	27189.1 kDa
EC 编号 ec_number	2.4.2.3
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	23681

MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	1-O-phosphono-alpha-D-ribofuranose
Molecular weight formula_weight	230.1 kDa
Source method src_method	man
Copy count entity_count	8

Entity 4 Entity 4 non-polymer

Description description	5-FLUOROURACIL
Molecular weight formula_weight	130.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	5-FLUOROURIDINE
Molecular weight formula_weight	262.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1149

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1rxca_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxcb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxcc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxcd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxce_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxcf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxcg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxch_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxci_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxcj_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxck_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxcl_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

CATH v4.4 (12 domains)

Domain ID domain_id	1rxcA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcG00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcH00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcI00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcJ00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcK00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxcL00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

▶

Unit-cell length a length_a	90.188 Å
Unit-cell length b length_b	191.701 Å
Unit-cell length c length_c	91.909 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	118.50 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	16.930 Å
R factor r_factor	0.1527
R_work r_work	0.1500
R_free r_free	0.2025

E. COLI uridine phosphorylase: 5-fluorouracil ribose-1-phosphate complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uridine phosphorylase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1rxc__assembly_1__model_1

1rxc__assembly_1__model_1 | I(q)

1rxc__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)

E. COLI uridine phosphorylase: 5-fluorouracil ribose-1-phosphate complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uridine phosphorylase

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1rxc__assembly_1__model_1

1rxc__assembly_1__model_1 | I(q)

1rxc__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)
