1rxu

E. coli uridine phosphorylase: thymidine phosphate complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uridine phosphorylase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	PHOSPHATE ION × 6 POTASSIUM ION × 3 THYMIDINE × 6 water × 6	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	PHOSPHATE ION × 6 POTASSIUM ION × 3 THYMIDINE × 6 water × 6	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 6	PHOSPHATE ION × 6 POTASSIUM ION × 3 THYMIDINE × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UDP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–253； UniProt 0–252 Author chain B； PDBConstruct 1–253； UniProt 0–252 Author chain C； PDBConstruct 1–253； UniProt 0–252 Author chain D； PDBConstruct 1–253； UniProt 0–252 Author chain E； PDBConstruct 1–253； UniProt 0–252 Author chain F； PDBConstruct 1–253； UniProt 0–252 Author chain G； PDBConstruct 1–253； UniProt 0–252 Author chain H； PDBConstruct 1–253； UniProt 0–252 Author chain I； PDBConstruct 1–253； UniProt 0–252 Author chain J； PDBConstruct 1–253； UniProt 0–252 Author chain K； PDBConstruct 1–253； UniProt 0–252 Author chain L； PDBConstruct 1–253； UniProt 0–252 Author chain M； PDBConstruct 1–253； UniProt 0–252 Author chain N； PDBConstruct 1–253； UniProt 0–252 Author chain O； PDBConstruct 1–253； UniProt 0–252 Author chain P； PDBConstruct 1–253； UniProt 0–252 Author chain Q； PDBConstruct 1–253； UniProt 0–252 Author chain R； PDBConstruct 1–253； UniProt 0–252

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rxu
Deposition date deposition_date	2003-12-18
Structure title title	E. coli uridine phosphorylase: thymidine phosphate complex
Keywords keywords	pentosyltransferase, uridine phosphorylase, thymidine, induced fit, specificity, potassium, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rxu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rxu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

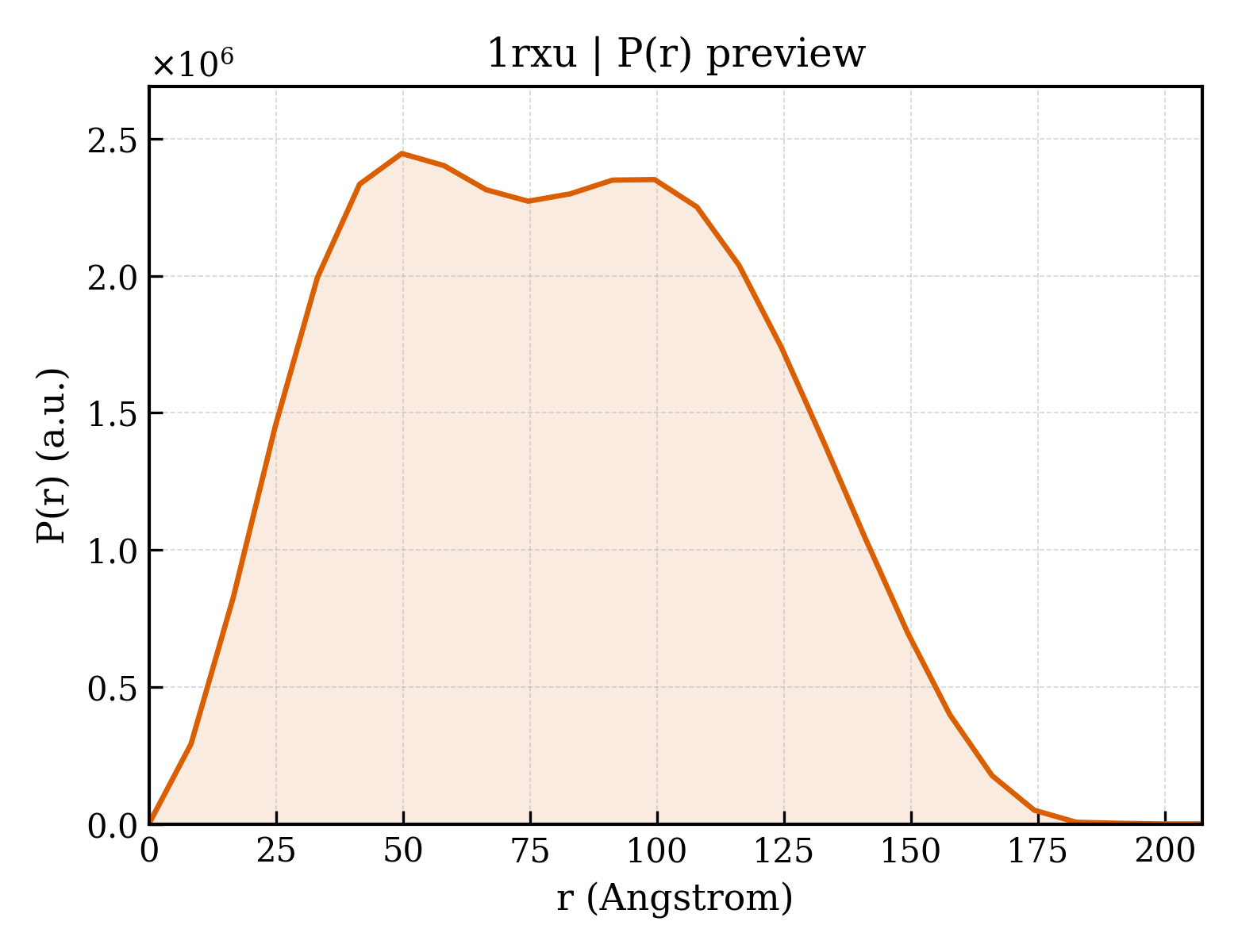

1rxu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.68 Å
Rg (electron density)	33.05 Å
Total Rg	33.72 Å
Atom count	11415
Residues	1500
Excluded volume	203070 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rxu__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1rxu__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1rxu__assembly_3__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Uridine phosphorylase
Molecular weight formula_weight	27189.1 kDa
EC 编号 ec_number	2.4.2.3
Source method src_method	man
Copy count entity_count	18

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R
Atom count atom_count	35307

MSKSDVFHLGLTKNDLQGATLAIVPGDPDRVEKIAALMDKPVKLASHREFTTWRAELDGKPVIVCSTGIGGPSTSIAVEELAQLGIRTFLRIGTTGAIQPHINVGDVLVTTASVRLDGASLHFAPLEFPAVADFECTTALVEAAKSIGATTHVGVTASSDTFYPGQERYDTYSGRVVRHFKGSMEEWQAMGVMNYEMESATLLTMCASQGLRAGMVAGVIVNRTQQEIPNAETMKQTESHAVKIVVEAARRLL

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 3 Entity 3 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 4 Entity 4 non-polymer

Description description	THYMIDINE
Molecular weight formula_weight	242.2 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1062

▼

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (18 domains)

Domain ID domain_id	d1rxua_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxub_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxuc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxud_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxue_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxuf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxug_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxuh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxui_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxuj_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxuk_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxul_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxum_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxun_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxuo_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxup_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxuq_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

Domain ID domain_id	d1rxur_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.56 — Phosphorylase/hydrolase-like
Superfamily Superfamily superfamily	c.56.2 — Purine and uridine phosphorylases
Family Family family	c.56.2.1 — Purine and uridine phosphorylases

CATH v4.4 (18 domains)

Domain ID domain_id	1rxuA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuG00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuH00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuI00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuJ00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuK00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuL00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuM00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuN00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuO00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuP00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuQ00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

Domain ID domain_id	1rxuR00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1580 — Nucleoside phosphorylase domain

▶

Unit-cell length a length_a	156.244 Å
Unit-cell length b length_b	97.655 Å
Unit-cell length c length_c	161.453 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	118.23 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	36

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2126
R_work r_work	0.2117
R_free r_free	0.2294

E. coli uridine phosphorylase: thymidine phosphate complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uridine phosphorylase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1rxu__assembly_1__model_1

1rxu__assembly_1__model_1 | I(q)

1rxu__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (18 domains)

CATH v4.4 (18 domains)

7. Citations (1)

E. coli uridine phosphorylase: thymidine phosphate complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Uridine phosphorylase

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1rxu__assembly_1__model_1

1rxu__assembly_1__model_1 | I(q)

1rxu__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (18 domains)

CATH v4.4 (18 domains)

7. Citations (1)
