SAXSdb — 1s0w

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

beta-lactamase TEM

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Beta-lactamase inhibitory protein × 1 （P35804） CALCIUM ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Beta-lactamase inhibitory protein × 1 （P35804） CALCIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BLAT_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–263； UniProt 24–286 Author chain B； PDBConstruct 1–263； UniProt 24–286

Beta-lactamase inhibitory protein

Streptomyces clavuligerus

UniProt P35804

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	beta-lactamase TEM × 1 （P00810） CALCIUM ION × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	beta-lactamase TEM × 1 （P00810） CALCIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BLIP_STRCL
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–165； UniProt 37–201 Author chain D； PDBConstruct 1–165； UniProt 37–201

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1s0w
Deposition date deposition_date	2004-01-05
Structure title title	1b Lactamse/ b Lactamase Inhibitor
Keywords keywords	;PROTEIN-PROTEIN COMPLEX, TEM-1 BETA-LACTAMASE, BETA-LACTAMASE INHIBITOR PROTEIN, BLIP, Israel Structural Proteomics Center, ISPC, Structural Genomics, HYDROLASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1s0w__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1s0w__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

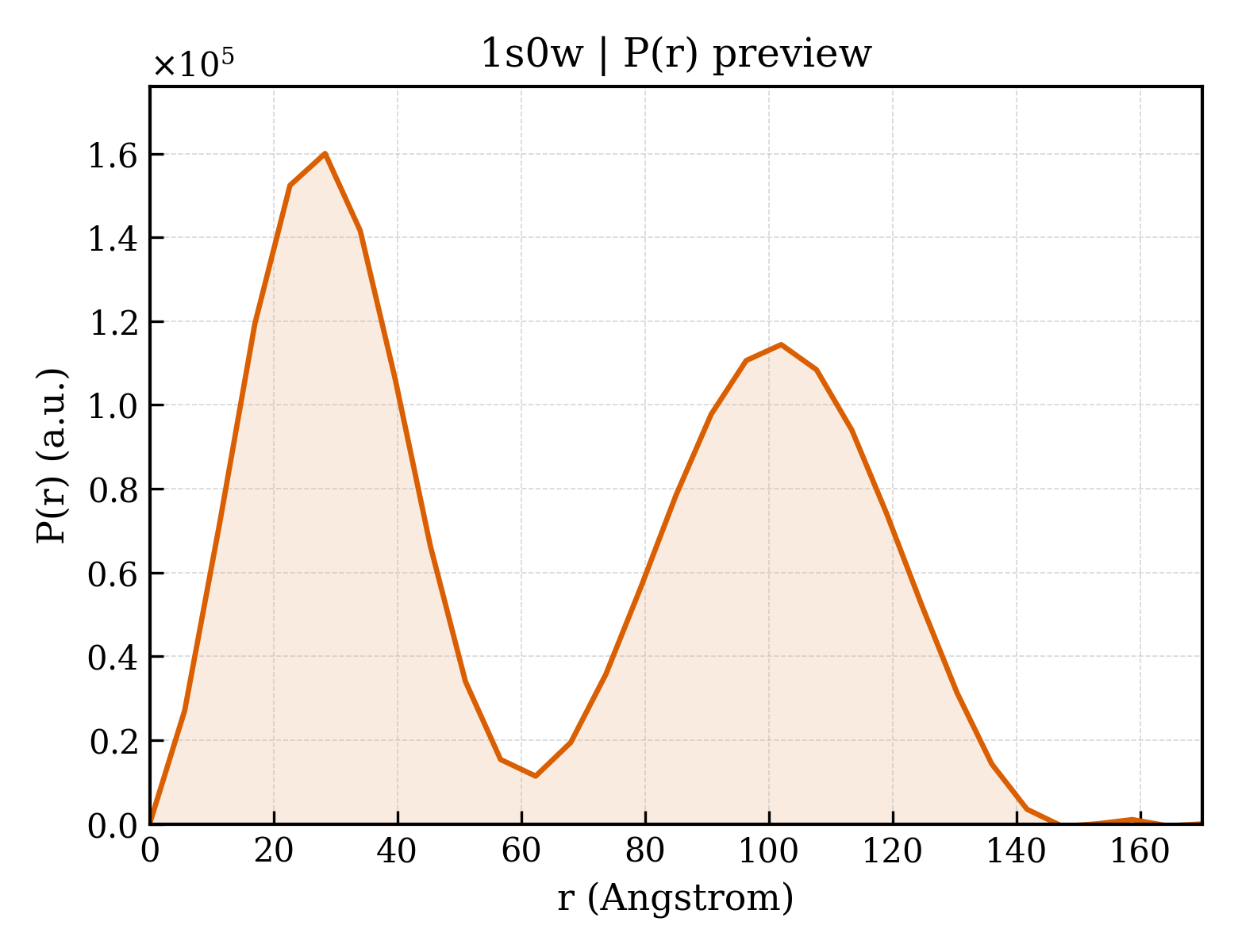

1s0w__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.68 Å
Rg (electron density)	21.88 Å
Total Rg	22.68 Å
Atom count	3256
Residues	428
Excluded volume	57664 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1s0w__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1s0w__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	beta-lactamase TEM
Molecular weight formula_weight	28942.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6905

HPETLVKVKDAEDQLGARVGYIELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRWEPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGASLIKHW

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Beta-lactamase inhibitory protein
Molecular weight formula_weight	17480.4 kDa
Mutation mutation	F1142A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

AGVMTGAKFTQIQFGMTRQQVLDIAGAENCETGGSFGDSIHCRGHAAGDYYAYATFGFTSAAADAKVDSKSQEKLLAPSAPTLTLAKFNQVTVGMTRAQVLATVGQGSCTTWSEYYPAYPSTAGVTLSLSCFDVDGYSSTGAYRGSAHLWFTDGVLQGKRQWDLV

Source Source

Source organism organism	Streptomyces clavuligerus
NCBI taxonomy ID ncbi_taxonomy_id	1901
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	393

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1s0wa_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.3 — beta-lactamase/transpeptidase-like
Superfamily Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
Family Family family	e.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

Domain ID domain_id	d1s0wb_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.3 — beta-lactamase/transpeptidase-like
Superfamily Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
Family Family family	e.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

Domain ID domain_id	d1s0wc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.98 — BLIP-like
Superfamily Superfamily superfamily	d.98.1 — beta-lactamase-inhibitor protein, BLIP
Family Family family	d.98.1.1 — beta-lactamase-inhibitor protein, BLIP

Domain ID domain_id	d1s0wd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.98 — BLIP-like
Superfamily Superfamily superfamily	d.98.1 — beta-lactamase-inhibitor protein, BLIP
Family Family family	d.98.1.1 — beta-lactamase-inhibitor protein, BLIP

CATH v4.4 (6 domains)

Domain ID domain_id	1s0wA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	710 — Beta-lactamase
Homologous superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

Domain ID domain_id	1s0wB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	710 — Beta-lactamase
Homologous superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

Domain ID domain_id	1s0wC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1450 — Beta-lactamase Inhibitory Protein; Chain:B, domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1s0wC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1450 — Beta-lactamase Inhibitory Protein; Chain:B, domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1s0wD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1450 — Beta-lactamase Inhibitory Protein; Chain:B, domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1s0wD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1450 — Beta-lactamase Inhibitory Protein; Chain:B, domain 1
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	45.785 Å
Unit-cell length b length_b	125.507 Å
Unit-cell length c length_c	158.763 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	0.2610
R_work r_work	0.2120
R_free r_free	—
