SAXSdb — 3gmu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-lactamase inhibitory protein

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	AMMONIUM ION × 1 SULFATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BLIP_STRCL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–165； UniProt 37–201

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3gmu
Deposition date deposition_date	2009-03-15
Structure title title	Crystal Structure of Beta-Lactamse Inhibitory Protein (BLIP) in Apo Form
Keywords keywords	2-layer alpha/beta sandwich, Disulfide bond, Secreted, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3gmu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3gmu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

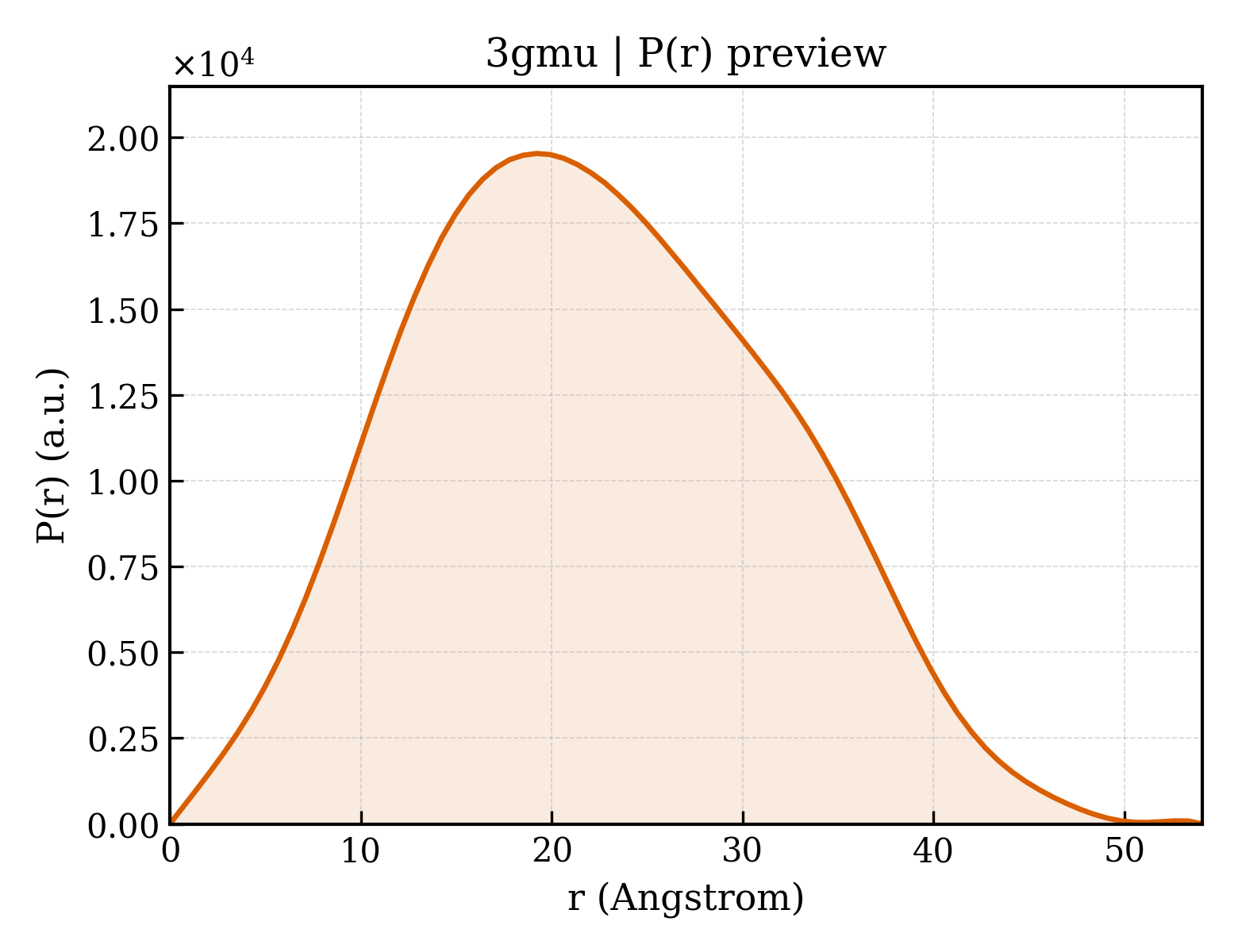

3gmu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.17 Å
Rg (electron density)	16.22 Å
Total Rg	17.25 Å
Atom count	1241
Residues	165
Excluded volume	21813 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3gmu__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Beta-lactamase inhibitory protein
Molecular weight formula_weight	17556.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	1361

AGVMTGAKFTQIQFGMTRQQVLDIAGAENCETGGSFGDSIHCRGHAAGDYYAYATFGFTSAAADAKVDSKSQEKLLAPSAPTLTLAKFNQVTVGMTRAQVLATVGQGSCTTWSEYYPAYPSTAGVTLSLSCFDVDGYSSTGFYRGSAHLWFTDGVLQGKRQWDLV

Entity 2 Entity 2 non-polymer

Description description	AMMONIUM ION
Molecular weight formula_weight	18.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	114

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3gmub_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.98 — BLIP-like
Superfamily Superfamily superfamily	d.98.1 — beta-lactamase-inhibitor protein, BLIP
Family Family family	d.98.1.1 — beta-lactamase-inhibitor protein, BLIP

CATH v4.4 (2 domains)

Domain ID domain_id	3gmuB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1450 — Beta-lactamase Inhibitory Protein; Chain:B, domain 1
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	3gmuB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1450 — Beta-lactamase Inhibitory Protein; Chain:B, domain 1
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	129.650 Å
Unit-cell length b length_b	26.190 Å
Unit-cell length c length_c	48.070 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	113.82 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.980 Å
Low-resolution limit resolution_low	59.300 Å
R factor r_factor	0.1670
R_work r_work	0.1640
R_free r_free	0.2290
