SAXSdb — 1s1j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cell division protein zipA

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	(12bS)-1,2,3,4,12,12b-hexahydroindolo[2,3-a]quinolizin-7(6H)-one × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ZIPA_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–144； UniProt 185–328 Author chain B； PDBConstruct 1–144； UniProt 185–328

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1s1j
Deposition date deposition_date	2004-01-06
Structure title title	Crystal Structure of ZipA in complex with indoloquinolizin inhibitor 1
Keywords keywords	CELL CYCLE; CELL CYCLE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1s1j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1s1j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

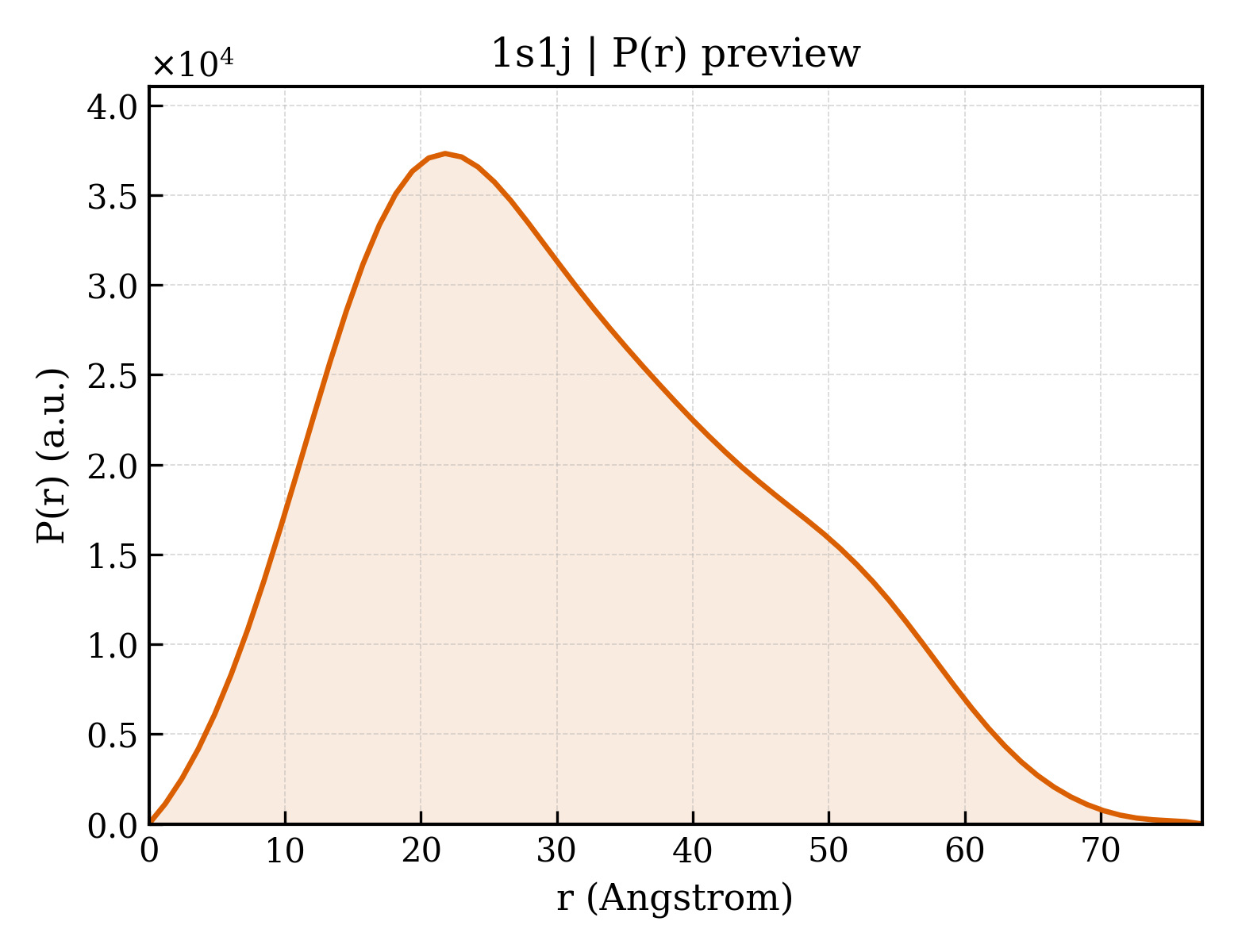

1s1j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.64 Å
Rg (electron density)	22.85 Å
Total Rg	23.48 Å
Atom count	2158
Residues	274
Excluded volume	38436 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1s1j__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Cell division protein zipA
Molecular weight formula_weight	16134.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2384

MDKPKRKEAVIIMNVAAHHGSELNGELLLNSIQQAGFIFGDMNIYHRHLSPDGSGPALFSLANMVKPGTFDPEMKDFTTPGVTIFMQVPSYGDELQLFKLMLQSAQHIADEVGGVVLDDQRRMMTPQKLREYQDIIREVKDANA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	(12bS)-1,2,3,4,12,12b-hexahydroindolo[2,3-a]quinolizin-7(6H)-one
Molecular weight formula_weight	240.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	226

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1s1ja_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.129 — TBP-like
Superfamily Superfamily superfamily	d.129.4 — Cell-division protein ZipA, C-terminal domain
Family Family family	d.129.4.1 — Cell-division protein ZipA, C-terminal domain

Domain ID domain_id	d1s1jb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.129 — TBP-like
Superfamily Superfamily superfamily	d.129.4 — Cell-division protein ZipA, C-terminal domain
Family Family family	d.129.4.1 — Cell-division protein ZipA, C-terminal domain

CATH v4.4 (2 domains)

Domain ID domain_id	1s1jA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1400 — Cell Division Protein Zipa; Chain: A,
Homologous superfamily homologous superfamily	10 — ZipA, C-terminal FtsZ-binding domain

Domain ID domain_id	1s1jB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1400 — Cell Division Protein Zipa; Chain: A,
Homologous superfamily homologous superfamily	10 — ZipA, C-terminal FtsZ-binding domain

▶

Unit-cell length a length_a	52.789 Å
Unit-cell length b length_b	39.461 Å
Unit-cell length c length_c	70.513 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	105.13 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.180 Å
Low-resolution limit resolution_low	19.930 Å
R factor r_factor	0.1920
R_work r_work	0.1920
R_free r_free	0.2360
