SAXSdb — 1s67

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein yddU

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PROTOPORPHYRIN IX CONTAINING FE × 2 OXYGEN MOLECULE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DOS_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain L； PDBConstruct 1–119； UniProt 8–126 Author chain U； PDBConstruct 1–119； UniProt 8–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1s67
Deposition date deposition_date	2004-01-22
Structure title title	Crystal structure of heme domain of direct oxygen sensor from E. coli
Keywords keywords	OXYGEN STORAGE/TRANSPORT, HEME, E.COLI, OXYGEN STORAGE-TRANSPORT complex; OXYGEN STORAGE/TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1s67__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1s67__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

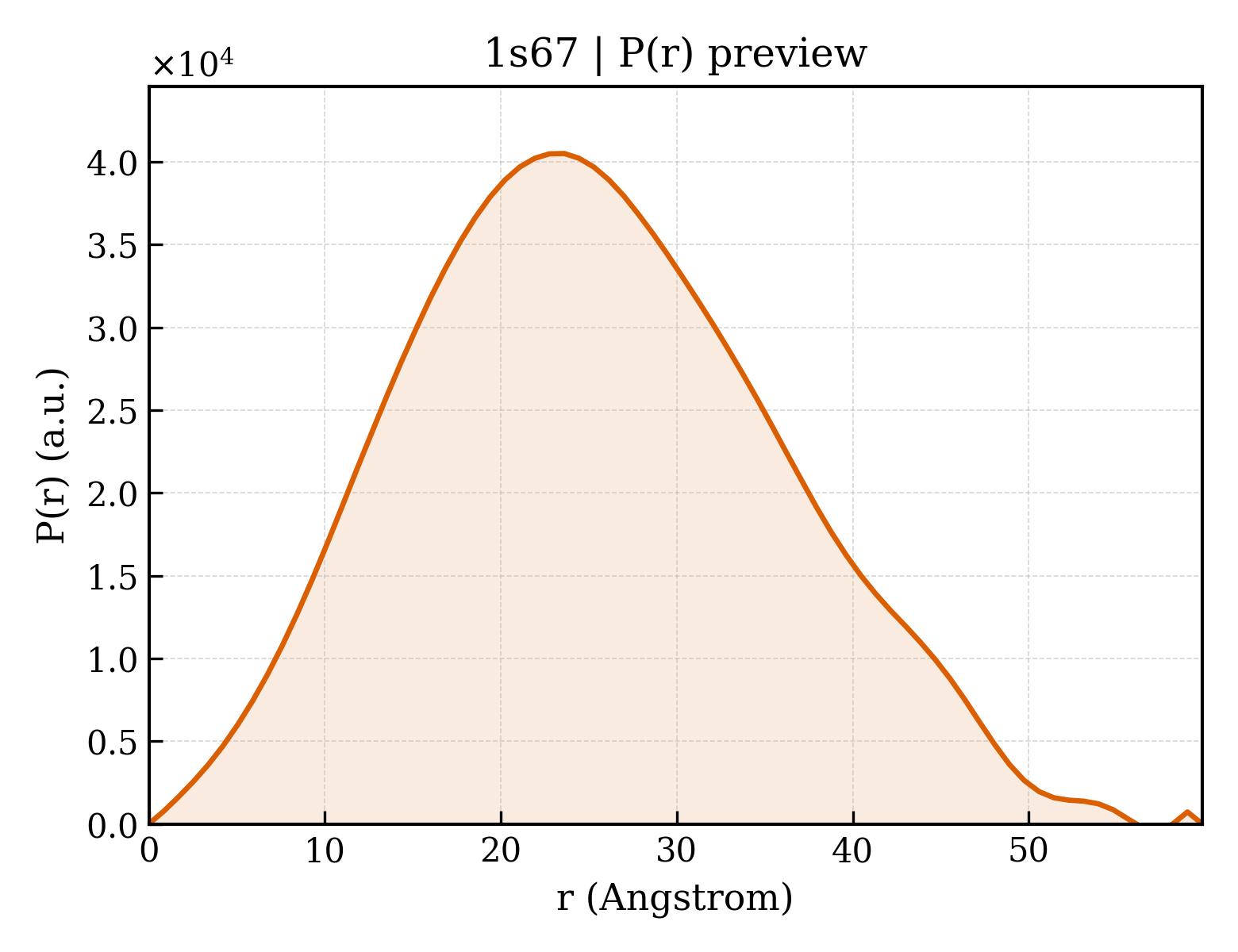

1s67__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.38 Å
Rg (electron density)	18.09 Å
Total Rg	18.95 Å
Atom count	1968
Residues	234
Excluded volume	35052 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1s67__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Hypothetical protein yddU
Molecular weight formula_weight	13574.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,U
Atom count atom_count	2174

NAADGIFFPALEQNMMGAVLINENDEVMFFNPAAEKLWGYKREEVIGNNIDMLIPRDLRPAHPEYIRHNREGGKARVEGMSRELQLEKKDGSKIWTRFALSKVSAEGKVYYLALVRDAS

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	OXYGEN MOLECULE
Molecular weight formula_weight	32.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	206

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1s67l_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.110 — Profilin-like
Superfamily Superfamily superfamily	d.110.3 — PYP-like sensor domain (PAS domain)
Family Family family	d.110.3.2 — Heme-binding PAS domain

Domain ID domain_id	d1s67u_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.110 — Profilin-like
Superfamily Superfamily superfamily	d.110.3 — PYP-like sensor domain (PAS domain)
Family Family family	d.110.3.2 — Heme-binding PAS domain

CATH v4.4 (2 domains)

Domain ID domain_id	1s67L00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

Domain ID domain_id	1s67U00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	20 — PAS domain

▶

Unit-cell length a length_a	47.575 Å
Unit-cell length b length_b	67.690 Å
Unit-cell length c length_c	82.352 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2230
R_work r_work	0.1970
R_free r_free	0.2140
