SAXSdb — 9clo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Oxygen sensor protein DosP

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PROTOPORPHYRIN IX CONTAINING FE × 2 ;9,9'-[(2R,3R,3aS,5S,7aR,9R,10R,10aS,12S,14aR)-3,5,10,12-tetrahydroxy-5,12-dioxidooctahydro-2H,7H-difuro[3,2-d:3',2'-j][1,3,7,9,2,8]tetraoxadiphosphacyclododecine-2,9-diyl]bis(2-amino-1,9-dihydro-6H-purin-6-one) ; × 2 MAGNESIUM ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DOSP_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–787； UniProt 12–798 Author chain B； PDBConstruct 1–787； UniProt 12–798

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9clo
Deposition date deposition_date	2024-07-11
Structure title title	DosP R97A with c-di-GMP
Keywords keywords	Heme, DosP, Phosphodiesterase, c-di-GMP, OXYGEN BINDING; OXYGEN BINDING
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9clo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9clo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

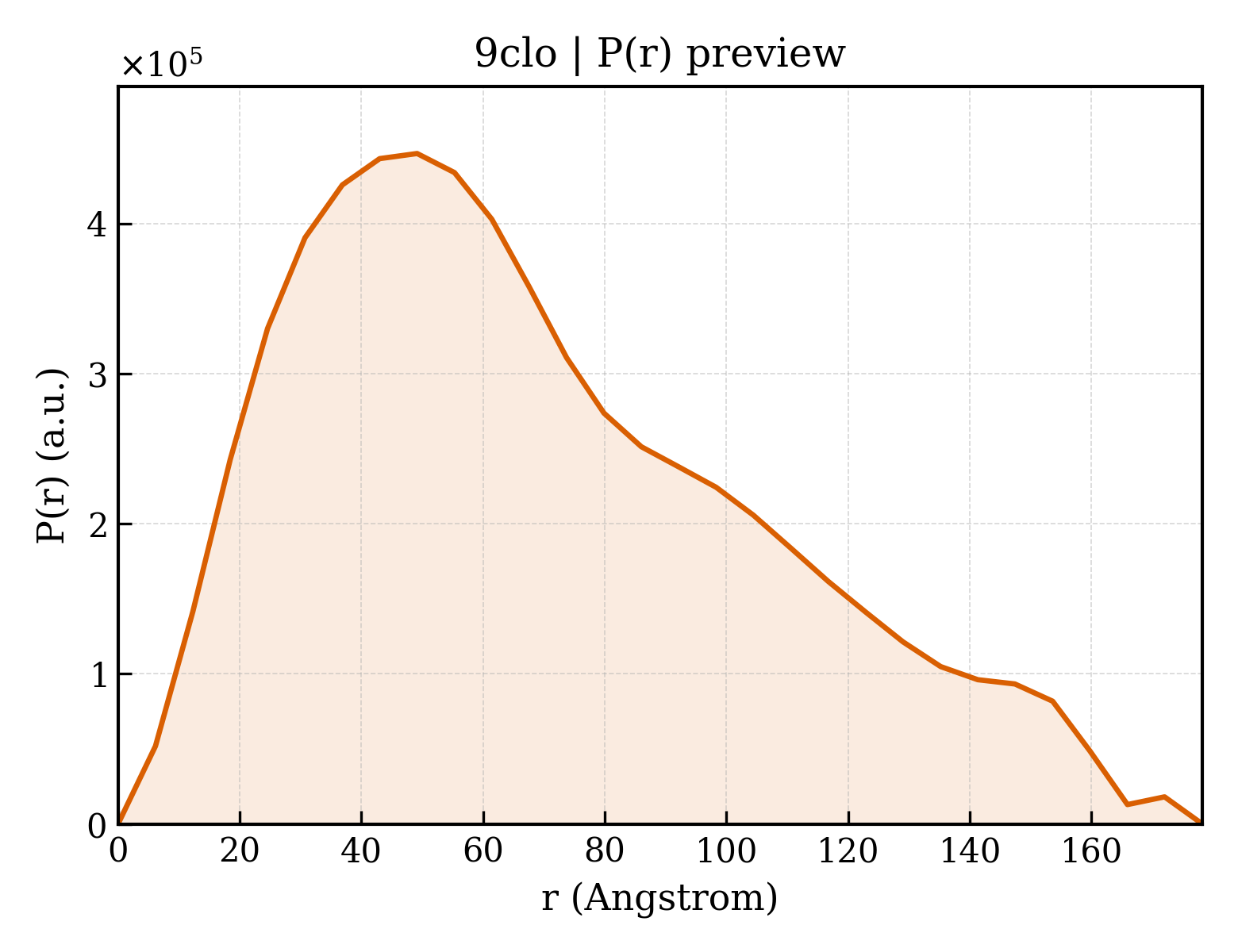

9clo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	54.42 Å
Rg (electron density)	55.64 Å
Total Rg	55.32 Å
Atom count	12680
Residues	1574
Excluded volume	225440 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9clo__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Oxygen sensor protein DosP
Molecular weight formula_weight	89003.7 kDa
EC 编号 ec_number	3.1.4.52
Mutation mutation	R97A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	12680

GIFFPALEQNMMGAVLINENDEVMFFNPAAEKLWGYKREEVIGNNIDMLIPRDLRPAHPEYIRHNREGGKARVEGMSAELQLEKKDGSKIWTRFALSKVSAEGKVYYLALVRDASVEMAQKEQTRQLIIAVDHLDRPVIVLDPERHIVQCNRAFTEMFGYCISEASGMQPDTLLNTPEFPADNRIRLQQLLWKTARDQDEFLLLTRTGEKIWIKASISPVYDVLAHLQNLVMTFSDITEERQIRQLEGNILAAMCSSPPFHEMGEIICRNIESVLNESHVSLFALRNGMPIHWASSSHGAEIQNAQSWSATIRQRDGAPAGILQIKTSSGAETSAFIERVADISQHMAALALEQEKSRQHIEQLIQFDPMTGLPNRNNLHNYLDDLVDKAVSPVVYLIGVDHIQDVIDSLGYAWADQALLEVVNRFREKLKPDQYLCRIEGTQFVLVSLENDVSNITQIADELRNVVSKPIMIDDKPFPLTLSIGISYDLGKNRDYLLSTAHNAMDYIRKNGGNGWQFFSPAMNEMVKERLVLGAALKEAISNNQLKLVYQPQIFAETGELYGIEALARWHDPLHGHVPPSRFIPLAEEIGEIENIGRWVIAEACRQLAEWRSQNIHIPALSVNLSALHFRSNQLPNQVSDAMHAWGIDGHQLTVEITESMMMEHDTEIFKRIQILRDMGVGLSVDDFGTGFSGLSRLVSLPVTEIKIDKSFVDRCLTEKRILALLEAITSIGQSLNLTVVAEGVETKEQFEMLRKIHCRVIQGYFFSRPLPAEEIPGWMSSVLPLK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	;9,9'-[(2R,3R,3aS,5S,7aR,9R,10R,10aS,12S,14aR)-3,5,10,12-tetrahydroxy-5,12-dioxidooctahydro-2H,7H-difuro[3,2-d:3',2'-j][1,3,7,9,2,8]tetraoxadiphosphacyclododecine-2,9-diyl]bis(2-amino-1,9-dihydro-6H-purin-6-one) ;
Molecular weight formula_weight	690.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.10 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	186761
