SAXSdb — 1sid

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

POLYOMAVIRUS COAT PROTEIN VP1

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Homooligomer Protein × 360 其他Polymer 360 PDB declaration: 360-MERIC（360） Consistent with protein copy count	Chain A； UniProt 1–383 Chain B； UniProt 1–383 Chain C； UniProt 1–383 Chain D； UniProt 1–383 Chain E； UniProt 1–383 Chain F； UniProt 1–383	Not recorded	N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-beta-D-glucopyranose × 360	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.65 Å R-free 0.253
2	Other combination Homooligomer Protein × 6 其他Polymer 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 1–383 Chain B； UniProt 1–383 Chain C； UniProt 1–383 Chain D； UniProt 1–383 Chain E； UniProt 1–383 Chain F； UniProt 1–383	Not recorded	N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-beta-D-glucopyranose × 6	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.65 Å R-free 0.253
3	Other combination Homooligomer Protein × 30 其他Polymer 30 PDB declaration: 30-meric（30） Consistent with protein copy count	Chain A； UniProt 1–383 Chain B； UniProt 1–383 Chain C； UniProt 1–383 Chain D； UniProt 1–383 Chain E； UniProt 1–383 Chain F； UniProt 1–383	Not recorded	N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-beta-D-glucopyranose × 30	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.65 Å R-free 0.253
4	Other combination Homooligomer Protein × 36 其他Polymer 36 PDB declaration: 36-meric（36） Consistent with protein copy count	Chain A； UniProt 1–383 Chain B； UniProt 1–383 Chain C； UniProt 1–383 Chain D； UniProt 1–383 Chain E； UniProt 1–383 Chain F； UniProt 1–383	Not recorded	N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-beta-D-glucopyranose × 36	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.65 Å R-free 0.253
5	Other combination Homooligomer Protein × 6 其他Polymer 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 1–383 Chain B； UniProt 1–383 Chain C； UniProt 1–383 Chain D； UniProt 1–383 Chain E； UniProt 1–383 Chain F； UniProt 1–383	Not recorded	N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-beta-D-glucopyranose × 6	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.65 Å R-free 0.253
6	Other combination Homooligomer Protein × 30 其他Polymer 30 PDB declaration: 30-meric（30） Consistent with protein copy count	Chain A； UniProt 1–383 Chain B； UniProt 1–383 Chain C； UniProt 1–383 Chain D； UniProt 1–383 Chain E； UniProt 1–383 Chain F； UniProt 1–383	Not recorded	N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-beta-D-glucopyranose × 30	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 3.65 Å R-free 0.253

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1SID	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CN3 INTERACTION OF POLYOMAVIRUS INTERNAL PROTEIN VP2 WITH MAJOR CAPSID PROTEIN VP1 AND IMPLICATIONS FOR PARTICIPATION OF VP2 IN VIRAL ENTRY Deposited 1999-05-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 34–316（283 aa） Fragment：RESIDUES 35-317 Chain B 34–316（283 aa） Fragment：RESIDUES 35-317 Chain C 34–316（283 aa） Fragment：RESIDUES 35-317 Chain D 34–316（283 aa） Fragment：RESIDUES 35-317 Chain E 34–316（283 aa） Fragment：RESIDUES 35-317	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4；pH 4.0	Resolution 2.20 Å R-free 0.260
1CN3 INTERACTION OF POLYOMAVIRUS INTERNAL PROTEIN VP2 WITH MAJOR CAPSID PROTEIN VP1 AND IMPLICATIONS FOR PARTICIPATION OF VP2 IN VIRAL ENTRY Deposited 1999-05-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 34–316（283 aa） Fragment：RESIDUES 35-317 Chain B 34–316（283 aa） Fragment：RESIDUES 35-317 Chain C 34–316（283 aa） Fragment：RESIDUES 35-317 Chain D 34–316（283 aa） Fragment：RESIDUES 35-317 Chain E 34–316（283 aa） Fragment：RESIDUES 35-317	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 4；pH 4.0	Resolution 2.20 Å R-free 0.260
1SIE MURINE POLYOMAVIRUS COMPLEXED WITH A DISIALYLATED OLIGOSACCHARIDE Deposited 1995-12-12	Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 360 PDB declaration: 360-MERIC	Chain A 1–383（383 aa） Chain B 1–383（383 aa） Chain C 1–383（383 aa） Chain D 1–383（383 aa） Chain E 1–383（383 aa） Chain F 1–383（383 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.65 Å R-free 0.264
1SIE MURINE POLYOMAVIRUS COMPLEXED WITH A DISIALYLATED OLIGOSACCHARIDE Deposited 1995-12-12	Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–383（383 aa） Chain B 1–383（383 aa） Chain C 1–383（383 aa） Chain D 1–383（383 aa） Chain E 1–383（383 aa） Chain F 1–383（383 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.65 Å R-free 0.264
1SIE MURINE POLYOMAVIRUS COMPLEXED WITH A DISIALYLATED OLIGOSACCHARIDE Deposited 1995-12-12	Different structure-quality metrics	Assembly 3 Other combination Homooligomer；Protein × 30 PDB declaration: 30-meric	Chain A 1–383（383 aa） Chain B 1–383（383 aa） Chain C 1–383（383 aa） Chain D 1–383（383 aa） Chain E 1–383（383 aa） Chain F 1–383（383 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.65 Å R-free 0.264
1SIE MURINE POLYOMAVIRUS COMPLEXED WITH A DISIALYLATED OLIGOSACCHARIDE Deposited 1995-12-12	Different structure-quality metrics	Assembly 4 Other combination Homooligomer；Protein × 36 PDB declaration: 36-meric	Chain A 1–383（383 aa） Chain B 1–383（383 aa） Chain C 1–383（383 aa） Chain D 1–383（383 aa） Chain E 1–383（383 aa） Chain F 1–383（383 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.65 Å R-free 0.264
1SIE MURINE POLYOMAVIRUS COMPLEXED WITH A DISIALYLATED OLIGOSACCHARIDE Deposited 1995-12-12	Different structure-quality metrics	Assembly 5 Other combination Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 1–383（383 aa） Chain B 1–383（383 aa） Chain C 1–383（383 aa） Chain D 1–383（383 aa） Chain E 1–383（383 aa） Chain F 1–383（383 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.65 Å R-free 0.264
1SIE MURINE POLYOMAVIRUS COMPLEXED WITH A DISIALYLATED OLIGOSACCHARIDE Deposited 1995-12-12	Different structure-quality metrics	Assembly 6 Other combination Homooligomer；Protein × 30 PDB declaration: 30-meric	Chain A 1–383（383 aa） Chain B 1–383（383 aa） Chain C 1–383（383 aa） Chain D 1–383（383 aa） Chain E 1–383（383 aa） Chain F 1–383（383 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 3.65 Å R-free 0.264
1VPN UNASSEMBLED POLYOMAVIRUS VP1 PENTAMER Deposited 1997-03-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 32–320（289 aa） Chain B 32–320（289 aa） Chain C 32–320（289 aa） Chain D 32–320（289 aa） Chain E 32–320（289 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；DROP: 1.0 M AMMONIUM PHOSPHATE PH 8.0 2.5 & ETHANOL 8-10 MG/ML PROTEIN RESERVOIR: 2.0 M AMMONIUM PHOSPHATE PH 8.0 5 % ETHANOL	Resolution 2.00 Å R-free 0.199
1VPN UNASSEMBLED POLYOMAVIRUS VP1 PENTAMER Deposited 1997-03-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 32–320（289 aa） Chain B 32–320（289 aa） Chain C 32–320（289 aa） Chain D 32–320（289 aa） Chain E 32–320（289 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；DROP: 1.0 M AMMONIUM PHOSPHATE PH 8.0 2.5 & ETHANOL 8-10 MG/ML PROTEIN RESERVOIR: 2.0 M AMMONIUM PHOSPHATE PH 8.0 5 % ETHANOL	Resolution 2.00 Å R-free 0.199
1VPS POLYOMAVIRUS VP1 PENTAMER COMPLEXED WITH A DISIALYLATED HEXASACCHARIDE Deposited 1997-03-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 32–320（289 aa） Chain B 32–320（289 aa） Chain C 32–320（289 aa） Chain D 32–320（289 aa） Chain E 32–320（289 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；DROP: 1.0 M AMMONIUM PHOSPHATE PH 8.0 2.5 & ETHANOL 8-10 MG/ML PROTEIN RESERVOIR: 2.0 M AMMONIUM PHOSPHATE PH 8.0 5 % ETHANOL	Resolution 1.90 Å R-free 0.205
1VPS POLYOMAVIRUS VP1 PENTAMER COMPLEXED WITH A DISIALYLATED HEXASACCHARIDE Deposited 1997-03-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Homooligomer；Protein × 10 PDB declaration: decameric	Chain A 32–320（289 aa） Chain B 32–320（289 aa） Chain C 32–320（289 aa） Chain D 32–320（289 aa） Chain E 32–320（289 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；DROP: 1.0 M AMMONIUM PHOSPHATE PH 8.0 2.5 & ETHANOL 8-10 MG/ML PROTEIN RESERVOIR: 2.0 M AMMONIUM PHOSPHATE PH 8.0 5 % ETHANOL	Resolution 1.90 Å R-free 0.205
5CPZ Crystal structure of murine polyomavirus RA strain VP1 in complex with the GT1a glycan Deposited 2015-07-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 34–317（284 aa） Fragment：UNP residues 34-317 Chain B 34–317（284 aa） Fragment：UNP residues 34-317 Chain C 34–317（284 aa） Fragment：UNP residues 34-317 Chain D 34–317（284 aa） Fragment：UNP residues 34-317 Chain E 34–317（284 aa） Fragment：UNP residues 34-317	Not recorded	SO4 SULFATE ION × 14 GOL GLYCEROL × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；1.7 M ammonium sulfate 4.9% (v/v) isopropanol	Resolution 1.71 Å R-free 0.172
5CQ0 Crystal structure of murine polyomavirus RA strain VP1 in complex with the GD1a glycan Deposited 2015-07-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 5 PDB declaration: pentameric	Chain A 34–317（284 aa） Chain B 34–317（284 aa） Chain C 34–317（284 aa） Chain D 34–317（284 aa） Chain E 34–317（284 aa）	Not recorded	SO4 SULFATE ION × 14 GOL GLYCEROL × 21	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；1.5 M ammonium sulfate, 6% (v/v) isopropanol	Resolution 1.90 Å R-free 0.178

6 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	COA1_POVMP
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–383； UniProt 1–383 Author chain B； PDBConstruct 1–383； UniProt 1–383 Author chain C； PDBConstruct 1–383； UniProt 1–383 Author chain D； PDBConstruct 1–383； UniProt 1–383 Author chain E； PDBConstruct 1–383； UniProt 1–383 Author chain F； PDBConstruct 1–383； UniProt 1–383

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sid
Deposition date deposition_date	1995-12-12
Structure title title	MURINE POLYOMAVIRUS COMPLEXED WITH 3'SIALYL LACTOSE
Keywords keywords	COAT PROTEIN, Icosahedral virus, Virus; VIRUS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	47.45 Å
Radius of gyration Rg (electron density) rg_electron	47.33 Å
Forward intensity I(0) i0	865567000.00
Molecular weight molecular_weight	242070.0 kDa
Excluded volume excluded_volume	302660 Å³
Envelope volume envelope_volume	475820 Å³
Hydration-shell volume shell_volume	82411 Å³
Envelope diameter envelope_diameter	198.7 Å
Shell Rg shell_rg	51.34 Å
Envelope Rg envelope_rg	49.34 Å
Shape Rg shape_rg	47.31 Å
Total Rg total_rg	47.58 Å
Total atoms total_atoms	17003
Residues n_residues	2151
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	186.7 Å
Rg (real space) rg_real	47.76 Å
Rg uncertainty (real space) rg_real_error	2.62 Å
I(0) (real space) i0_real	8.6560e+08
I(0) uncertainty (real space) i0_real_error	1.9100e+07
Rg (reciprocal space) rg_reciprocal	47.45 Å
I(0) (reciprocal space) i0_reciprocal	865200000.0000
Solution quality estimate total_estimate	0.7909
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	50.9 Å
Skewness Skewness skewness	0.588
Kurtosis Kurtosis kurtosis	0.213
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	60470000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.454; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.941; Smooth: 0.974

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1sida_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.6 — Group I dsDNA viruses
Family Family family	b.121.6.1 — Papovaviridae-like VP

Domain ID domain_id	d1sidb_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.6 — Group I dsDNA viruses
Family Family family	b.121.6.1 — Papovaviridae-like VP

Domain ID domain_id	d1sidc_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.6 — Group I dsDNA viruses
Family Family family	b.121.6.1 — Papovaviridae-like VP

Domain ID domain_id	d1sidd_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.6 — Group I dsDNA viruses
Family Family family	b.121.6.1 — Papovaviridae-like VP

Domain ID domain_id	d1side_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.6 — Group I dsDNA viruses
Family Family family	b.121.6.1 — Papovaviridae-like VP

Domain ID domain_id	d1sidf_
Class class	b — All beta proteins
Fold Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
Superfamily Superfamily superfamily	b.121.6 — Group I dsDNA viruses
Family Family family	b.121.6.1 — Papovaviridae-like VP

CATH v4.4 (6 domains)

Domain ID domain_id	1sidA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	175 — Polyomavirus Vp1; Chain A
Homologous superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

Domain ID domain_id	1sidB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	175 — Polyomavirus Vp1; Chain A
Homologous superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

Domain ID domain_id	1sidC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	175 — Polyomavirus Vp1; Chain A
Homologous superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

Domain ID domain_id	1sidD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	175 — Polyomavirus Vp1; Chain A
Homologous superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

Domain ID domain_id	1sidE00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	175 — Polyomavirus Vp1; Chain A
Homologous superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

Domain ID domain_id	1sidF00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	175 — Polyomavirus Vp1; Chain A
Homologous superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

▶

8. Citations (4)

▶

Unit-cell length a length_a	570.000 Å
Unit-cell length b length_b	570.000 Å
Unit-cell length c length_c	570.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	720

Space group space_group	I 2 3
Space-group number int_tables_number	197
Crystal system crystal_system	—

Resolution resolution	3.650 Å
Low-resolution limit resolution_low	12.000 Å
R factor r_factor	0.2360
R_work r_work	0.2360
R_free r_free	0.2530

Description description	POLYOMAVIRUS COAT PROTEIN VP1
Molecular weight formula_weight	42405.1 kDa
Source method src_method	nat
Copy count entity_count	6

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	17003

MURINE POLYOMAVIRUS COMPLEXED WITH 3'SIALYL LACTOSE

1. Protein Identity and Related Structures Protein Identity & Related Structures

POLYOMAVIRUS COAT PROTEIN VP1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

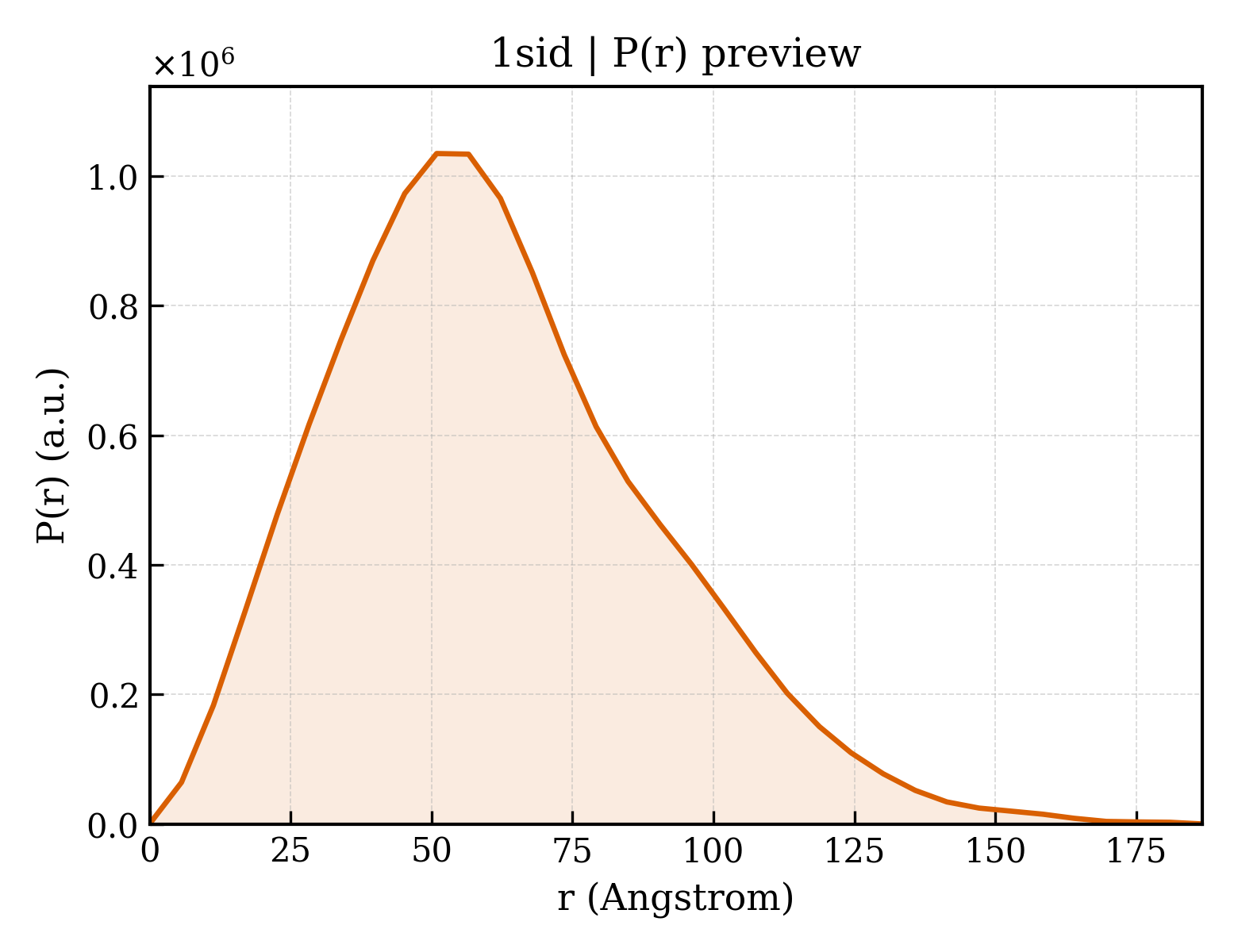

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 branched

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

CATH v4.4 (6 domains)

8. Citations (4)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/si/1sid/1sid.fit
pddf	/app/data/pr_computation/si/1sid/1sid.pr.out
profile	/app/data/saxs_computation/si/1sid/1sid.dat
