1siw

Crystal structure of the apomolybdo-NarGHI

Method: X-RAY DIFFRACTION D_max: 140.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1siw
沉积日期 deposition_date	2004-03-01
结构标题 title	Crystal structure of the apomolybdo-NarGHI
关键词 keywords	apomolybdo-NarGHI; electron-transfer; membrane protein, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.96 Å
回转半径 Rg (电子) rg_electron	39.18 Å
零角强度 I(0) i0	777409000.00
分子量 molecular_weight	226040.0 kDa
排除体积 excluded_volume	281120 Å³
包络体积 envelope_volume	333480 Å³
水化壳体积 shell_volume	69158 Å³
包络直径 envelope_diameter	148.8 Å
壳层 Rg shell_rg	45.87 Å
包络 Rg envelope_rg	40.17 Å
形状 Rg shape_rg	39.21 Å
总 Rg total_rg	39.41 Å
总原子数 total_atoms	15832
残基数 n_residues	1966
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

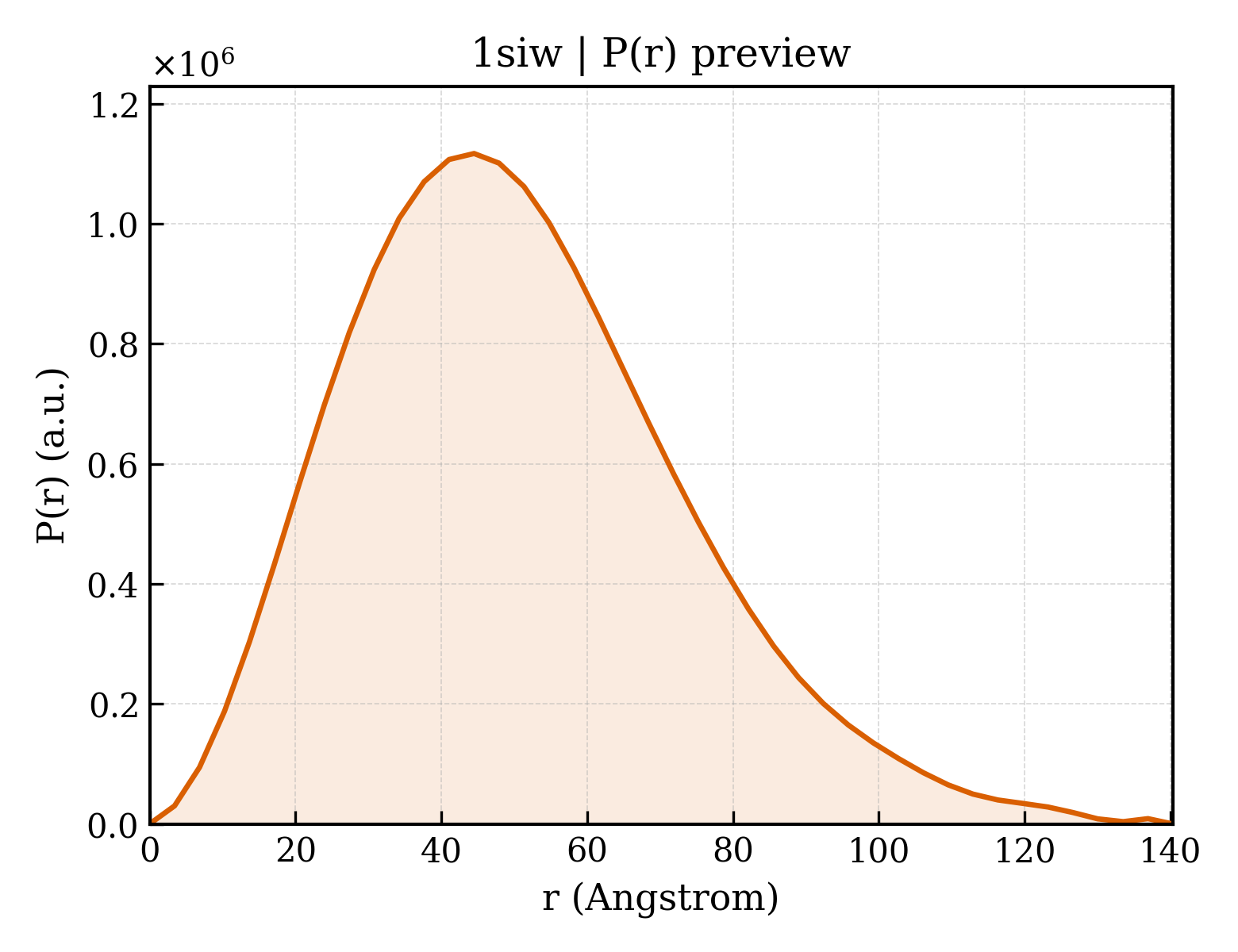

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	140.3 Å
Rg (实空间) rg_real	39.12 Å
Rg 误差 (实空间) rg_real_error	1.31 Å
I(0) (实空间) i0_real	7.7740e+08
I(0) 误差 (实空间) i0_real_error	1.3640e+07
Rg (倒空间) rg_reciprocal	39.02 Å
I(0) (倒空间) i0_reciprocal	777300000.0000
解质量估计 total_estimate	0.8346
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	44.5 Å
偏度 Skewness skewness	0.560
峰度 Kurtosis kurtosis	0.175
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	183400000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.655; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.897

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Respiratory nitrate reductase 1 alpha chain
分子量 formula_weight	140526.8 kDa
EC 编号 ec_number	1.7.99.4
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	16430

SKFLDRFRYFKQKGETFADGHGQLLNTNRDWEDGYRQRWQHDKIVRSTHGVNCTGSCSWKIYVKNGLVTWETQQTDYPRTRPDLPNHEPRGCPRGASYSWYLYSANRLKYPMMRKRLMKMWREAKALHSDPVEAWASIIEDADKAKSFKQARGRGGFVRSSWQEVNELIAASNVYTIKNYGPDRVAGFSPIPAMSMVSYASGARYLSLIGGTCLSFYDWYCDLPPASPQTWGEQTDVPESADWYNSSYIIAWGSNVPQTRTPDAHFFTEVRYKGTKTVAVTPDYAEIAKLCDLWLAPKQGTDAAMALAMGHVMLREFHLDNPSQYFTDYVRRYTDMPMLVMLEERDGYYAAGRMLRAADLVDALGQENNPEWKTVAFNTNGEMVAPNGSIGFRWGEKGKWNLEQRDGKTGEETELQLSLLGSQDEIAEVGFPYFGGDGTEHFNKVELENVLLHKLPVKRLQLADGSTALVTTVYDLTLANYGLERGLNDVNCATSYDDVKAYTPAWAEQITGVSRSQIIRIAREFADNADKTHGRSMIIVGAGLNHWYHLDMNYRGLINMLIFCGCVGQSGGGWAHYVGQEKLRPQTGWQPLAFALDWQRPARHMNSTSYFYNHSSQWRYETVTAEELLSPMADKSRYTGHLIDFNVRAERMGWLPSAPQLGTNPLTIAGEAEKAGMNPVDYTVKSLKEGSIRFAAEQPENGKNHPRNLFIWRSNLLGSSGKGHEFMLKYLLGTEHGIQGKDLGQQGGVKPEEVDWQDNGLEGKLDLVVTLDFRLSSTCLYSDIILPTATWYEKDDMNTSDMHPFIHPLSAAVDPAWEAKSDWEIYKAIAKKFSEVCVGHLGKETDIVTLPIQHDSAAELAQPLDVKDWKKGECDLIPGKTAPHIMVVERDYPATYERFTSIGPLMEKIGNGGKGIAWNTQSEMDLLRKLNYTKAEGPAKGQPMLNTAIDAAEMILTLAPETNGQVAVKAWAALSEFTGRDHTHLALNKEDEKIRFRDIQAQPRKIISSPTWSGLEDEHVSYNAGYTNVHELIPWRTLSGRQQLYQDHQWMRDFGESLLVYRPPIDTRSVKEVIGQKSNGNQEKALNFLTPHQKWGIHSTYSDNLLMLTLGRGGPVVWLSEADAKDLGIADNDWIEVFNSNGALTARAVVSQRVPAGMTMMYHAQERIVNLPGSEITQQRGGIHNSVTRITPKPTHMIGGYAHLAYGFNYYGTVGSNRDEFVVVRKMKNIDWLDGEGNDQVQESVK

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Respiratory nitrate reductase 1 beta chain
分子量 formula_weight	58140.3 kDa
EC 编号 ec_number	1.7.99.4
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MKIRSQVGMVLNLDKCIGCHTCSVTCKNVWTSREGVEYAWFNNVETKPGQGFPTDWENQEKYKGGWIRKINGKLQPRMGNRAMLLGKIFANPHLPGIDDYYEPFDFDYQNLHTAPEGSKSQPIARPRSLITGERMAKIEKGPNWEDDLGGEFDKLAKDKNFDNIQKAMYSQFENTFMMYLPRLCEHCLNPACVATCPSGAIYKREEDGIVLIDQDKCRGWRMCITGCPYKKIYFNWKSGKSEKCIFCYPRIEAGQPTVCSETCVGRIRYLGVLLYDADAIERAASTENEKDLYQRQLDVFLDPNDPKVIEQAIKDGIPLSVIEAAQQSPVYKMAMEWKLALPLHPEYRTLPMVWYVPPLSPIQSAADAGELGSNGILPDVESLRIPVQYLANLLTAGDTKPVLRALKRMLAMRHYKRAETVDGKVDTRALEEVGLTEAQAQEMYRYLAIANYEDRFVVPSSHRELAREAFPEKNGCGFTFGDGCHGSDTKFNLFNSRRIDAIDVTSKTEPHP

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Respiratory nitrate reductase 1 gamma chain
分子量 formula_weight	25552.4 kDa
EC 编号 ec_number	1.7.99.4
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MQFLNMFFFDIYPYIAGAVFLIGSWLRYDYGQYTWRAASSQMLDRKGMNLASNLFHIGILGIFVGHFFGMLTPHWMYEAWLPIEVKQKMAMFAGGASGVLCLIGGVLLLKRRLFSPRVRATTTGADILILSLLVIQCALGLLTIPFSAQHMDGSEMMKLVGWAQSVVTFHGGASQHLDGVAFIFRLHLVLGMTLFLLFPFSRLIHIWSVPVEYLTRKYQLVRARH

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	GUANOSINE-5'-DIPHOSPHATE
分子量 formula_weight	443.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 non-polymer

描述 description	1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE
分子量 formula_weight	705.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 non-polymer

描述 description	FE3-S4 CLUSTER
分子量 formula_weight	295.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	598

▼

6. 折叠分类 (SCOP + CATH) 15 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1siwa1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.52 — Double psi beta-barrel
超家族 Superfamily superfamily	b.52.2 — ADC-like
家族 Family family	b.52.2.2 — Formate dehydrogenase/DMSO reductase, C-terminal domain

结构域编号 domain_id	d1siwa2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.81 — Formate dehydrogenase/DMSO reductase, domains 1-3
超家族 Superfamily superfamily	c.81.1 — Formate dehydrogenase/DMSO reductase, domains 1-3
家族 Family family	c.81.1.1 — Formate dehydrogenase/DMSO reductase, domains 1-3

结构域编号 domain_id	d1siwb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.1 — 4Fe-4S ferredoxins
家族 Family family	d.58.1.5 — Ferredoxin domains from multidomain proteins

结构域编号 domain_id	d1siwc_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.21 — Heme-binding four-helical bundle
超家族 Superfamily superfamily	f.21.3 — Respiratory nitrate reductase 1 gamma chain
家族 Family family	f.21.3.1 — Respiratory nitrate reductase 1 gamma chain

CATH v4.4 (11 domains)

结构域编号 domain_id	1siwA01
类 Class class	4 — Few Secondary Structures
架构 Architecture architecture	10 — Irregular
拓扑 Topology topology	1200 — nitrate reductase tail
同源超家族 H-superfamily homologous superfamily	10 — nitrate reductase tail

结构域编号 domain_id	1siwA02
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	300 —

结构域编号 domain_id	1siwA03
类 Class class	2 — Mainly Beta
架构 Architecture architecture	20 — Single Sheet
拓扑 Topology topology	25 — N-terminal domain of TfIIb
同源超家族 H-superfamily homologous superfamily	90 — ADC-like domains

结构域编号 domain_id	1siwA05
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	740 —

结构域编号 domain_id	1siwA07
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	228 — Dimethylsulfoxide Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dimethylsulfoxide Reductase, domain 2

结构域编号 domain_id	1siwA09
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	30 — Defensin A-like
同源超家族 H-superfamily homologous superfamily	200 —

结构域编号 domain_id	1siwA10
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	1700 — AF1104-like
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1siwA13
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	40 — Barwin-like endoglucanases
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1siwB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1siwB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	3650 — nitrate reductase domain fold
同源超家族 H-superfamily homologous superfamily	10 — nitrate reductase domain like

结构域编号 domain_id	1siwC01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	950 — Fumarate Reductase Cytochrome B subunit
同源超家族 H-superfamily homologous superfamily	20 — Transmembrane di-heme cytochromes, Chain C

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	154.001 Å
晶胞边长 b length_b	241.282 Å
晶胞边长 c length_c	140.387 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	29.730 Å
R 因子 r_factor	0.2030
R_work r_work	0.2030
R_free r_free	0.2440

fit	/app/data/saxs_computation/si/1siw/1siw.fit
pddf	/app/data/pr_computation/si/1siw/1siw.pr.out
profile	/app/data/saxs_computation/si/1siw/1siw.dat
