SAXSdb — 1siz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ferredoxin

Pyrococcus furiosus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	COBALT (III) ION × 4 FE3-S4 CLUSTER × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FER_PYRFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–66； UniProt 1–66 Author chain C； PDBConstruct 1–66； UniProt 1–66

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1siz
Deposition date deposition_date	2004-03-02
Structure title title	Crystal structure of the [Fe3S4]-ferredoxin from the hyperthermophilic archaeon Pyrococcus furiosus
Keywords keywords	thermostability, iron-sulfur clusters, dimer, ELECTRON TRANSPORT; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1siz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

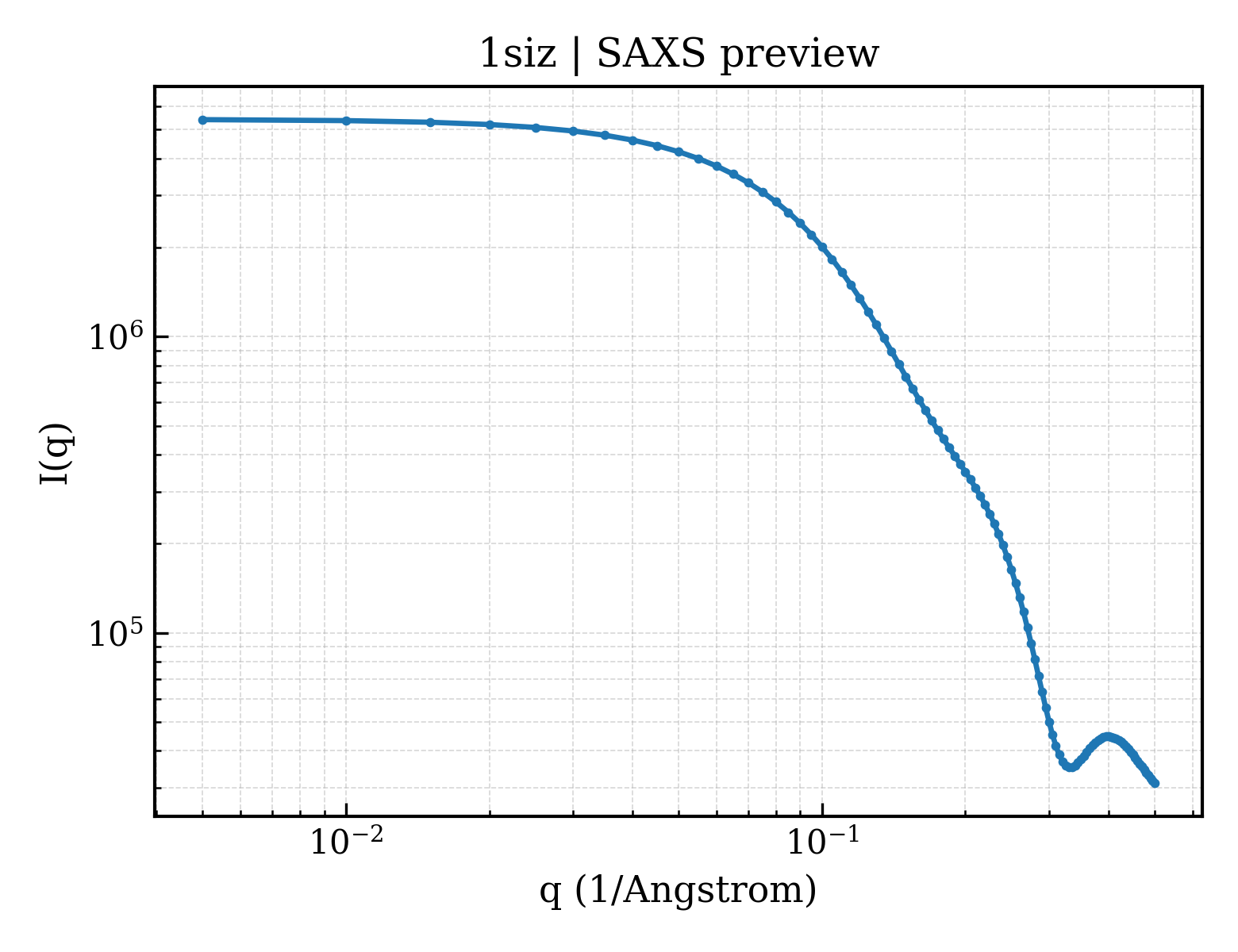

1siz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

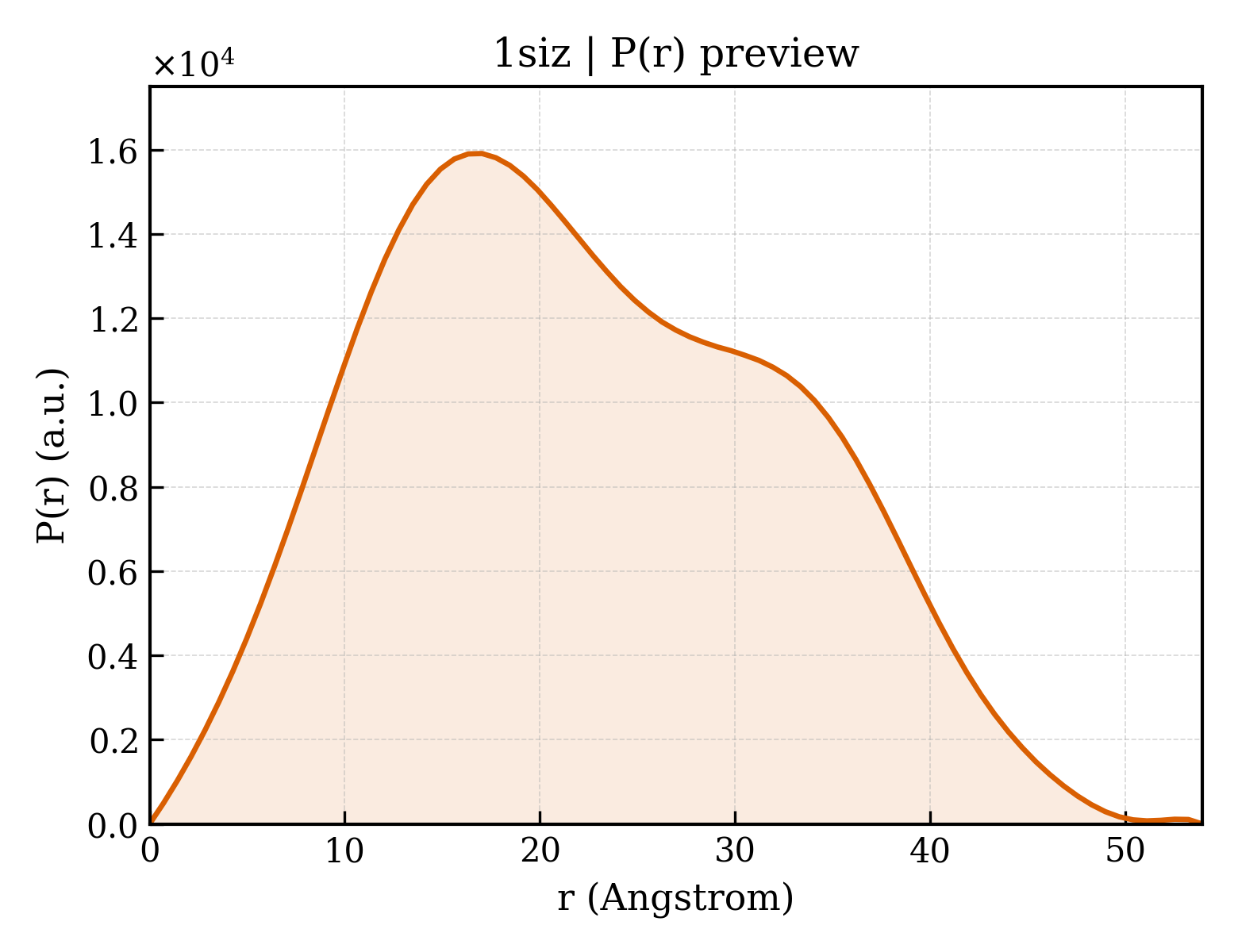

1siz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.39 Å
Rg (electron density)	16.39 Å
Total Rg	17.38 Å
Atom count	1010
Residues	132
Excluded volume	18021 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1siz__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Ferredoxin
Molecular weight formula_weight	7171.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	1056

AWKVSVDQDTCIGDAICASLCPDVFEMNDEGKAQPKVEVIEDEELYNCAKEAMEACPVSAITIEEA

Source Source

Source organism organism	Pyrococcus furiosus
NCBI taxonomy ID ncbi_taxonomy_id	2261
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	COBALT (III) ION
Molecular weight formula_weight	58.9 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	FE3-S4 CLUSTER
Molecular weight formula_weight	295.8 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	46

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1siza_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.1 — 4Fe-4S ferredoxins
Family Family family	d.58.1.4 — Single 4Fe-4S cluster ferredoxin

Domain ID domain_id	d1sizc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.1 — 4Fe-4S ferredoxins
Family Family family	d.58.1.4 — Single 4Fe-4S cluster ferredoxin

CATH v4.4 (2 domains)

Domain ID domain_id	1sizA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	20 —

Domain ID domain_id	1sizC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	20 —

▶

Unit-cell length a length_a	47.447 Å
Unit-cell length b length_b	51.637 Å
Unit-cell length c length_c	54.549 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.250 Å
Low-resolution limit resolution_low	35.000 Å
R factor r_factor	0.2413
R_work r_work	0.2388
R_free r_free	0.2888
