SAXSdb — 1sj3

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

small nuclear ribonucleoprotein A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Monomer	Protein 1 RNA 1	precursor form of the Hepatitis Delta virus ribozyme × 1 MAGNESIUM ION × 2 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SNRPA_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain P； PDBConstruct 1–100； UniProt 1–100

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sj3
Deposition date deposition_date	2004-03-02
Structure title title	Hepatitis Delta Virus Gemonic Ribozyme Precursor, with Mg2+ Bound
Keywords keywords	HDV; ribozyme; RNA; U1A; precurosr, TRANSLATION-RNA COMPLEX; TRANSLATION/RNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1sj3__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1sj3__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

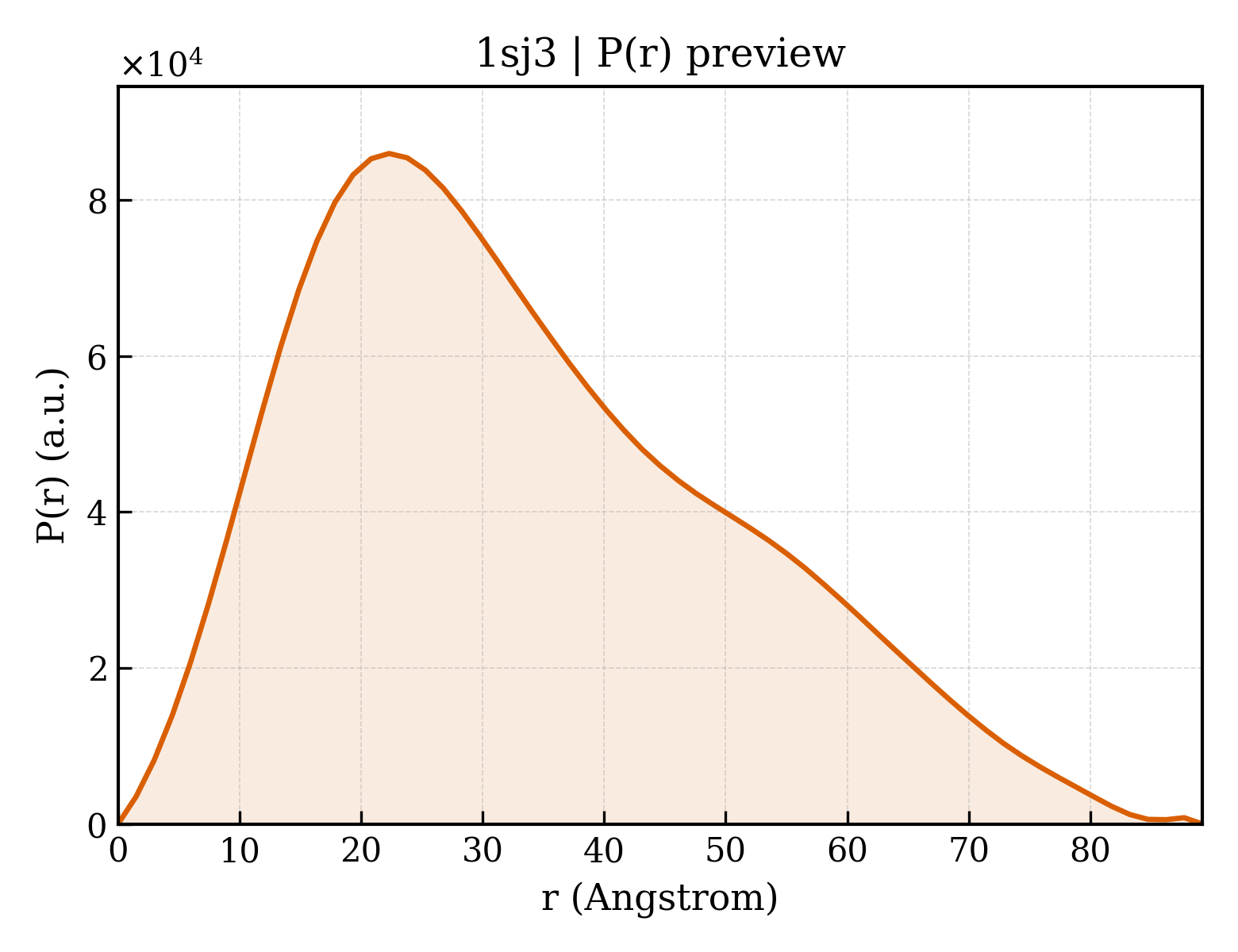

1sj3__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.25 Å
Rg (electron density)	27.12 Å
Total Rg	27.44 Å
Atom count	2316
Residues	168
Excluded volume	35772 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1sj3__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	precursor form of the Hepatitis Delta virus ribozyme
Molecular weight formula_weight	24467.5 kDa
Mutation mutation	C75U
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	R
Atom count atom_count	2353

GAUGGCCGGCAUGGUCCCAGCCUCCUCGCUGGCGCCGGCUGGGCAACACCAUUGCACUCCGGUGGUGAAUGGGACU

Source Source

Source organism organism	Hepatitis delta virus
NCBI taxonomy ID ncbi_taxonomy_id	12475
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	small nuclear ribonucleoprotein A
Molecular weight formula_weight	11498.5 kDa
Mutation mutation	Y31H, Q36R
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P

MAVPETRPNHTIYINNLNEKIKKDELKKSLHAIFSRFGQILDILVSRSLKMRGQAFVIFKEVSSATNALRSMQGFPFYDKPMRIQYAKTDSDIIAKMKGT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	37

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1sj3p_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.7 — RNA-binding domain, RBD, aka RNA recognition motif (RRM)
Family Family family	d.58.7.1 — Canonical RBD

CATH v4.4 (1 domains)

Domain ID domain_id	1sj3P00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	330 — RRM (RNA recognition motif) domain

▶

Unit-cell length a length_a	108.731 Å
Unit-cell length b length_b	108.731 Å
Unit-cell length c length_c	191.726 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	31.390 Å
R factor r_factor	0.2550
R_work r_work	0.2550
R_free r_free	0.2820
