1sxg

Structural studies on the apo transcription factor form B. megaterium

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glucose-resistance amylase regulator

Bacillus megaterium

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	2-PHENYLAMINO-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	2-PHENYLAMINO-ETHANESULFONIC ACID × 1 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCPA_BACME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–280； UniProt 53–332 Author chain B； PDBConstruct 1–280； UniProt 53–332 Author chain D； PDBConstruct 1–280； UniProt 53–332 Author chain F； PDBConstruct 1–280； UniProt 53–332 Author chain I； PDBConstruct 1–280； UniProt 53–332 Author chain P； PDBConstruct 1–280； UniProt 53–332

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1sxg
Deposition date deposition_date	2004-03-30
Structure title title	Structural studies on the apo transcription factor form B. megaterium
Keywords keywords	allosterism; phosphoprotein; transcription regulation, transcription; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1sxg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1sxg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

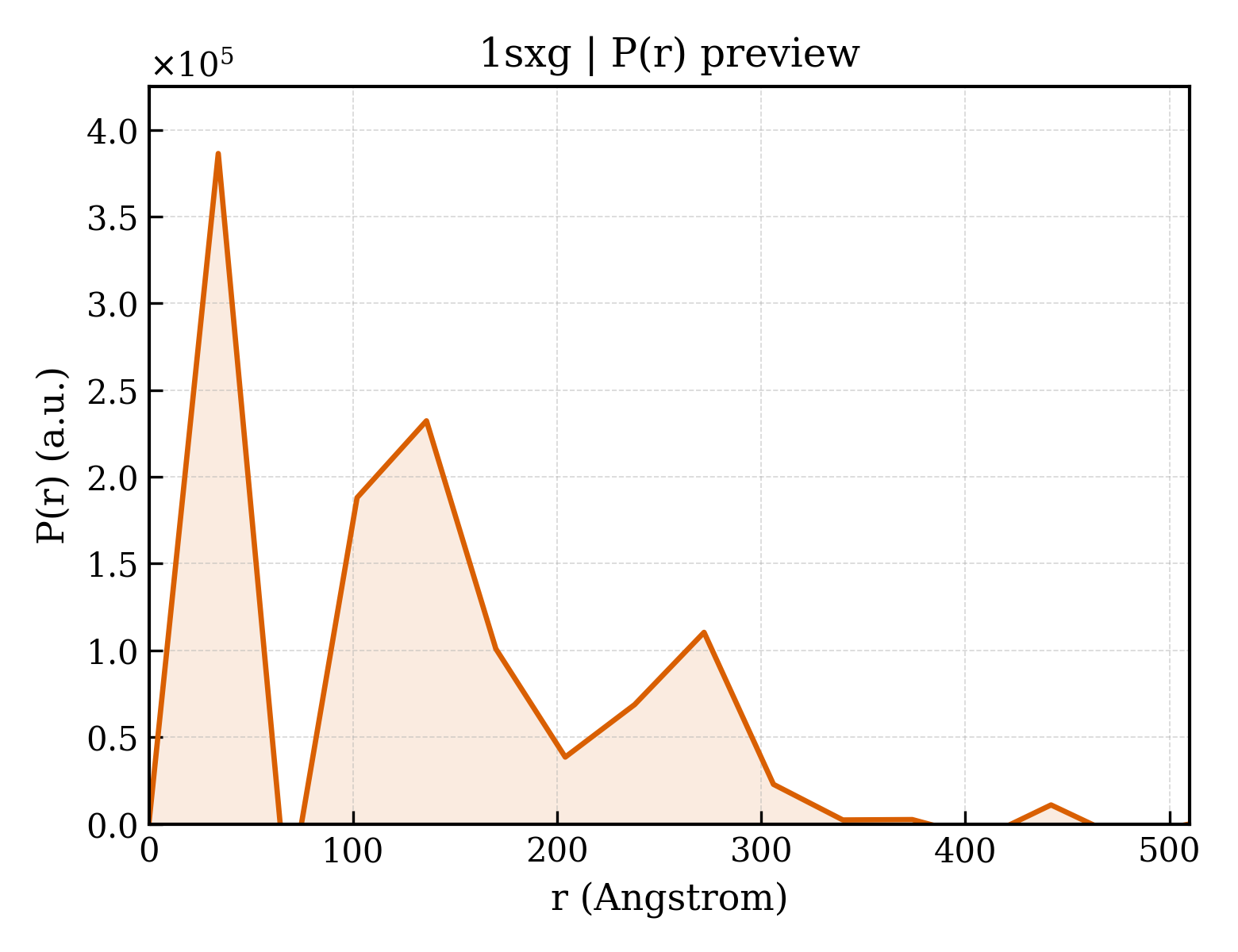

1sxg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.27 Å
Rg (electron density)	24.27 Å
Total Rg	25.09 Å
Atom count	4277
Residues	548
Excluded volume	76349 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1sxg__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1sxg__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1sxg__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Glucose-resistance amylase regulator
Molecular weight formula_weight	30992.1 kDa
Mutation mutation	residues 53-332
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D,B,I,P,F
Atom count atom_count	12939

RGLASKKTTTVGVIIPDISNIFYAELARGIEDIATMYKYNIILSNSDQNQDKELHLLNNMLGKQVDGIIFMSGNVTEEHVEELKKSPVPVVLAASIESTNQIPSVTIDYEQAAFDAVQSLIDSGHKNIAFVSGTLEEPINHAKKVKGYKRALTESGLPVRDSYIVEGDYTYDSGIEAVEKLLEEDEKPTAIFVGTDEMALGVIHGAQDRGLNVPNDLEIIGFDNTRLSTMVRPQLTSVVQPMYDIGAVAMRLLTKYMNKETVDSSIVQLPHRIEFRQSTK

Source Source

Source organism organism	Bacillus megaterium
NCBI taxonomy ID ncbi_taxonomy_id	1404
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	2-PHENYLAMINO-ETHANESULFONIC ACID
Molecular weight formula_weight	201.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	139

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1sxga_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.93 — Periplasmic binding protein-like I
Superfamily Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
Family Family family	c.93.1.1 — L-arabinose binding protein-like

Domain ID domain_id	d1sxgb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.93 — Periplasmic binding protein-like I
Superfamily Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
Family Family family	c.93.1.1 — L-arabinose binding protein-like

Domain ID domain_id	d1sxgd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.93 — Periplasmic binding protein-like I
Superfamily Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
Family Family family	c.93.1.1 — L-arabinose binding protein-like

Domain ID domain_id	d1sxgf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.93 — Periplasmic binding protein-like I
Superfamily Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
Family Family family	c.93.1.1 — L-arabinose binding protein-like

Domain ID domain_id	d1sxgi_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.93 — Periplasmic binding protein-like I
Superfamily Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
Family Family family	c.93.1.1 — L-arabinose binding protein-like

Domain ID domain_id	d1sxgp_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.93 — Periplasmic binding protein-like I
Superfamily Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
Family Family family	c.93.1.1 — L-arabinose binding protein-like

CATH v4.4 (12 domains)

Domain ID domain_id	1sxgA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgI01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgI02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgP01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1sxgP02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

▶

Unit-cell length a length_a	375.390 Å
Unit-cell length b length_b	60.140 Å
Unit-cell length c length_c	75.650 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.59 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	75.290 Å
R factor r_factor	0.2141
R_work r_work	0.2140
R_free r_free	0.2630
