1zvv

Crystal structure of a ccpa-crh-dna complex

Method: X-RAY DIFFRACTION D_max: 181.5 Å Quality: GOOD

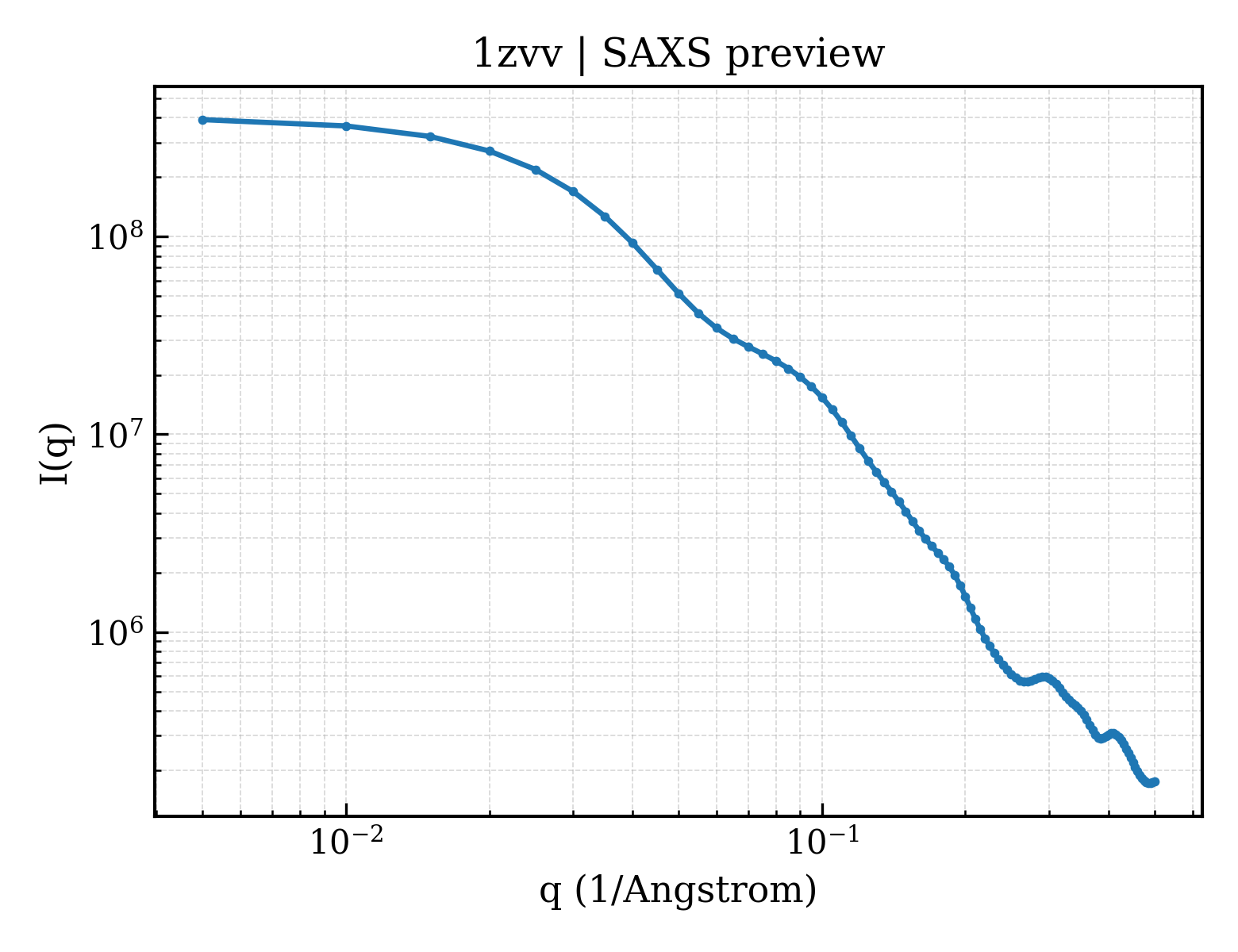

SAXS 散射曲线 SAXS Profile

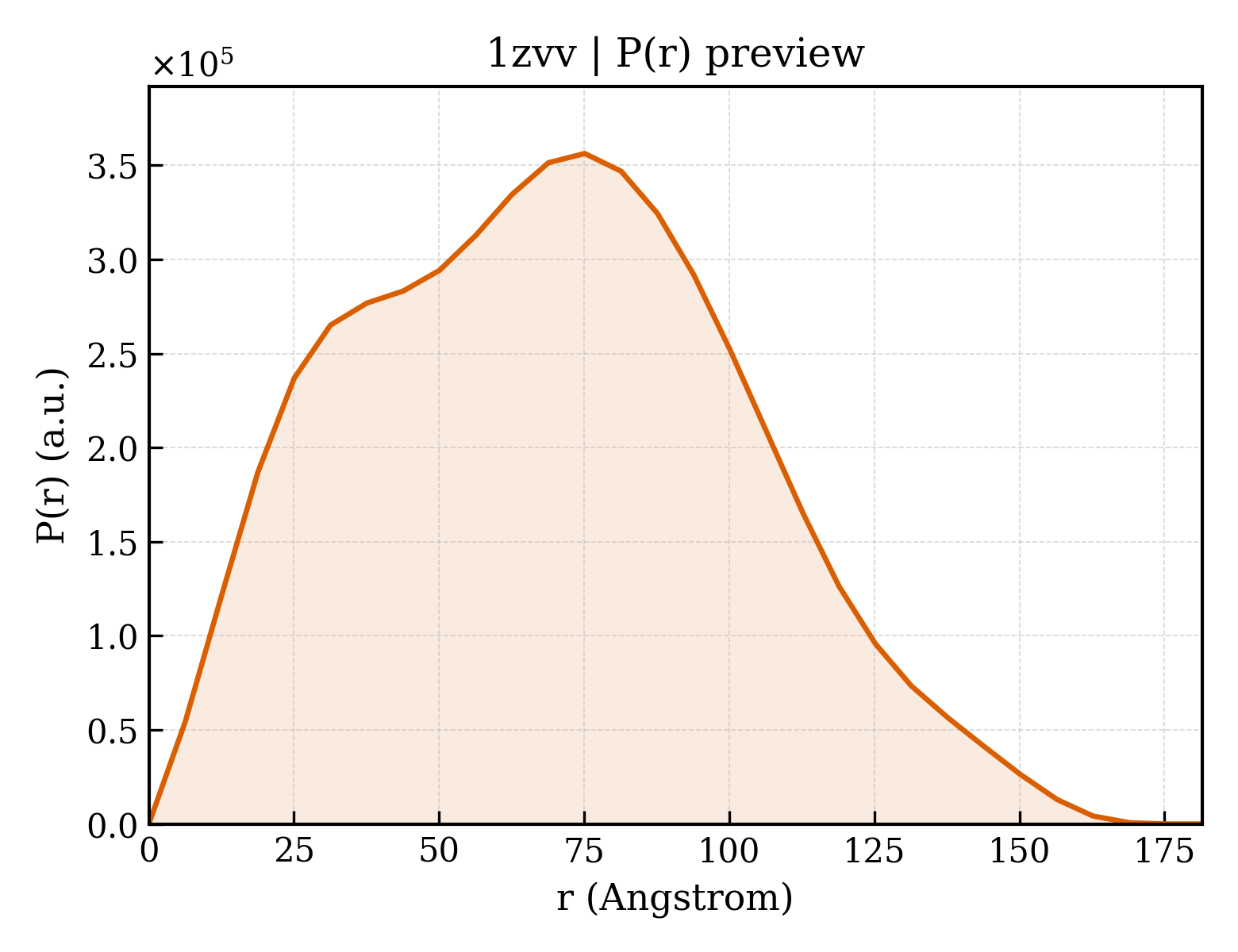

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1zvv
沉积日期 deposition_date	2005-06-02
结构标题 title	Crystal structure of a ccpa-crh-dna complex
关键词 keywords	ccpa; crh; dna; complex; lacI member, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	54.16 Å
回转半径 Rg (电子) rg_electron	54.55 Å
零角强度 I(0) i0	401097000.00
分子量 molecular_weight	153310.0 kDa
排除体积 excluded_volume	186520 Å³
包络体积 envelope_volume	310200 Å³
水化壳体积 shell_volume	51513 Å³
包络直径 envelope_diameter	176.6 Å
壳层 Rg shell_rg	52.02 Å
包络 Rg envelope_rg	51.67 Å
形状 Rg shape_rg	54.64 Å
总 Rg total_rg	54.21 Å
总原子数 total_atoms	10615
残基数 n_residues	1290
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	181.5 Å
Rg (实空间) rg_real	54.24 Å
Rg 误差 (实空间) rg_real_error	1.95 Å
I(0) (实空间) i0_real	4.0110e+08
I(0) 误差 (实空间) i0_real_error	8.2630e+06
Rg (倒空间) rg_reciprocal	54.06 Å
I(0) (倒空间) i0_reciprocal	401000000.0000
解质量估计 total_estimate	0.8531
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	75.1 Å
偏度 Skewness skewness	0.208
峰度 Kurtosis kurtosis	-0.574
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	13780000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.886; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.966; Smooth: 0.463

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	DNA recognition strand CRE
分子量 formula_weight	4907.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	O,T,R
原子数 atom_count	10661

CTGAAAGCGCTTACAG

Entity 2 polymer

描述 description	Glucose-resistance amylase regulator
分子量 formula_weight	36671.6 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,G

MNVTIYDVAREASVSMATVSRVVNGNPNVKPSTRKKVLETIERLGYRPNAVARGLASKKTTTVGVIIPDISNIFYAELARGIEDIASMYKYNIILSNSDQNQDKQLHLLNNMLGKQVDGIIFMSGNVTEEHVEELKKSPVPVVLAASIESTNQIPSVTIDYEQAAFDAVQSLIDSGHKNIAFVSGTLEEPINHAKKVKGYKRALTESGLPVRDSYIVEGDYTYDSGIEAVEKLLEEDEKPTAIFVGTDEMALGVIHGAQDRGLNVPNDLEIIGFDNTRLSTMVRPQLTSVVQPMYDIGAVAMRLLTKYMNKETVDSSIVELPHRIEFRQSTK

来源 Source

来源生物 organism	Bacillus subtilis
NCBI 分类编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

描述 description	HPr-like protein crh
分子量 formula_weight	9458.7 kDa
突变 mutation	phosphorylated at Ser46
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W,P,J

MVQQKVEVRLKTGLQARPAALFVQEANRFTSDIFLEKDGKKVNAKSIMGLMSLAISTGTEITLIAQGEDEQEALEKLAAYVQEEV

来源 Source

来源生物 organism	Bacillus subtilis
NCBI 分类编号 ncbi_taxonomy_id	1423
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 non-polymer

描述 description	IODIDE ION
分子量 formula_weight	126.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	11

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	46

▼

6. 折叠分类 (SCOP + CATH) 21 domains

SCOP 2.08 (9 domains)

结构域编号 domain_id	d1zvva1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.5 — GalR/LacI-like bacterial regulator

结构域编号 domain_id	d1zvva2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.93 — Periplasmic binding protein-like I
超家族 Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
家族 Family family	c.93.1.1 — L-arabinose binding protein-like

结构域编号 domain_id	d1zvvb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.5 — GalR/LacI-like bacterial regulator

结构域编号 domain_id	d1zvvb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.93 — Periplasmic binding protein-like I
超家族 Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
家族 Family family	c.93.1.1 — L-arabinose binding protein-like

结构域编号 domain_id	d1zvvg1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.35 — lambda repressor-like DNA-binding domains
超家族 Superfamily superfamily	a.35.1 — lambda repressor-like DNA-binding domains
家族 Family family	a.35.1.5 — GalR/LacI-like bacterial regulator

结构域编号 domain_id	d1zvvg2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.93 — Periplasmic binding protein-like I
超家族 Superfamily superfamily	c.93.1 — Periplasmic binding protein-like I
家族 Family family	c.93.1.1 — L-arabinose binding protein-like

结构域编号 domain_id	d1zvvj1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.94 — HPr-like
超家族 Superfamily superfamily	d.94.1 — HPr-like
家族 Family family	d.94.1.1 — HPr-like

结构域编号 domain_id	d1zvvp_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.94 — HPr-like
超家族 Superfamily superfamily	d.94.1 — HPr-like
家族 Family family	d.94.1.1 — HPr-like

结构域编号 domain_id	d1zvvw_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.94 — HPr-like
超家族 Superfamily superfamily	d.94.1 — HPr-like
家族 Family family	d.94.1.1 — HPr-like

CATH v4.4 (12 domains)

结构域编号 domain_id	1zvvA01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	1zvvA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	1zvvA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	1zvvB01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	1zvvB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	1zvvB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	1zvvG01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	260 — 434 Repressor (Amino-terminal Domain)
同源超家族 H-superfamily homologous superfamily	40 — lambda repressor-like DNA-binding domains

结构域编号 domain_id	1zvvG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	1zvvG03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2300 — Response regulator

结构域编号 domain_id	1zvvJ00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1340 — Histidine-containing Protein; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 — HPr-like

结构域编号 domain_id	1zvvP00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1340 — Histidine-containing Protein; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 — HPr-like

结构域编号 domain_id	1zvvW00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1340 — Histidine-containing Protein; Chain: A;
同源超家族 H-superfamily homologous superfamily	10 — HPr-like

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	83.690 Å
晶胞边长 b length_b	158.100 Å
晶胞边长 c length_c	125.470 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	100.73 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.980 Å
最低分辨率 resolution_low	79.050 Å
R 因子 r_factor	0.2350
R_work r_work	0.2350
R_free r_free	0.2980

fit	/app/data/saxs_computation/zv/1zvv/1zvv.fit
pddf	/app/data/pr_computation/zv/1zvv/1zvv.pr.out
profile	/app/data/saxs_computation/zv/1zvv/1zvv.dat
