1t5l
Crystal structure of the DNA repair protein UvrB point mutant Y96A revealing a novel fold for domain 2
SAXS 散射曲线 SAXS Profile

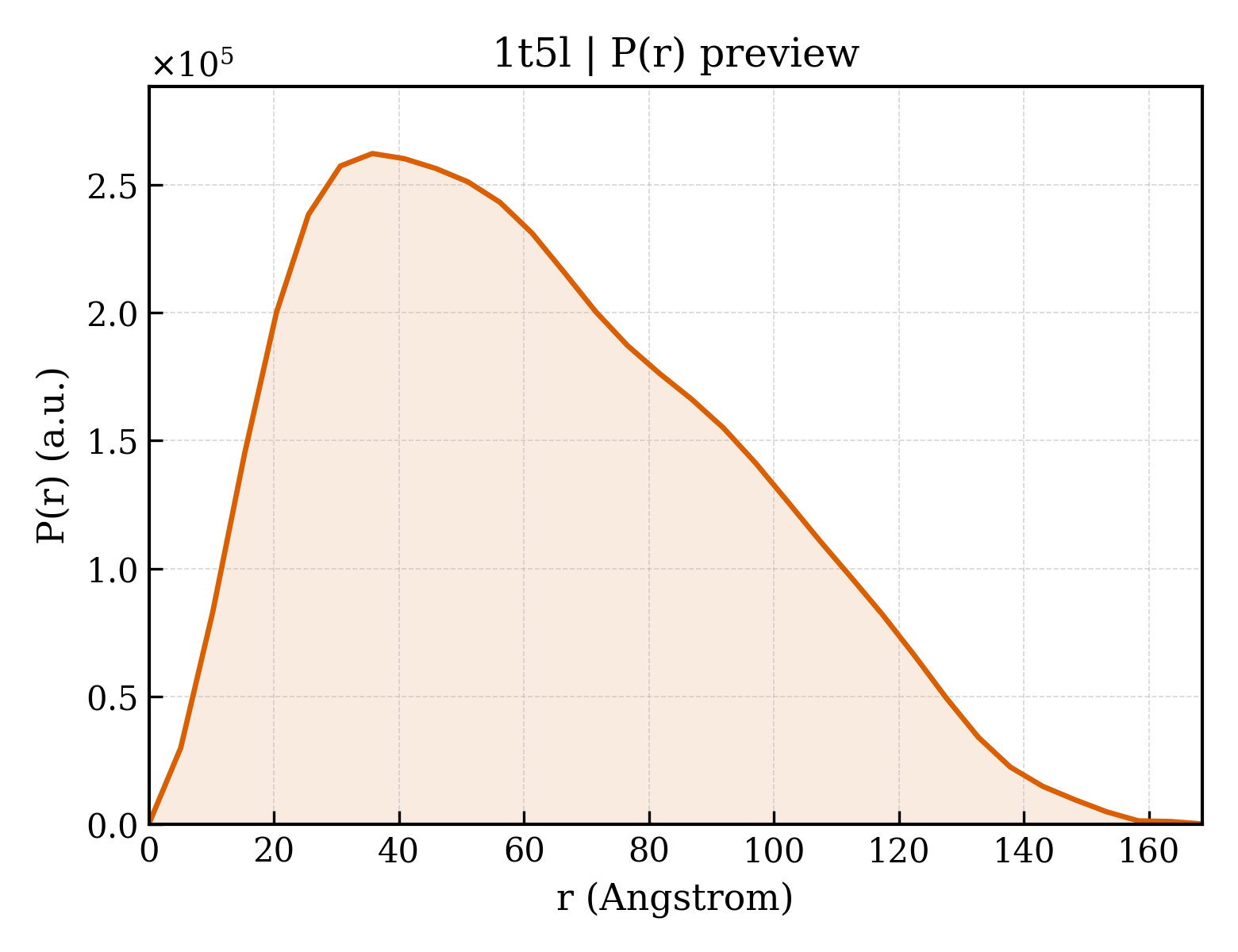

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1t5l |
| 沉积日期 deposition_date | 2004-05-04 |
| 结构标题 title | Crystal structure of the DNA repair protein UvrB point mutant Y96A revealing a novel fold for domain 2 |
| 关键词 keywords | DNA damage, DNA repair, Nucleotide Excision Repair, UvrB, UvrA, UvrC, NER, Mfd, TRCF, DNA excision repair; DNA excision repair |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 48.34 Å |
| 回转半径 Rg (电子) rg_electron | 48.78 Å |
| 零角强度 I(0) i0 | 277172000.00 |
| 分子量 molecular_weight | 136630.0 kDa |
| 排除体积 excluded_volume | 171000 ų |
| 包络体积 envelope_volume | 252490 ų |
| 水化壳体积 shell_volume | 46083 ų |
| 包络直径 envelope_diameter | 175.6 Å |
| 壳层 Rg shell_rg | 48.52 Å |
| 包络 Rg envelope_rg | 47.36 Å |
| 形状 Rg shape_rg | 48.76 Å |
| 总 Rg total_rg | 48.81 Å |
| 总原子数 total_atoms | 9616 |
| 残基数 n_residues | 1190 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 168.5 Å |
| Rg (实空间) rg_real | 48.94 Å |
| Rg 误差 (实空间) rg_real_error | 2.38 Å |
| I(0) (实空间) i0_real | 2.7720e+08 |
| I(0) 误差 (实空间) i0_real_error | 5.9320e+06 |
| Rg (倒空间) rg_reciprocal | 48.35 Å |
| I(0) (倒空间) i0_reciprocal | 277000000.0000 |
| 解质量估计 total_estimate | 0.8031 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 35.7 Å |
| 偏度 Skewness skewness | 0.446 |
| 峰度 Kurtosis kurtosis | -0.570 |
| 角度范围 angular_range | — – 0.1650 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 15270000.0000 |
| 实空间数据点数 n_real_points | 34 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.733; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.667; Smooth: 0.570 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (3)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1t5la1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.37 — P-loop containing nucleoside triphosphate hydrolases |
| 超家族 Superfamily superfamily | c.37.1 — P-loop containing nucleoside triphosphate hydrolases |
| 家族 Family family | c.37.1.19 — Tandem AAA-ATPase domain |
| 结构域编号 domain_id | d1t5la2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.37 — P-loop containing nucleoside triphosphate hydrolases |
| 超家族 Superfamily superfamily | c.37.1 — P-loop containing nucleoside triphosphate hydrolases |
| 家族 Family family | c.37.1.19 — Tandem AAA-ATPase domain |
| 结构域编号 domain_id | d1t5lb1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.37 — P-loop containing nucleoside triphosphate hydrolases |
| 超家族 Superfamily superfamily | c.37.1 — P-loop containing nucleoside triphosphate hydrolases |
| 家族 Family family | c.37.1.19 — Tandem AAA-ATPase domain |
| 结构域编号 domain_id | d1t5lb2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.37 — P-loop containing nucleoside triphosphate hydrolases |
| 超家族 Superfamily superfamily | c.37.1 — P-loop containing nucleoside triphosphate hydrolases |
| 家族 Family family | c.37.1.19 — Tandem AAA-ATPase domain |
CATH v4.4 (8 domains)
| 结构域编号 domain_id | 1t5lA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
| 结构域编号 domain_id | 1t5lA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 2060 — Penicillin-binding protein 1b fold |
| 同源超家族 H-superfamily homologous superfamily | 10 — Penicillin-binding protein 1b domain |
| 结构域编号 domain_id | 1t5lA03 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 10 — Helix non-globular |
| 拓扑 Topology topology | 140 — Helix Hairpins |
| 同源超家族 H-superfamily homologous superfamily | 240 — |
| 结构域编号 domain_id | 1t5lA04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
| 结构域编号 domain_id | 1t5lB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
| 结构域编号 domain_id | 1t5lB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 2060 — Penicillin-binding protein 1b fold |
| 同源超家族 H-superfamily homologous superfamily | 10 — Penicillin-binding protein 1b domain |
| 结构域编号 domain_id | 1t5lB03 |
| 类 Class class | 6 — Special |
| 架构 Architecture architecture | 10 — Helix non-globular |
| 拓扑 Topology topology | 140 — Helix Hairpins |
| 同源超家族 H-superfamily homologous superfamily | 240 — |
| 结构域编号 domain_id | 1t5lB04 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 300 — P-loop containing nucleotide triphosphate hydrolases |
