1tba

SOLUTION STRUCTURE OF A TBP-TAFII230 COMPLEX: PROTEIN MIMICRY OF THE MINOR GROOVE SURFACE OF THE TATA BOX UNWOUND BY TBP, NMR, 25 STRUCTURES

Method: SOLUTION NMR

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRANSCRIPTION INITIATION FACTOR IID 230K CHAIN

Drosophila melanogaster

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	TRANSCRIPTION INITIATION FACTOR TFIID × 1 （P13393）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TAF1_DROME
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–67； UniProt 11–77

TRANSCRIPTION INITIATION FACTOR TFIID

Saccharomyces cerevisiae

UniProt P13393

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	TRANSCRIPTION INITIATION FACTOR IID 230K CHAIN × 1 （P51123）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TBP_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–180； UniProt 60–239

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tba
Deposition date deposition_date	1998-08-16
Structure title title	SOLUTION STRUCTURE OF A TBP-TAFII230 COMPLEX: PROTEIN MIMICRY OF THE MINOR GROOVE SURFACE OF THE TATA BOX UNWOUND BY TBP, NMR, 25 STRUCTURES
Keywords keywords	COMPLEX (TRANSCRIPTION FACTORS), TBP, TAF, TAFII230, TFIID, SOLUTION STRUCTURE; COMPLEX (TRANSCRIPTION FACTORS)
Experimental Method method	SOLUTION NMR

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tba__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

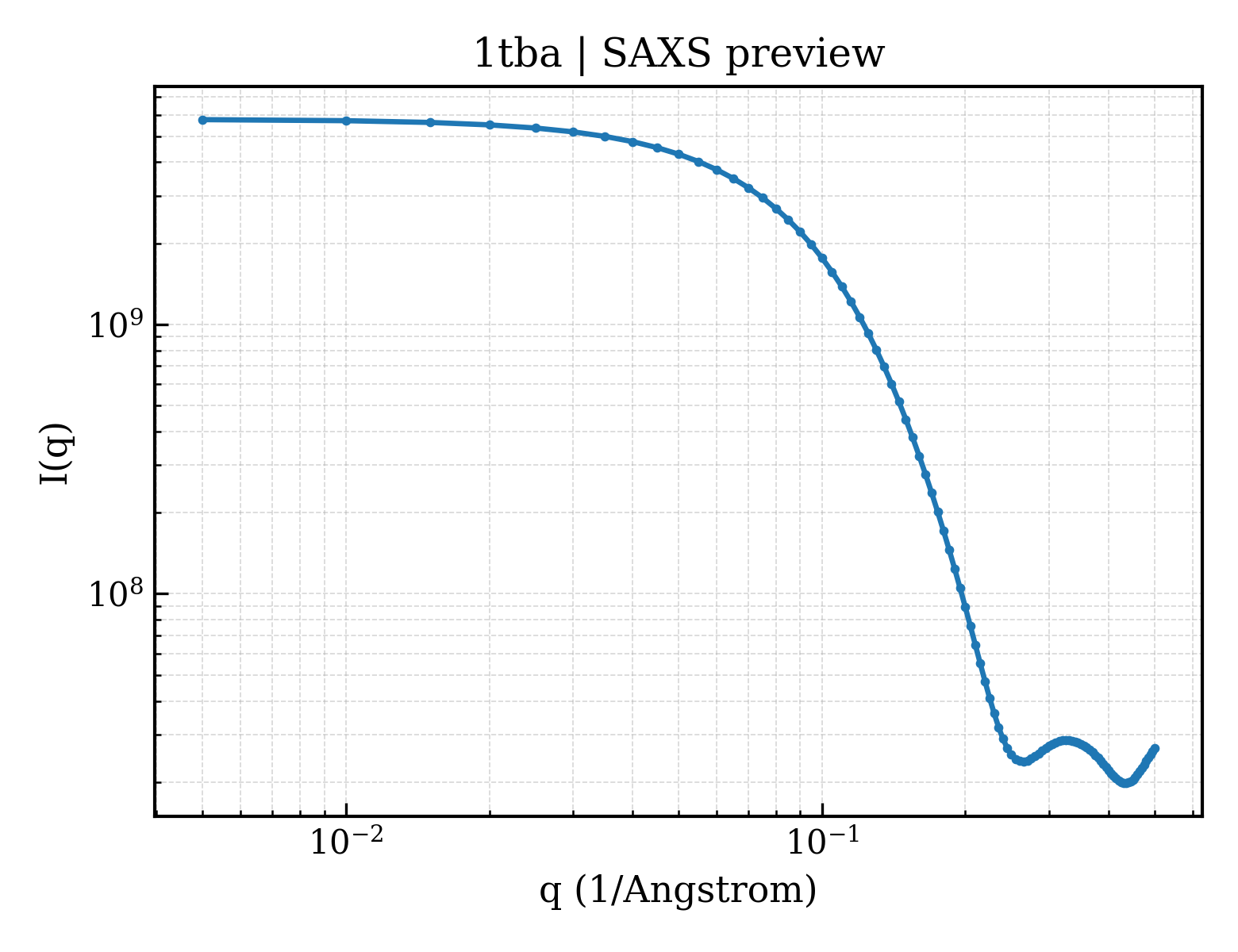

1tba__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1tba__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.89 Å
Rg (electron density)	18.83 Å
Total Rg	19.84 Å
Atom count	3881
Residues	247
Excluded volume	34442 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tba__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`1tba__assembly_1__model_2`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`1tba__assembly_1__model_3`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`1tba__assembly_1__model_4`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	5	`1tba__assembly_1__model_5`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	6	`1tba__assembly_1__model_6`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	7	`1tba__assembly_1__model_7`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	8	`1tba__assembly_1__model_8`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	9	`1tba__assembly_1__model_9`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	10	`1tba__assembly_1__model_10`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	11	`1tba__assembly_1__model_11`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	12	`1tba__assembly_1__model_12`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	13	`1tba__assembly_1__model_13`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	14	`1tba__assembly_1__model_14`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	15	`1tba__assembly_1__model_15`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	16	`1tba__assembly_1__model_16`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	17	`1tba__assembly_1__model_17`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	18	`1tba__assembly_1__model_18`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	19	`1tba__assembly_1__model_19`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	20	`1tba__assembly_1__model_20`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	21	`1tba__assembly_1__model_21`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	22	`1tba__assembly_1__model_22`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	23	`1tba__assembly_1__model_23`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	24	`1tba__assembly_1__model_24`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	25	`1tba__assembly_1__model_25`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	TRANSCRIPTION INITIATION FACTOR IID 230K CHAIN
Molecular weight formula_weight	7012.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	97025

EGSIGNGLDLTGILFGNIDSEGRLLQDDDGEGRGGTGFDAELRENIGSLSKLGLDSMLLEVIDLKEA

Source Source

Source organism organism	Drosophila melanogaster
Common name common_name	fruit fly
NCBI taxonomy ID ncbi_taxonomy_id	7227
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	TRANSCRIPTION INITIATION FACTOR TFIID
Molecular weight formula_weight	20120.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SGIVPTLQNIVATVTLGCRLDLKTVALHARNAEYNPKRFAAVIMRIREPKTTALIFASGKMVVTGAKSEDDSKLASRKYARIIQKIGFAAKFTDFKIQNIVGSCDVKFPIRLEGLAFSHGTFSSYEPELFPGLIYRMVKPKIVLLIFVSGKIVLTGAKQREEIYQAFEAIYPVLSEFRKM

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1tbaa_
Class class	a — All alpha proteins
Fold Fold fold	a.15 — TAF(II)230 TBP-binding fragment
Superfamily Superfamily superfamily	a.15.1 — TAF(II)230 TBP-binding fragment
Family Family family	a.15.1.1 — TAF(II)230 TBP-binding fragment

Domain ID domain_id	d1tbab1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.129 — TBP-like
Superfamily Superfamily superfamily	d.129.1 — TATA-box binding protein-like
Family Family family	d.129.1.1 — TATA-box binding protein (TBP), C-terminal domain

Domain ID domain_id	d1tbab2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.129 — TBP-like
Superfamily Superfamily superfamily	d.129.1 — TATA-box binding protein-like
Family Family family	d.129.1.1 — TATA-box binding protein (TBP), C-terminal domain

CATH v4.4 (3 domains)

Domain ID domain_id	1tbaA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1100 — Transcription Initiation Factor IId 230k; Chain A
Homologous superfamily homologous superfamily	10 — TAFII-230 TBP-binding domain

Domain ID domain_id	1tbaB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	10 — TATA-Binding Protein

Domain ID domain_id	1tbaB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	10 — TATA-Binding Protein

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—
