SAXSdb — 1rm1

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1rm1
沉积日期 deposition_date	2003-11-26
结构标题 title	Structure of a Yeast TFIIA/TBP/TATA-box DNA Complex
关键词 keywords	Yeast TFIIA, TBP protein, ATA-box DNA, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.87 Å
回转半径 Rg (电子) rg_electron	27.97 Å
零角强度 I(0) i0	62220200.00
分子量 molecular_weight	56054.0 kDa
排除体积 excluded_volume	67686 Å³
包络体积 envelope_volume	85744 Å³
水化壳体积 shell_volume	27318 Å³
包络直径 envelope_diameter	100.3 Å
壳层 Rg shell_rg	32.98 Å
包络 Rg envelope_rg	27.89 Å
形状 Rg shape_rg	28.01 Å
总 Rg total_rg	28.33 Å
总原子数 total_atoms	3899
残基数 n_residues	433
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	96.9 Å
Rg (实空间) rg_real	28.04 Å
Rg 误差 (实空间) rg_real_error	0.93 Å
I(0) (实空间) i0_real	6.2220e+07
I(0) 误差 (实空间) i0_real_error	8.8650e+05
Rg (倒空间) rg_reciprocal	27.99 Å
I(0) (倒空间) i0_reciprocal	62220000.0000
解质量估计 total_estimate	0.8547
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.6 Å
偏度 Skewness skewness	0.503
峰度 Kurtosis kurtosis	-0.112
角度范围 angular_range	— – 0.2850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	10420000.0000
实空间数据点数 n_real_points	58
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.795; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.876; Smooth: 0.849

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	5'-D(APTPCPGPAPTPCPGPAPTPAPTPAPAPAPAPCPG)-3'
分子量 formula_weight	5532.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	D
原子数 atom_count	4200

ATCGATCGATATAAAACG

Entity 2 polymer

描述 description	5'-D(PCPGPTPTPTPTPAPTPAPTPCPGPAPTPCPGPAPT)-3'
分子量 formula_weight	5496.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E

CGTTTTATATCGATCGAT

Entity 3 polymer

描述 description	TATA-box binding protein
分子量 formula_weight	27042.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MADEERLKEFKEANKIVFDPNTRQVWENQNRDGTKPATTFQSEEDIKRAAPESEKDTSATSGIVPTLQNIVATVTLGCRLDLKTVALHARNAEYNPKRFAAVIMRIREPKTTALIFASGKMVVTGAKSEDDSKLASRKYARIIQKIGFAAKFTDFKIQNIVGSCDVKFPIRLEGLAFSHGTFSSYEPELFPGLIYRMVKPKIVLLIFVSGKIVLTGAKQREEIYQAFEAIYPVLSEFRKM

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 4 polymer

描述 description	Transcription initiation factor IIA small chain
分子量 formula_weight	13473.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MAVPGYYELYRRSTIGNSLVDALDTLISDGRIEASLAMRVLETFDKVVAETLKDNTQSKLTVKGNLDTYGFCDDVWTFIVKNCQVTVEDSHRDASQNGSGDSQSVISVDKLRIVACNSKKSE

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 5 polymer

描述 description	Transcription initiation factor IIA large chain
分子量 formula_weight	32230.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSNAEASRVYEIIVESVVNEVREDFENAGIDEQTLQDLKNIWQKKLTETKVTTFSWDNQFNEGNINGVQNDLNFNLATPGVNSSEFNIKEENTGNEGLILPNINSNNNIPHSGETNINTNTVEATNNSGATLNTNTSGNTNADVTSQPKIEVKPEIELTINNANITTVENIDDESEKKDDEEKEEDVEKTRKEKEQIEQVKLQAKKEKRSALLDTDEVGSELDDSDDDYLISEGEEDGPDENLMLCLYDKVTRTKARWKCSLKDGVVTINRNDYTFQKAQVEAEWV

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	301

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1rm1a1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.1 — TATA-box binding protein-like
家族 Family family	d.129.1.1 — TATA-box binding protein (TBP), C-terminal domain

结构域编号 domain_id	d1rm1a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.129 — TBP-like
超家族 Superfamily superfamily	d.129.1 — TATA-box binding protein-like
家族 Family family	d.129.1.1 — TATA-box binding protein (TBP), C-terminal domain

结构域编号 domain_id	d1rm1b1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.32 — Transcription factor IIA (TFIIA), alpha-helical domain
超家族 Superfamily superfamily	a.32.1 — Transcription factor IIA (TFIIA), alpha-helical domain
家族 Family family	a.32.1.1 — Transcription factor IIA (TFIIA), alpha-helical domain

结构域编号 domain_id	d1rm1b2
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.56 — Transcription factor IIA (TFIIA), beta-barrel domain
超家族 Superfamily superfamily	b.56.1 — Transcription factor IIA (TFIIA), beta-barrel domain
家族 Family family	b.56.1.1 — Transcription factor IIA (TFIIA), beta-barrel domain

CATH v4.4 (6 domains)

结构域编号 domain_id	1rm1A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	310 — TATA-Binding Protein
同源超家族 H-superfamily homologous superfamily	10 — TATA-Binding Protein

结构域编号 domain_id	1rm1A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	310 — TATA-Binding Protein
同源超家族 H-superfamily homologous superfamily	10 — TATA-Binding Protein

结构域编号 domain_id	1rm1B01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	190 — Transcription factor IIA gamma subunit, alpha-helical domain

结构域编号 domain_id	1rm1B02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	18 — TATA box binding Protein, subunit D; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Transcription factor IIA (TFIIA), beta-barrel domain

结构域编号 domain_id	1rm1C01
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	287 — Helix Hairpins
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1rm1C02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	18 — TATA box binding Protein, subunit D; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Transcription factor IIA (TFIIA), beta-barrel domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	173.250 Å
晶胞边长 b length_b	173.250 Å
晶胞边长 c length_c	164.070 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	H 3 2
空间群编号 int_tables_number	155
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1890
R_work r_work	0.1860
R_free r_free	0.2520

fit	/app/data/saxs_computation/rm/1rm1/1rm1.fit
pddf	/app/data/pr_computation/rm/1rm1/1rm1.pr.out
profile	/app/data/saxs_computation/rm/1rm1/1rm1.dat

Structure of a Yeast TFIIA/TBP/TATA-box DNA Complex

SAXS 散射曲线 SAXS Profile

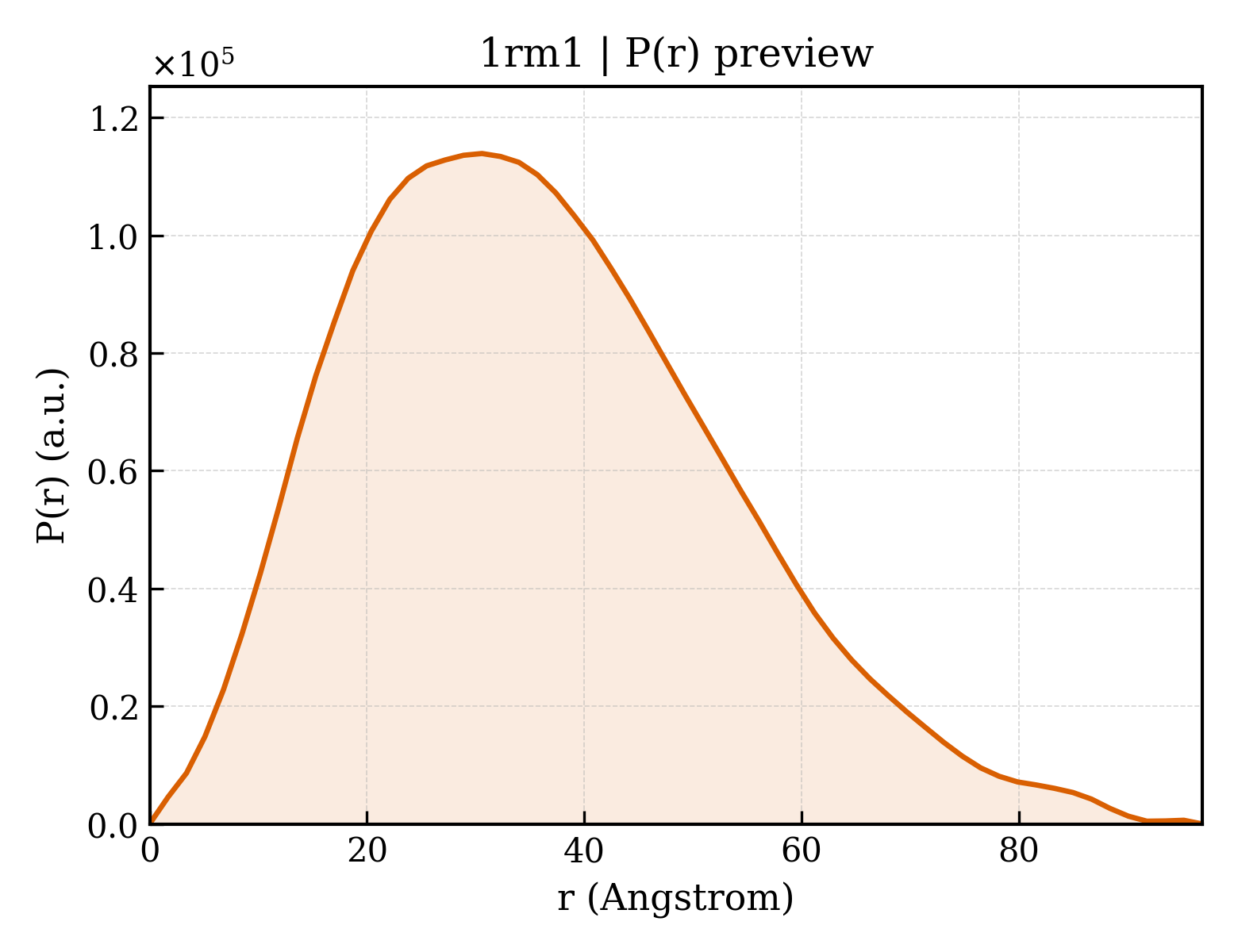

P(r) 距离分布 P(r) Distribution
