SAXSdb — 1tkw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plastocyanin A

Populus nigra

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 70–168	Not recorded	Cytochrome f × 1 （P36438） CU COPPER (II) ION × 1 HEC HEME C × 1	SOLUTION NMR NMR measurement conditions：pH 6；303 K；Ionic strength (raw mmCIF value) 10 mM；Pressure 1 NMR measurement conditions：pH 6；303 K；Ionic strength (raw mmCIF value) 11 mM；Pressure 1 NMR sample composition：0.5 mM Cd-substituted poplar plastocyanin + 0.35 mM soluble fragment of turnip cytochrome f in oxidized state in 10 mM sodium phosphate pH 6.0 \| 94% H2O, 6% D2O NMR sample composition：0.5 mM Cd-substituted poplar plastocyanin + 0.35 mM soluble fragment of turnip cytochrome f in reduced state in 10 mM sodium phosphate pH 6.0 + 1 mM sodium ascorbate \| 94% H2O, 6% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1TKW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1JXG The 1.6 A Resolution Crystal Structure of a Mutant Poplar Plastocyanin Bearing a 21-25 Engeneered Disulfide Bridge Deposited 2001-09-07	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Mutation：I21C, E25C	CU1 COPPER (I) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；ammonium sulfate, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.205
1JXG The 1.6 A Resolution Crystal Structure of a Mutant Poplar Plastocyanin Bearing a 21-25 Engeneered Disulfide Bridge Deposited 2001-09-07	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 70–168（99 aa）	Mutation：I21C, E25C	CU1 COPPER (I) ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；277 K；ammonium sulfate, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.60 Å R-free 0.205
1PLC ACCURACY AND PRECISION IN PROTEIN CRYSTAL STRUCTURE ANALYSIS: RESTRAINED LEAST-SQUARES REFINEMENT OF THE CRYSTAL STRUCTURE OF POPLAR PLASTOCYANIN AT 1.33 ANGSTROMS RESOLUTION Deposited 1992-03-11	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.33 Å
1PNC ACCURACY AND PRECISION IN PROTEIN CRYSTAL STRUCTURE ANALYSIS: TWO INDEPENDENT REFINEMENTS OF THE STRUCTURE OF POPLAR PLASTOCYANIN AT 173K Deposited 1993-09-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å
1PND ACCURACY AND PRECISION IN PROTEIN CRYSTAL STRUCTURE ANALYSIS: TWO INDEPENDENT REFINEMENTS OF THE STRUCTURE OF POPLAR PLASTOCYANIN AT 173K Deposited 1993-09-22	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.60 Å
2PCY THE CRYSTAL STRUCTURE OF POPLAR APOPLASTOCYANIN AT 1.8-ANGSTROMS RESOLUTION. THE GEOMETRY OF THE COPPER-BINDING SITE IS CREATED BY THE POLYPEPTIDE Deposited 1983-11-03	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
3PCY THE CRYSTAL STRUCTURE OF MERCURY-SUBSTITUTED POPLAR PLASTOCYANIN AT 1.9-ANGSTROMS RESOLUTION Deposited 1985-12-10	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Not recorded	HG MERCURY (II) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å
4DP7 The 1.08 Angstrom crystal structure of oxidized (CuII) poplar plastocyanin A at pH 4.0 Deposited 2012-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 70–168（99 aa） Fragment：UNP residues 70-168	Not recorded	CU COPPER (II) ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；277 K；2.6 M ammonium sulfate, 0.1 M sodium phosphate buffer, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.08 Å R-free 0.142
4DP8 The 1.07 Angstrom crystal structure of reduced (CuI) poplar plastocyanin A at pH 4.0 Deposited 2012-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 70–168（99 aa） Fragment：UNP residues 70-168	Not recorded	CU1 COPPER (I) ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；277 K；2.6 M ammonium sulfate, 0.1 M sodium phosphate buffer, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.07 Å R-free 0.165
4DP9 The 1.00 Angstrom crystal structure of oxidized (CuII) poplar plastocyanin A at pH 6.0 Deposited 2012-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 70–168（99 aa） Fragment：UNP residues 70-168	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；2.6 M ammonium sulfate, 0.1 M sodium phosphate buffer, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.00 Å R-free 0.144
4DPA The 1.05 Angstrom crystal structure of reduced (CuI) poplar plastocyanin A at pH 6.0 Deposited 2012-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 70–168（99 aa） Fragment：UNP residues 70-168	Not recorded	CU1 COPPER (I) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；277 K；2.6 M ammonium sulfate, 0.1 M sodium phosphate buffer, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.05 Å R-free 0.155
4DPB The 1.00 Angstrom crystal structure of oxidized (CuII) poplar plastocyanin A at pH 8.0 Deposited 2012-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 70–168（99 aa） Fragment：UNP residues 70-168	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；2.6 M ammonium sulfate, 0.1 M sodium phosphate buffer, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.00 Å R-free 0.136
4DPC The 1.06 Angstrom crystal structure of reduced (CuI) poplar plastocyanin A at pH 8.0 Deposited 2012-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 70–168（99 aa） Fragment：UNP residues 70-168	Not recorded	CU1 COPPER (I) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；2.6 M ammonium sulfate, 0.1 M sodium phosphate buffer, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.06 Å R-free 0.155
4PCY CRYSTAL STRUCTURE ANALYSES OF REDUCED (CUI) POPLAR PLASTOCYANIN AT SIX PH VALUES Deposited 1986-09-02	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.15 Å
5PCY CRYSTAL STRUCTURE ANALYSES OF REDUCED (CUI) POPLAR PLASTOCYANIN AT SIX PH VALUES Deposited 1986-09-02	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.80 Å
6PCY CRYSTAL STRUCTURE ANALYSES OF REDUCED (CUI) POPLAR PLASTOCYANIN AT SIX PH VALUES Deposited 1986-09-02	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Not recorded	CU COPPER (II) ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.90 Å

15 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLAS1_POPNI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–99； UniProt 70–168

Cytochrome f

Brassica rapa subsp. rapa

UniProt P36438

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 36–287	Not recorded	Plastocyanin A × 1 （P00299） CU COPPER (II) ION × 1 HEC HEME C × 1	SOLUTION NMR NMR measurement conditions：pH 6；303 K；Ionic strength (raw mmCIF value) 10 mM；Pressure 1 NMR measurement conditions：pH 6；303 K；Ionic strength (raw mmCIF value) 11 mM；Pressure 1 NMR sample composition：0.5 mM Cd-substituted poplar plastocyanin + 0.35 mM soluble fragment of turnip cytochrome f in oxidized state in 10 mM sodium phosphate pH 6.0 \| 94% H2O, 6% D2O NMR sample composition：0.5 mM Cd-substituted poplar plastocyanin + 0.35 mM soluble fragment of turnip cytochrome f in reduced state in 10 mM sodium phosphate pH 6.0 + 1 mM sodium ascorbate \| 94% H2O, 6% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1TKW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CTM CRYSTAL STRUCTURE OF CHLOROPLAST CYTOCHROME F REVEALS A NOVEL CYTOCHROME FOLD AND UNEXPECTED HEME LIGATION Deposited 1994-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–285（250 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å R-free 0.277
1HCZ LUMEN-SIDE DOMAIN OF REDUCED CYTOCHROME F AT-35 DEGREES CELSIUS Deposited 1996-09-18	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–287（252 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.96 Å R-free 0.250
2PCF THE COMPLEX OF CYTOCHROME F AND PLASTOCYANIN DETERMINED WITH PARAMAGNETIC NMR. BASED ON THE STRUCTURES OF CYTOCHROME F AND PLASTOCYANIN, 10 STRUCTURES Deposited 1997-12-22	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 36–285（250 aa） Fragment：SOLUBLE DOMAIN	Not recorded	CU COPPER (II) ION × 1 HEC HEME C × 1	SOLUTION NMR NMR measurement conditions pH 6；300 K	Resolution not provided

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CYF_BRARA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–252； UniProt 36–287

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tkw
Deposition date deposition_date	2004-06-09
Structure title title	The transient complex of poplar plastocyanin with turnip cytochrome f determined with paramagnetic NMR
Keywords keywords	Electron transfer, photosynthesis, paramagnetic, rigid body calculations; PHOTOSYNTHESIS
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.72 Å
Radius of gyration Rg (electron density) rg_electron	23.97 Å
Forward intensity I(0) i0	1970730000.00
Molecular weight molecular_weight	384300.0 kDa
Excluded volume excluded_volume	483680 Å³
Envelope volume envelope_volume	68247 Å³
Hydration-shell volume shell_volume	24258 Å³
Envelope diameter envelope_diameter	90.1 Å
Shell Rg shell_rg	30.79 Å
Envelope Rg envelope_rg	24.96 Å
Shape Rg shape_rg	23.96 Å
Total Rg total_rg	24.13 Å
Total atoms total_atoms	53960
Residues n_residues	3490
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

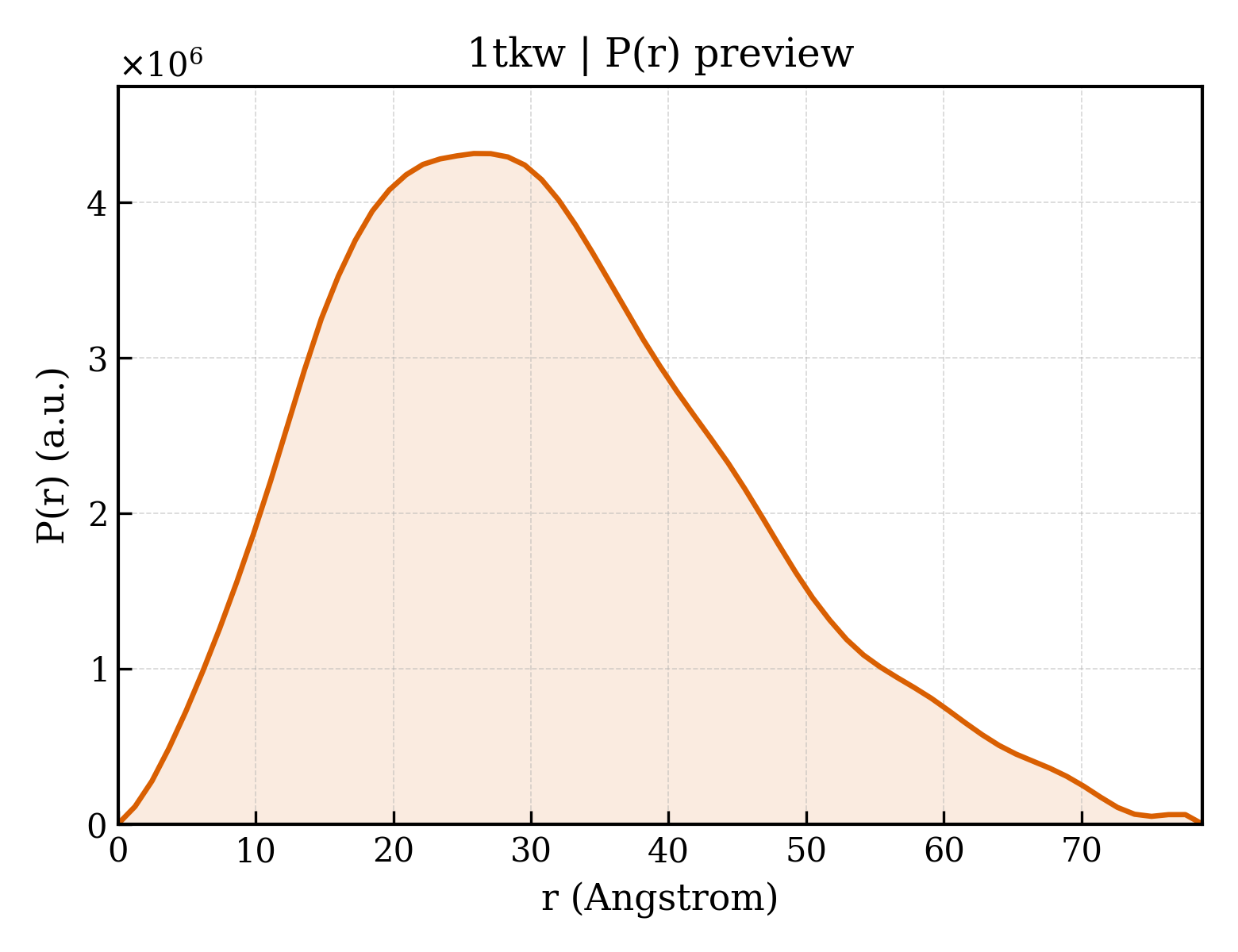

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	78.8 Å
Rg (real space) rg_real	23.87 Å
Rg uncertainty (real space) rg_real_error	0.72 Å
I(0) (real space) i0_real	1.9710e+09
I(0) uncertainty (real space) i0_real_error	2.7150e+07
Rg (reciprocal space) rg_reciprocal	23.83 Å
I(0) (reciprocal space) i0_reciprocal	1971000000.0000
Solution quality estimate total_estimate	0.8761
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	25.9 Å
Skewness Skewness skewness	0.509
Kurtosis Kurtosis kurtosis	-0.161
Angular range angular_range	— – 0.3350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3310000.0000
Real-space data points n_real_points	65
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.852; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.892; Smooth: 0.946

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Plastocyanin A
Molecular weight formula_weight	10493.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	53960

IDVLLGADDGSLAFVPSEFSISPGEKIVFKNNAGFPHNIVFDEDSIPSGVDASKISMSEEDLLNAKGETFEVALSNKGEYSFYCSPHQGAGMVGKVTVN

来源 Source

来源生物 organism	Populus nigra
NCBI Class编号 ncbi_taxonomy_id	3691
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Cytochrome f
Molecular weight formula_weight	27545.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

YPIFAQQNYENPREATGRIVCANCHLASKPVDIEVPQAVLPDTVFEAVVKIPYDMQLKQVLANGKKGALNVGAVLILPEGFELAPPDRISPEMKEKIGNLSFQNYRPNKKNILVIGPVPGQKYSEITFPILAPDPATNKDVHFLKYPIYVGGNRGRGQIYPDGSKSNNTVYNATAGGIISKILRKEKGGYEITIVDASNERQVIDIIPRGLELLVSEGESIKLDQPLTSNPNVGGFGQGDAEIVLQDPLRVQ

来源 Source

来源生物 organism	Brassica rapa subsp. rapa
通用名 common_name	turnip
NCBI Class编号 ncbi_taxonomy_id	51350
宿主生物 host_organism	Escherichia coli str. K12 substr. W3110

Entity 3 Entity 3 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1tkwa_
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.1 — Plastocyanin/azurin-like

CATH v4.4 (3 domains)

Domain ID domain_id	1tkwA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

Domain ID domain_id	1tkwB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	830 — Cytochrome f large domain

Domain ID domain_id	1tkwB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

fit	/app/data/saxs_computation/tk/1tkw/1tkw.fit
pddf	/app/data/pr_computation/tk/1tkw/1tkw.pr.out
profile	/app/data/saxs_computation/tk/1tkw/1tkw.dat

The transient complex of poplar plastocyanin with turnip cytochrome f determined with paramagnetic NMR
