SAXSdb — 2pcf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PLASTOCYANIN

Spinacia oleracea

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 70–168	Not recorded	CYTOCHROME F × 1 （P36438） CU COPPER (II) ION × 1 HEC HEME C × 1	SOLUTION NMR NMR measurement conditions：pH 6；300 K	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2PCF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AG6 PLASTOCYANIN FROM SPINACH Deposited 1997-04-02	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Mutation：G8D	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.4；pH 4.4	Resolution 1.60 Å R-free 0.224
1OOW The crystal structure of the spinach plastocyanin double mutant G8D/L12E gives insight into its low reactivity towards photosystem 1 and cytochrome f Deposited 2003-03-04	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Mutation：G8D, L12E	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；300 K；32% PEG 3350, 0.25M MgCl2, 0.1M Na-ascorbate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.00 Å R-free 0.232
1TEF Crystal structure of the spinach plastocyanin mutants G8D/K30C/T69C and K30C/T69C- a study of the effect on crystal packing and thermostability from the introduction of a novel disulfide bond Deposited 2004-05-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Mutation：G8D, K30C, T69C	CU COPPER (II) ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；21% PEG 3350, 0.25M MgCl2, 0.1M Na-acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.204
1TEF Crystal structure of the spinach plastocyanin mutants G8D/K30C/T69C and K30C/T69C- a study of the effect on crystal packing and thermostability from the introduction of a novel disulfide bond Deposited 2004-05-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 70–168（99 aa）	Mutation：G8D, K30C, T69C	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；21% PEG 3350, 0.25M MgCl2, 0.1M Na-acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.204
1TEG Crystal structure of the spinach plastocyanin mutants G8D/K30C/T69C and K30C/T69C- a study of the effect on crystal packing and thermostability from the introduction of a novel disulfide bond Deposited 2004-05-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Mutation：K30C, T69C	CU COPPER (II) ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；21% PEG 3350, 0.25M MgCl2, 0.1M Na-acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.96 Å R-free 0.304
1TEG Crystal structure of the spinach plastocyanin mutants G8D/K30C/T69C and K30C/T69C- a study of the effect on crystal packing and thermostability from the introduction of a novel disulfide bond Deposited 2004-05-25	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 70–168（99 aa）	Mutation：K30C, T69C	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；21% PEG 3350, 0.25M MgCl2, 0.1M Na-acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.96 Å R-free 0.304
1YLB NMR solution structure of the reduced spinach plastocyanin Deposited 2005-01-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 70–168（99 aa） Fragment：Reduced spinach plastocyanin (Residues 70-168)	Not recorded	CU1 COPPER (I) ION × 1	SOLUTION NMR NMR measurement conditions pH 7.5；293 K；Ionic strength (raw mmCIF value) 50 mM sodium phosphate；Pressure ambient NMR sample composition 1-2 mM wild type reduced spinach plastocyanin, 50mM sodium phosphate buffer \| 90% H2O/10% D2O	Resolution not provided
9TGG Cryo-EM structure of Spinacia oleracea cytochrome b6f complex with bound plastocyanin Deposited 2025-12-01	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: 17-meric	Chain Q 70–168（99 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 4 HEC HEME C × 4 UMQ UNDECYL-MALTOSIDE × 6 PL9 2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,22,26,30,34-HEXATRIACONTANONAENYL-2,5-CYCLOHEXADIENE-1,4-DIONE-2,3-DIMETHYL-5-SOLANESYL-1,4-BENZOQUINONE × 7 CLA CHLOROPHYLL A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 BCR BETA-CAROTENE × 2 CU COPPER (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.18 Å

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLAS_SPIOL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–99； UniProt 70–168

CYTOCHROME F

Brassica rapa

UniProt P36438

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 36–285	Fragment：SOLUBLE DOMAIN	PLASTOCYANIN × 1 （P00289） CU COPPER (II) ION × 1 HEC HEME C × 1	SOLUTION NMR NMR measurement conditions：pH 6；300 K	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2PCF	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CTM CRYSTAL STRUCTURE OF CHLOROPLAST CYTOCHROME F REVEALS A NOVEL CYTOCHROME FOLD AND UNEXPECTED HEME LIGATION Deposited 1994-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–285（250 aa）	Not recorded	HEC HEME C × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å R-free 0.277
1HCZ LUMEN-SIDE DOMAIN OF REDUCED CYTOCHROME F AT-35 DEGREES CELSIUS Deposited 1996-09-18	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 36–287（252 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.96 Å R-free 0.250
1TKW The transient complex of poplar plastocyanin with turnip cytochrome f determined with paramagnetic NMR Deposited 2004-06-09	Different construct Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 36–287（252 aa）	Not recorded	CU COPPER (II) ION × 1 HEC HEME C × 1	SOLUTION NMR NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 10 mM；Pressure 1 NMR measurement conditions pH 6；303 K；Ionic strength (raw mmCIF value) 11 mM；Pressure 1 NMR sample composition 0.5 mM Cd-substituted poplar plastocyanin + 0.35 mM soluble fragment of turnip cytochrome f in oxidized state in 10 mM sodium phosphate pH 6.0 \| 94% H2O, 6% D2O NMR sample composition 0.5 mM Cd-substituted poplar plastocyanin + 0.35 mM soluble fragment of turnip cytochrome f in reduced state in 10 mM sodium phosphate pH 6.0 + 1 mM sodium ascorbate \| 94% H2O, 6% D2O	Resolution not provided

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CYF_BRARA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–250； UniProt 36–285

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2pcf
Deposition date deposition_date	1997-12-22
Structure title title	THE COMPLEX OF CYTOCHROME F AND PLASTOCYANIN DETERMINED WITH PARAMAGNETIC NMR. BASED ON THE STRUCTURES OF CYTOCHROME F AND PLASTOCYANIN, 10 STRUCTURES
Keywords keywords	;ELECTRON TRANSPORT, PARAMAGNETIC, CHEMICAL SHIFT, COMPLEX FORMATION, DYNAMIC COMPLEX, PHOTOSYNTHESIS, PSEUDOCONTACT SHIFT, COMPLEX (ELECTRON TRANSPORT PROTEINS) ;; COMPLEX (ELECTRON TRANSPORT PROTEINS)
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.51 Å
Radius of gyration Rg (electron density) rg_electron	23.73 Å
Forward intensity I(0) i0	1959600000.00
Molecular weight molecular_weight	383740.0 kDa
Excluded volume excluded_volume	483150 Å³
Envelope volume envelope_volume	63967 Å³
Hydration-shell volume shell_volume	23401 Å³
Envelope diameter envelope_diameter	89.3 Å
Shell Rg shell_rg	30.11 Å
Envelope Rg envelope_rg	24.60 Å
Shape Rg shape_rg	23.72 Å
Total Rg total_rg	23.88 Å
Total atoms total_atoms	53890
Residues n_residues	3490
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

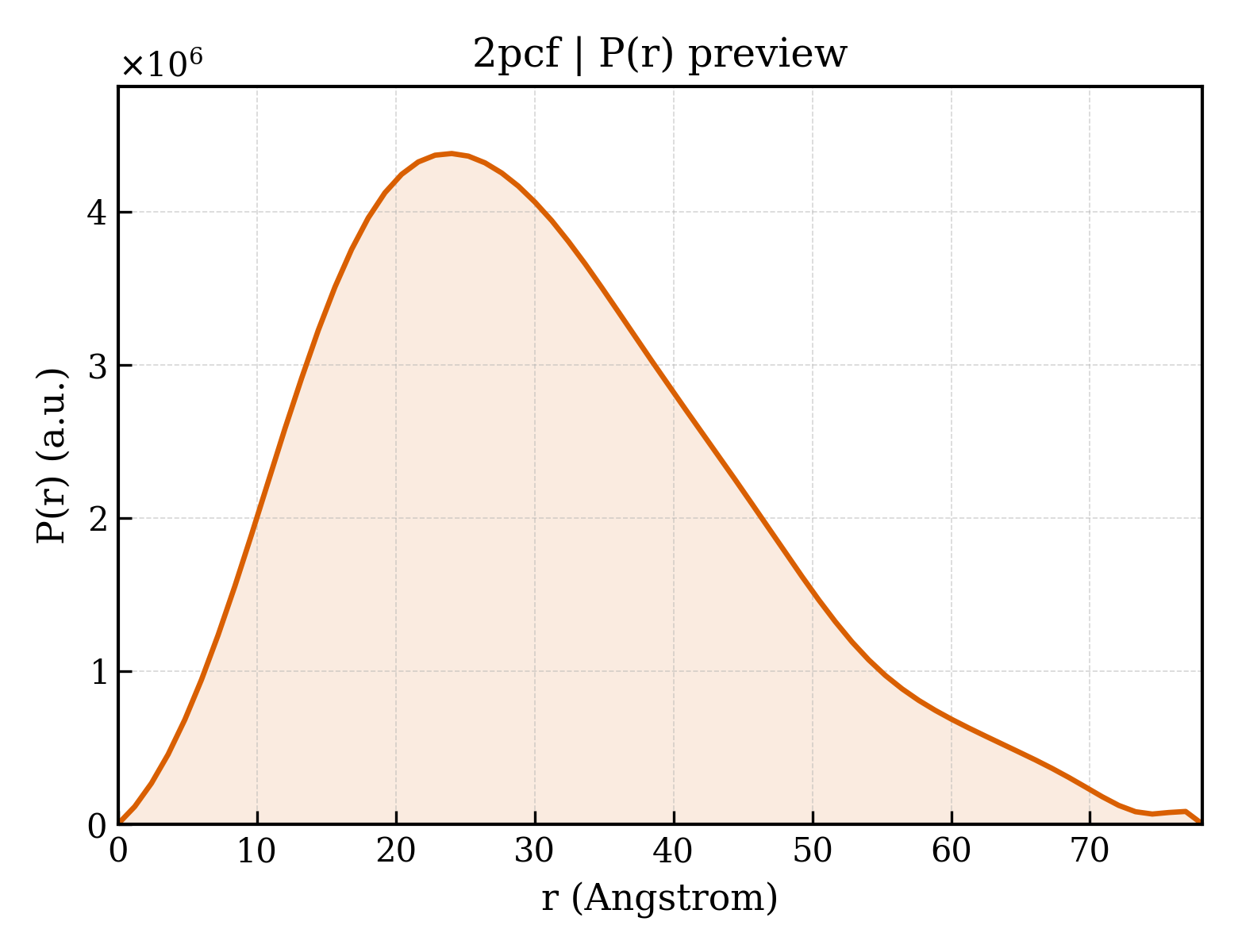

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	78.1 Å
Rg (real space) rg_real	23.67 Å
Rg uncertainty (real space) rg_real_error	0.73 Å
I(0) (real space) i0_real	1.9600e+09
I(0) uncertainty (real space) i0_real_error	3.2790e+07
Rg (reciprocal space) rg_reciprocal	23.63 Å
I(0) (reciprocal space) i0_reciprocal	1960000000.0000
Solution quality estimate total_estimate	0.8776
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.0 Å
Skewness Skewness skewness	0.528
Kurtosis Kurtosis kurtosis	-0.146
Angular range angular_range	— – 0.3400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3910000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.849; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.899; Smooth: 0.958

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	PLASTOCYANIN
Molecular weight formula_weight	10420.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	53890

VEVLLGGGDGSLAFLPGDFSVASGEEIVFKNNAGFPHNVVFDEDEIPSGVDAAKISMSEEDLLNAPGETYKVTLTEKGTYKFYCSPHQGAGMVGKVTVN

来源 Source

来源生物 organism	Spinacia oleracea
通用名 common_name	spinach
NCBI Class编号 ncbi_taxonomy_id	3562
宿主生物 host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	CYTOCHROME F
Molecular weight formula_weight	27318.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

YPIFAQQNYENPREATGRIVCANCHLASKPVDIEVPQAVLPDTVFEAVVKIPYDMQLKQVLANGKKGALNVGAVLILPEGFELAPPDRISPEMKEKIGNLSFQNYRPNKKNILVIGPVPGQKYSEITFPILAPDPATNKDVHFLKYPIYVGGNRGRGQIYPDGSKSNNTVYNATAGGIISKILRKEKGGYEITIVDASNERQVIDIIPRGLELLVSEGESIKLDQPLTSNPNVGGFGQGDAEIVLQDPLR

来源 Source

来源生物 organism	Brassica rapa
NCBI Class编号 ncbi_taxonomy_id	3711
宿主生物 host_organism	Escherichia coli BL21

Entity 3 Entity 3 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2pcfa_
Class class	i — Low resolution protein structures
Fold Fold fold	i.4 — Electron transport chains
Superfamily Superfamily superfamily	i.4.1 — Electron transport chains
Family Family family	i.4.1.1 — Electron transport chains

Domain ID domain_id	d2pcfb_
Class class	i — Low resolution protein structures
Fold Fold fold	i.4 — Electron transport chains
Superfamily Superfamily superfamily	i.4.1 — Electron transport chains
Family Family family	i.4.1.1 — Electron transport chains

CATH v4.4 (3 domains)

Domain ID domain_id	2pcfA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

Domain ID domain_id	2pcfB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	830 — Cytochrome f large domain

Domain ID domain_id	2pcfB02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	50 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
Homologous superfamily homologous superfamily	100 — RNA polymerase II/Efflux pump adaptor protein, barrel-sandwich hybrid domain

▶

8. Citations (3)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

fit	/app/data/saxs_computation/pc/2pcf/2pcf.fit
pddf	/app/data/pr_computation/pc/2pcf/2pcf.pr.out
profile	/app/data/saxs_computation/pc/2pcf/2pcf.dat
