1ag6
PLASTOCYANIN FROM SPINACH

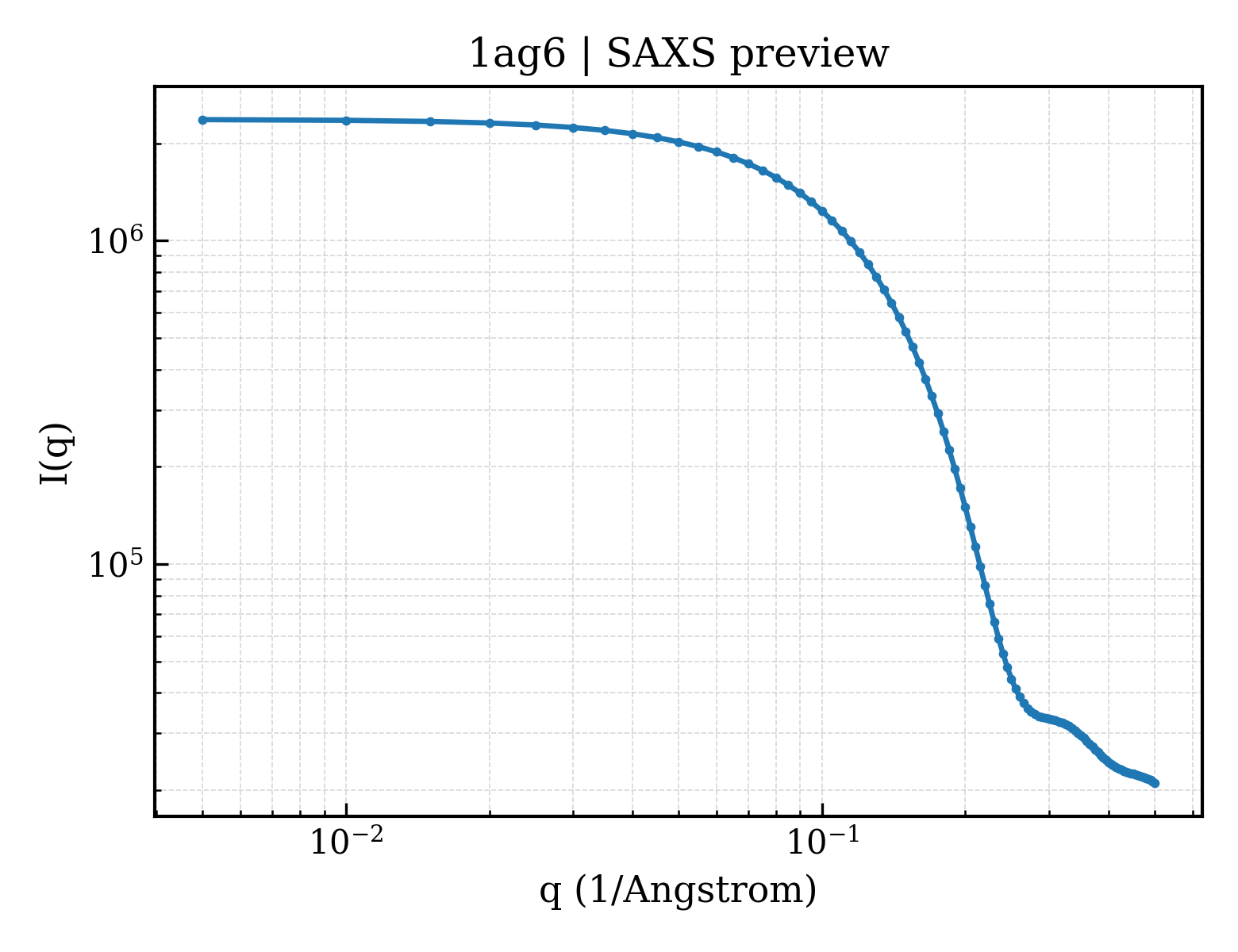

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1ag6 |
| deposition_date | 1997-04-02 |
| title | PLASTOCYANIN FROM SPINACH |
| keywords | BLUE-COPPER PROTEIN, ELECTRON TRANSFER, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.89 Å |
| rg_electron | 12.42 Å |
| i0 | 2371620.00 |
| molecular_weight | 10524.0 kDa |
| excluded_volume | 13068 ų |
| envelope_volume | 14180 ų |
| shell_volume | 9938 ų |
| envelope_diameter | 41.1 Å |
| shell_rg | 17.94 Å |
| envelope_rg | 12.64 Å |
| shape_rg | 12.40 Å |
| total_rg | 13.71 Å |
| total_atoms | 738 |
| n_residues | 99 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 43.7 Å |
| rg_real | 13.80 Å |
| rg_real_error | 0.31 Å |
| i0_real | 2.3720e+06 |
| i0_real_error | 2.7770e+04 |
| rg_reciprocal | 13.81 Å |
| i0_reciprocal | 2372000.0000 |
| total_estimate | 0.8999 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.2 Å |
| skewness | 0.130 |
| kurtosis | -0.409 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 312400.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.906; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.979 |
