SAXSdb — 1oow

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plastocyanin, chloroplast

Spinacia oleracea

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 70–168	Mutation：G8D, L12E	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 4.5；300 K；32% PEG 3350, 0.25M MgCl2, 0.1M Na-ascorbate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 300K	Resolution 2.00 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1OOW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AG6 PLASTOCYANIN FROM SPINACH Deposited 1997-04-02	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Mutation：G8D	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.4；pH 4.4	Resolution 1.60 Å R-free 0.224
1TEF Crystal structure of the spinach plastocyanin mutants G8D/K30C/T69C and K30C/T69C- a study of the effect on crystal packing and thermostability from the introduction of a novel disulfide bond Deposited 2004-05-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Mutation：G8D, K30C, T69C	CU COPPER (II) ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；21% PEG 3350, 0.25M MgCl2, 0.1M Na-acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.204
1TEF Crystal structure of the spinach plastocyanin mutants G8D/K30C/T69C and K30C/T69C- a study of the effect on crystal packing and thermostability from the introduction of a novel disulfide bond Deposited 2004-05-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 70–168（99 aa）	Mutation：G8D, K30C, T69C	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；21% PEG 3350, 0.25M MgCl2, 0.1M Na-acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.90 Å R-free 0.204
1TEG Crystal structure of the spinach plastocyanin mutants G8D/K30C/T69C and K30C/T69C- a study of the effect on crystal packing and thermostability from the introduction of a novel disulfide bond Deposited 2004-05-25	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 70–168（99 aa）	Mutation：K30C, T69C	CU COPPER (II) ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；21% PEG 3350, 0.25M MgCl2, 0.1M Na-acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.96 Å R-free 0.304
1TEG Crystal structure of the spinach plastocyanin mutants G8D/K30C/T69C and K30C/T69C- a study of the effect on crystal packing and thermostability from the introduction of a novel disulfide bond Deposited 2004-05-25	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 70–168（99 aa）	Mutation：K30C, T69C	CU COPPER (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；293 K；21% PEG 3350, 0.25M MgCl2, 0.1M Na-acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 1.96 Å R-free 0.304
1YLB NMR solution structure of the reduced spinach plastocyanin Deposited 2005-01-19	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 70–168（99 aa） Fragment：Reduced spinach plastocyanin (Residues 70-168)	Not recorded	CU1 COPPER (I) ION × 1	SOLUTION NMR NMR measurement conditions pH 7.5；293 K；Ionic strength (raw mmCIF value) 50 mM sodium phosphate；Pressure ambient NMR sample composition 1-2 mM wild type reduced spinach plastocyanin, 50mM sodium phosphate buffer \| 90% H2O/10% D2O	Resolution not provided
2PCF THE COMPLEX OF CYTOCHROME F AND PLASTOCYANIN DETERMINED WITH PARAMAGNETIC NMR. BASED ON THE STRUCTURES OF CYTOCHROME F AND PLASTOCYANIN, 10 STRUCTURES Deposited 1997-12-22	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 70–168（99 aa）	Not recorded	CU COPPER (II) ION × 1 HEC HEME C × 1	SOLUTION NMR NMR measurement conditions pH 6；300 K	Resolution not provided
9TGG Cryo-EM structure of Spinacia oleracea cytochrome b6f complex with bound plastocyanin Deposited 2025-12-01	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 17 PDB declaration: 17-meric	Chain Q 70–168（99 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 4 HEC HEME C × 4 UMQ UNDECYL-MALTOSIDE × 6 PL9 2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,22,26,30,34-HEXATRIACONTANONAENYL-2,5-CYCLOHEXADIENE-1,4-DIONE-2,3-DIMETHYL-5-SOLANESYL-1,4-BENZOQUINONE × 7 CLA CHLOROPHYLL A × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2 SQD 1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL × 2 BCR BETA-CAROTENE × 2 CU COPPER (II) ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.18 Å

6 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PLAS_SPIOL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–99； UniProt 70–168

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1oow
Deposition date deposition_date	2003-03-04
Structure title title	The crystal structure of the spinach plastocyanin double mutant G8D/L12E gives insight into its low reactivity towards photosystem 1 and cytochrome f
Keywords keywords	CUPREDOXIN, BETA SANDWICH, ELECTRON TRANSPORT, MEMBRANE; ELECTRON TRANSPORT, MEMBRANE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	13.80 Å
Radius of gyration Rg (electron density) rg_electron	12.36 Å
Forward intensity I(0) i0	2405060.00
Molecular weight molecular_weight	10539.0 kDa
Excluded volume excluded_volume	13044 Å³
Envelope volume envelope_volume	14044 Å³
Hydration-shell volume shell_volume	9881 Å³
Envelope diameter envelope_diameter	41.4 Å
Shell Rg shell_rg	17.84 Å
Envelope Rg envelope_rg	12.60 Å
Shape Rg shape_rg	12.34 Å
Total Rg total_rg	13.62 Å
Total atoms total_atoms	739
Residues n_residues	99
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	43.9 Å
Rg (real space) rg_real	13.71 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	2.4050e+06
I(0) uncertainty (real space) i0_real_error	2.4730e+04
Rg (reciprocal space) rg_reciprocal	13.72 Å
I(0) (reciprocal space) i0_reciprocal	2405000.0000
Solution quality estimate total_estimate	0.8977
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	17.2 Å
Skewness Skewness skewness	0.136
Kurtosis Kurtosis kurtosis	-0.409
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	305400.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.898; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.972

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Plastocyanin, chloroplast
Molecular weight formula_weight	10494.5 kDa
Mutation mutation	G8D, L12E
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	779

VEVLLGGDDGSEAFLPGDFSVASGEEIVFKNNAGFPHNVVFDEDEIPSGVDAAKISMSEEDLLNAPGETYKVTLTEKGTYKFYCSPHQGAGMVGKVTVN

来源 Source

来源生物 organism	Spinacia oleracea
通用名 common_name	spinach
NCBI Class编号 ncbi_taxonomy_id	3562
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	40

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1oowa_
Class class	b — All beta proteins
Fold Fold fold	b.6 — Cupredoxin-like
Superfamily Superfamily superfamily	b.6.1 — Cupredoxins
Family Family family	b.6.1.1 — Plastocyanin/azurin-like

CATH v4.4 (1 domains)

Domain ID domain_id	1oowA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	420 — Cupredoxins - blue copper proteins

▶

8. Citations (1)

▶

Unit-cell length a length_a	74.761 Å
Unit-cell length b length_b	74.761 Å
Unit-cell length c length_c	31.383 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	19.280 Å
R factor r_factor	0.1881
R_work r_work	0.1832
R_free r_free	0.2323

fit	/app/data/saxs_computation/oo/1oow/1oow.fit
pddf	/app/data/pr_computation/oo/1oow/1oow.pr.out
profile	/app/data/saxs_computation/oo/1oow/1oow.dat

The crystal structure of the spinach plastocyanin double mutant G8D/L12E gives insight into its low reactivity towards photosystem 1 and cytochrome f

1. Protein Identity and Related Structures Protein Identity & Related Structures

Plastocyanin, chloroplast

State in the Current Structure

Other States of the Same Protein in the Database

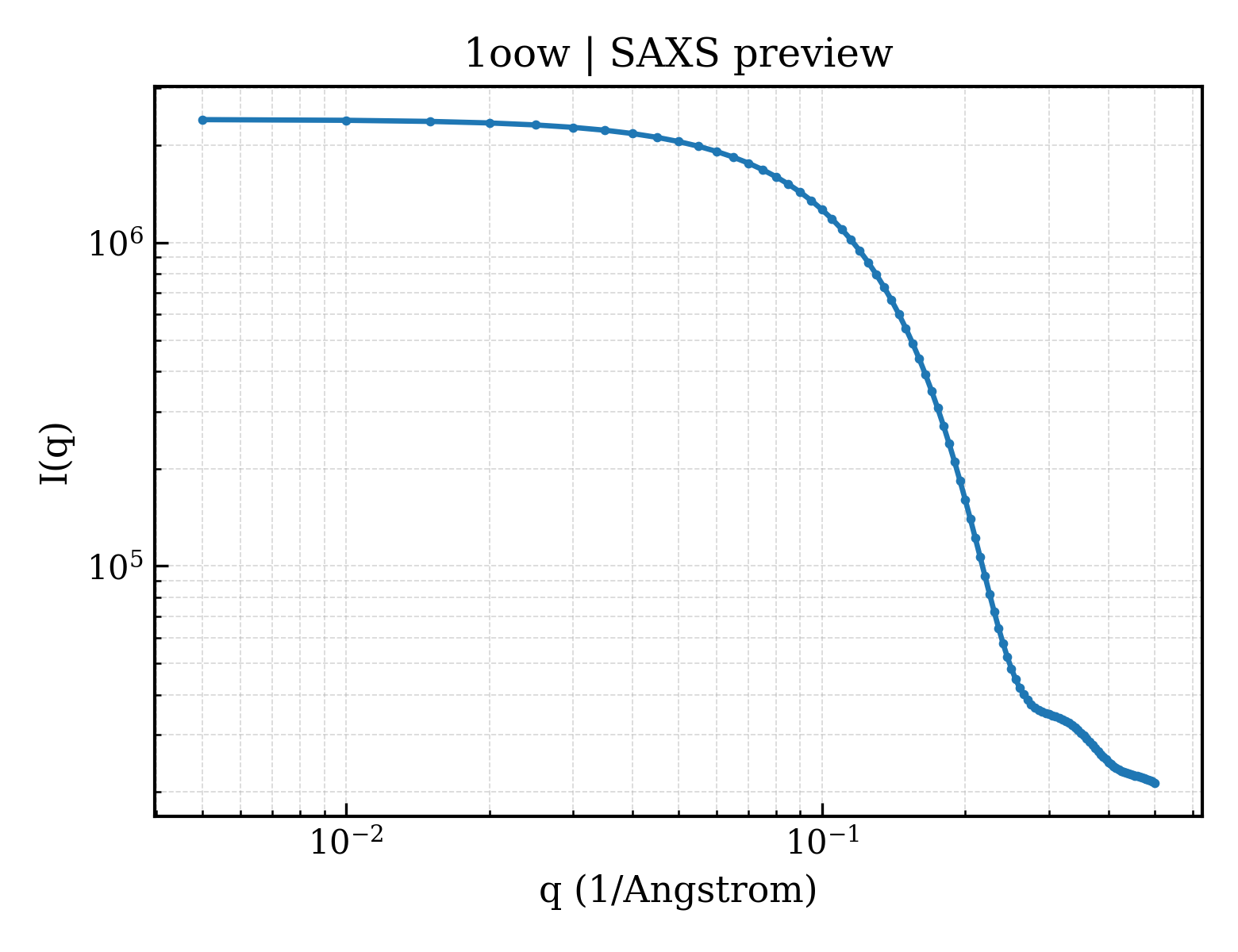

SAXS scattering curve SAXS Profile
