1tqy

The Actinorhodin Ketosynthase/Chain Length Factor

Method: X-RAY DIFFRACTION D_max: 149.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

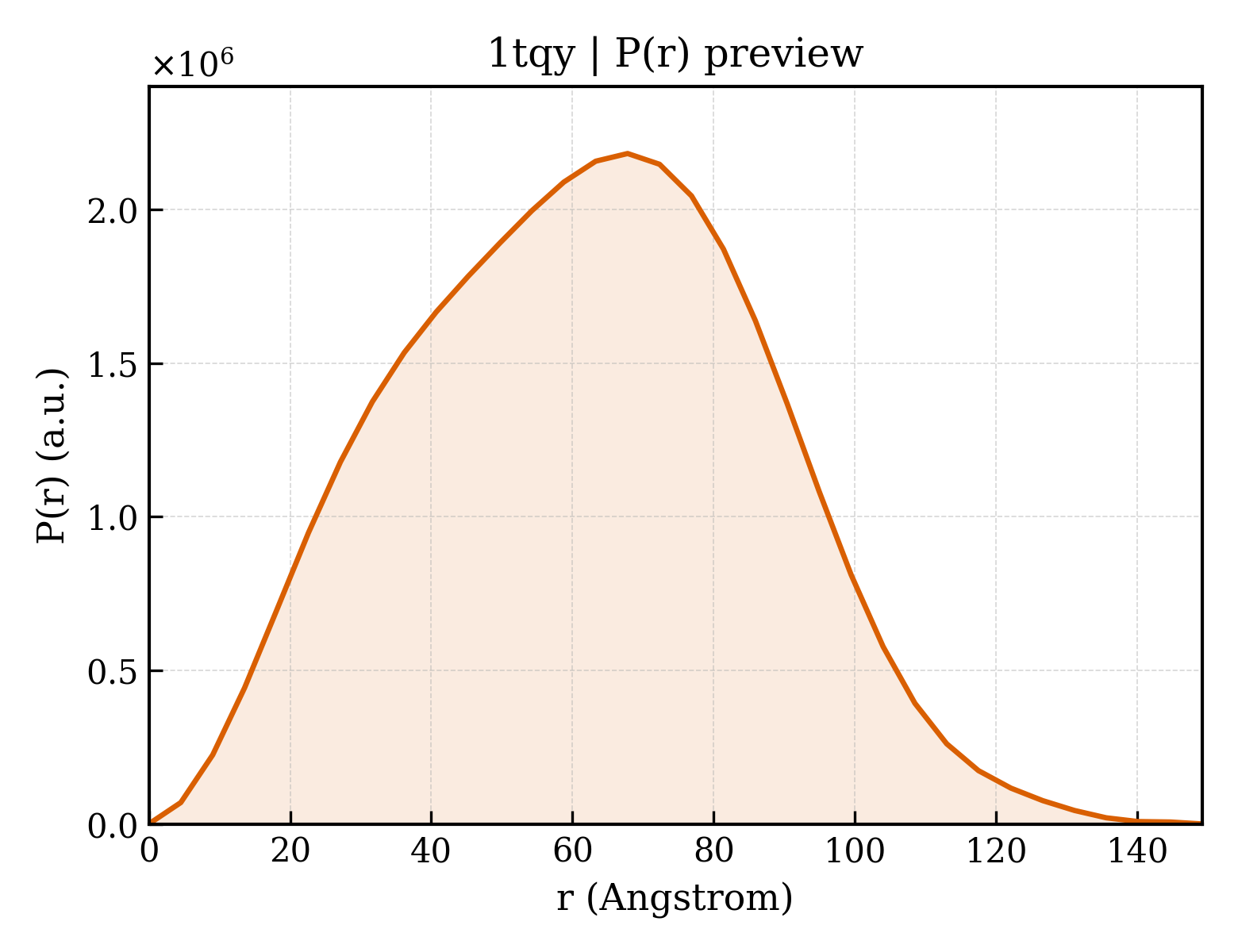

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1tqy
沉积日期 deposition_date	2004-06-18
结构标题 title	The Actinorhodin Ketosynthase/Chain Length Factor
关键词 keywords	alpha-beta-alpha-beta-alpha, heterodimer, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.38 Å
回转半径 Rg (电子) rg_electron	46.48 Å
零角强度 I(0) i0	1866990000.00
分子量 molecular_weight	347260.0 kDa
排除体积 excluded_volume	429050 Å³
包络体积 envelope_volume	535190 Å³
水化壳体积 shell_volume	91479 Å³
包络直径 envelope_diameter	156.0 Å
壳层 Rg shell_rg	54.53 Å
包络 Rg envelope_rg	45.62 Å
形状 Rg shape_rg	46.45 Å
总 Rg total_rg	46.82 Å
总原子数 total_atoms	24460
残基数 n_residues	3292
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	149.2 Å
Rg (实空间) rg_real	47.06 Å
Rg 误差 (实空间) rg_real_error	0.94 Å
I(0) (实空间) i0_real	1.8670e+09
I(0) 误差 (实空间) i0_real_error	3.1540e+07
Rg (倒空间) rg_reciprocal	47.37 Å
I(0) (倒空间) i0_reciprocal	1868000000.0000
解质量估计 total_estimate	0.8820
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	67.8 Å
偏度 Skewness skewness	0.071
峰度 Kurtosis kurtosis	-0.514
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	480500000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.888; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.823

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Actinorhodin polyketide putative beta-ketoacyl synthase 1
分子量 formula_weight	45113.3 kDa
EC 编号 ec_number	2.3.1.-
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G
原子数 atom_count	25535

MKRRVVITGVGVRAPGGNGTRQFWELLTSGRTATRRISFFDPSPYRSQVAAEADFDPVAEGFGPRELDRMDRASQFAVACAREAFAASGLDPDTLDPARVGVSLGSAVAAATSLEREYLLLSDSGRDWEVDAAWLSRHMFDYLVPSVMPAEVAWAVGAEGPVTMVSTGCTSGLDSVGNAVRAIEEGSADVMFAGAADTPITPIVVACFDAIRATTARNDDPEHASRPFDGTRDGFVLAEGAAMFVLEDYDSALARGARIHAEISGYATRCNAYHMTGLKADGREMAETIRVALDESRTDATDIDYINAHGSGTRQNDRHETAAYKRALGEHARRTPVSSIKSMVGHSLGAIGSLEIAACVLALEHGVVPPTANLRTSDPECDLDYVPLEARERKLRSVLTVGSGFGGFQSAMVLRDAETAGAAA

来源 Source

来源生物 organism	Streptomyces coelicolor A3(2)
NCBI 分类编号 ncbi_taxonomy_id	100226
宿主生物 host_organism	Streptomyces coelicolor A3(2)

Entity 2 polymer

描述 description	Actinorhodin polyketide putative beta-ketoacyl synthase 2
分子量 formula_weight	43590.6 kDa
EC 编号 ec_number	2.3.1.-
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H

MDYKDDDDKSVLITGVGVVAPNGLGLAPYWSAVLDGRHGLGPVTRFDVSRYPATLAGQIDDFHAPDHIPGRLLPQTDPSTRLALTAADWALQDAKADPESLTDYDMGVVTANACGGFDFTHREFRKLWSEGPKSVSVYESFAWFYAVNTGQISIRHGMRGPSSALVAEQAGGLDALGHARRTIRRGTPLVVSGGVDSALDPWGWVSQIASGRISTATDPDRAYLPFDERAAGYVPGEGGAILVLEDSAAAEARGRHDAYGELAGCASTFDPAPGSGRPAGLERAIRLALNDAGTGPEDVDVVFADGAGVPELDAAEARAIGRVFGREGVPVTVPKTTTGRLYSGGGPLDVVTALMSLREGVIAPTAGVTSVPREYGIDLVLGEPRSTAPRTALVLARGRWGFNSAAVLRRFAPTP

来源 Source

来源生物 organism	Streptomyces coelicolor A3(2)
NCBI 分类编号 ncbi_taxonomy_id	100226
宿主生物 host_organism	Streptomyces coelicolor A3(2)

Entity 3 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	ACETYL GROUP
分子量 formula_weight	44.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	SODIUM ION
分子量 formula_weight	23.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1075

▼

6. 折叠分类 (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

结构域编号 domain_id	d1tqya1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqya2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyb1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyb2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyc1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyd1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqye1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqye2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyf1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyf2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyg1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyg2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyh1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

结构域编号 domain_id	d1tqyh2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.95 — Thiolase-like
超家族 Superfamily superfamily	c.95.1 — Thiolase-like
家族 Family family	c.95.1.1 — Thiolase-related

CATH v4.4 (16 domains)

结构域编号 domain_id	1tqyA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyE02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyG01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyG02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

结构域编号 domain_id	1tqyH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	47 — Peroxisomal Thiolase; Chain A, domain 1
同源超家族 H-superfamily homologous superfamily	10 — Thiolase/Chalcone synthase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	262.700 Å
晶胞边长 b length_b	262.700 Å
晶胞边长 c length_c	224.030 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	36

空间群 space_group	H 3
空间群编号 int_tables_number	146
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	—
R_work r_work	0.2330
R_free r_free	0.2530

fit	/app/data/saxs_computation/tq/1tqy/1tqy.fit
pddf	/app/data/pr_computation/tq/1tqy/1tqy.pr.out
profile	/app/data/saxs_computation/tq/1tqy/1tqy.dat

The Actinorhodin Ketosynthase/Chain Length Factor

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (6)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 polymer

聚合体 Polymer

来源 Source

Entity 3 non-polymer

Entity 4 non-polymer

Entity 5 non-polymer

Entity 6 water

6. 折叠分类 (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
