1tye

Structural basis for allostery in integrins and binding of ligand-mimetic therapeutics to the platelet receptor for fibrinogen

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrin alpha-IIb

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	Integrin beta-3 × 1 （P05106） ;beta-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CALCIUM ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CACODYLATE ION × 1 MAGNESIUM ION × 1 water × 2	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	Integrin beta-3 × 1 （P05106） ;beta-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CALCIUM ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CACODYLATE ION × 1 MAGNESIUM ION × 1 water × 2	Consistent with protein count
3	Other combination	Heteromer	Protein 2 其他Polymer 1	Integrin beta-3 × 1 （P05106） ;beta-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CALCIUM ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CACODYLATE ION × 1 MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ITAB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–452； UniProt 32–483 Author chain C； PDBConstruct 1–452； UniProt 32–483 Author chain E； PDBConstruct 1–452； UniProt 32–483

Integrin beta-3

Homo sapiens

UniProt P05106

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	Integrin alpha-IIb × 1 （P08514） ;beta-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CALCIUM ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CACODYLATE ION × 1 MAGNESIUM ION × 1 water × 2	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	Integrin alpha-IIb × 1 （P08514） ;beta-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CALCIUM ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CACODYLATE ION × 1 MAGNESIUM ION × 1 water × 2	Consistent with protein count
3	Other combination	Heteromer	Protein 2 其他Polymer 1	Integrin alpha-IIb × 1 （P08514） ;beta-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 CALCIUM ION × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 CACODYLATE ION × 1 MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ITB3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–440； UniProt 27–466 Author chain D； PDBConstruct 1–440； UniProt 27–466 Author chain F； PDBConstruct 1–440； UniProt 27–466

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tye
Deposition date deposition_date	2004-07-07
Structure title title	Structural basis for allostery in integrins and binding of ligand-mimetic therapeutics to the platelet receptor for fibrinogen
Keywords keywords	crystal structure; platelet integrin alphaIIBbeta3; fibrinogen binding; allostery; therapeutic antagonism, CELL ADHESION; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tye__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1tye__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

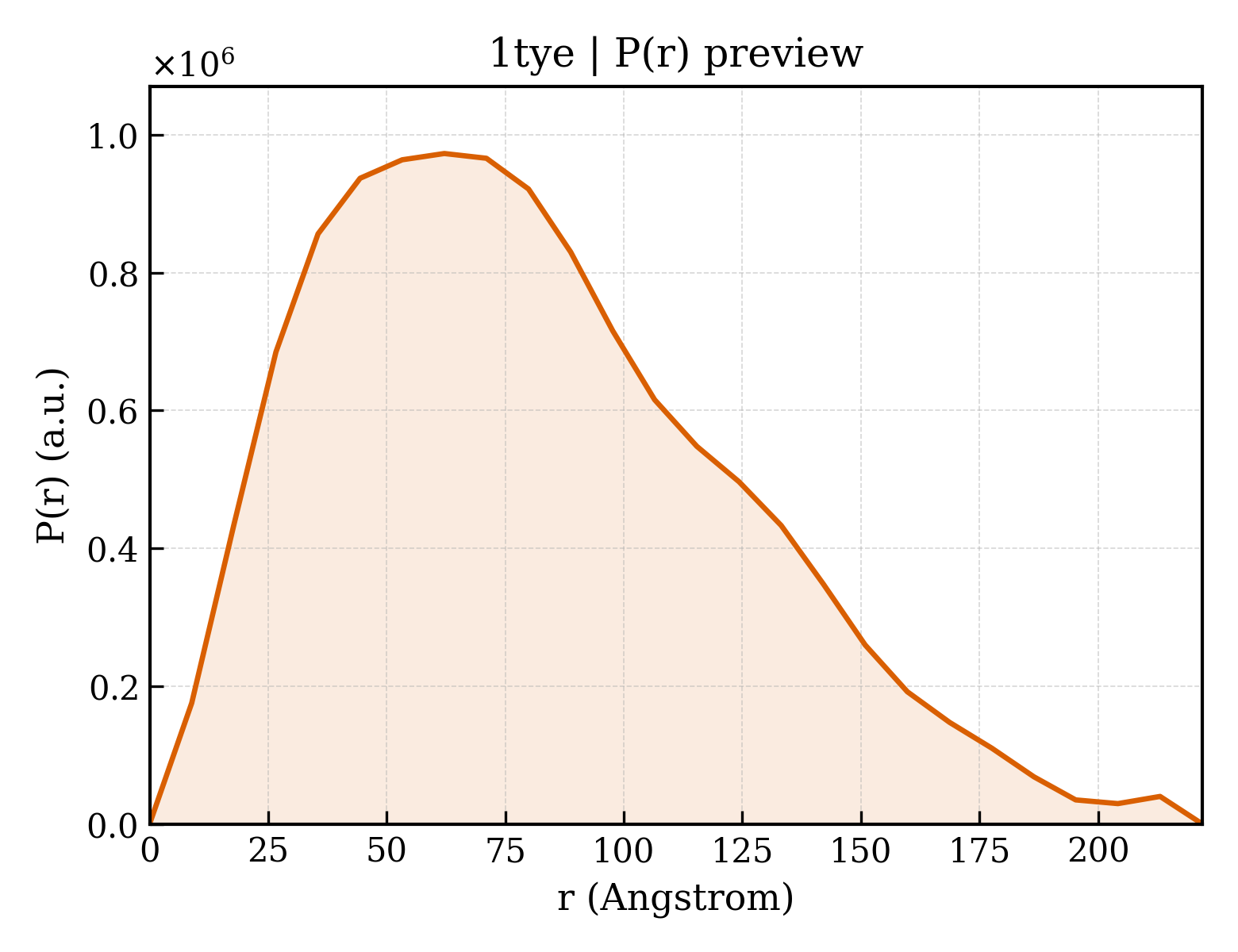

1tye__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.18 Å
Rg (electron density)	38.29 Å
Total Rg	38.70 Å
Atom count	6958
Residues	892
Excluded volume	123300 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tye__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1tye__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1tye__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Integrin alpha-IIb
Molecular weight formula_weight	49044.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	21019

LNLDPVQLTFYAGPNGSQFGFSLDFHKDSHGRVAIVVGAPRTLGPSQEETGGVFLCPWRAEGGQCPSLLFDLRDETRNVGSQTLQTFKARQGLGASVVSWSDVIVACAPWQHWNVLEKTEEAEKTPVGSCFLAQPESGRRAEYSPCRGNTLSRIYVENDFSWDKRYCEAGFSSVVTQAGELVLGAPGGYYFLGLLAQAPVADIFSSYRPGILLWHVSSQSLSFDSSNPEYFDGYWGYSVAVGEFDGDLNTTEYVVGAPTWSWTLGAVEILDSYYQRLHRLRAEQMASYFGHSVAVTDVNGDGRHDLLVGAPLYMESRADRKLAEVGRVYLFLQPRGPHALGAPSLLLTGTQLYGRFGSAIAPLGDLDRDGYNDIAVAAPYGGPSGRGQVLVFLGQSEGLRSRPSQVLDSPFPTGSAFGFSLRGAVDIDDNGYPDLIVGAYGANQVAVYRAQP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 2 Entity 2 polymer

Description description	Integrin beta-3
Molecular weight formula_weight	48719.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

GPNICTTRGVSSCQQCLAVSPMCAWCSDEALPLGSPRCDLKENLLKDNCAPESIEFPVSEARVLEDRPLSDKGSGDSSQVTQVSPQRIALRLRPDDSKNFSIQVRQVEDYPVDIYYLMDLSYSMKDDLWSIQNLGTKLATQMRKLTSNLRIGFGAFVDKPVSPYMYISPPEALENPCYDMKTTCLPMFGYKHVLTLTDQVTRFNEEVKKQSVSRNRDAPEGGFDAIMQATVCDEKIGWRNDASHLLVFTTDAKTHIALDGRLAGIVQPNDGQCHVGSDNHYSASTTMDYPSLGLMTEKLSQKNINLIFAVTENVVNLYQNYSELIPGTTVGVLSMDSSNVLQLIVDAYGKIRSKVELEVRDLPEELSLSFNATCLNNEVIPGLKSCMGLKIGDTVSFSIEAKVRGCPQEKEKSFTIKPVGFKDSLIVQVTFDCDCACQAQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Cricetulus griseus

Entity 3 Entity 3 branched

Description description	;beta-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	748.7 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 branched

Description description	;beta-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	7

Entity 7 Entity 7 non-polymer

Description description	CACODYLATE ION
Molecular weight formula_weight	137.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 8 Entity 8 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	120

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1tyea_
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.8 — Integrin alpha N-terminal domain
Family Family family	b.69.8.1 — Integrin alpha N-terminal domain

Domain ID domain_id	d1tyeb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.15 — Integrin domains
Family Family family	b.1.15.1 — Integrin domains

Domain ID domain_id	d1tyeb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.62 — vWA-like
Superfamily Superfamily superfamily	c.62.1 — vWA-like
Family Family family	c.62.1.1 — Integrin A (or I) domain

Domain ID domain_id	d1tyeb3
Class class	g — Small proteins
Fold Fold fold	g.16 — Trefoil/Plexin domain-like
Superfamily Superfamily superfamily	g.16.2 — Plexin repeat
Family Family family	g.16.2.1 — Plexin repeat

Domain ID domain_id	d1tyec_
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.8 — Integrin alpha N-terminal domain
Family Family family	b.69.8.1 — Integrin alpha N-terminal domain

Domain ID domain_id	d1tyed1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.15 — Integrin domains
Family Family family	b.1.15.1 — Integrin domains

Domain ID domain_id	d1tyed2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.62 — vWA-like
Superfamily Superfamily superfamily	c.62.1 — vWA-like
Family Family family	c.62.1.1 — Integrin A (or I) domain

Domain ID domain_id	d1tyed3
Class class	g — Small proteins
Fold Fold fold	g.16 — Trefoil/Plexin domain-like
Superfamily Superfamily superfamily	g.16.2 — Plexin repeat
Family Family family	g.16.2.1 — Plexin repeat

Domain ID domain_id	d1tyee_
Class class	b — All beta proteins
Fold Fold fold	b.69 — 7-bladed beta-propeller
Superfamily Superfamily superfamily	b.69.8 — Integrin alpha N-terminal domain
Family Family family	b.69.8.1 — Integrin alpha N-terminal domain

Domain ID domain_id	d1tyef1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.15 — Integrin domains
Family Family family	b.1.15.1 — Integrin domains

Domain ID domain_id	d1tyef2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.62 — vWA-like
Superfamily Superfamily superfamily	c.62.1 — vWA-like
Family Family family	c.62.1.1 — Integrin A (or I) domain

Domain ID domain_id	d1tyef3
Class class	g — Small proteins
Fold Fold fold	g.16 — Trefoil/Plexin domain-like
Superfamily Superfamily superfamily	g.16.2 — Plexin repeat
Family Family family	g.16.2.1 — Plexin repeat

CATH v4.4 (12 domains)

Domain ID domain_id	1tyeA00
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	130 — Integrin alpha, N-terminal

Domain ID domain_id	1tyeB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1680 — ligand-binding face of the semaphorins, domain 2
Homologous superfamily homologous superfamily	10 — ligand-binding face of the semaphorins, domain 2

Domain ID domain_id	1tyeB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1510 — ntegrin, alpha v. Chain A, domain 3

Domain ID domain_id	1tyeB03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	410 — von Willebrand factor, type A domain

Domain ID domain_id	1tyeC00
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	130 — Integrin alpha, N-terminal

Domain ID domain_id	1tyeD01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1680 — ligand-binding face of the semaphorins, domain 2
Homologous superfamily homologous superfamily	10 — ligand-binding face of the semaphorins, domain 2

Domain ID domain_id	1tyeD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1510 — ntegrin, alpha v. Chain A, domain 3

Domain ID domain_id	1tyeD03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	410 — von Willebrand factor, type A domain

Domain ID domain_id	1tyeE00
Class class	2 — Mainly Beta
Architecture architecture	130 — 7 Propeller
Topology topology	10 — Methylamine Dehydrogenase; Chain H
Homologous superfamily homologous superfamily	130 — Integrin alpha, N-terminal

Domain ID domain_id	1tyeF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1680 — ligand-binding face of the semaphorins, domain 2
Homologous superfamily homologous superfamily	10 — ligand-binding face of the semaphorins, domain 2

Domain ID domain_id	1tyeF02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1510 — ntegrin, alpha v. Chain A, domain 3

Domain ID domain_id	1tyeF03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	410 — von Willebrand factor, type A domain

▶

Unit-cell length a length_a	332.093 Å
Unit-cell length b length_b	332.093 Å
Unit-cell length c length_c	88.288 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 62
Space-group number int_tables_number	171
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2680
R_work r_work	0.2190
R_free r_free	0.2540

Structural basis for allostery in integrins and binding of ligand-mimetic therapeutics to the platelet receptor for fibrinogen

1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrin alpha-IIb

State in the Current Structure

Other States of the Same Protein in the Database

Integrin beta-3

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1tye__assembly_1__model_1

1tye__assembly_1__model_1 | I(q)

1tye__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 branched

Entity 4 Entity 4 branched

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Structural basis for allostery in integrins and binding of ligand-mimetic therapeutics to the platelet receptor for fibrinogen

1. Protein Identity and Related Structures Protein Identity & Related Structures

Integrin alpha-IIb

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

Integrin beta-3

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1tye__assembly_1__model_1

1tye__assembly_1__model_1 | I(q)

1tye__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 polymer

Polymer Polymer

Source Source

Entity 3 Entity 3 branched

Entity 4 Entity 4 branched

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 non-polymer

Entity 8 Entity 8 non-polymer

Entity 9 Entity 9 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)
