SAXSdb — 1tze

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GROWTH FACTOR RECEPTOR-BOUND PROTEIN 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	PHOSPHOTYROSYL HEPTAPEPTIDE LYS-PRO-PHE-PTYR-VAL-ASN-VAL-NH2 × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	PHOSPHOTYROSYL HEPTAPEPTIDE LYS-PRO-PHE-PTYR-VAL-ASN-VAL-NH2 × 2 water × 4	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 4	PHOSPHOTYROSYL HEPTAPEPTIDE LYS-PRO-PHE-PTYR-VAL-ASN-VAL-NH2 × 2 water × 4	Consistent with protein count
4	Protein heterocomplex	Heteromer	Protein 4	PHOSPHOTYROSYL HEPTAPEPTIDE LYS-PRO-PHE-PTYR-VAL-ASN-VAL-NH2 × 2 water × 4	Consistent with protein count
5	Protein heterocomplex	Heteromer	Protein 4	PHOSPHOTYROSYL HEPTAPEPTIDE LYS-PRO-PHE-PTYR-VAL-ASN-VAL-NH2 × 2 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GRB2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 1–98； UniProt 55–152

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1tze
Deposition date deposition_date	1996-06-06
Structure title title	SIGNAL TRANSDUCTION ADAPTOR GROWTH FACTOR, GRB2 SH2 DOMAIN COMPLEXED WITH PHOSPHOTYROSYL HEPTAPEPTIDE LYS-PRO-PHE-PTYR-VAL-ASN-VAL-NH2 (KFPPYVNC-NH2)
Keywords keywords	;SIGNAL TRANSDUCTION ADAPTOR GROWTH FACTOR BOUND PROTEIN 2 (GRB2) SRC HOMOLOGY 2 DOMAIN (SH2), PHOSPHOTYROSYL HEPTAPEPTIC LIGAND, COMPLEX (SIGNAL TRANSDUCTION-PEPTIDE), COMPLEX (SIGNAL TRANSDUCTION-PEPTIDE) complex ;; COMPLEX (SIGNAL TRANSDUCTION/PEPTIDE)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1tze__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1tze__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

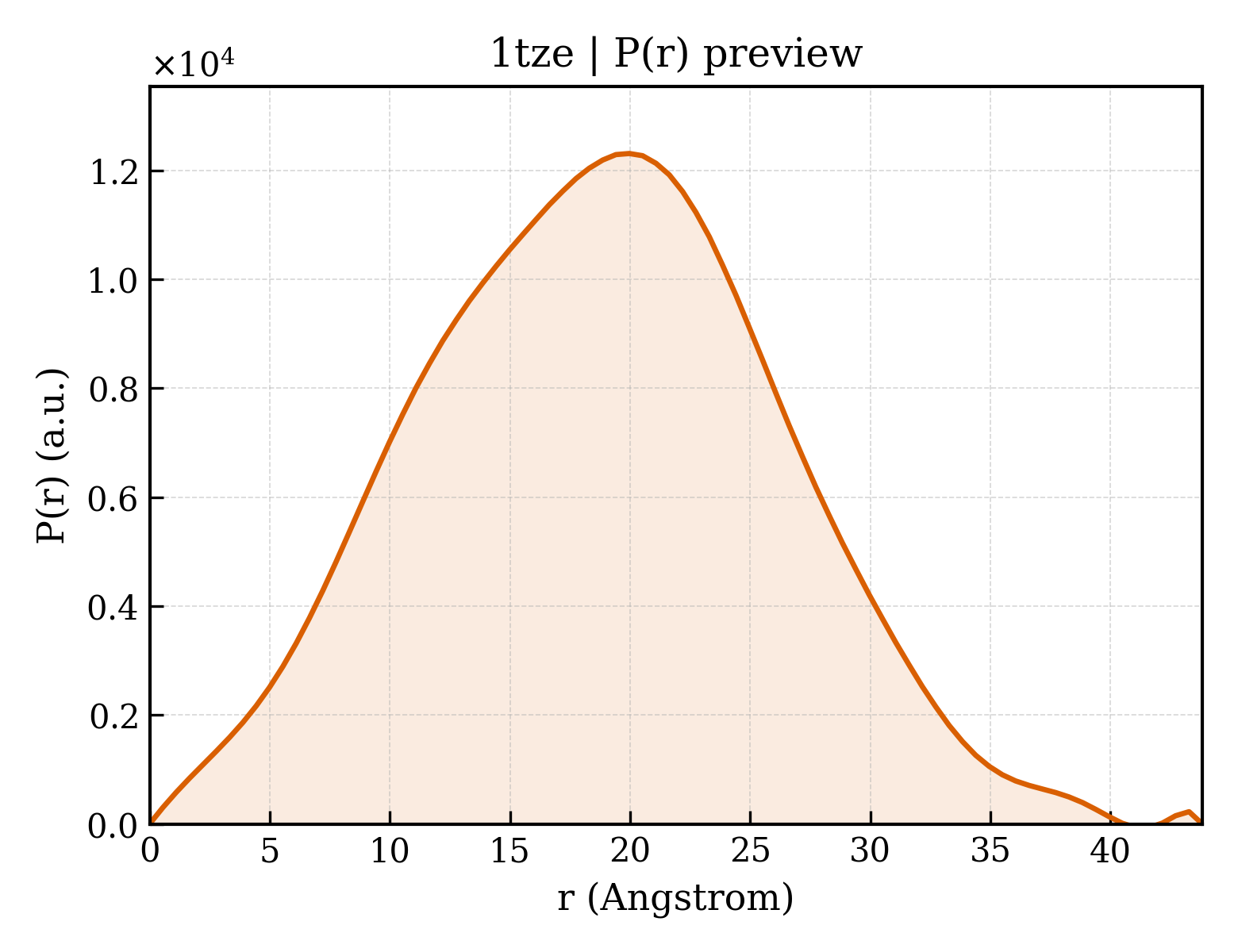

1tze__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.35 Å
Rg (electron density)	12.92 Å
Total Rg	14.36 Å
Atom count	861
Residues	104
Excluded volume	15280 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1tze__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1tze__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1tze__assembly_3__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`1tze__assembly_4__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
5	1	`1tze__assembly_5__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	GROWTH FACTOR RECEPTOR-BOUND PROTEIN 2
Molecular weight formula_weight	11447.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E
Atom count atom_count	964

MKPHPWFFGKIPRAKAEEMLSKQRHDGAFLIRESESAPGDFSLSVKFGNDVQHFKVLRDGAGKYFLWVVKFNSLNELVDYHRSTSVSRNQQIFLRDIE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	PHOSPHOTYROSYL HEPTAPEPTIDE LYS-PRO-PHE-PTYR-VAL-ASN-VAL-NH2
Molecular weight formula_weight	945.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

KPFYVNVX

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	103

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1tzee_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.93 — SH2-like
Superfamily Superfamily superfamily	d.93.1 — SH2 domain
Family Family family	d.93.1.1 — SH2 domain

CATH v4.4 (1 domains)

Domain ID domain_id	1tzeE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	505 — SHC Adaptor Protein
Homologous superfamily homologous superfamily	10 — SH2 domain

▶

Unit-cell length a length_a	50.300 Å
Unit-cell length b length_b	50.300 Å
Unit-cell length c length_c	89.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2030
R_work r_work	0.2030
R_free r_free	—

SIGNAL TRANSDUCTION ADAPTOR GROWTH FACTOR, GRB2 SH2 DOMAIN COMPLEXED WITH PHOSPHOTYROSYL HEPTAPEPTIDE LYS-PRO-PHE-PTYR-VAL-ASN-VAL-NH2 (KFPPYVNC-NH2)
