SAXSdb — 1fyr

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1fyr
沉积日期 deposition_date	2000-10-03
结构标题 title	DIMER FORMATION THROUGH DOMAIN SWAPPING IN THE CRYSTAL STRUCTURE OF THE GRB2-SH2 AC-PYVNV COMPLEX
关键词 keywords	Grb2, SH2 domain, phosphopeptide, Met, domain swapping, dimerization, HORMONE-GROWTH FACTOR COMPLEX; HORMONE/GROWTH FACTOR
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	23.47 Å
回转半径 Rg (电子) rg_electron	22.42 Å
零角强度 I(0) i0	37812100.00
分子量 molecular_weight	47412.0 kDa
排除体积 excluded_volume	59405 Å³
包络体积 envelope_volume	72053 Å³
水化壳体积 shell_volume	26637 Å³
包络直径 envelope_diameter	72.0 Å
壳层 Rg shell_rg	29.59 Å
包络 Rg envelope_rg	22.35 Å
形状 Rg shape_rg	22.34 Å
总 Rg total_rg	23.54 Å
总原子数 total_atoms	3356
残基数 n_residues	398
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

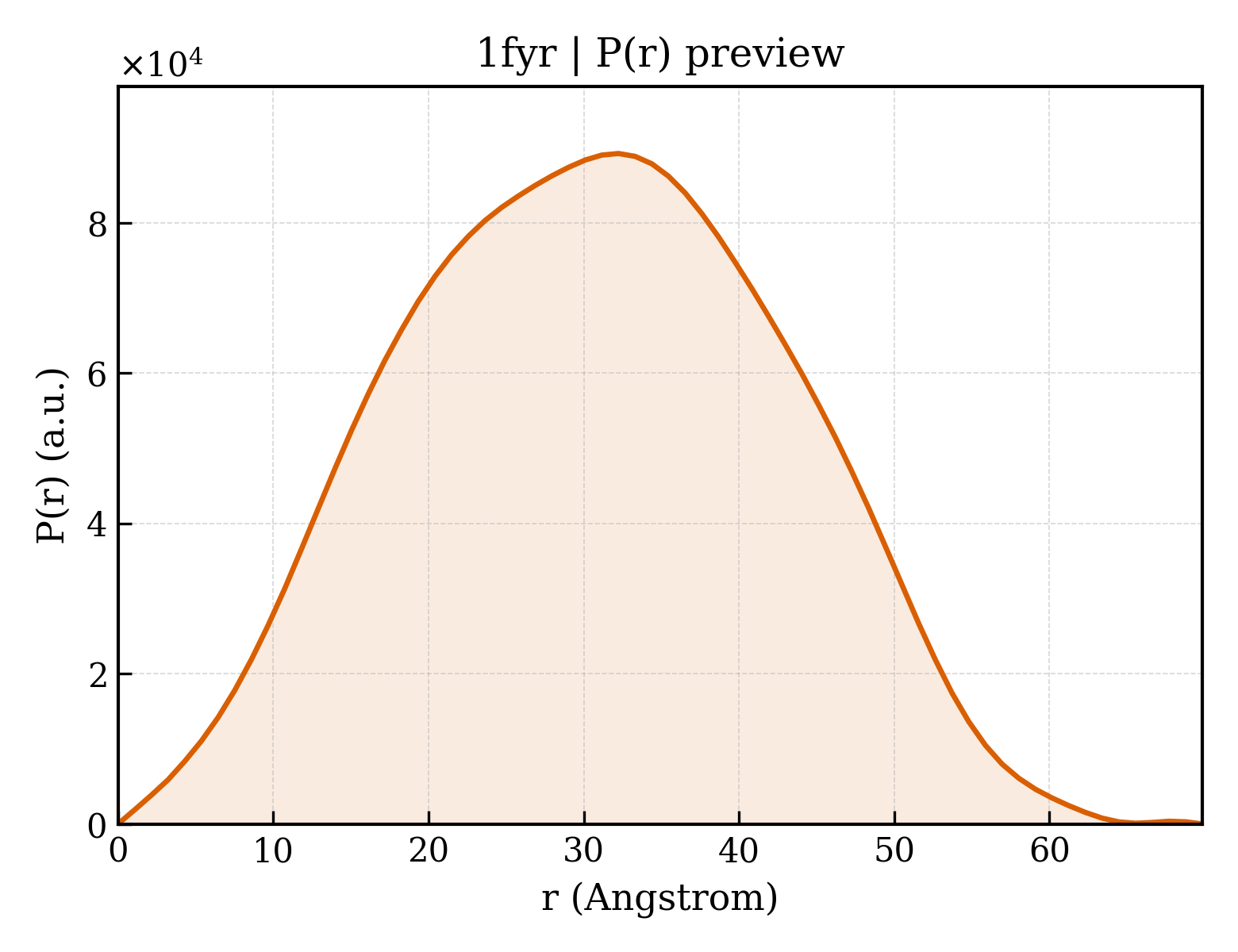

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	69.8 Å
Rg (实空间) rg_real	23.29 Å
Rg 误差 (实空间) rg_real_error	0.40 Å
I(0) (实空间) i0_real	3.7810e+07
I(0) 误差 (实空间) i0_real_error	5.0090e+05
Rg (倒空间) rg_reciprocal	23.34 Å
I(0) (倒空间) i0_reciprocal	37810000.0000
解质量估计 total_estimate	0.9111
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	32.2 Å
偏度 Skewness skewness	0.033
峰度 Kurtosis kurtosis	-0.606
角度范围 angular_range	— – 0.3400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7846000.0000
实空间数据点数 n_real_points	66
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.992

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	GROWTH FACTOR RECEPTOR-BOUND PROTEIN 2
分子量 formula_weight	13281.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	3538

GSKNYIEMKPHPWFFGKIPRAKAEEMLSKQRHDGAFLIRESESAPGDFSLSVKFGNDVQHFKVLRDGAGKYFLWVVKFNSLNELVDYHRSTSVSRNQQIFLRDIEQVPQQPTYV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	HEPATOCYTE GROWTH FACTOR RECEPTOR PEPTIDE
分子量 formula_weight	599.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,J,K,L

XYVNV

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	182

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1fyra_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.93 — SH2-like
超家族 Superfamily superfamily	d.93.1 — SH2 domain
家族 Family family	d.93.1.1 — SH2 domain

结构域编号 domain_id	d1fyrb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.93 — SH2-like
超家族 Superfamily superfamily	d.93.1 — SH2 domain
家族 Family family	d.93.1.1 — SH2 domain

结构域编号 domain_id	d1fyrc_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.93 — SH2-like
超家族 Superfamily superfamily	d.93.1 — SH2 domain
家族 Family family	d.93.1.1 — SH2 domain

结构域编号 domain_id	d1fyrd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.93 — SH2-like
超家族 Superfamily superfamily	d.93.1 — SH2 domain
家族 Family family	d.93.1.1 — SH2 domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1fyrA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	505 — SHC Adaptor Protein
同源超家族 H-superfamily homologous superfamily	10 — SH2 domain

结构域编号 domain_id	1fyrB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	505 — SHC Adaptor Protein
同源超家族 H-superfamily homologous superfamily	10 — SH2 domain

结构域编号 domain_id	1fyrC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	505 — SHC Adaptor Protein
同源超家族 H-superfamily homologous superfamily	10 — SH2 domain

结构域编号 domain_id	1fyrD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	505 — SHC Adaptor Protein
同源超家族 H-superfamily homologous superfamily	10 — SH2 domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	77.610 Å
晶胞边长 b length_b	77.610 Å
晶胞边长 c length_c	183.470 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	32

空间群 space_group	P 43 21 2
空间群编号 int_tables_number	96
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.2200
R_work r_work	0.2170
R_free r_free	0.2700

fit	/app/data/saxs_computation/fy/1fyr/1fyr.fit
pddf	/app/data/pr_computation/fy/1fyr/1fyr.pr.out
profile	/app/data/saxs_computation/fy/1fyr/1fyr.dat
