SAXSdb — 1ugw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Agglutinin alpha chain

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Agglutinin beta-3 chain × 4 （P18673） beta-D-galactopyranose × 4 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LECA_ARTIN
Isoform	—
PDB entities	1, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–133； UniProt 1–133 Author chain G； PDBConstruct 1–133； UniProt 1–133 Author chain C； PDBConstruct 1–133； UniProt 1–133 Author chain E； PDBConstruct 1–133； UniProt 1–133

Agglutinin beta-3 chain

OrganismNot specified

UniProt P18673

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 8	Agglutinin alpha chain × 2 （P18670） Agglutinin alpha-chain × 2 （P18670） beta-D-galactopyranose × 4 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LEC3_ARTIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–20； UniProt 1–20 Author chain D； PDBConstruct 1–20； UniProt 1–20 Author chain F； PDBConstruct 1–20； UniProt 1–20 Author chain H； PDBConstruct 1–20； UniProt 1–20

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ugw
Deposition date deposition_date	2003-06-22
Structure title title	Crystal structure of jacalin- Gal complex
Keywords keywords	All beta sheet protein, Beta prism I fold, Galactose specific, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ugw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ugw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

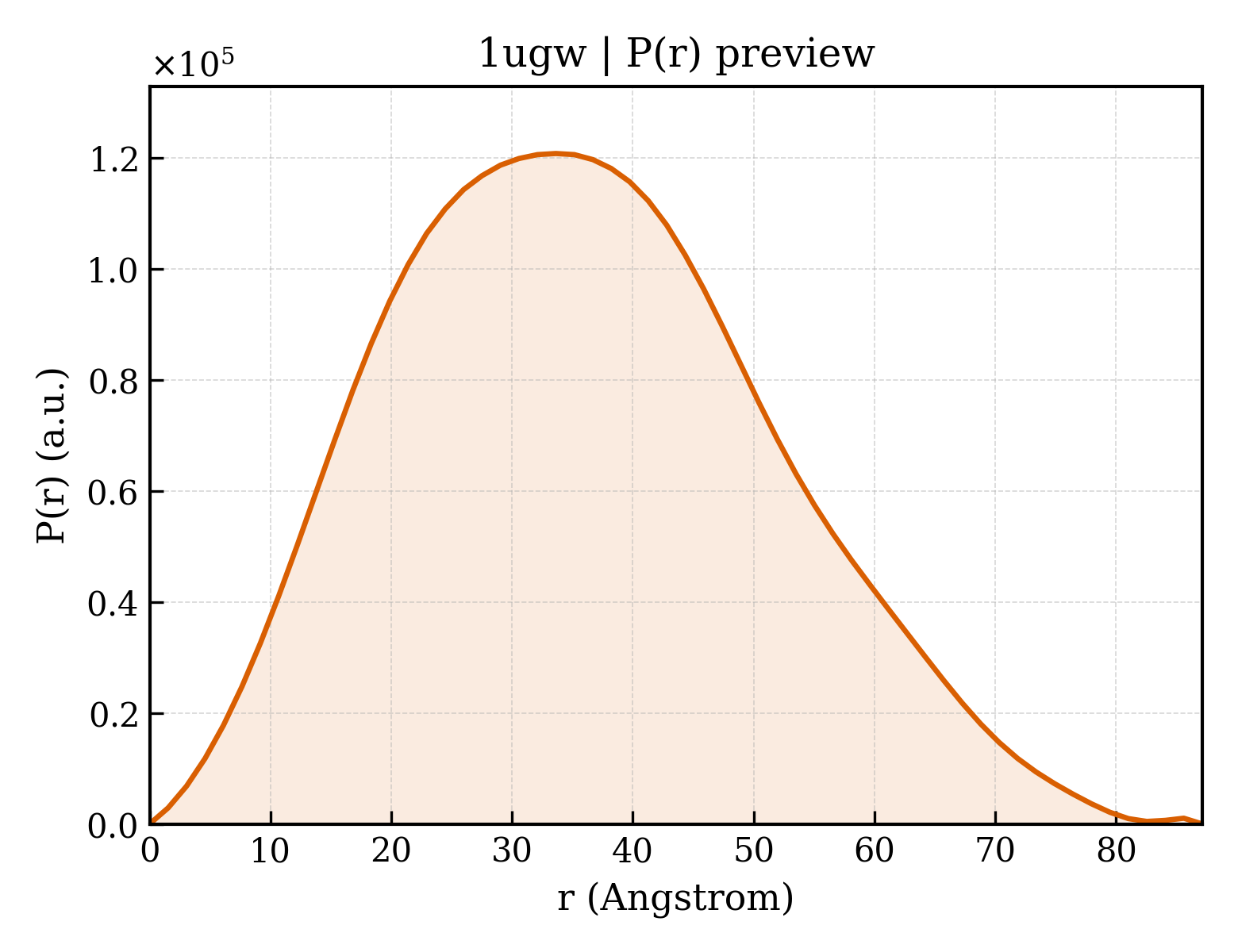

1ugw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.62 Å
Rg (electron density)	26.70 Å
Total Rg	27.46 Å
Atom count	4656
Residues	598
Excluded volume	83444 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ugw__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Agglutinin alpha chain
Molecular weight formula_weight	14643.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,G
Atom count atom_count	5145

GKAFDDGAFTGIREINLSYNKETAIGDFQVVYDLNGSPYVGQNHVSFITGFTPVKISLDFPSEYIMEVSGYTGNVSGYVVVRSLTFKTNKKTYGPYGVTSGTPFNLPIENGLIVGFKGSIGYWLDYFSMYLSL

Entity 2 Entity 2 polymer

Description description	Agglutinin beta-3 chain
Molecular weight formula_weight	2047.2 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

DEQSGISQTVIVGPWGAKSS

Entity 3 Entity 3 polymer

Description description	Agglutinin alpha-chain
Molecular weight formula_weight	14673.5 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,E

GKAFDDGAFTGIREINLSYNKETAIGDFQVVYDLNGSPYVGQNHKSFITGFTPVKISLDFPSEYIMEVSGYTGNVSGYVVVRSLTFKTNKKTYGPYGVTSGTPFNLPIENGLIVGFKGSIGYWLDYFSMYLSL

Entity 4 Entity 4 non-polymer

Description description	beta-D-galactopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	4

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	489

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ugw.1
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.1 — Mannose-binding lectins

Domain ID domain_id	d1ugw.2
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.1 — Mannose-binding lectins

Domain ID domain_id	d1ugw.3
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.1 — Mannose-binding lectins

Domain ID domain_id	d1ugw.4
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.1 — Mannose-binding lectins

CATH v4.4 (4 domains)

Domain ID domain_id	1ugwA00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

Domain ID domain_id	1ugwC00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

Domain ID domain_id	1ugwE00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

Domain ID domain_id	1ugwG00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

▶

Unit-cell length a length_a	80.444 Å
Unit-cell length b length_b	99.548 Å
Unit-cell length c length_c	105.849 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	19.720 Å
R factor r_factor	0.1850
R_work r_work	0.1850
R_free r_free	0.1940
