SAXSdb — 1ugx

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Agglutinin alpha chain

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 8 其他Polymer 4	Agglutinin beta-3 chain × 4 （P18673） beta-D-galactopyranose-(1-3)-methyl 2-acetamido-2-deoxy-alpha-D-galactopyranoside × 4 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LECA_ARTIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–133； UniProt 1–133

Agglutinin beta-3 chain

OrganismNot specified

UniProt P18673

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 8 其他Polymer 4	Agglutinin alpha chain × 4 （P18670） beta-D-galactopyranose-(1-3)-methyl 2-acetamido-2-deoxy-alpha-D-galactopyranoside × 4 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LEC3_ARTIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–20； UniProt 1–20

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ugx
Deposition date deposition_date	2003-06-22
Structure title title	Crystal structure of jacalin- Me-alpha-T-antigen (Gal-beta(1-3)-GalNAc-alpha-o-Me) complex
Keywords keywords	All beta sheet protein, Beta-prism I fold, Galactose-specific, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ugx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ugx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

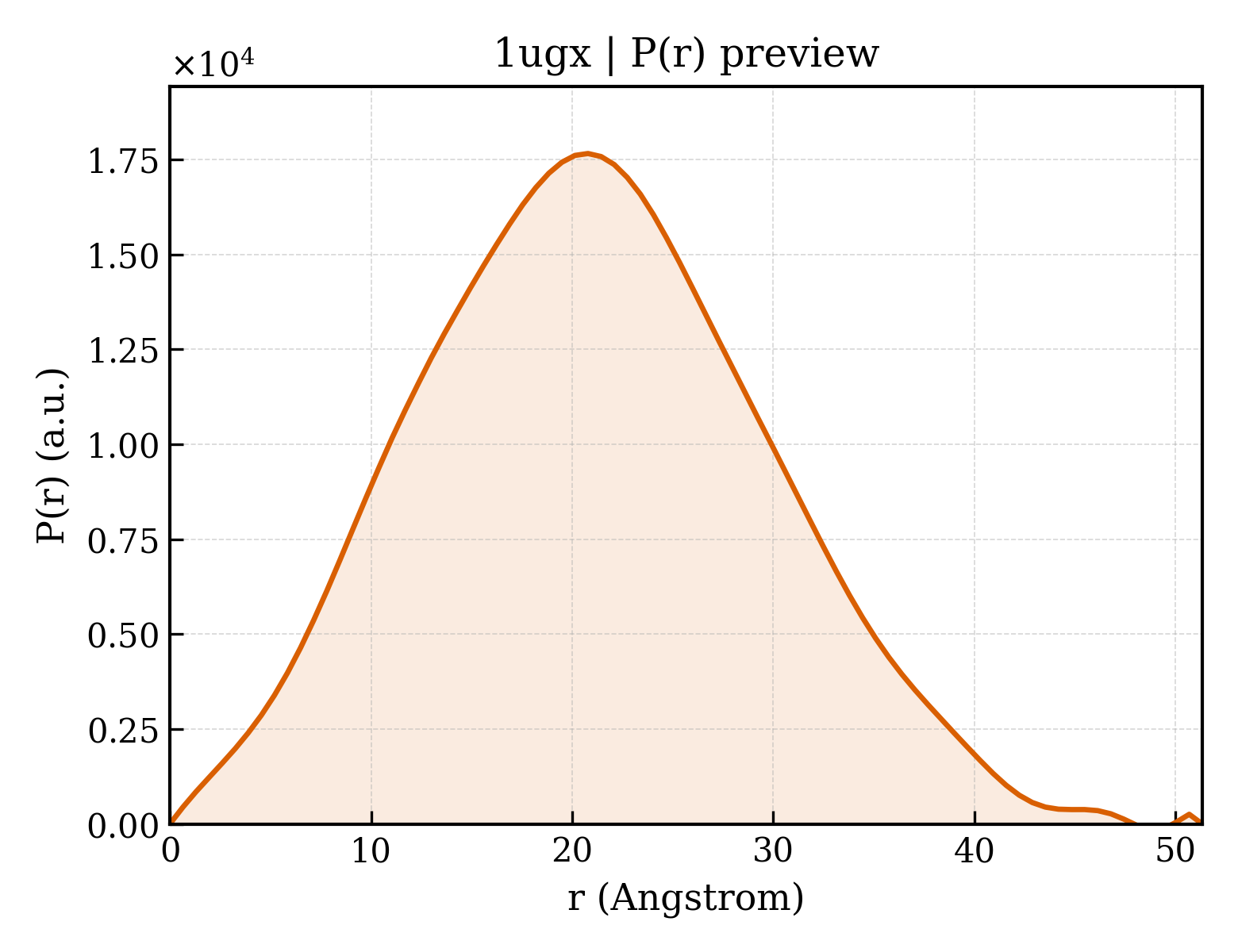

1ugx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.70 Å
Rg (electron density)	26.77 Å
Total Rg	27.54 Å
Atom count	4680
Residues	592
Excluded volume	83966 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ugx__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Agglutinin alpha chain
Molecular weight formula_weight	14643.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1293

GKAFDDGAFTGIREINLSYNKETAIGDFQVVYDLNGSPYVGQNHVSFITGFTPVKISLDFPSEYIMEVSGYTGNVSGYVVVRSLTFKTNKKTYGPYGVTSGTPFNLPIENGLIVGFKGSIGYWLDYFSMYLSL

Entity 2 Entity 2 polymer

Description description	Agglutinin beta-3 chain
Molecular weight formula_weight	2059.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

DEQSGISQTVIVGPWGAKVS

Entity 3 Entity 3 branched

Description description	beta-D-galactopyranose-(1-3)-methyl 2-acetamido-2-deoxy-alpha-D-galactopyranoside
Molecular weight formula_weight	397.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	123

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ugx.1
Class class	b — All beta proteins
Fold Fold fold	b.77 — beta-Prism I
Superfamily Superfamily superfamily	b.77.3 — Mannose-binding lectins
Family Family family	b.77.3.1 — Mannose-binding lectins

CATH v4.4 (1 domains)

Domain ID domain_id	1ugxA00
Class class	2 — Mainly Beta
Architecture architecture	100 — Aligned Prism
Topology topology	10 — Vitelline Membrane Outer Layer Protein I, subunit A
Homologous superfamily homologous superfamily	30 — Jacalin-like lectin domain

▶

Unit-cell length a length_a	43.287 Å
Unit-cell length b length_b	100.556 Å
Unit-cell length c length_c	102.399 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	26.800 Å
R factor r_factor	0.1890
R_work r_work	0.1890
R_free r_free	0.2050

Crystal structure of jacalin- Me-alpha-T-antigen (Gal-beta(1-3)-GalNAc-alpha-o-Me) complex
