1un6

THE CRYSTAL STRUCTURE OF A ZINC FINGER - RNA COMPLEX REVEALS TWO MODES OF MOLECULAR RECOGNITION

Method: X-RAY DIFFRACTION D_max: 108.0 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

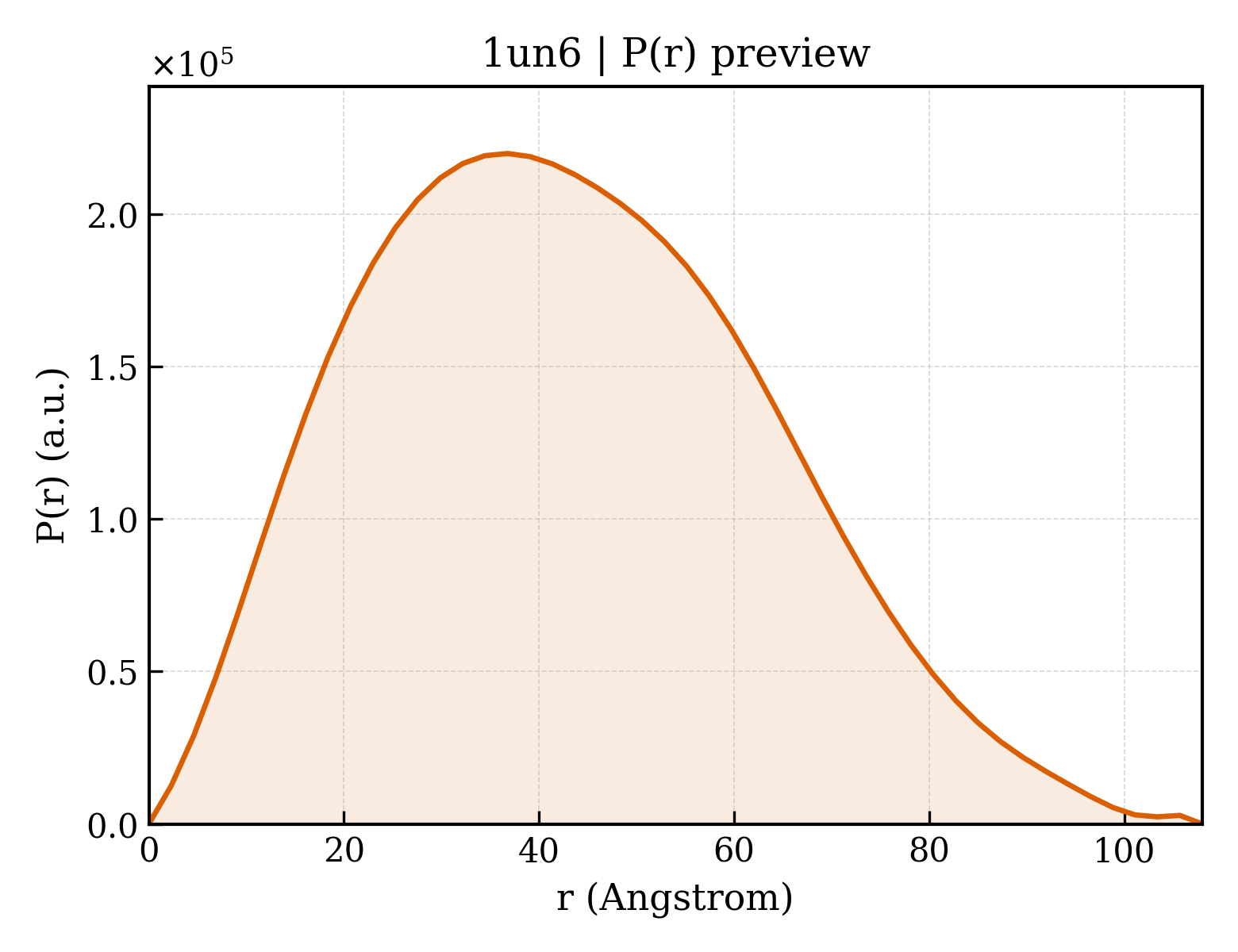

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1un6
沉积日期 deposition_date	2003-09-04
结构标题 title	THE CRYSTAL STRUCTURE OF A ZINC FINGER - RNA COMPLEX REVEALS TWO MODES OF MOLECULAR RECOGNITION
关键词 keywords	;RNA-BINDING PROTEIN/RNA, COMPLEX(ZINC FINGER-RNA), TFIIIA, 5S RIBOSOMAL RNA, ZINC FINGER, RNA-PROTEIN COMPLEX, X. LAEVIS, TRANSCRIPTION REGULATION, RNA-BINDING, DNA-BINDING, NUCLEAR PROTEIN, RNA-BINDING PROTEIN-RNA complex ;; RNA-BINDING PROTEIN/RNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.48 Å
回转半径 Rg (电子) rg_electron	33.22 Å
零角强度 I(0) i0	152567000.00
分子量 molecular_weight	67567.0 kDa
排除体积 excluded_volume	70984 Å³
包络体积 envelope_volume	112280 Å³
水化壳体积 shell_volume	29749 Å³
包络直径 envelope_diameter	115.0 Å
壳层 Rg shell_rg	37.79 Å
包络 Rg envelope_rg	32.41 Å
形状 Rg shape_rg	33.18 Å
总 Rg total_rg	33.55 Å
总原子数 total_atoms	4538
残基数 n_residues	354
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	108.0 Å
Rg (实空间) rg_real	33.54 Å
Rg 误差 (实空间) rg_real_error	0.89 Å
I(0) (实空间) i0_real	1.5260e+08
I(0) 误差 (实空间) i0_real_error	2.4230e+06
Rg (倒空间) rg_reciprocal	33.51 Å
I(0) (倒空间) i0_reciprocal	152600000.0000
解质量估计 total_estimate	0.6764
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.8 Å
偏度 Skewness skewness	0.303
峰度 Kurtosis kurtosis	-0.475
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	3942000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.961; Stabil: 1.000; Sysdev: 0.078; Positv: 1.000; Valcen: 0.936; Smooth: 0.735

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	TRANSCRIPTION FACTOR IIIA
分子量 formula_weight	10299.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,C,D
原子数 atom_count	4554

MYVCHFENCGKAFKKHNQLKVHQFSHTQQLPYECPHEGCDKRFSLPSRLKRHEKVHAGYPCKKDDSCSFVGKTWTLYLKHVAECHQD

来源 Source

来源生物 organism	XENOPUS LAEVIS
通用名 common_name	AFRICAN CLAWED FROG
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	5S RIBOSOMAL RNA
分子量 formula_weight	19708.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	E,F

GCCGGCCACACCUACGGGGCCUGGUUAGUACCUGGGAAACCUGGGAAUACCAGGUGCCGGC

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	13

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	16

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1un6b1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.37 — beta-beta-alpha zinc fingers
超家族 Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
家族 Family family	g.37.1.1 — Classic zinc finger, C2H2

结构域编号 domain_id	d1un6b2
类 Class class	g — Small proteins
折叠类型 Fold fold	g.37 — beta-beta-alpha zinc fingers
超家族 Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
家族 Family family	g.37.1.1 — Classic zinc finger, C2H2

结构域编号 domain_id	d1un6b3
类 Class class	g — Small proteins
折叠类型 Fold fold	g.37 — beta-beta-alpha zinc fingers
超家族 Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
家族 Family family	g.37.1.1 — Classic zinc finger, C2H2

结构域编号 domain_id	d1un6c1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.37 — beta-beta-alpha zinc fingers
超家族 Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
家族 Family family	g.37.1.1 — Classic zinc finger, C2H2

结构域编号 domain_id	d1un6c2
类 Class class	g — Small proteins
折叠类型 Fold fold	g.37 — beta-beta-alpha zinc fingers
超家族 Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
家族 Family family	g.37.1.1 — Classic zinc finger, C2H2

结构域编号 domain_id	d1un6c3
类 Class class	g — Small proteins
折叠类型 Fold fold	g.37 — beta-beta-alpha zinc fingers
超家族 Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
家族 Family family	g.37.1.1 — Classic zinc finger, C2H2

结构域编号 domain_id	d1un6d1
类 Class class	g — Small proteins
折叠类型 Fold fold	g.37 — beta-beta-alpha zinc fingers
超家族 Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
家族 Family family	g.37.1.1 — Classic zinc finger, C2H2

结构域编号 domain_id	d1un6d2
类 Class class	g — Small proteins
折叠类型 Fold fold	g.37 — beta-beta-alpha zinc fingers
超家族 Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
家族 Family family	g.37.1.1 — Classic zinc finger, C2H2

CATH v4.4 (8 domains)

结构域编号 domain_id	1un6B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	160 — Double Stranded RNA Binding Domain
同源超家族 H-superfamily homologous superfamily	60 — Classic Zinc Finger

结构域编号 domain_id	1un6B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	160 — Double Stranded RNA Binding Domain
同源超家族 H-superfamily homologous superfamily	60 — Classic Zinc Finger

结构域编号 domain_id	1un6B03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	160 — Double Stranded RNA Binding Domain
同源超家族 H-superfamily homologous superfamily	60 — Classic Zinc Finger

结构域编号 domain_id	1un6C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	160 — Double Stranded RNA Binding Domain
同源超家族 H-superfamily homologous superfamily	60 — Classic Zinc Finger

结构域编号 domain_id	1un6C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	160 — Double Stranded RNA Binding Domain
同源超家族 H-superfamily homologous superfamily	60 — Classic Zinc Finger

结构域编号 domain_id	1un6C03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	160 — Double Stranded RNA Binding Domain
同源超家族 H-superfamily homologous superfamily	60 — Classic Zinc Finger

结构域编号 domain_id	1un6D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	160 — Double Stranded RNA Binding Domain
同源超家族 H-superfamily homologous superfamily	60 — Classic Zinc Finger

结构域编号 domain_id	1un6D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	160 — Double Stranded RNA Binding Domain
同源超家族 H-superfamily homologous superfamily	60 — Classic Zinc Finger

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	58.598 Å
晶胞边长 b length_b	191.593 Å
晶胞边长 c length_c	79.770 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.51 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	3.100 Å
最低分辨率 resolution_low	35.190 Å
R 因子 r_factor	0.2160
R_work r_work	0.2160
R_free r_free	0.2590

fit	/app/data/saxs_computation/un/1un6/1un6.fit
pddf	/app/data/pr_computation/un/1un6/1un6.pr.out
profile	/app/data/saxs_computation/un/1un6/1un6.dat
