SAXSdb — 1uon

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MINOR CORE PROTEIN LAMBDA 3

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Monomer	Protein 1 RNA 2	5'-R(GPGPGPGPGP)-3' × 1 5'-R(UPAPGPCPCPCPCPCP*)-3' × 1 3'-DEOXY-CYTIDINE-5'-TRIPHOSPHATE × 3 MANGANESE (II) ION × 2 water × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VL3_REOVD
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1267； UniProt 1–1267

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1uon
Deposition date deposition_date	2003-09-21
Structure title title	REOVIRUS POLYMERASE LAMBDA-3 LOCALIZED BY ELECTRON CRYOMICROSCOPY OF VIRIONS AT 7.6-A RESOLUTION
Keywords keywords	POLYMERASE, REOVIRUS, CRYOEM, CORE PROTEIN; POLYMERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1uon__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1uon__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

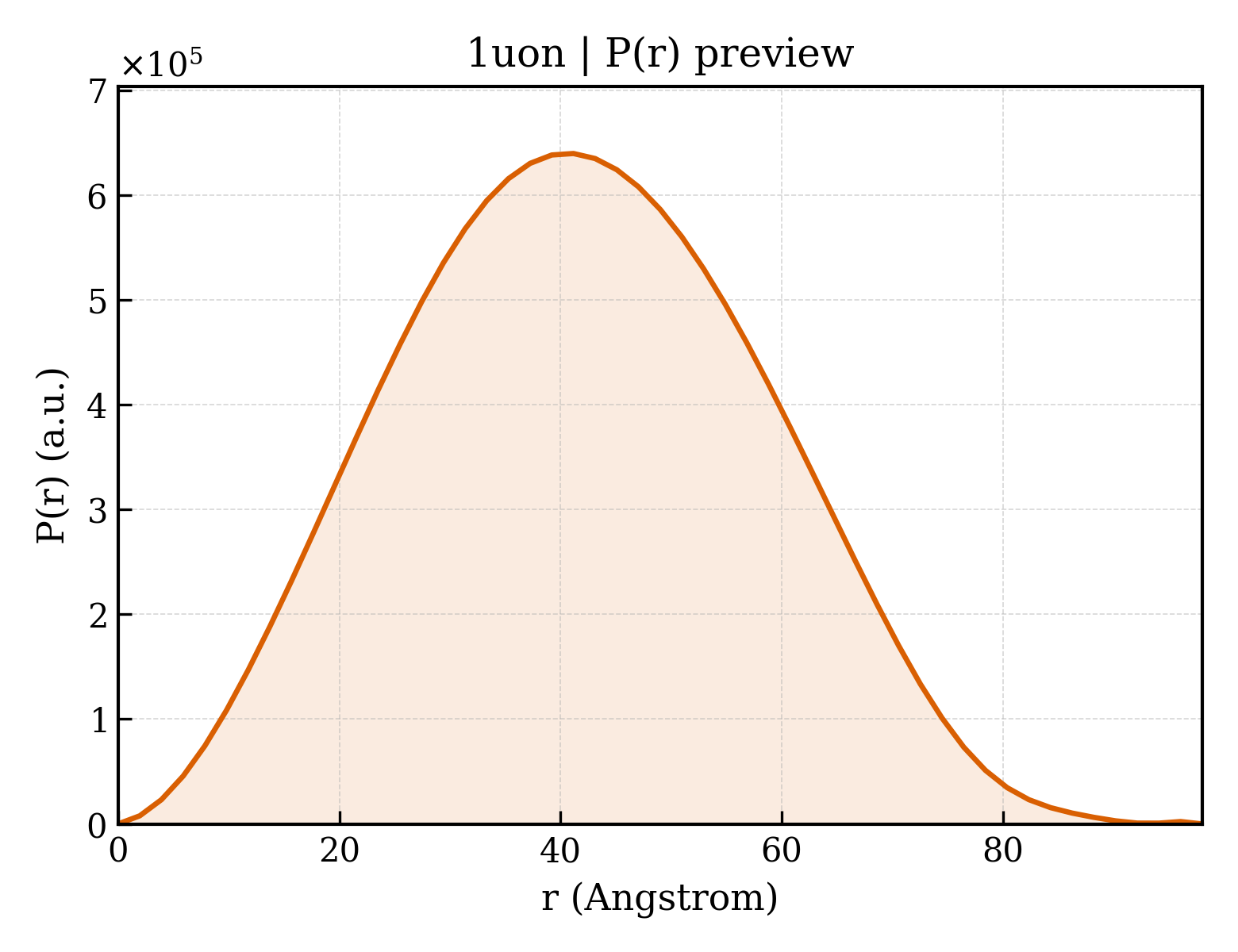

1uon__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.97 Å
Rg (electron density)	31.13 Å
Total Rg	31.84 Å
Atom count	10353
Residues	1277
Excluded volume	183340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1uon__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	MINOR CORE PROTEIN LAMBDA 3
Molecular weight formula_weight	142423.8 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10703

MSSMILTQFGPFIESISGITDQSNDVFEDAAKAFSMFTRSDVYKALDEIPFSDDAMLPIPPTIYTKPSHDSYYYIDALNRVRRKTYQGPDDVYVPNCSIVELLEPHETLTSYGRLSEAIENRAKDGDSQARIATTYGRIAESQARQIKAPLEKFVLALLVAEAGGSLYDPVLQKYDEIPDLSHNCPLWCFREICRHISGPLPDRAPYLYLSAGVFWLMSPRMTSAIPPLLSDLVNLAILQQTAGLDPSLVKLGVQICLHAAASSSYSWFILKTKSIFPQNTLHSMYESLEGGYCPNLEWLEPRSDYKFMYMGVMPLSAKYARSAPSNDKKARELGEKYGLSSVVGELRKRTKTYVKHDFASVRYIRDAMACTSGIFLVRTPTETVLQEYTQSPEIKVPIPQKDWTGPIGEIRILKDTTSSIARYLYRTWYLAAARMAAQPRTWDPLFQAIMRSQYVTARGGSGAALRESLYAINVSLPDFKGLPVKAATKIFQAAQLANLPFSHTSVAILADTSMGLRNQVQRRPRSIMPLNVPQQQVSAPHTLTADYINYHMNLSPTSGSAVIEKVIPLGVYASSPPNQSINIDISACDASITWDFFLSVIMAAIHEGVASSSIGKPFMGVPASIVNDESVVGVRAARPISGMQNMIQHLSKLYKRGFSYRVNDSFSPGNDFTHMTTTFPSGSTATSTEHTANNSTMMETFLTVWGPEHTDDPDVLRLMKSLTIQRNYVCQGDDGLMIIDGTTAGKVNSETIQNDLELISKYGEEFGWKYDIAYDGTAEYLKLYFIFGCRIPNLSRHPIVGKERANSSAEEPWPAILDQIMGVFFNGVHDGLQWQRWIRYSWALCCAFSRQRTMIGESVGYLQYPMWSFVYWGLPLVKAFGSDPWIFSWYMPTGDLGMYSWISLIRPLMTRWMVANGYVTDRCSTVFGNADYRRCFNELKLYQGYYMAQLPRNPKKSGRAASREVREQFTQALSDYLMQNPELKSRVLRGRSEWEKYGAGIIHNPPSLFDVPHKWYQGAQEAAIATREELAEMDETLMRARRHSYSSFSKLLEAYLLVKWRMCEAREPSVDLRLPLCAGIDPLNSDPFLKMVSVGPMLQSTRKYFAQTLFMAKTVSGLDVNAIDSALLRLRTLGADKKALTAQLLMVGLQESEADALAGKIMLQDVNTVQLARVVNLAVPDTWMSLDFDSMFKHHVKLLPKDGRHLNTDIPPRMGWLRAILRFLGAGMVMTATGVAVDIYLEDIHGGGRSLGQRFMTWMRQEGRSA

Entity 2 Entity 2 polymer

Description description	5'-R(GPGPGPGPGP)-3'
Molecular weight formula_weight	1681.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	B

GGGGG

Entity 3 Entity 3 polymer

Description description	5'-R(UPAPGPCPCPCPCPCP*)-3'
Molecular weight formula_weight	2461.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	C

UAGCCCCC

Entity 4 Entity 4 non-polymer

Description description	3'-DEOXY-CYTIDINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	467.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	MANGANESE (II) ION
Molecular weight formula_weight	54.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	350

▼

6. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1uona_
Class class	i — Low resolution protein structures
Fold Fold fold	i.7 — Reovirus components
Superfamily Superfamily superfamily	i.7.1 — Reovirus components
Family Family family	i.7.1.1 — Reovirus components

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	7.600 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	7.60 Å
Resolution测定Method resolution_method	SPHERICAL HARMONICS
颗粒数 num_particles	7939
