1upl

Crystal structure of MO25 alpha

Method: X-RAY DIFFRACTION Dmax: 141.4 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MO25 PROTEIN

HOMO SAPIENS

UniProt Q9Y376

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 1–341 Non-standard monomer：Yes (specific site not provided by mmCIF) No other associated polymer X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；15 % PEG 20000, 0.1 M MES PH 6.5, 4.4 % GAMMA BUTYROLACTONE Resolution 2.60 Å R-free 0.280
2 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain B； UniProt 1–341 Non-standard monomer：Yes (specific site not provided by mmCIF) No other associated polymer X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.5；15 % PEG 20000, 0.1 M MES PH 6.5, 4.4 % GAMMA BUTYROLACTONE Resolution 2.60 Å R-free 0.280

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1UPL Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1UPK Crystal structure of MO25 in complex with a C-terminal peptide of STRAD Deposited 2003-10-07 Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–341（341 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 5；15% PEG 20000, 0.1 M MES PH 5.0, 3.3% W/V D-GLUCOSE MONOHYDRATE.
Resolution 1.85 Å R-free 0.230
2WTK Structure of the heterotrimeric LKB1-STRADalpha-MO25alpha complex Deposited 2009-09-16 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain D 1–341（341 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；PH 8.5
Resolution 2.65 Å R-free 0.291
2WTK Structure of the heterotrimeric LKB1-STRADalpha-MO25alpha complex Deposited 2009-09-16 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–341（341 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8.5；PH 8.5
Resolution 2.65 Å R-free 0.291
3GNI Structure of STRAD and MO25 Deposited 2009-03-17 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–341（341 aa）
Not recorded CIT CITRIC ACID × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.4；293 K；0.1 M MES pH 6.4, 10% PEG8000, 0.25 microL of 1 M NDSB-256, VAPOR DIFFUSION, SITTING DROP, temperature 293K
Resolution 2.35 Å R-free 0.254
4FZA Crystal structure of MST4-MO25 complex Deposited 2012-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 11–334（324 aa） Fragment：Mo25-like, UNP residues 11-334
Not recorded GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.1M Tris pH 8.0, 20% PEG 350 mme, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.15 Å R-free 0.252
4FZD Crystal structure of MST4-MO25 complex with WSF motif Deposited 2012-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 11–334（324 aa） Fragment：Mo25-like, UNP residues 11-334
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.1M Tris pH 8.0, 18% PEG 350 mme, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.25 Å R-free 0.260
4FZF Crystal structure of MST4-MO25 complex with DKI Deposited 2012-07-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 11–334（324 aa） Fragment：Mo25-like, UNP residues 11-334
Not recorded DKI 5-AMINO-3-{[4-(AMINOSULFONYL)PHENYL]AMINO}-N-(2,6-DIFLUOROPHENYL)-1H-1,2,4-TRIAZOLE-1-CARBOTHIOAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.1M Tris pH 8.0, 20% PEG 350 mme, VAPOR DIFFUSION, HANGING DROP, temperature 289K
Resolution 3.64 Å R-free 0.309
4NZW Crystal Structure of STK25-MO25 Complex Deposited 2013-12-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 8–334（327 aa） Fragment：UNP RESIDUES 8-334
Not recorded J60 5-[(E)-(5-CHLORO-2-OXO-1,2-DIHYDRO-3H-INDOL-3-YLIDENE)METHYL]-N-[2-(DIETHYLAMINO)ETHYL]-2,4-DIMETHYL-1H-PYRROLE-3-CARBOXAMIDE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1M HEPES PH 7.0, 1M SODIUM CITRATE, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K
Resolution 3.58 Å R-free 0.275
4O27 Crystal structure of MST3-MO25 complex with WIF motif Deposited 2013-12-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 11–333（323 aa） Fragment：Mo25-like, UNP residues 11-333
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；0.1M Tris pH 8.5, 2.0M Ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 289K
Resolution 3.19 Å R-free 0.260
8VSU Cryo-EM structure of LKB1-STRADalpha-MO25alpha heterocomplex Deposited 2024-01-24 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 1–341（341 aa）
Not recorded ADP ADENOSINE-5'-DIPHOSPHATE × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.6
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.86 Å

9 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MO25_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–341； UniProt 1–341 Author chain B； PDBConstruct 1–341； UniProt 1–341

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 1upl

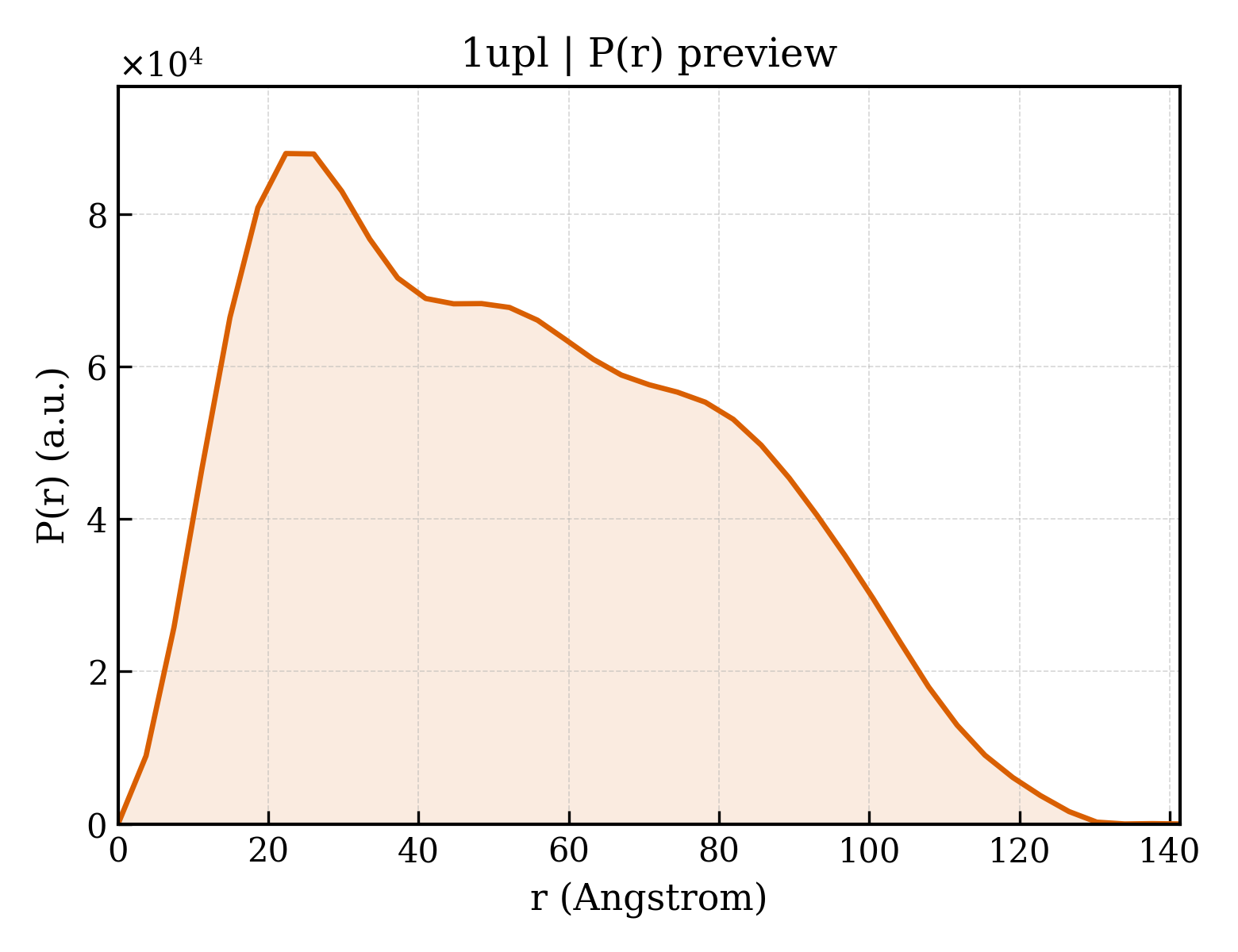

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1upl
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1upl
Deposition date deposition_date2003-10-07
Structure title titleCrystal structure of MO25 alpha
Keywords keywordsTRANSFERASE, STRAD, LKB1, ARMADILLO; TRANSFERASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier41.73 Å
Radius of gyration Rg (electron density) rg_electron41.86 Å
Forward intensity I(0) i077480200.00
Molecular weight molecular_weight73262.0 kDa
Excluded volume excluded_volume92240 ų
Envelope volume envelope_volume130850 ų
Hydration-shell volume shell_volume27520 ų
Envelope diameter envelope_diameter138.2 Å
Shell Rg shell_rg43.96 Å
Envelope Rg envelope_rg40.92 Å
Shape Rg shape_rg41.83 Å
Total Rg total_rg42.09 Å
Total atoms total_atoms5107
Residues n_residues604
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax141.4 Å
Rg (real space) rg_real42.10 Å
Rg uncertainty (real space) rg_real_error2.10 Å
I(0) (real space) i0_real7.7480e+07
I(0) uncertainty (real space) i0_real_error1.5940e+06
Rg (reciprocal space) rg_reciprocal41.74 Å
I(0) (reciprocal space) i0_reciprocal77450000.0000
Solution quality estimate total_estimate0.7337
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks3
Primary peak position r_peak_primary22.3 Å
Skewness Skewness skewness0.342
Kurtosis Kurtosis kurtosis-0.851
Angular range angular_range— – 0.1900 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha4108000.0000
Real-space data points n_real_points39
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.494; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.395; Smooth: 0.658
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd1upla_
Class classa — All alpha proteins
Fold Fold folda.118 — alpha-alpha superhelix
Superfamily Superfamily superfamilya.118.1 — ARM repeat
Family Family familya.118.1.15 — Mo25 protein
Domain ID domain_idd1uplb_
Class classa — All alpha proteins
Fold Fold folda.118 — alpha-alpha superhelix
Superfamily Superfamily superfamilya.118.1 — ARM repeat
Family Family familya.118.1.15 — Mo25 protein

CATH v4.4 (2 domains)

Domain ID domain_id1uplA00
Class class1 — Mainly Alpha
Architecture architecture25 — Alpha Horseshoe
Topology topology10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily10 — Leucine-rich Repeat Variant
Domain ID domain_id1uplB00
Class class1 — Mainly Alpha
Architecture architecture25 — Alpha Horseshoe
Topology topology10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily10 — Leucine-rich Repeat Variant
▶

8. Citations (1)

▶

9. Files and Curves (10)
