2wtk

Structure of the heterotrimeric LKB1-STRADalpha-MO25alpha complex

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CALCIUM-BINDING PROTEIN 39

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	STE20-RELATED KINASE ADAPTER PROTEIN ALPHA × 1 （Q7RTN6） SERINE/THREONINE-PROTEIN KINASE 11 × 1 （Q15831） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 SULFATE ION × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	STE20-RELATED KINASE ADAPTER PROTEIN ALPHA × 1 （Q7RTN6） SERINE/THREONINE-PROTEIN KINASE 11 × 1 （Q15831） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAB39_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–341； UniProt 1–341 Author chain D； PDBConstruct 1–341； UniProt 1–341

STE20-RELATED KINASE ADAPTER PROTEIN ALPHA

HOMO SAPIENS

UniProt Q7RTN6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	CALCIUM-BINDING PROTEIN 39 × 1 （Q9Y376） SERINE/THREONINE-PROTEIN KINASE 11 × 1 （Q15831） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 SULFATE ION × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	CALCIUM-BINDING PROTEIN 39 × 1 （Q9Y376） SERINE/THREONINE-PROTEIN KINASE 11 × 1 （Q15831） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STRAA_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–373； UniProt 59–431 Author chain E； PDBConstruct 1–373； UniProt 59–431

SERINE/THREONINE-PROTEIN KINASE 11

HOMO SAPIENS

UniProt Q15831

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	CALCIUM-BINDING PROTEIN 39 × 1 （Q9Y376） STE20-RELATED KINASE ADAPTER PROTEIN ALPHA × 1 （Q7RTN6） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 SULFATE ION × 1 water × 3	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 3	CALCIUM-BINDING PROTEIN 39 × 1 （Q9Y376） STE20-RELATED KINASE ADAPTER PROTEIN ALPHA × 1 （Q7RTN6） PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	STK11_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–305； UniProt 43–347 Author chain F； PDBConstruct 1–305； UniProt 43–347

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2wtk
Deposition date deposition_date	2009-09-16
Structure title title	Structure of the heterotrimeric LKB1-STRADalpha-MO25alpha complex
Keywords keywords	;TRANSFERASE-METAL-BINDING PROTEIN COMPLEX, TRANSFERASE METAL-BINDING PROTEIN COMPLEX, KINASE, NUCLEUS, SERINE/THREONINE-PROTEIN KINASE, PSEUDOKINASE, PHOSPHOPROTEIN, SIGNAL TRANSDUCTION, TRANSFERASE, NUCLEOTIDE-BINDING ;; TRANSFERASE/METAL-BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2wtk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2wtk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

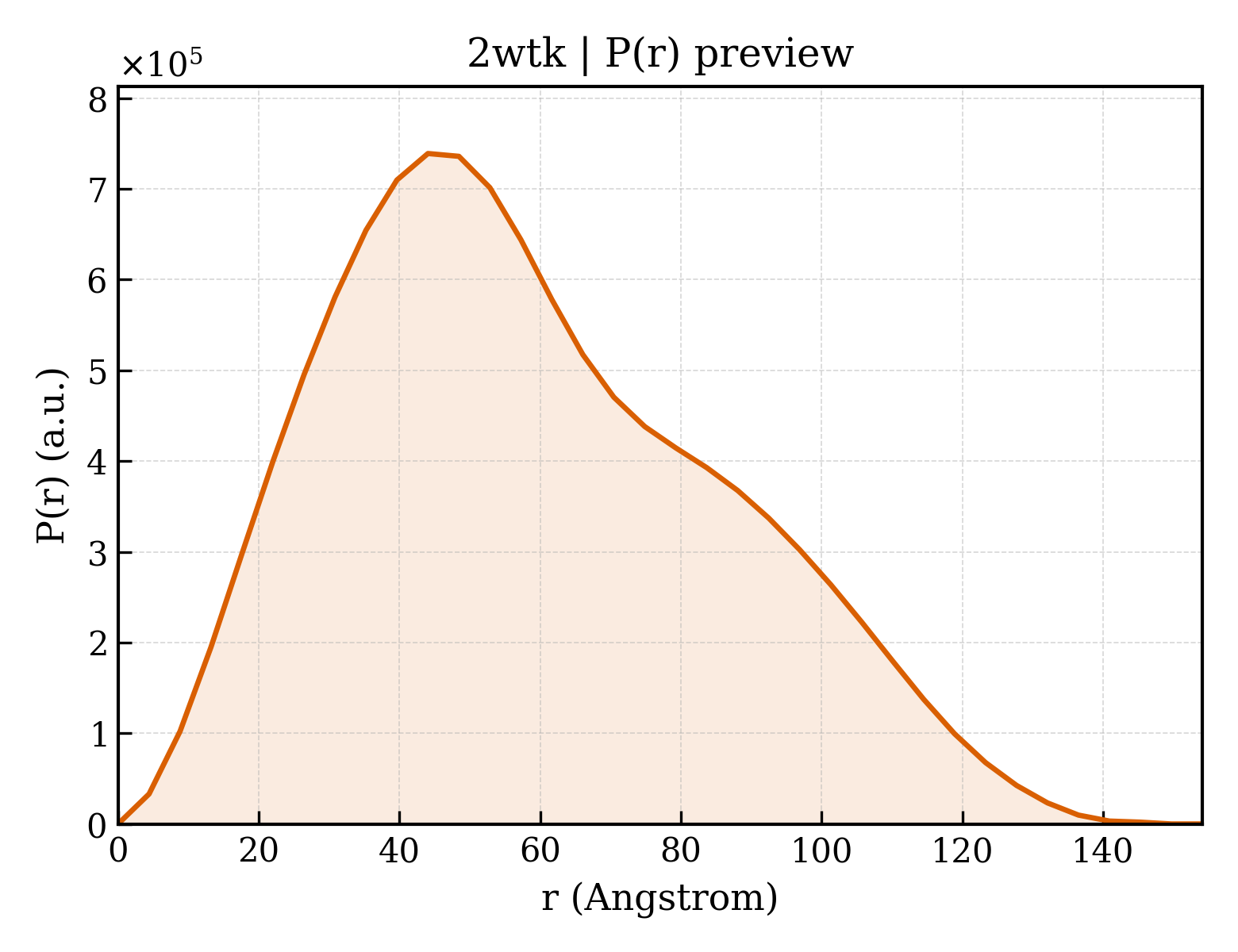

2wtk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.56 Å
Rg (electron density)	29.66 Å
Total Rg	30.41 Å
Atom count	7308
Residues	901
Excluded volume	131060 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2wtk__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2wtk__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	CALCIUM-BINDING PROTEIN 39
Molecular weight formula_weight	39922.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	14850

MPFPFGKSHKSPADIVKNLKESMAVLEKQDISDKKAEKATEEVSKNLVAMKEILYGTNEKEPQTEAVAQLAQELYNSGLLSTLVADLQLIDFEGKKDVAQIFNNILRRQIGTRTPTVEYICTQQNILFMLLKGYESPEIALNCGIMLRECIRHEPLAKIILWSEQFYDFFRYVEMSTFDIASDAFATFKDLLTRHKLLSAEFLEQHYDRFFSEYEKLLHSENYVTKRQSLKLLGELLLDRHNFTIMTKYISKPENLKLMMNLLRDKSRNIQFEAFHVFKVFVANPNKTQPILDILLKNQAKLIEFLSKFQNDRTEDEQFNDEKTYLVKQIRDLKRPAQQEA

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	SPODOPTERA FRUGIPERDA

Entity 2 Entity 2 polymer

Description description	STE20-RELATED KINASE ADAPTER PROTEIN ALPHA
Molecular weight formula_weight	41748.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

MSSFLPEGGCYELLTVIGKGFEDLMTVNLARYKPTGEYVTVRRINLEACSNEMVTFLQGELHVSKLFNHPNIVPYRATFIADNELWVVTSFMAYGSAKDLICTHFMDGMNELAIAYILQGVLKALDYIHHMGYVHRSVKASHILISVDGKVYLSGLRSNLSMISHGQRQRVVHDFPKYSVKVLPWLSPEVLQQNLQGYDAKSDIYSVGITACELANGHVPFKDMPATQMLLEKLNGTVPCLLDTSTIPAEELTMSPSRSVANSGLSDSLTTSTPRPSNGDSPSHPYHRTFSPHFHHFVEQCLQRNPDARPSASTLLNHSFFKQIKRRASEALPELLRPVTPITNFEGSQSQDHSGIFGLVTNLEELEVDDWEF

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	SPODOPTERA FRUGIPERDA

Entity 3 Entity 3 polymer

Description description	SERINE/THREONINE-PROTEIN KINASE 11
Molecular weight formula_weight	34299.8 kDa
EC 编号 ec_number	2.7.11.1
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

AKLIGKYLMGDLLGEGSYGKVKEVLDSETLCRRAVKILKKKKLRRIPNGEANVKKEIQLLRRLRHKNVIQLVDVLYNEEKQKMYMVMEYCVCGMQEMLDSVPEKRFPVCQAHGYFCQLIDGLEYLHSQGIVHKDIKPGNLLLTTGGTLKISALGVAEALHPFAADDTCRTSQGSPAFQPPEIANGLDTFSGFKVDIWSAGVTLYNITTGLYPFEGDNIYKLFENIGKGSYAIPGDCGPPLSDLLKGMLEYEPAKRFSIRQIRQHSWFRKKHPPAEAPVPIPPSPDTKDRWRSMTVVPYLEDLHGA

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	SPODOPTERA FRUGIPERDA

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	506.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	102

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2wtka_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.15 — Mo25 protein

Domain ID domain_id	d2wtkc1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.0 — automated matches

Domain ID domain_id	d2wtkd_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.1 — ARM repeat
Family Family family	a.118.1.15 — Mo25 protein

Domain ID domain_id	d2wtkf1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamily	d.144.1 — Protein kinase-like (PK-like)
Family Family family	d.144.1.0 — automated matches

CATH v4.4 (10 domains)

Domain ID domain_id	2wtkA01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2wtkB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	2wtkB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	2wtkC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	2wtkC02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	2wtkD01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	2wtkE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	2wtkE02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

Domain ID domain_id	2wtkF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily	20 — Phosphorylase Kinase; domain 1

Domain ID domain_id	2wtkF02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily	10 — Transferase(Phosphotransferase) domain 1

▶

Unit-cell length a length_a	118.360 Å
Unit-cell length b length_b	118.360 Å
Unit-cell length c length_c	390.012 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.650 Å
Low-resolution limit resolution_low	19.900 Å
R factor r_factor	0.2400
R_work r_work	0.2400
R_free r_free	0.2910
