SAXSdb — 8vsu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calcium-binding protein 39

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–341	Not recorded	Serine/threonine-protein kinase STK11 × 1 （Q15831） Isoform 3 of STE20-related kinase adapter protein alpha × 1 （Q7RTN6） ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.86 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8VSU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1UPK Crystal structure of MO25 in complex with a C-terminal peptide of STRAD Deposited 2003-10-07	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–341（341 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5；15% PEG 20000, 0.1 M MES PH 5.0, 3.3% W/V D-GLUCOSE MONOHYDRATE.	Resolution 1.85 Å R-free 0.230
1UPL Crystal structure of MO25 alpha Deposited 2003-10-07	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–341（341 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；15 % PEG 20000, 0.1 M MES PH 6.5, 4.4 % GAMMA BUTYROLACTONE	Resolution 2.60 Å R-free 0.280
1UPL Crystal structure of MO25 alpha Deposited 2003-10-07	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–341（341 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；15 % PEG 20000, 0.1 M MES PH 6.5, 4.4 % GAMMA BUTYROLACTONE	Resolution 2.60 Å R-free 0.280
2WTK Structure of the heterotrimeric LKB1-STRADalpha-MO25alpha complex Deposited 2009-09-16	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–341（341 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PH 8.5	Resolution 2.65 Å R-free 0.291
2WTK Structure of the heterotrimeric LKB1-STRADalpha-MO25alpha complex Deposited 2009-09-16	Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–341（341 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PH 8.5	Resolution 2.65 Å R-free 0.291
3GNI Structure of STRAD and MO25 Deposited 2009-03-17	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–341（341 aa）	Not recorded	CIT CITRIC ACID × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；293 K；0.1 M MES pH 6.4, 10% PEG8000, 0.25 microL of 1 M NDSB-256, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.35 Å R-free 0.254
4FZA Crystal structure of MST4-MO25 complex Deposited 2012-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 11–334（324 aa） Fragment：Mo25-like, UNP residues 11-334	Not recorded	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.1M Tris pH 8.0, 20% PEG 350 mme, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.15 Å R-free 0.252
4FZD Crystal structure of MST4-MO25 complex with WSF motif Deposited 2012-07-06	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–334（324 aa） Fragment：Mo25-like, UNP residues 11-334	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.1M Tris pH 8.0, 18% PEG 350 mme, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.25 Å R-free 0.260
4FZF Crystal structure of MST4-MO25 complex with DKI Deposited 2012-07-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 11–334（324 aa） Fragment：Mo25-like, UNP residues 11-334	Not recorded	DKI 5-AMINO-3-{[4-(AMINOSULFONYL)PHENYL]AMINO}-N-(2,6-DIFLUOROPHENYL)-1H-1,2,4-TRIAZOLE-1-CARBOTHIOAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.1M Tris pH 8.0, 20% PEG 350 mme, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.64 Å R-free 0.309
4NZW Crystal Structure of STK25-MO25 Complex Deposited 2013-12-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 8–334（327 aa） Fragment：UNP RESIDUES 8-334	Not recorded	J60 5-[(E)-(5-CHLORO-2-OXO-1,2-DIHYDRO-3H-INDOL-3-YLIDENE)METHYL]-N-[2-(DIETHYLAMINO)ETHYL]-2,4-DIMETHYL-1H-PYRROLE-3-CARBOXAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.1M HEPES PH 7.0, 1M SODIUM CITRATE, VAPOR DIFFUSION, SITTING DROP, temperature 277.0K	Resolution 3.58 Å R-free 0.275
4O27 Crystal structure of MST3-MO25 complex with WIF motif Deposited 2013-12-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 11–333（323 aa） Fragment：Mo25-like, UNP residues 11-333	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MN MANGANESE (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；0.1M Tris pH 8.5, 2.0M Ammonium sulfate, VAPOR DIFFUSION, SITTING DROP, temperature 289K	Resolution 3.19 Å R-free 0.260

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAB39_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–341； UniProt 1–341

Serine/threonine-protein kinase STK11

Homo sapiens

UniProt Q15831

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain C； UniProt 1–433	Not recorded	Calcium-binding protein 39 × 1 （Q9Y376） Isoform 3 of STE20-related kinase adapter protein alpha × 1 （Q7RTN6） ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.86 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8VSU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2WTK Structure of the heterotrimeric LKB1-STRADalpha-MO25alpha complex Deposited 2009-09-16	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 43–347（305 aa） Fragment：KINASE DOMAIN, RESIDUES 43-347	Mutation：YES	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PH 8.5	Resolution 2.65 Å R-free 0.291
2WTK Structure of the heterotrimeric LKB1-STRADalpha-MO25alpha complex Deposited 2009-09-16	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 43–347（305 aa） Fragment：KINASE DOMAIN, RESIDUES 43-347	Mutation：YES	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PH 8.5	Resolution 2.65 Å R-free 0.291
4ZDR Crystal structure of 14-3-3[zeta]-LKB1 fusion protein Deposited 2015-04-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 333–340（8 aa） Fragment：UNP residues 1-230,UNP residues 333-340 Chain B 333–340（8 aa） Fragment：UNP residues 1-230,UNP residues 333-340	Mutation：T240E Mutation：T240E	GOL GLYCEROL × 3 SO4 SULFATE ION × 2 TME PROPANE × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；289 K；1.4 M Li2SO4, 0.1 M BIS-TRIS propane	Resolution 2.90 Å R-free 0.245
5WXN Structure of the LKB1 and 14-3-3 complex Deposited 2017-01-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 331–343（13 aa） Fragment：UNP residues 331-343 Chain D 331–343（13 aa） Fragment：UNP residues 331-343	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.15 M ammonium chloride, 18% PEG3350	Resolution 2.93 Å R-free 0.254

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	STK11_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 17–449； UniProt 1–433

Isoform 3 of STE20-related kinase adapter protein alpha

Homo sapiens

UniProt Q7RTN6

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain B； UniProt 1–394	Not recorded	Calcium-binding protein 39 × 1 （Q9Y376） Serine/threonine-protein kinase STK11 × 1 （Q15831） ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.6 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.86 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8VSU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2WTK Structure of the heterotrimeric LKB1-STRADalpha-MO25alpha complex Deposited 2009-09-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 59–431（373 aa） Fragment：PSEUDOKINASE DOMAIN, RESIDUES 59-431	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PH 8.5	Resolution 2.65 Å R-free 0.291
2WTK Structure of the heterotrimeric LKB1-STRADalpha-MO25alpha complex Deposited 2009-09-16	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 59–431（373 aa） Fragment：PSEUDOKINASE DOMAIN, RESIDUES 59-431	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PH 8.5	Resolution 2.65 Å R-free 0.291
3GNI Structure of STRAD and MO25 Deposited 2009-03-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 59–431（373 aa） Fragment：Protein kinase domain	Not recorded	CIT CITRIC ACID × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.4；293 K；0.1 M MES pH 6.4, 10% PEG8000, 0.25 microL of 1 M NDSB-256, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.35 Å R-free 0.254

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	STRAA_HUMAN
Isoform	Q7RTN6-3
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 15–408； UniProt 1–394

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8vsu
Deposition date deposition_date	2024-01-24
Structure title title	Cryo-EM structure of LKB1-STRADalpha-MO25alpha heterocomplex
Keywords keywords	serine/threonine kinase, pseudokinase, complex, TRANSFERASE; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.65 Å
Radius of gyration Rg (electron density) rg_electron	30.68 Å
Forward intensity I(0) i0	177391000.00
Molecular weight molecular_weight	107940.0 kDa
Excluded volume excluded_volume	136200 Å³
Envelope volume envelope_volume	180020 Å³
Hydration-shell volume shell_volume	47714 Å³
Envelope diameter envelope_diameter	101.9 Å
Shell Rg shell_rg	38.77 Å
Envelope Rg envelope_rg	30.35 Å
Shape Rg shape_rg	30.68 Å
Total Rg total_rg	31.41 Å
Total atoms total_atoms	15240
Residues n_residues	941
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.6 Å
Rg (real space) rg_real	31.43 Å
Rg uncertainty (real space) rg_real_error	0.51 Å
I(0) (real space) i0_real	1.7740e+08
I(0) uncertainty (real space) i0_real_error	2.7250e+06
Rg (reciprocal space) rg_reciprocal	31.53 Å
I(0) (reciprocal space) i0_reciprocal	177400000.0000
Solution quality estimate total_estimate	0.8959
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	42.5 Å
Skewness Skewness skewness	0.131
Kurtosis Kurtosis kurtosis	-0.440
Angular range angular_range	— – 0.2500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	62020000.0000
Real-space data points n_real_points	51
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.925; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.893

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Calcium-binding protein 39
Molecular weight formula_weight	41997.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	15240

MPFPFGKSHKSPADIVKNLKESMAVLEKQDISDKKAEKATEEVSKNLVAMKEILYGTNEKEPQTEAVAQLAQELYNSGLLSTLVADLQLIDFEGKKDVAQIFNNILRRQIGTRTPTVEYICTQQNILFMLLKGYESPEIALNCGIMLRECIRHEPLAKIILWSEQFYDFFRYVEMSTFDIASDAFATFKDLLTRHKLLSAEFLEQHYDRFFSEYEKLLHSENYVTKRQSLKLLGELLLDRHNFTIMTKYISKPENLKLMMNLLRDKSRNIQFEAFHVFKVFVANPNKTQPILDILLKNQAKLIEFLSKFQNDRTEDEQFNDEKTYLVKQIRDLKRPAQQEAGSGATNFSLLKQAGDVEENPG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Serine/threonine-protein kinase STK11
Molecular weight formula_weight	50649.8 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

PDYKDDDDKENLYFQGMEVVDPQQLGMFTEGELMSVGMDTFIHRIDSTEVIYQPRRKRAKLIGKYLMGDLLGEGSYGKVKEVLDSETLCRRAVKILKKKKLRRIPNGEANVKKEIQLLRRLRHKNVIQLVDVLYNEEKQKMYMVMEYCVCGMQEMLDSVPEKRFPVCQAHGYFCQLIDGLEYLHSQGIVHKDIKPGNLLLTTGGTLKISDLGVAEALHPFAADDTCRTSQGSPAFQPPEIANGLDTFSGFKVDIWSAGVTLYNITTGLYPFEGDNIYKLFENIGKGSYAIPGDCGPPLSDLLKGMLEYEPAKRFSIRQIRQHSWFRKKHPPAEAPVPIPPSPDTKDRWRSMTVVPYLEDLHGADEDEDLFDIEDDIIYTQDFTVPGQVPEEEASHNGQRRGLPKAVCMNGTEAAQLSTKSRAEGRAPNPARKACSASSKIRRLSACKQQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Isoform 3 of STE20-related kinase adapter protein alpha
Molecular weight formula_weight	47861.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

PHHHHHHENLYFQGMSFLTNDASSESIASFSKQEVMSSFLPEGGCYELLTVIGKGFEDLMTVNLARYKPTGEYVTVRRINLEACSNEMVTFLQGELHVSKLFNHPNIVPYRATFIADNELWVVTSFMAYGSAKDLICTHFMDGMNELAIAYILQGVLKALDYIHHMGYVHRSVKASHILISVDGKVYLSGLRSNLSMISHGQRQRVVHDFPKYSVKVLPWLSPEVLQQNLQGYDAKSDIYSVGITACELANGHVPFKDMPATQMLLEKLNGTVPCLLDTSTIPAEELTMSPSRSVANSGLSDSLTTSTPRPSNGDSPSHPYHRTFSPHFHHFVEQCLQRNPDARPSASTLLNHSFFKQIKRRASEALPELLRPVTPITNFEGSQSQDHSGIFGLVTNLEELEVDDWEFGSGATNFSLLKQAGDVEENPG

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.86 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	124780

fit	/app/data/saxs_computation/vs/8vsu/8vsu.fit
pddf	/app/data/pr_computation/vs/8vsu/8vsu.pr.out
profile	/app/data/saxs_computation/vs/8vsu/8vsu.dat

Cryo-EM structure of LKB1-STRADalpha-MO25alpha heterocomplex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calcium-binding protein 39

State in the Current Structure

Other States of the Same Protein in the Database

Serine/threonine-protein kinase STK11

State in the Current Structure

Other States of the Same Protein in the Database

Isoform 3 of STE20-related kinase adapter protein alpha

State in the Current Structure

Other States of the Same Protein in the Database

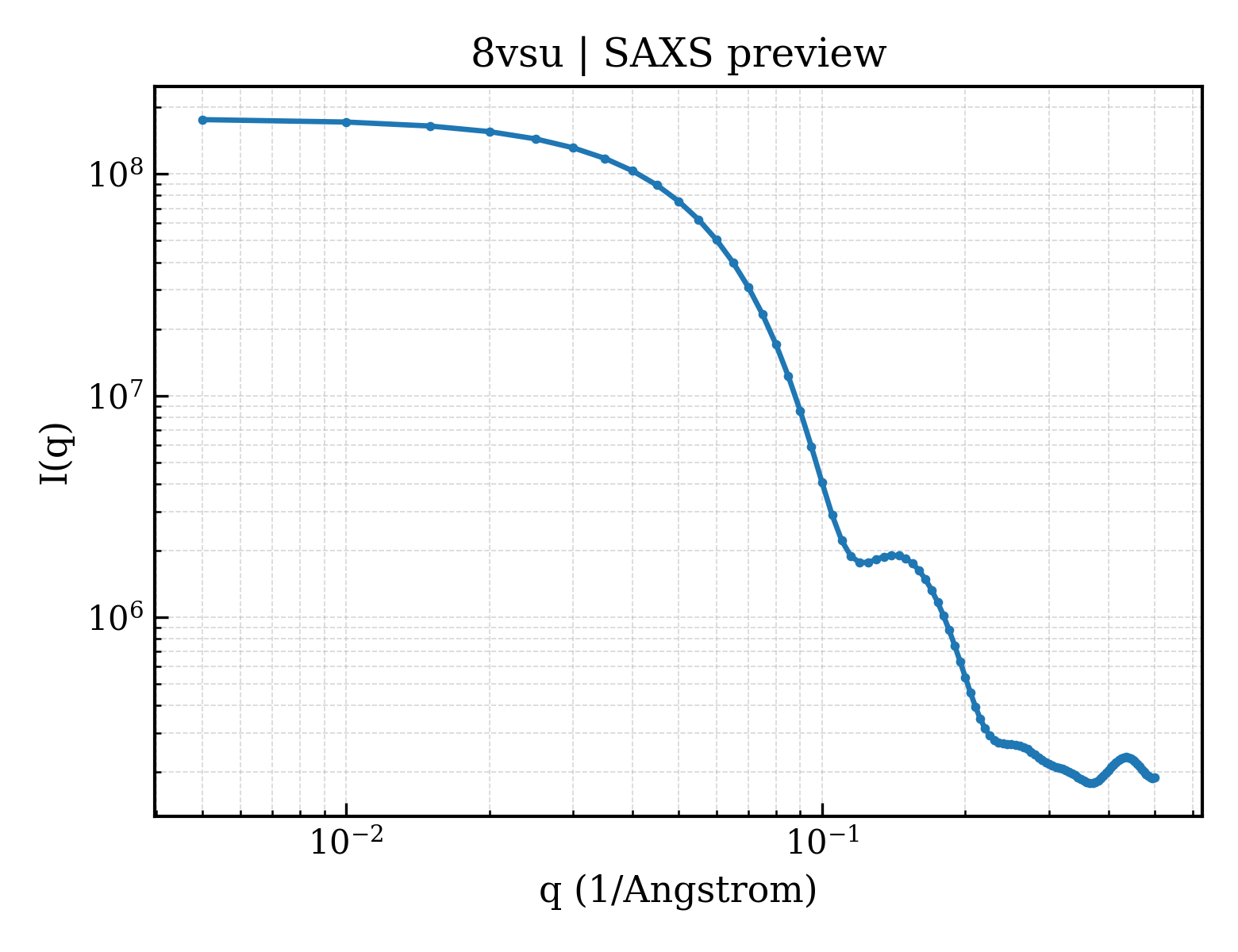

SAXS scattering curve SAXS Profile
