1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1vps
沉积日期 deposition_date	1997-03-07
结构标题 title	POLYOMAVIRUS VP1 PENTAMER COMPLEXED WITH A DISIALYLATED HEXASACCHARIDE
关键词 keywords	VIRUS COAT PROTEIN, OLIGOSACCHARIDE BINDING, VIRUS ASSEMBLY, SIALIC ACID, Viral protein; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.63 Å
回转半径 Rg (电子) rg_electron	33.53 Å
零角强度 I(0) i0	411570000.00
分子量 molecular_weight	163110.0 kDa
排除体积 excluded_volume	203790 Å³
包络体积 envelope_volume	258690 Å³
水化壳体积 shell_volume	59968 Å³
包络直径 envelope_diameter	105.3 Å
壳层 Rg shell_rg	43.26 Å
包络 Rg envelope_rg	33.41 Å
形状 Rg shape_rg	33.46 Å
总 Rg total_rg	34.45 Å
总原子数 total_atoms	11464
残基数 n_residues	1429
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	103.1 Å
Rg (实空间) rg_real	34.37 Å
Rg 误差 (实空间) rg_real_error	0.54 Å
I(0) (实空间) i0_real	4.1160e+08
I(0) 误差 (实空间) i0_real_error	6.3890e+06
Rg (倒空间) rg_reciprocal	34.53 Å
I(0) (倒空间) i0_reciprocal	411600000.0000
解质量估计 total_estimate	0.8973
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	49.3 Å
偏度 Skewness skewness	0.003
峰度 Kurtosis kurtosis	-0.540
角度范围 angular_range	— – 0.2300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	117500000.0000
实空间数据点数 n_real_points	47
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.928; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.967; Smooth: 0.910

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	POLYOMAVIRUS VP1 PENTAMER
分子量 formula_weight	32087.2 kDa
来源方法 src_method	man
拷贝数 entity_count	5

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E
原子数 atom_count	13591

GGMEVLDLVTGPDSVTEIEAFLNPRMGQPPTPESLTEGGQYYGWSRGINLATSDTEDSPGNNTLPTWSMAKLQLPMLNEDLTCDTLQMWEAVSVKTEVVGSGSLLDVHGFNKPTDTVNTKGISTPVEGSQYHVFAVGGEPLDLQGLVTDARTKYKEEGVVTIKTITKKDMVNKDQVLNPISKAKLDKDGMYPVEIWHPDPAKNENTRYFGNYTGGTTTPPVLQFTNTLTTVLLDENGVGPLCKGEGLYLSCVDIMGWRVTRNYDVHHWRGLPRYFKITLRKRWVKNPYP

来源 Source

来源生物 organism	Murine polyomavirus
NCBI 分类编号 ncbi_taxonomy_id	10634
宿主生物 host_organism	Escherichia coli

Entity 2 branched

描述 description	;N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-3)-[N-acetyl-alpha-neuraminic acid-(2-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	965.9 kDa
来源方法 src_method	man
拷贝数 entity_count	5

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2127

▼

6. 折叠分类 (SCOP + CATH) 10 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d1vpsa_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
超家族 Superfamily superfamily	b.121.6 — Group I dsDNA viruses
家族 Family family	b.121.6.1 — Papovaviridae-like VP

结构域编号 domain_id	d1vpsb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
超家族 Superfamily superfamily	b.121.6 — Group I dsDNA viruses
家族 Family family	b.121.6.1 — Papovaviridae-like VP

结构域编号 domain_id	d1vpsc_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
超家族 Superfamily superfamily	b.121.6 — Group I dsDNA viruses
家族 Family family	b.121.6.1 — Papovaviridae-like VP

结构域编号 domain_id	d1vpsd_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
超家族 Superfamily superfamily	b.121.6 — Group I dsDNA viruses
家族 Family family	b.121.6.1 — Papovaviridae-like VP

结构域编号 domain_id	d1vpse_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.121 — Nucleoplasmin-like/VP (viral coat and capsid proteins)
超家族 Superfamily superfamily	b.121.6 — Group I dsDNA viruses
家族 Family family	b.121.6.1 — Papovaviridae-like VP

CATH v4.4 (5 domains)

结构域编号 domain_id	1vpsA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	175 — Polyomavirus Vp1; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

结构域编号 domain_id	1vpsB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	175 — Polyomavirus Vp1; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

结构域编号 domain_id	1vpsC00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	175 — Polyomavirus Vp1; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

结构域编号 domain_id	1vpsD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	175 — Polyomavirus Vp1; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

结构域编号 domain_id	1vpsE00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	175 — Polyomavirus Vp1; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Capsid protein VP1,Polyomavirus

▶

7. 引用文献 (4)

▶

晶胞边长 a length_a	221.500 Å
晶胞边长 b length_b	221.500 Å
晶胞边长 c length_c	99.800 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	30

空间群 space_group	P 31 2 1
空间群编号 int_tables_number	152
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1770
R_work r_work	0.1770
R_free r_free	0.2050

fit	/app/data/saxs_computation/vp/1vps/1vps.fit
pddf	/app/data/pr_computation/vp/1vps/1vps.pr.out
profile	/app/data/saxs_computation/vp/1vps/1vps.dat

POLYOMAVIRUS VP1 PENTAMER COMPLEXED WITH A DISIALYLATED HEXASACCHARIDE

SAXS 散射曲线 SAXS Profile

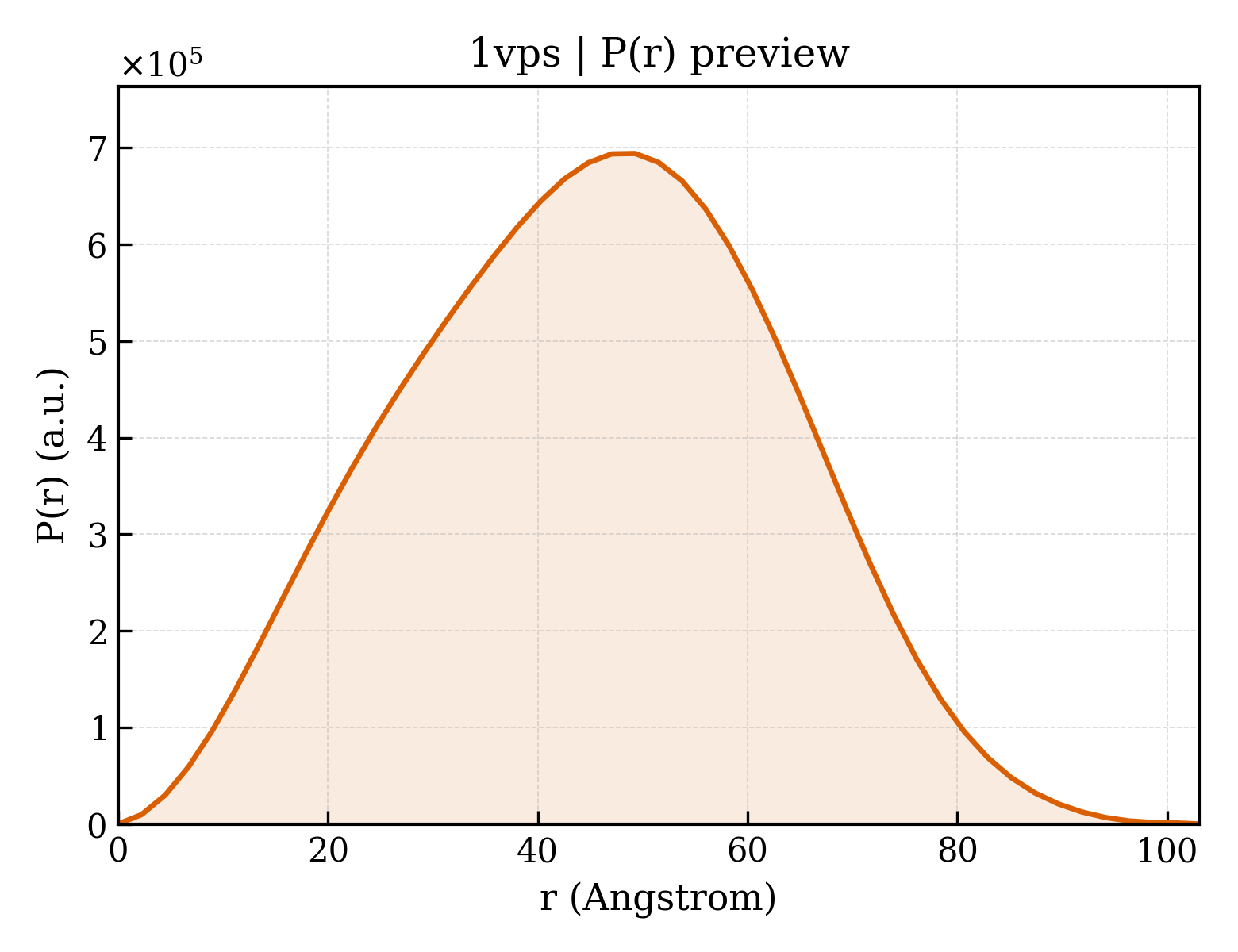

P(r) 距离分布 P(r) Distribution
