Vaccinia virus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 2 | S-ADENOSYLMETHIONINE × 2 water × 2 | Consistent with protein count |
| UniProt name | PAP2_VACCV |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 16–348； UniProt 1–333 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1vpt |
| Deposition date deposition_date | 1996-03-20 |
| Structure title title | AS11 VARIANT OF VACCINIA VIRUS PROTEIN VP39 IN COMPLEX WITH S-ADENOSYL-L-METHIONINE |
| Keywords keywords | RNA CAP, POLY(A) POLYMERASE, VACCINIA, METHYLTRANSFERASE; METHYLTRANSFERASE |
| Experimental Method method | X-RAY DIFFRACTION |

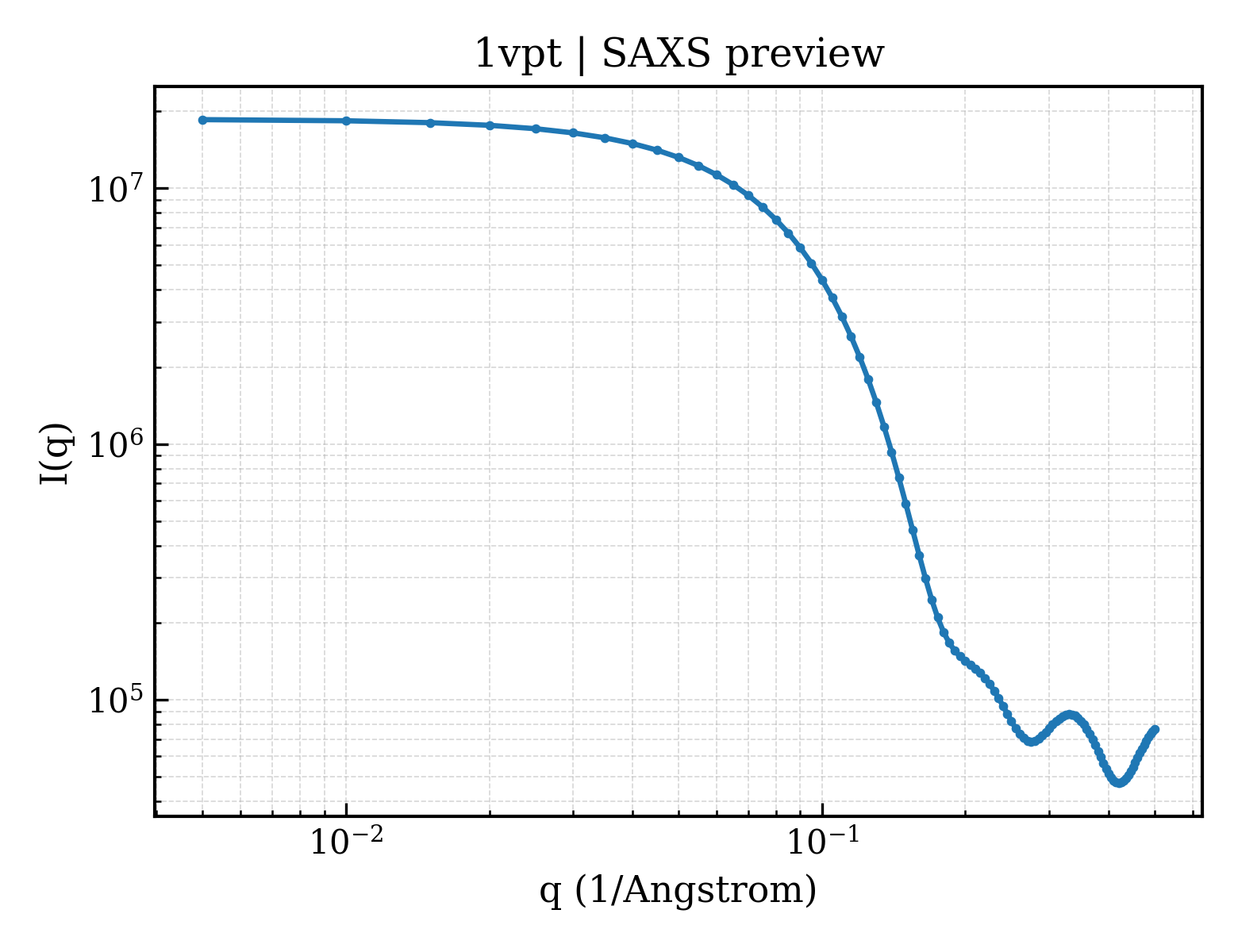

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 29.73 Å |
| Rg (electron density) | 29.24 Å |
| Total Rg | 29.83 Å |
| Atom count | 4860 |
| Residues | 582 |
| Excluded volume | 87624 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1vpta_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.66 — S-adenosyl-L-methionine-dependent methyltransferases |
| Superfamily Superfamily superfamily | c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases |
| Family Family family | c.66.1.25 — mRNA cap methylase |
| Domain ID domain_id | 1vptA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 150 — Vaccinia Virus protein VP39 |
